AP-120 Series AP Mounting Kit
Installation Guide
The AP-120 series mounting kit provides additional mounting options for the AP-120 series wireless
access points. The mounting kit includes the following items:
Adapter for 15/16-inch (2.4-cm) ceiling tile rails. Use this adapter to mount the AP on rails that are
recessed above the surface of the ceiling tile.
Adapter for 9/16-inch (1.4 cm) ceiling tile rails. Use this adapter to adapt the integrated mounting
tabs to narrower rails (recessed or flush).
Wall-mounting plate. Use this plate to mount the AP on a wall using the integrated mounting tabs.
Desk stand. Use the desk stand to support the AP on a desk or shelf.
This installation note describes how to attach and use the items in the mounting kit.
For complete information about selecting the location and setting up the AP, see the Aruba AP-120
Series Indoor Access Point Installation Guide.
Using a Ceiling Rail Adapter
The AP-120 series enclosure provides integrated mounting tabs that are designed to snap onto a
standard, non-recessed 15/16-inch (1.4 cm) ceiling tile rail; the optional mounting kit is not required for
this installation. The mounting kit includes adapters that allow you to mount the AP-120 series unit on a
recessed or non-recessed standard 9/16-inch (1.4 cm) rail or on a recessed standard 15/16-inch (1.4 cm)
rail
To attach either ceiling rail adapter to the AP-120 series access point:
1. Place the adapter against the back of the AP with the adapter at an angle of approximately 30
degrees to the tabs (see
2. Twist the adapter clockwise until it snaps into place in the tabs (see

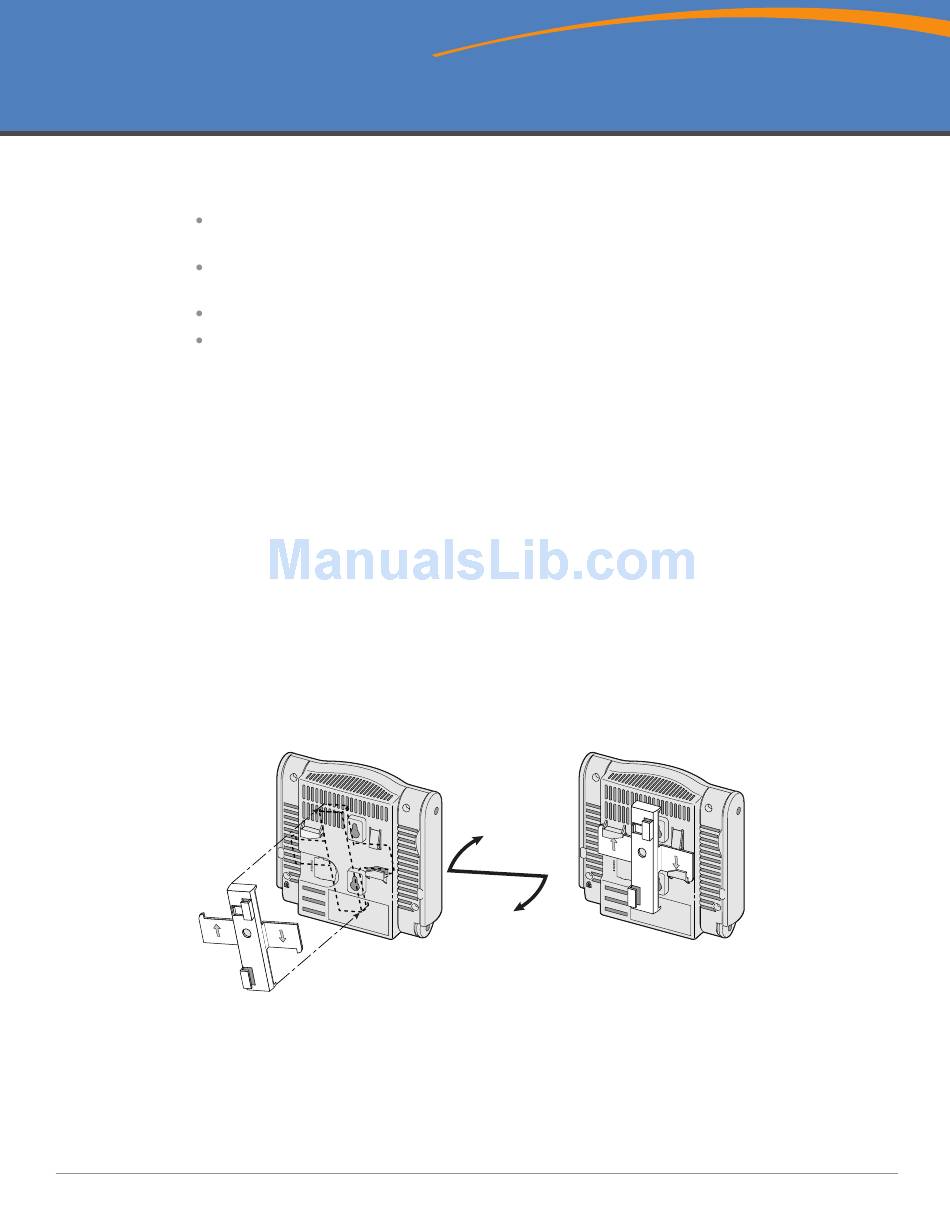

Figure 1 Attaching the Ceiling Mount Adapter
After the adapter is attached to the AP, mount the AP on a ceiling tile rail as follows:
1. Align the AP with a ceiling tile rail, placing the AP so that the mounting tabs on the adapter are at an
angle of approximately 30 degrees to the ceiling tile rail (see
Make sure that slack in connected cables is above the ceiling tiles.
0510459-02 | February 2008
Figure 1).
Figure 1).
ap12_010
Figure 2).
