Alcatel-Lucent OAW-AP204 Installation Manual

OAW-AP200 Series Wireless Access Point
Installation Guide

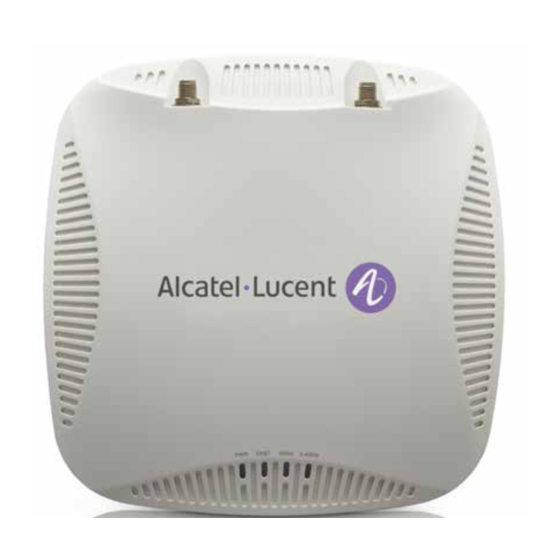

The Alcatel OAW-AP204 and OAW-AP205 wireless access points support the
IEEE 802.11n and 802.11ac standards for high-performance WLAN. These access
points use MIMO (Multiple-in, Multiple-out) technology and other high-
throughput mode techniques to deliver high-performance, 802.11n 2.4 GHz and
802.11ac 5 GHz functionality while simultaneously supporting legacy 802.11a/b/g
wireless services. The OAW-AP200 Series access points work only in
conjunction with an Alcatel Switch.
The Alcatel OAW-AP200 Series access point provides the following capabilities:
 Wireless transceiver
 Protocol-independent networking functionality
 IEEE 802.11a/b/g/n/ac operation as a wireless access point
 IEEE 802.11a/b/g/n/ac operation as a wireless air monitor
Compatibility with IEEE 802.3af PoE

 Central management configuration and upgrades through a switch
The OAW-AP200 Series requires AOS-W 6.4.1.0 or later.
Package Contents
OAW-AP204 or OAW-AP205 Access Point

 9/16" and 15/16" Ceiling Rail Adapters
Installation Guide (this document)

Inform your supplier if there are any incorrect, missing, or damaged parts. If
possible, retain the carton, including the original packing materials. Use
these materials to repack and return the unit to the supplier if needed.

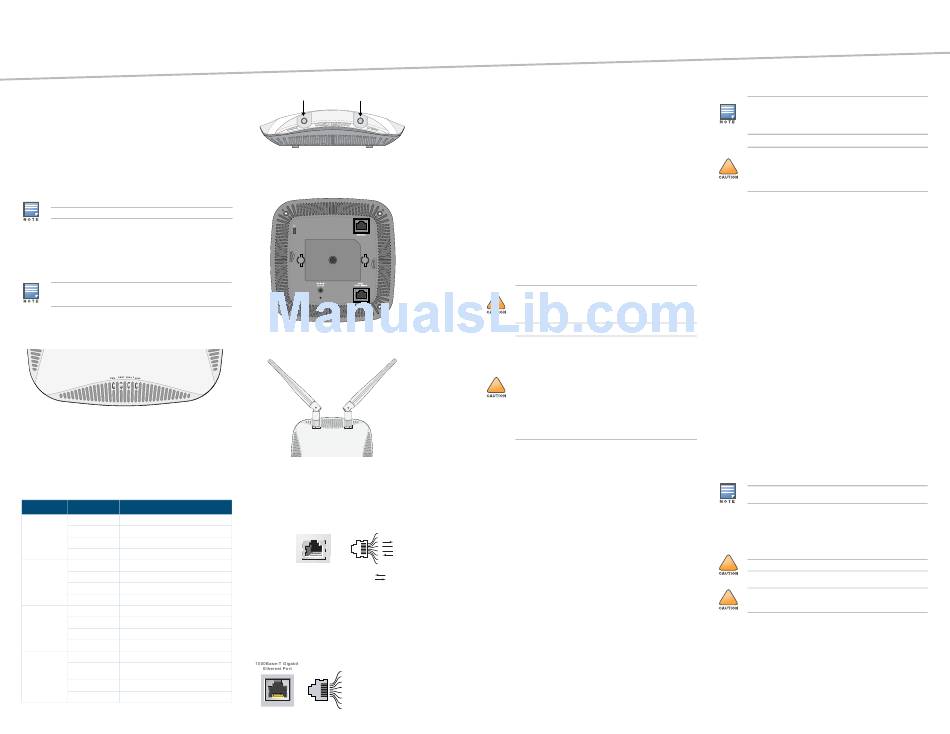

OAW-AP200 Series Hardware Overview
Figure 1 OAW-AP200 Series LEDs
LEDs
The OAW-AP200 Series is equipped with four LEDs that indicate the status of the
various components of the AP.
PWR: Indicates whether or not the OAW-AP200 Series is powered-on and

shows basic system status
 ENET: Indicates the status of the OAW-AP200 Series' Ethernet port
 5 GHz: Indicates the status of the 802.11a/n/ac radio
 2.4 GHz: Indicates the status of the 802.11b/g/n radio
Table 1 OAW-AP200 Series Series LED Meanings
LED Color/State Meaning
PWR Off No power to AP
Red Error condition
Green - Flashing AP booting
Green - Steady AP ready
ENET Off Ethernet link unavailable
Yellow - Steady 10/100Mbps Ethernet link established
Green - Steady 1000Mbps Ethernet link established
Flashing Ethernet link activity
5 GHz Off 5 GHz radio disabled
Yellow - Steady 5 GHz radio enabled in non-HT WLAN mode
Green - Steady 5 GHz radio enabled in HT WLAN mode
Flashing - Green 5 GHz Air or Spectrum Monitor
2.4 GHz Off 2.4 GHz radio disabled
Yellow - Steady 2.4 GHz radio enabled in non-HT WLAN
mode
Green - Steady 2.4 GHz radio enabled in HT WLAN mode
Flashing - Green 2.4 GHz Air or Spectrum Monitor
Figure 2 OAW-AP200 Series Side View (OAW-AP204 shown)
ANT0 ANT1
External Antenna Connectors
The OAW-AP204 is equipped with two external antenna connectors. The
connectors are labeled ANT0 and ANT1, and correspond to radio chains 0 and 1.
Figure 3 OAW-AP200 Series Rear
For optimal performance when using articulating direct-mount antennas,
professional installers must orient the antennas as pictured in Figure
Figure 4 OAW-AP204 Antenna Orientation
Console Port
The serial console port allows you to connect the AP to a serial terminal or a
laptop for direct local management. This port is an RJ-45 female connector with
the pinouts described in Figure 5. Connect it directly to a terminal or terminal
server using an Ethernet cable.
Figure 5 Serial Port Pin-Out
Serial RJ-45 Female
Console Port
Pin-Out
1
2
3 TxD
4 GND
5 GND
6 RxD
7
8
Direction
Input
Output
Ethernet Port
OAW-AP200 Series is equipped with one 10/100/1000Base-T (RJ-45) auto-sensing,
MDI/MDX wired-network connectivity port. This port supports IEEE 802.3af
Power over Ethernet (PoE) compliance, accepting 48 VDC (nominal) as a
standard defined Powered Device (PD) from a Power Sourcing Equipment (PSE)
such as a PoE midspan injector, or network infrastructure that supports This
port has a RJ-45 female connector with the pin-outs shown in Figure
Figure 6 Gigabit Ethernet Port Pin-Out
Signal Name Function
RJ-45 Female
Pin-Out
1 BI_DA+ Bi-directional pair +A
BI_DA-
2 Bi-directional pair -A
3 BI_DB+ Bi-directional pair +B
4 BI_DC+ Bi-directional pair +C
BI_DC- Bi-directional pair -C
5
6 BI_DB- Bi-directional pair -B
7 BI_DD+ Bi-directional pair +D
BI_DD- Bi-directional pair -D
8
DC Power Socket
If PoE is not available, an optional Alcatel AP AC-DC adapter kit (sold
separately) can be used to power the OAW-AP200 Series.
Additionally, a locally-sourced AC-to-DC adapter (or any DC source) can be used
to power this device, as long as it complies with all applicable local regulatory
requirements and the DC interface meets the following specifications:
 12 VDC (+/- 5%)/18W
 Center-positive 1.7/4.0 mm circular plug, 9.5 mm length
Reset Button
The reset button can be used to return the AP to factory default settings. To reset
the AP:
1. Power off the AP.
2. Press and hold the reset button using a small, narrow object, such as a
paperclip.
3. Power-on the AP without releasing the reset button. The power LED will
flash within 5 seconds.
4. Release the reset button.
The power LED will flash again within 15 seconds indicating that the reset is
completed. The AP will now continue to boot with the factory default settings.
Before You Begin
FCC Statement: Improper termination of access points installed in the
United States configured to non-US model controllers will be in violation of
!
the FCC grant of equipment authorization. Any such willful or intentional
violation may result in a requirement by the FCC for immediate termination
of operation and may be subject to forfeiture (47 CFR 1.80).
4, below.
EU Statement:
Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands.
Please refer to the AOS-W User Guide for details on restrictions.
Produit réseau local radio basse puissance operant dans la bande
fréquence 2.4 GHz et 5 GHz. Merci de vous referrer au AOS-W User Guide
pour les details des restrictions.
!
Low Power FunkLAN Produkt, das im 2.4 GHz und im 5 GHz Band arbeitet.
Weitere Informationen bezlüglich Einschränkungen finden Sie im AOS-W
User Guide.
Apparati Radio LAN a bassa Potenza, operanti a 2.4 GHz e 5 GHz. Fare
riferimento alla AOS-W User Guide per avere informazioni detagliate sulle
restrizioni.
Pre-Installation Network Requirements
After WLAN planning is complete and the appropriate products and their
placement have been determined, the Alcatel switch(s) must be installed and
initial setup performed before the Alcatel APs are deployed.
For initial setup of the switch, refer to the AOS-W Quick Start Guide for the
software version installed on your switch.
AP Pre-Installation Checklist
Before installing your OAW-AP200 Series AP, ensure that you have the following:
 CAT5e or better UTP cable of required length
One of the following power sources:

 IEEE 802.3af-compliant Power over Ethernet (PoE) source. The POE
source can be any power source equipment (PSE) switch or midspan PSE
device
Alcatel AP AC-DC adapter kit (sold separately)

 Alcatel Switch provisioned on the network:
 Layer 2/3 network connectivity to your access point
 One of the following network services:
 Alcatel Discovery Protocol (ADP)
DNS server with an "A" record

 DHCP Server with vendor-specific options
6. Summary of the Setup Process
Successful setup of an OAW-AP200 Series access point consists of five tasks,
which must be performed in this order:
1. Verify pre-installation connectivity.
2. Identify the specific installation location for each AP.
3. Install each AP.
4. Verify post-installation connectivity.
5. Configure each AP.
Alcatel-Lucent, in compliance with governmental requirements, has
designed the OAW-AP200 Series access points so that only authorized
network administrators can change the settings. For more information
about AP configuration, refer to the AOS-W Quick Start Guide and AOS-W
User Guide.
Access points are radio transmission devices and as such are subject to
governmental regulation. Network administrators responsible for the
!
configuration and operation of access points must comply with local
broadcast regulations. Specifically, access points must use channel
assignm ents appropriate to the location in which the access point will be
used.
Verifying Pre-Installation Connectivity
Before you install APs in a network environment, make sure that the APs are
able to locate and connect to the switch after power on.
Specifically, you must verify the following conditions:
 When connected to the network, each AP is assigned a valid IP address
 APs are able to locate the switch
Refer to the AOS-W Quick Start Guide for instructions on locating and
connecting to the switch.
Identifying Specific Installation Locations
You can mount the OAW-AP200 Series access point on a wall or on the ceiling.
Use the AP placement map generated by Alcatel's Airwave VisualRF Plan
software application to determine the proper installation location(s). Each
location should be as close as possible to the center of the intended coverage
area and should be free from obstructions or obvious sources of interference.
These RF absorbers/reflectors/interference sources will impact RF propagation
and should have been accounted for during the planning phase and adjusted for
in VisualRF plan.
Identifying Known RF Absorbers/Reflectors/Interference
Sources
Identifying known RF absorbers, reflectors, and interference sources while in
the field during the installation phase is critical. Make sure that these sources are
taken into consideration when you attach an AP to its fixed location. Examples
of sources that degrade RF performance include:
 Cement and brick
Objects that contain water

 Metal
Microwave ovens

 Wireless phones and headsets
Installing the AP
Service to all Alcatel-Lucent products should be performed by trained
service personnel only.
Using the Ceiling Rail Adapter
The OAW-AP200 Series ships with two ceiling rail adapters for 9/16" and 15/16"
ceiling rails. Additional wall mount adapters and ceiling rail adapters for other
rail styles are available as accessory kits.
!
Maximum supported weight of the ceiling rail adapter is 3.75 kg.
Make sure the AP fits securely on the ceiling tile rail when hanging the
!
device from the ceiling, because poor installation could cause it to fall onto
people or equipment.
1. Pull the necessary cables through a prepared hole in the ceiling tile near
where the AP will be placed.
2. Place the adapter against the back of the AP with the adapter at an angle of
approximately 30 degrees to the tabs (see Figure 7).
3. Twist the adapter clockwise until it snaps into place in the tabs (see
7).
Figure
