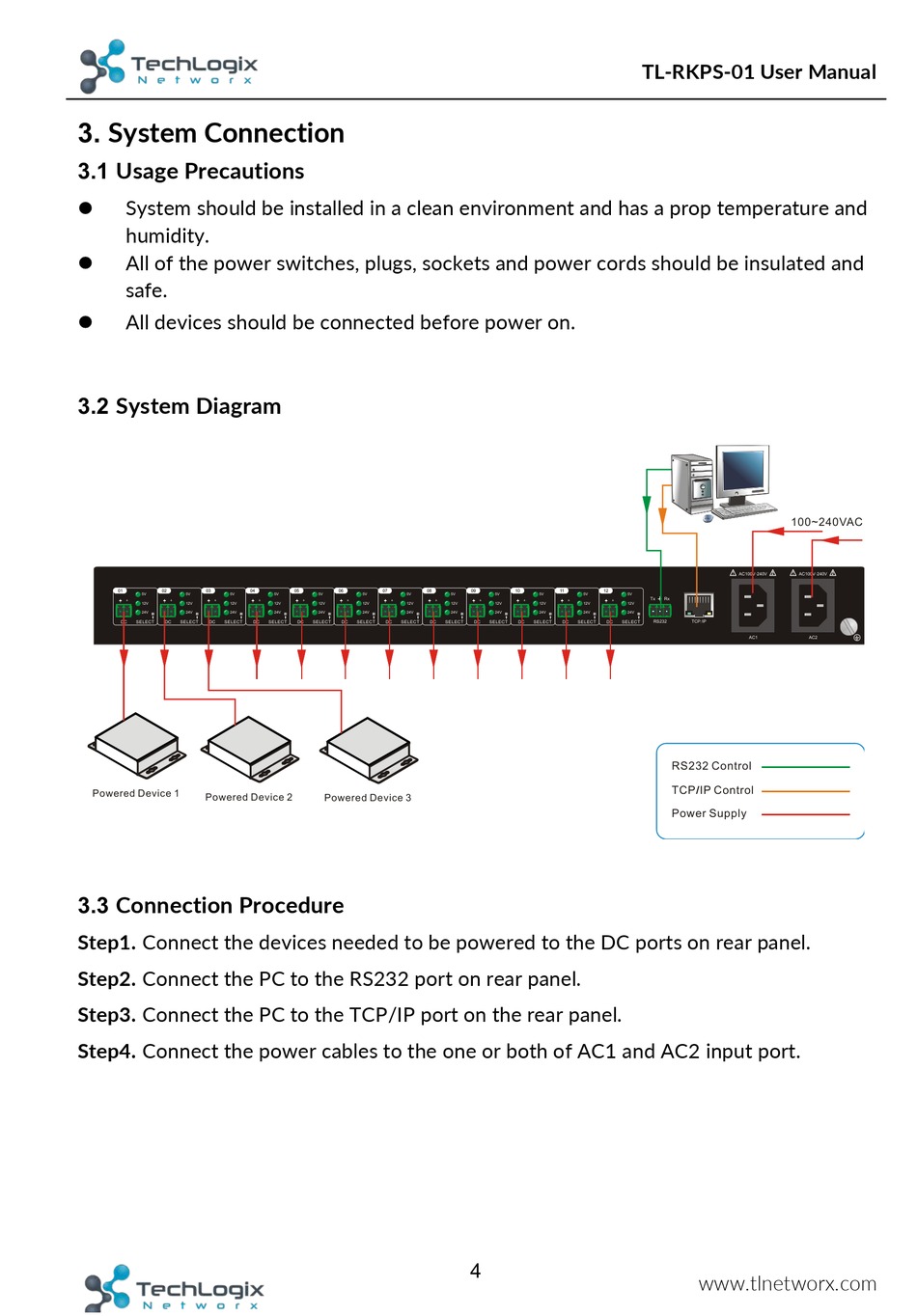

3. System Connection

3.1 Usage Precautions

System should be installed in a clean environment and has a prop temperature and
l
humidity.
All of the power switches, plugs, sockets and power cords should be insulated and
l
safe.
All devices should be connected before power on.
l

3.2 System Diagram

5V 5V 5V
+ + + + + +
12V 12V 12V
24V 24V 24V
DC SELECT DC SELECT DC SELECT
Powered Device 1
Powered Device 2

3.3 Connection Procedure

Step1. Connect the devices needed to be powered to the DC ports on rear panel.
Step2. Connect the PC to the RS232 port on rear panel.
Step3. Connect the PC to the TCP/IP port on the rear panel.
Step4. Connect the power cables to the one or both of AC1 and AC2 input port.
5V 5V 5V 5V
+ + + + + + + +
12V 12V 12V 12V
24V 24V 24V 24V
DC SELECT DC SELECT DC SELECT DC SELECT
Powered Device 3
5V 5V 5V 5V
+ + + + + + + +
12V 12V 12V 12V
24V 24V 24V 24V
DC SELECT DC SELECT DC SELECT DC SELECT
4
TL-RKPS-01 User Manual
