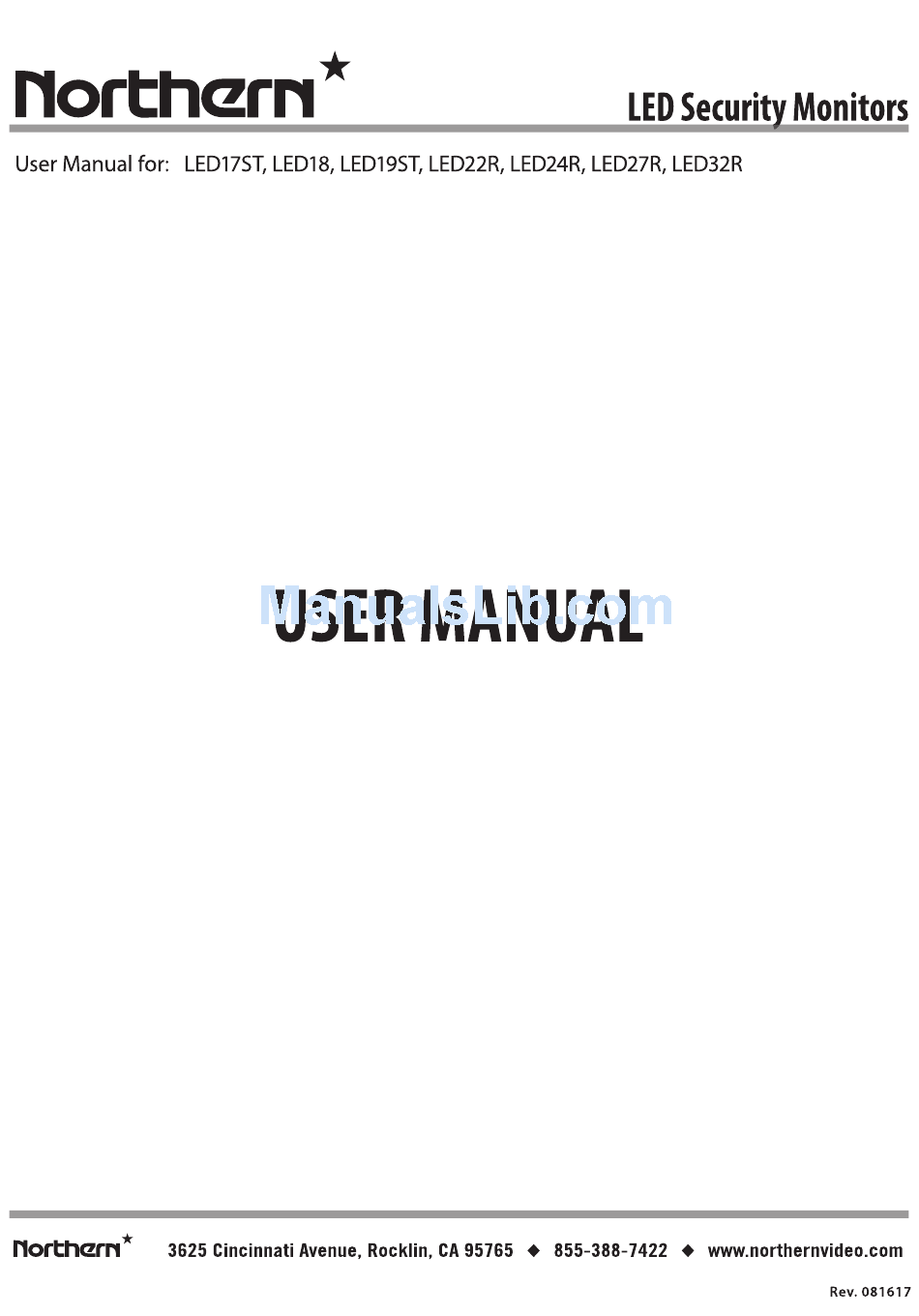

Northern LED17ST User Manual

Led security monitors
Hide thumbs Also See for LED17ST:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED17ST and is the answer not in the manual?

Questions and answers

Related Manuals for Northern LED17ST

Summary of Contents for Northern LED17ST

  • Page 2: Introduction & Package Contents

    1. Introduction & Package Contents Introduction Congratulations on your purchase. You can expect only the sharpest and most brilliant color images from this monitor. Featuring easy to use OSD controls and built in speakers, you will find this monitor both easy to use and a pleasure to view.

  • Page 3: Regulations & Maintenance

    3. Regulations & Maintenance FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 ◎ When the power cord or plug is damaged or frayed. ◎ If the product does not operate normally when the operation instructions are followed. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

  • Page 5: Product Specifications

    4. Product Specifications Specifications Model LED17ST LED19ST General Diagonal size 17” 19” Panel type TFT LCD, LED backlight Aspect ratio Number of pixels 1280 x 1024 1280 x 1024 Pixel pitch 0.264 x 0.264 mm 0.294 x 0.294 mm Color depth 16.7 Million Colors...
  • Page 6 Specifications Model LED18 General 18.5” Diagonal size Panel type TFT LCD, LED backlight Aspect ratio 16:9 Number of pixels 1366 x 768 Pixel pitch 0.28 mm Color depth 16.7 Million Colors Backlight Optical (typ.) Brightness 250 cd/m2 Contrast ratio 2000:1 Response time 5 ms ( Tr + Tf)
  • Page 7 Specifications Model LED22R LED24R General Diagonal size 21.5" 23.6" Panel type TFT LCD,LED backlight Aspect ratio 16:9 Number of pixels 1920 x 1080 Pixel pitch 0.24825 x 0.24825 mm 0.2715 x 0.2715 mm Color depth 16.7 Million Colors Backlight Optical (typ.) Brightness 280 cd/m2 Contrast ratio...
  • Page 8 Specifications Model LED27R General Diagonal size 27" Panel type TFT LCD, LED backlight Aspect ratio 16:9 Number of pixels 1920 x 1080 Pixel pitch 0.311 x 0.311 mm Color depth 16.7 Million Colors Optical (typ.) Brightness 250 cd/m2 Contrast ratio 1000:1 Response time 5 ms...
  • Page 9 Specifications Model LED32 General 32” Diagonal size Panel type TFT LCD, LED backlight Aspect ratio 16:9 Number of pixels 1920 X 1080 Pixel pitch 0.36375 X 0.36375 Color depth 16.7 Million Colors Optical (typ.) Brightness 300 cd/m2 Contrast ratio 1400 Response time 5 ms ( Tr + Tf)

  • Page 10: Monitor & Osd Control

    The LED color monitor has a simple control layout for controlling the monitor and OSD (On Screen Display) functions. The table below summarizes the control keys and their related functions. 5-Key feature (LED17ST and LED19ST) Keys Function Description To turn the power ON or OFF. Please wait for 6 seconds Power before the display appears.
  • Page 11 7 -key feature (LED18, LED27R and LED32R) KEYS FUNCTION DESCRIPTION Select Switch mode “VGA”, “HDMI 1”, “HDMI 2”, “AV1”. Menu Enter the main menu of the on-screen display (OSD). Vol - Decrease the value of volume. Vol + Increase the value of volume. Switch setting item.
  • Page 12 LED Status Display The following table describes the various power states of the LED monitor as represented by different LED color. 1. For LED19ST, LED22R and LED24R Power State LED Color Green Standby 2. For LED18 and LED27R Power State LED Color Blue Standby...

  • Page 13: Osd Control Functions

    Remote controller: For LED22R, LED24R, LED27R and LED32R POWER SWITCH MENU VOLUME - VOLUME + / Switch setting item VIDEO – Switch to VGA/HDMI 1/ HDMI 2/AV MODE – Source menu 6. OSD Control Functions 1. Picture Mode Press - OR + to select the picture mode “User, Normal, Vivid, User, Movie”...

  • Page 14: Sound Mode

    SOUND Mode 1. Volume Press - OR + to adjust volume level. 2. Mute Press - OR + to adjust Mute. “Off, On”. OPTION Mode 1. Language Left ，Right), Select (Down) to select language. Press - OR + ( 2. Key Lock Press - OR + to adjust Key Lock.
  • Page 15 OSD Language Options Press the - or + mobile option (Left，Right), Press the Select (Down) to select language. VGA Timing Item Resolution H Freq.(kHz) V Freq.(Hz) Note 640x400@70 31.460 70.080 640x480@60 31.469 59.940 640x480@72 37.861 72.809 640x480@75 37.500 75.000 720x400@70 31.460 70.080 800x600@56...

  • Page 16: Caring For Your Led Monitor

    7. Caring for your LED Monitor Caring for your LED Monitor The LED color monitor is a sensitive piece of electronic equipment. Proper care can prevent accidentally damaging the LED panel or the monitor itself. By following these guidelines you can ensure many years of trouble free use. 1.

  • Page 17: Frequently Asked Questions

    8. Frequently asked Questions Power button does not respond  Check the power cord to ensure that it is securely plugged into the monitor base and also into the electrical outlet.  Ensure there is electrical power coming from the AC outlet. another device to check for power.

This manual is also suitable for:

Led18Led19stLed24rLed27rLed22rLed32r
