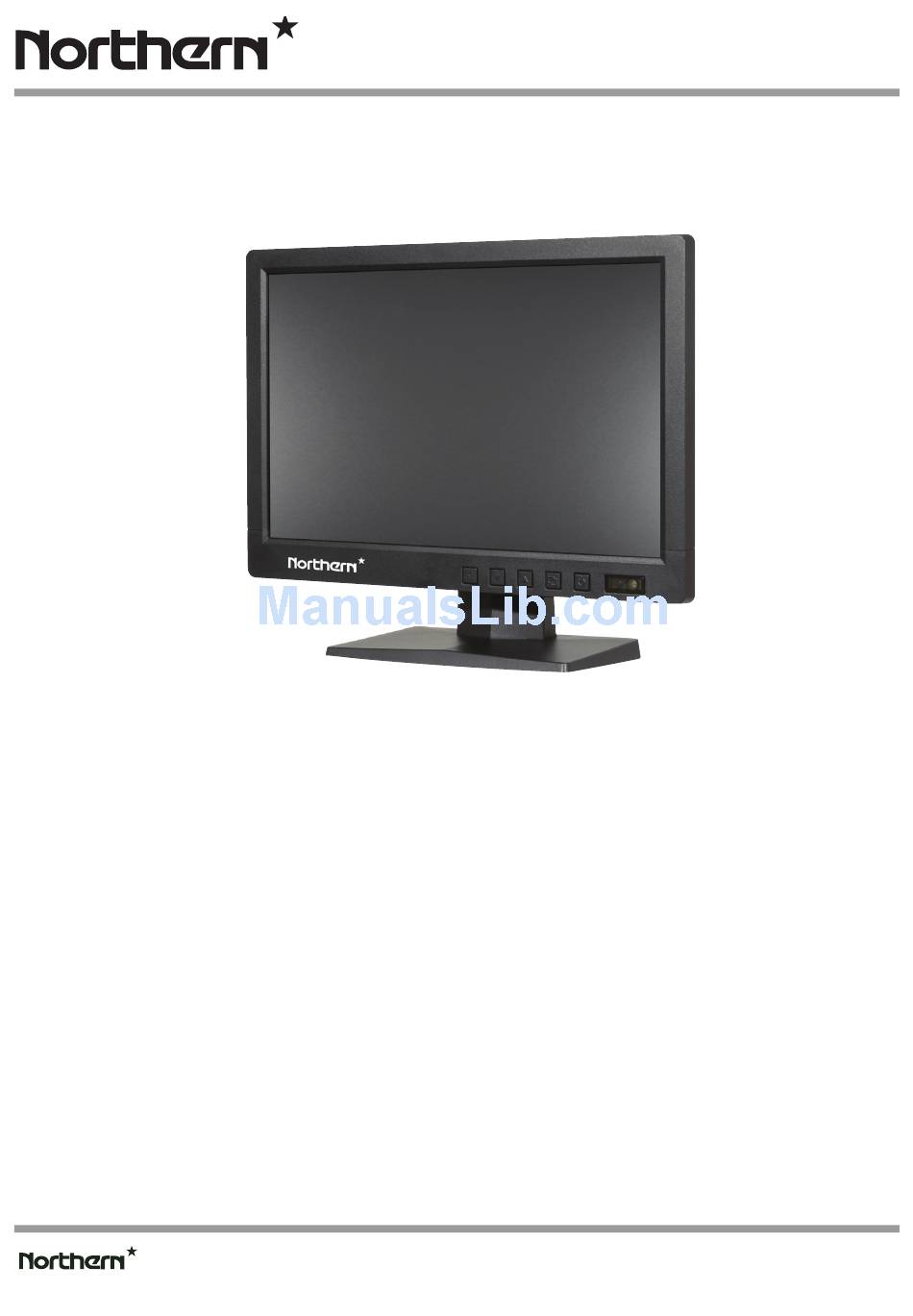

Page 1: User Guide
LED10 10.1” LED Monitor USER GUIDE ♦ ♦ 3625 Cincinnati Avenue, Rocklin, CA 95765 855-388-7422 www.northernvideo.com Rev. 050517... -
Page 2: Table Of Contents
LED10 User Manual Contents Important Information ........................3 Safety Warning ......................... 3 Notes ............................3 Introduction to the Product ......................4 Product Appearance ......................... 4 Performance Feature........................ 4 Connecting External Devices ......................5 Illustration of the main menu ......................6 Main Menu .......................... -
Page 3: Important Information
LED10 User Manual Important Information Safety Warning To use the product safely and correctly and to keep users from suffering harm or property loss, please observe the following safety precautions when installing, using and maintaining this device. Please read this handbook before operating the product and keep the handbook for future reference. -
Page 4: Introduction To The Product
LED10 User Manual Do not block up the ventilation opening. Install the monitor according to this handbook. Do not install the monitor near any heat source such as radiator, heat register or stove. Do not use unqualified connecting cables, which might cause equipment failure. -
Page 5: Connecting External Devices
LED10 User Manual Support 3D comb filter and 3D de-interlace. Multilevel menu display function. LED Panel for low energy consumption, long service life. Full HD LCD panel with top-ranking video process chip, enhancing the display of high-definition images. -
Page 6: Illustration Of The Main Menu
LED10 User Manual Illustration of the main menu Main Menu Press the menu button on the bottom left of the screen, and the main menu displayed on the screen. The submenus of the main menu: PC menu, Picture menu, Audio menu, OSD menu, Function menu and Geometry menu. -
Page 7: Pc Menu
LED10 User Manual PC Menu PC menu can set contrast, brightness, color temp and scale. Press ▲▼ button to adjust, press menu button to exit. Picture Menu Picture menu can set contrast, brightness, hue, saturation, sharpness, color temp, scale, overscan and picture mode. Press ▲▼ button to adjust, press menu button to exit. -
Page 8: Osd Menu
LED10 User Manual OSD Menu OSD menu can sleep timer, auto sleep, language, H-position, V-position, duration, transparency and reset defaults. Press ▲▼ button to adjust, press menu button to exit. (USB upgrade function according to port for optional display) Function Menu Function menu can set noise reduction and DLC. -
Page 9: Channel Selection
LED10 User Manual Channel Selection “Source” menu can select channel, the options include VGA, HDMI, BNC. Press ▲▼button to select, press menu button to exit. Cleaning 1. Please wipe dust and other particles with clean soft towel. 2. If it is still not clean, use only a small mount of neutral cleaner on the soft towel. Wipe dry with a dry towel. - Page 10 LED10 User Manual Inferior image，normal sound Poor signal Vague image Double image Interfering lines in image Twisty image Poor signal Stripe in image Image vertically scrolls Inferior color No color Processing Method Change to another channel or signal path. Check if the signal line is connected.
