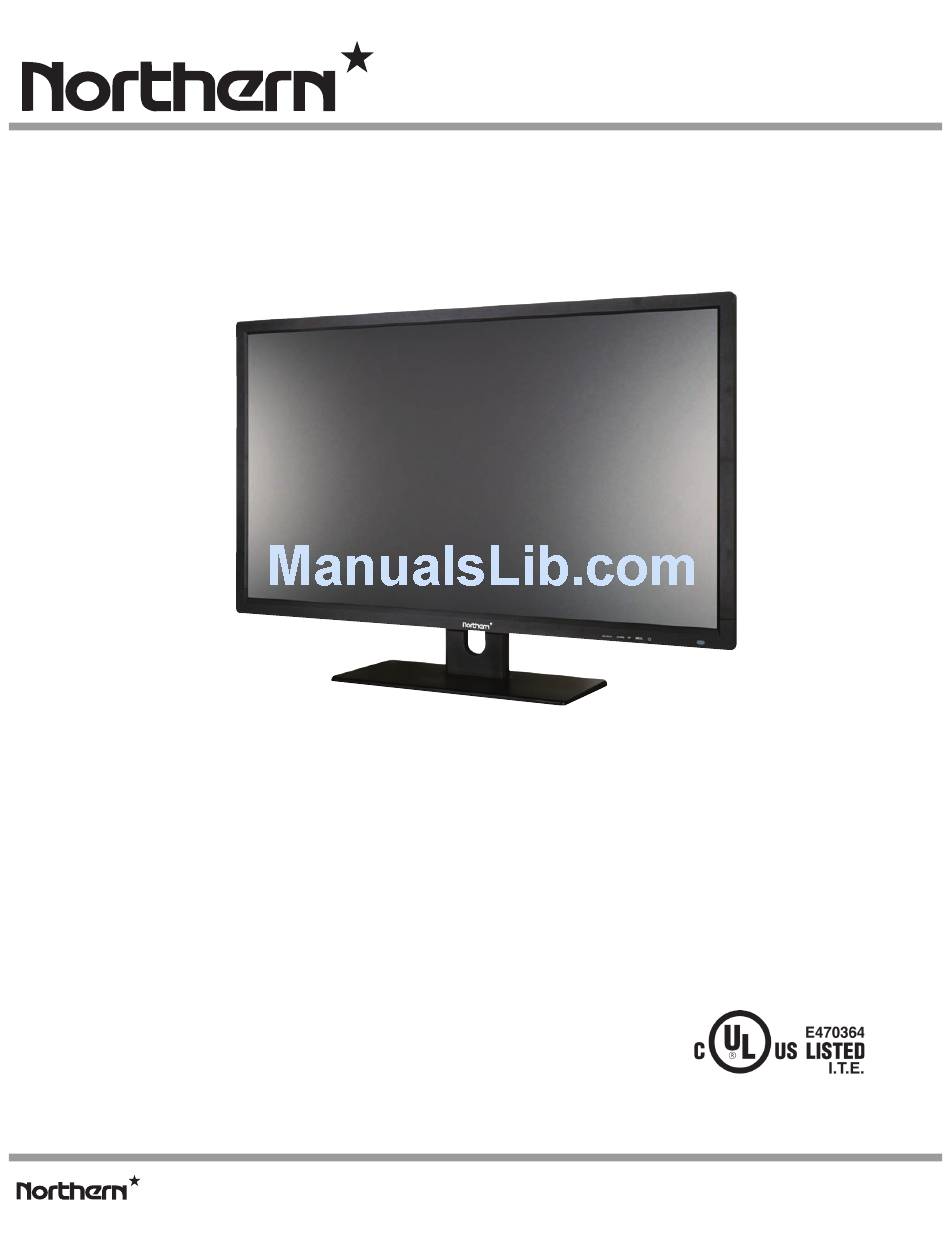

Page 1: User Guide
LED32 32” Widescreen LED Security Monitor USER GUIDE ♦ ♦ 3625 Cincinnati Avenue, Rocklin, CA 95765 855-388-7422 www.northernvideo.com Rev. 051216... -
Page 2: Table Of Contents
Contents SAFETY ……………………………………………………………….………………………………….………………..…….2 CAUTIONS…………………………………………………………………………………………...…….…………………….3 FCC RF INTERFERENCE STATEMENT …………………………………….………….………………...………………...3 CONNECTING WITH EXTERNAL EQUIPMENT……………………………..…………..……………….……………….. 4 CONTROLS AND FUNCTIONS……………………………………………..………..………………………..….……..5-7 MOUNTING GUIDE ……………………………………………………………..……….……………...……….……..……..8 ACCESSORIES …………………………………………………………………………………………..…………………….8 POWER INDICATOR……………………………………………………………………………………….…………………..9 DIMENSIONS …………………………………………………………………………………………….……………………..9 SPECIFICATIONS…………………………………………………………………….……………...…………………..……10 Safety 1. Read these instructions completely and comply with all requirements. 2. Retain these instructions for reference. Comply with all instructions and warnings, both in this manual and on the product. -
Page 3: Cautions
A. When the power cord or plug is damaged or frayed. B. If liquid has been spilled into the monitor. C. If the monitor has been exposed to rain, water or other liquids. D. If the monitor does not operate as expected as per the operating instructions. Adjust only those controls as de- scribed in the operating instructions;... -
Page 4: Connecting With External Equipment
- Reorient or relocate the receiving antenna. - Increase the space between the equipment and receiver. - Consult the dealer, an experienced radio, or a TV technician for help. - Only a shielded interface cable should be used. manufacturer could void the user's authority to operate such equipment. ... -
Page 5: Controls And Functions
Controls & Menu Opera n CONTROL KEYS/BUTTONS LED32 Buttons are located on the right underside of the bezel. To change the input selection, press SOURCE to display the pop-up menu, use up/down to highlight the desired source, then press MENU to complete the selection. -
Page 6: Audio Menu
stores custom adjustments to contrast/brightness/hue/ saturation/sharpness. B. Picture Menu for VGA and some HDMI Adjustments Contrast: Adjusts the contrast between light and dark areas of the picture. Brightness: Adjusts the overall picture shade and brightness. Color Temp: To adjust color reproduction choose between normal, warm (more red) &... - Page 7 H-Position: OSD horizontal position on the screen. V-Position: OSD vertical position on screen. Duration: OSD Menu timeout. Halftone: OSD Menu background opacity (allows viewing of the video behind the OSD menu). Reset Defaults: Restore monitor to factory default settings. Version: Displays firmware version number (not adjustable). 4.
-
Page 8: Mounting Guide
100mm. Note: Metric (M4 x 8 mm) is the type screw that should be used (do not use longer screws or the monitor may be damaged). For LED32 1. Before mounting the monitor, remove the base riser (vertical portion of the base) by removing the four screws near the top with a screwdriver. -
Page 9: Power Indicator
Power Indicator/Modes of Opera LED INDICATOR LED is off when power is off; LED glows green when power is on. The power management feature of the monitor is designed for security surveillance applications. When there is no video, the monitor remains ON to be instantly ready to display video when the source is changed or if a PC changes state from sleep/standby to active mode. -
Page 10: Specifications
LED32 SPECIFICATION LED32 Video System NTSC/PAL (Auto Sensing) Max Resolution 1920x1080 (Native) 720x400; 640x480; 800x600; 1024x768; 1280x1024; Supported Resolutions 1366x768; 1440x900; 1600x900; 1680x1050; 1920x1080 3D Comb Filter 3D De-Interlace OSD (On Screen Display) Backlight Active Display Area 32" Diagonal Impedance...
