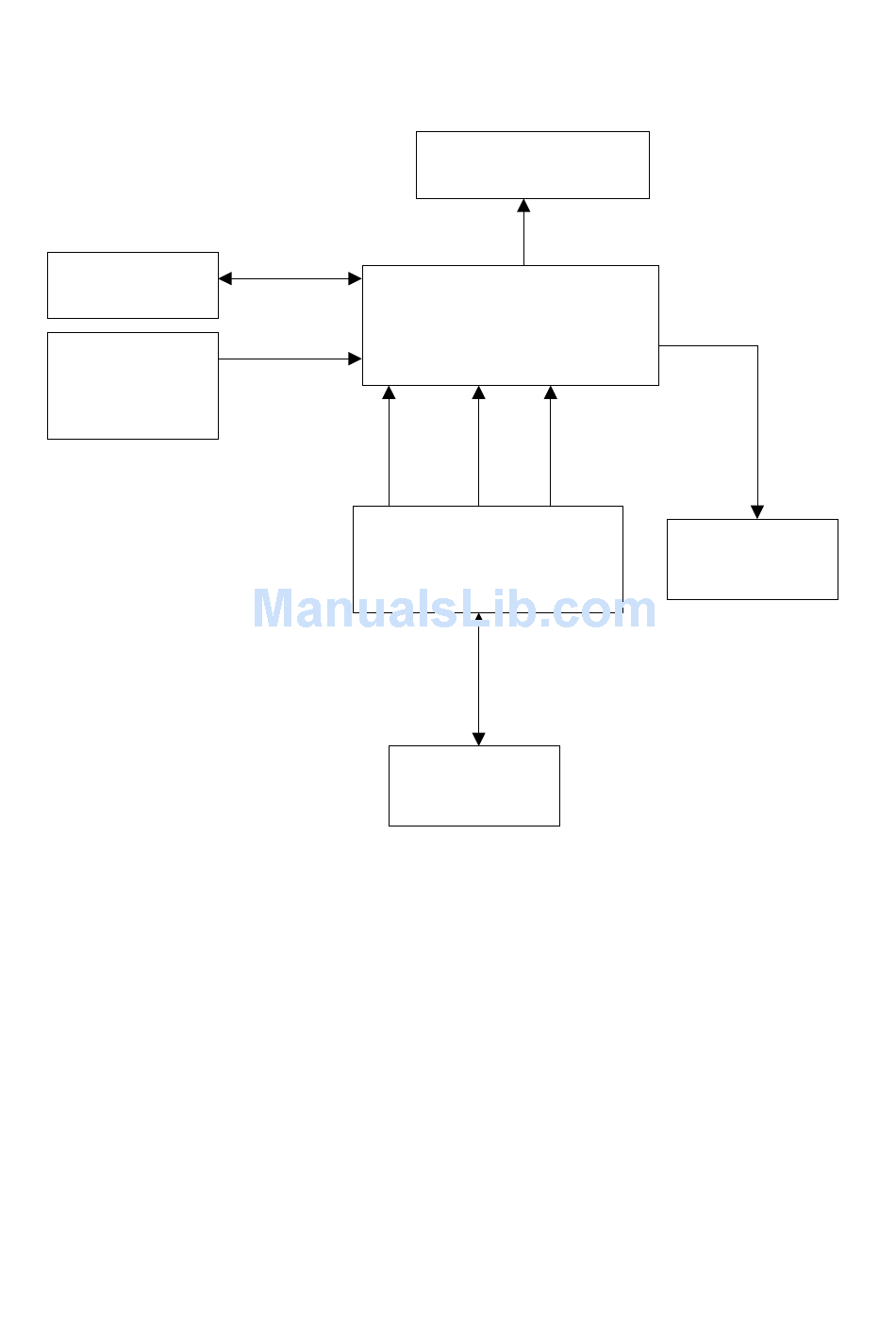

Main Board Diagram

Flash Rom
(U402)
OSD Control
Interface
(Key pad)
Panel Interface
(CN101)
TSUM16AK
(Include ADC, OSD)
(U401)
RXD
R
Hsync
TXD
G
B
Vsync
D-Sub
Connector
(CN405)
DB15_SDA
DB15_SCL
EEPROM
(U404)
13
EPR_SDA
EPR-SCL
EEPROM
(U403)
