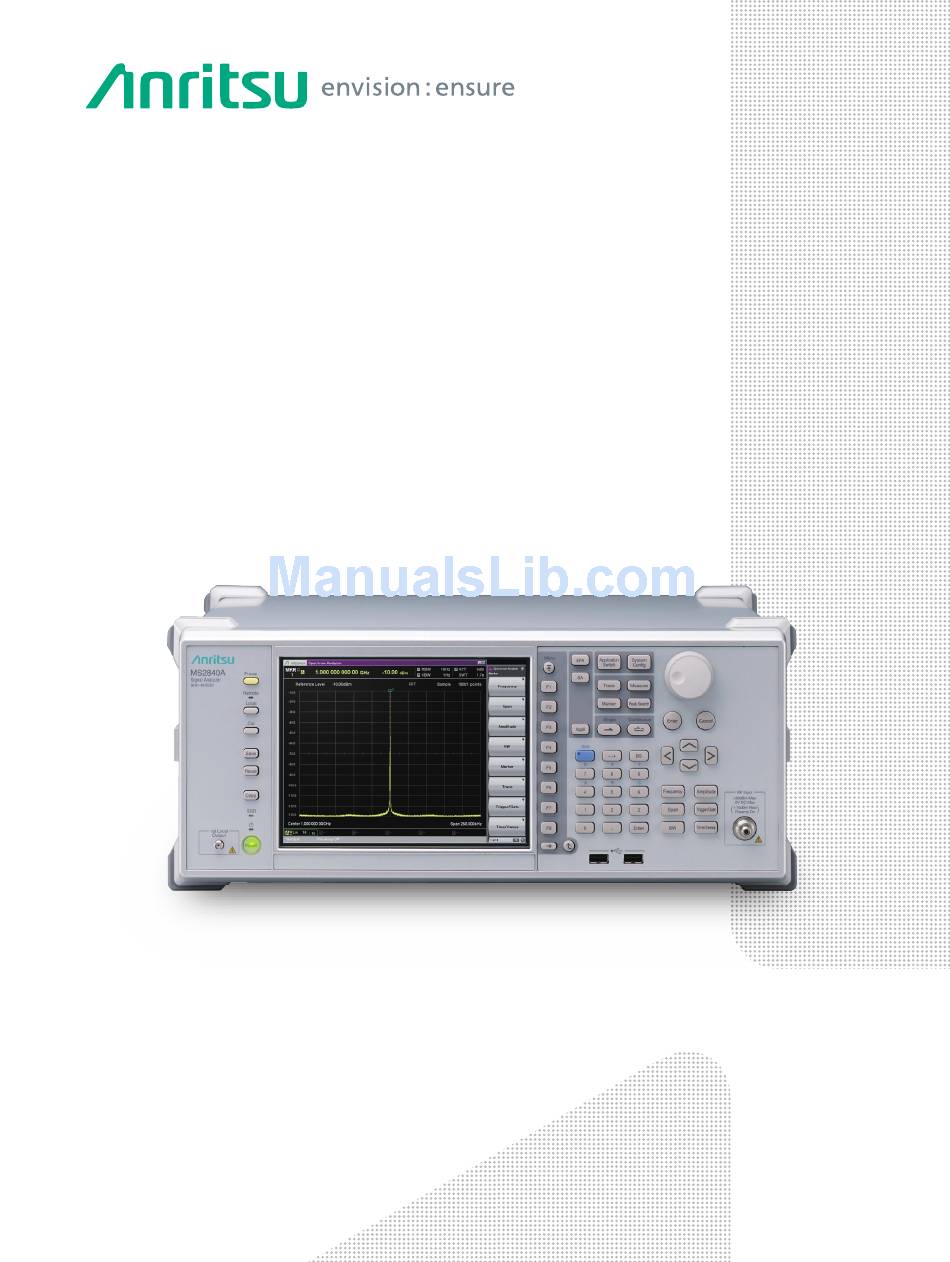

- Page 1 Configuration Guide Signal Analyzer MS2840A MS2840A-040: 9 kHz to 3.6 GHz MS2840A-041: 9 kHz to 6 GHz MS2840A-044: 9 kHz to 26.5 GHz MS2840A-046: 9 kHz to 44.5 GHz...
-
Page 2: Ms2840A
Frequency range: 9 kHz to 26.5 GHz MS2840A-044 Frequency range: 9 kHz to 44.5 GHz MS2840A-046 The following options are installed as standard and do not require separate orders when ordering the MS2840A-040/041/044. MX269000A Standard Software MS2840A-006 Analysis Bandwidth 10 MHz MS2840A-005 Bandwidth Extension to 31.25 MHz... -
Page 3: Ms2840A
BER Measurement Function MS2840A-026 the back of the MS2840A. * : The J1556A Aux Conversion Adapter is a standard accessory supplied with MS2840A-026. Step 9. Add built-in signal generator (Dedicated options for MS2840A-040/041) Outline Option No. Additional Information Covers 250 kHz to 3.6 GHz frequency range and adds waveform generator with 120 MHz 3.6 GHz Vector Signal Generator... -
Page 4: Ms2840A
Signal Analyzer MS2840A Step 9-1. Add options for vector signal generator (Requires MS2840A-020 or MS2840A-021) Outline Option No. Additional Information Expands lower limit of output level from –40 to –136 dBm. Vector Signal Generator Low-power Extension MS2840A-022 (Note: 5-dB drop in upper output level.) Vector Signal Generator ARB Memory Extension MS2840A-027 Expands ARB memory capacity from 64 to 256 Msamples. -
Page 5: Table Of Contents
Installation Kit (Required when retrofitting options or installing software) – Software Option Retrofit The following software options can be retrofitted. Order the Z1932A Installation Kit as well. The MS2840A does not require return to the Anritsu plant for software retrofitting. Model/Order No. Name Reference Steps... -
Page 6: Ms2840A
Generator (MS2840A-029/088). * 3: Requires Analog Measurement Software (MX269018A). * 4: The Rubidium Reference Oscillator can be retrofitted to the MS2840A-040/041 with installed High Stability Reference Oscillator. In this case, the Rubidium Reference Oscillator is functional. * 5: The 26.5 GHz Microwave Preamplifier or Microwave Preamplifier can be retrofitted to the MS2830A-044/046 with installed Preamplifier. -
Page 7: Ms2840A
MS2840A-101 Rubidium Reference Oscillator Retrofit The following options are installed as standard and do not require separate MS2840A-102 High Stability Reference Oscillator Retrofit orders when ordering the MS2840A-040/041/044. MS2840A-177 Analysis Bandwidth Extension to 62.5 MHz Retrofit MX269000A Standard Software MS2840A-178... -
Page 8: Ms2840A
Fax: +45-7211-2210 • Mexico Anritsu Company Ltd. • Russia Anritsu Company, S.A. de C.V. Unit 1006-7, 10/F., Greenfield Tower, Concordia Plaza, Anritsu EMEA Ltd. Av. Ejército Nacional No. 579 Piso 9, Col. Granada No. 1 Science Museum Road, Tsim Sha Tsui East, 11520 México, D.F., México...
