Unpacking

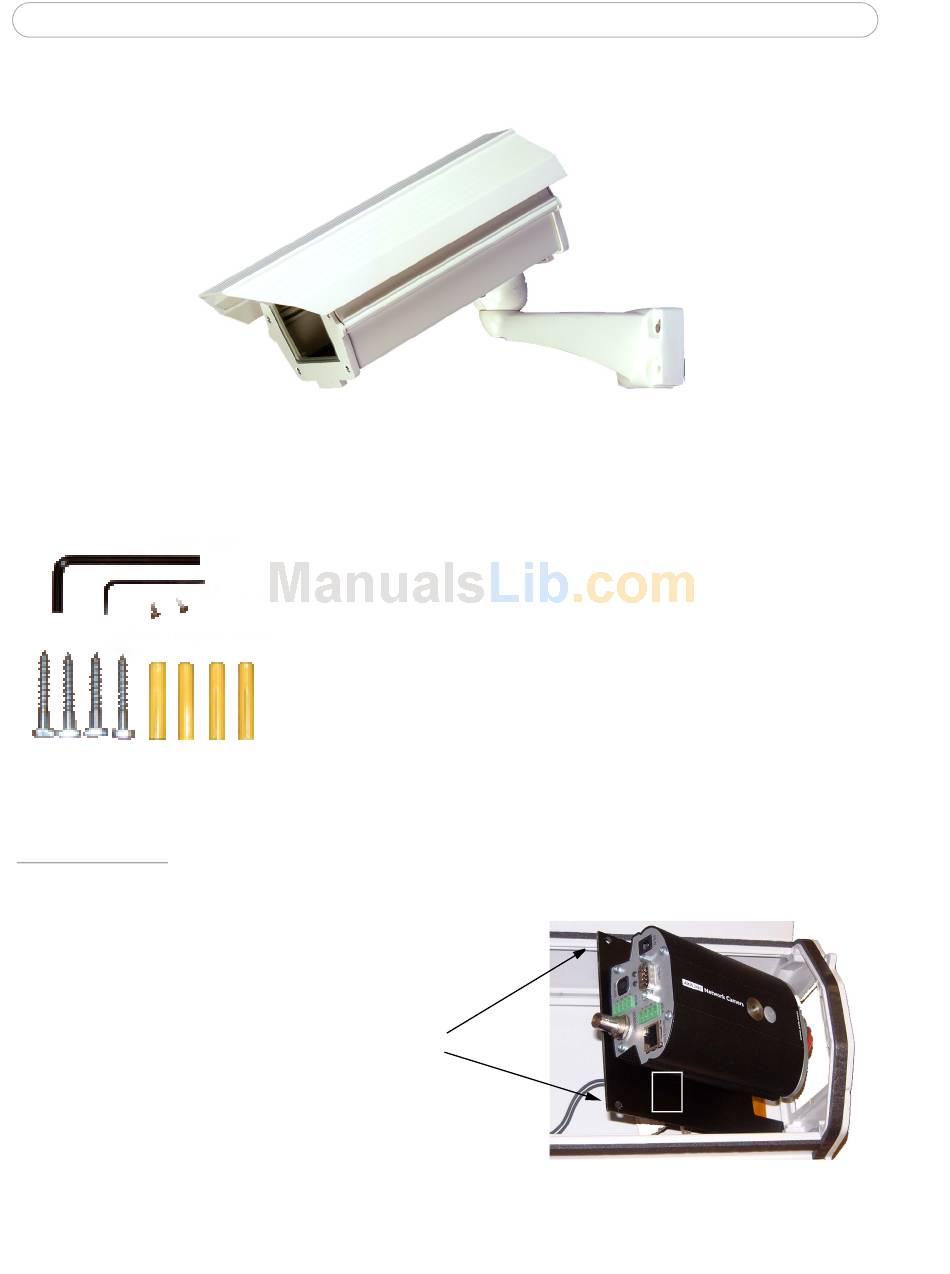

In the box with the 290A housing you will find a small plastic bag containing:
1
3
4
Fitting the camera inside the housing
Fit the camera in indoor conditions to prevent the build-up of dust and
Recommendation:
moisture inside the housing.
1. Open the housing by releasing the
two clips on the side.
2. Undo the two screws (6) on the
camera mounting board (7). Slide
the board backwards and lift it
out.
3. Refer to the Axis Installation
Guide provided with the Axis
camera for instructions on camera
hardware installation.
290A Installation Instructions
No.
2
1.
One large allen key
2.
One small allen key
3.
Two locking screws
4.
Four M8 wall fixings
5
5.
Four plugs (11x50 mm) for use in solid walls
6
7
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axis 290A
Summary of Contents for Axis 290A
- Page 1 Unpacking In the box with the 290A housing you will find a small plastic bag containing: Fitting the camera inside the housing Fit the camera in indoor conditions to prevent the build-up of dust and Recommendation: moisture inside the housing.
-
Page 2: Routing The Cables
Determine the size of the hole to accommodate the fitment of the cable gland (not supplied). However, the hole should not exceed 15mm in diameter. Warning: Install cable glands and/or cables that are suitable for external use that and are in compliance with local laws and regulations. 290A Installation Instructions... -
Page 3: Installing The Housing
5. Position the swivel (11) on the end of the bracket arm (12) with the two cables coming through the open slot. Ensure that the swivel is positioned with F (front) at the front and R (rear) at the back. 290A Installation Instructions 8. Housing 9. White rubber seal 10. - Page 4 Attach the housing to the swivel by tightening up the four screws held in the swivel. Use the small allen key (2) to do this. 290A Installation Instructions Power cable Network cable...
-
Page 5: Connecting The Camera
Important: Only a 90° BNC angle plug will fit inside the housing. Do not use any other plugs! 290A Installation Instructions Wiring diagram 290A Caution: Ensure that all wires are correctly and securely wired into the terminal block (15). - Page 6 290A Installation Instructions 5. AXIS 211 - plug the green power connector coming from the 12V DC power supply into the green socket on the camera. AXIS 211 Network Power AXIS 211A - replace the 4 pin green power connector coming from the 12V DC power...
-
Page 7: Completing The Installation
Do not over-tighten or use exces- sive force. You may damage the bracket-swivel assembly if you do so. 2. Finally, securely lock the housing at the front and rear using the locking screws. The installation is now complete. 290A Installation Instructions Locking screw at front... -
Page 8: Specifications
The maximum temperature inside the housing should never exceed 50°C (122F). 290A Installation Instructions INSTAL GUIDE HOUSING ENV WHITE r3.1 Copyright © Axis Communications AB, 2007 Part No. 28432 January 2007...
