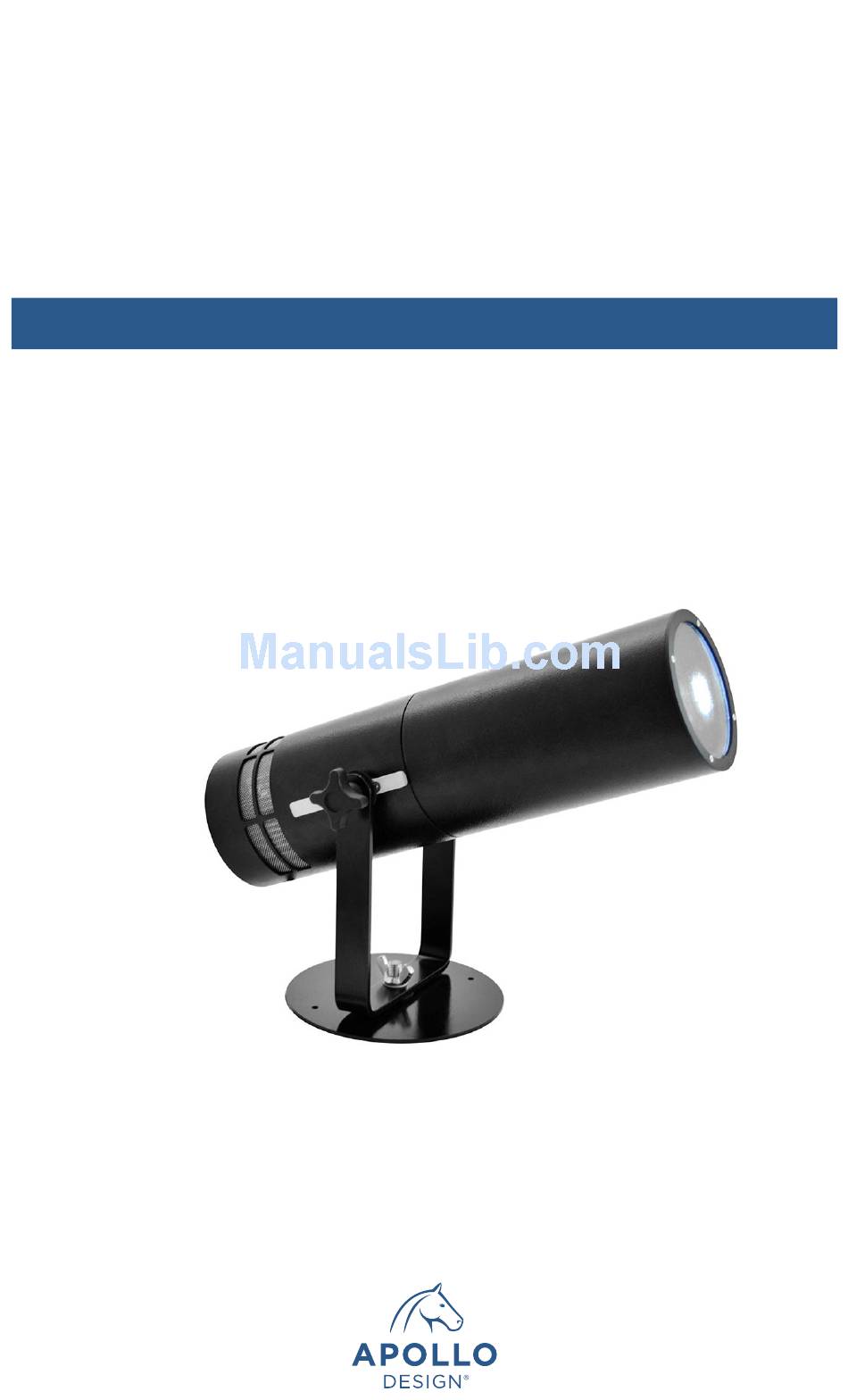

- Page 1 Apollo GoboPro+ LED Outdoor Profile...
-
Page 2: Product Description
Introduction Since 1992, Apollo Design Technology, Inc. has been one of the world’s leading innovators, manufacturers and distributors of gobos, color filters, lights and related equipment and accessories for the lighting industry. We are continually engineering new products to help you create and execute the designs of your dreams for theaters, bands, advertising, touring companies, television, motion pictures, museums, retail and architecture. -
Page 3: Table Of Contents
Removing the gobo from the gobo holder 6 Controlling the image 7 Specifications 8 Warranty 9 BOX CONTENTS 1 - Apollo GoboPro+ LED Outdoor Profile fixture 1 - User manual Apollo Design Technology, Inc. 260.497.9191 • ApolloDesign.net... -
Page 4: Safety Instructions
16. Flammable surfaces should be 0.5m away from the front of the fixture. Apollo Design Technology, Inc. 260.497.9191 • ApolloDesign.net... -
Page 5: Mounting 3
Mounting Apollo GoboPro+ LED Outdoor Profile is supplied with one u-shaped bracket that can be mounted to any immovable surface. The mounting bracket opening is 0.43"(11mm). The angle of the u-shaped bracket can be adjusted using the pivot handles on the side of the fixture. It is recommended that the power cable is installed at the top of the fixture in wet conditions to reduce the risk of water ingress into the body. -
Page 6: Lens Fitting & Focusing 4
To adjust the focusing lens, loosen the screw on the side of the lens housing and slide the housing along the rails until the image is focused. Secure the lens housing to the rails by tightening the screw on the side. Apollo Design Technology, Inc. 260.497.9191 • ApolloDesign.net... -
Page 7: Distance Calculation Formula 5
50mm (+0 -0.1mm) rotatable gobo, and a 44mm OD (+0 -0.1mm) static gobo which can be purchased from Apollo Design directly. A 50mm gobo holder is sup- plied with every GoboPro+ which all gobos need to be inserted into for projection. -
Page 8: Inserting A Gobo Into The Gobo Holder
Insert a fingernail or flat blade screwdriver into the gap between the gobo holder and the top of the gobo holder and gently lever out the gobo holder. Additional gobo holders are available from Apollo Design. Inserting a gobo into the gobo holder Line up the gobo with one of the tabs on the gobo holder and gently press the gobo using your thumbs level with the two other tabs. -
Page 9: Controlling The Image 7
Controlling the image Apollo GoboPro+ LED Outdoor Profile has an internal variable speed rotator. 50mm gobos can project static and/or rotating images. To control the direction of the image use the silver switch. To rotate the image clockwise flip the silver switch upwards. -
Page 10: Specifications
Specifications TECHNICAL SPECIFICATIONS Name Apollo GoboPro+ LED Outdoor Profile Gobo Projection Static and/or rotating image. Integral rotator for gobo. Lens Options 52°(45mm), 36°(60mm), 26°(85mm), 18°(120mm), 15°(150mm), 26°- 12° (zoom) Focus Manual Light Source 75W LED Lumens 2800 Brightness 3560 Lux at 1 m Diameter... -
Page 11: Warranty
• Products being returned for warranty repair must display the original serial number. Removal of the serial number voids the product’s limited warranty. • Despite the care taken for the compilation of this manual, Apollo Design Technology, Inc. cannot be held responsible for any damages resulting from errors that may appear in this manual. - Page 12 Apollo GoboPro+ LED Outdoor Profile Apollo Design Technology, Inc. 260.497.9191 ApolloDesign.net © Copyright 2018 Apollo Design Technology, Inc. 1/18...
