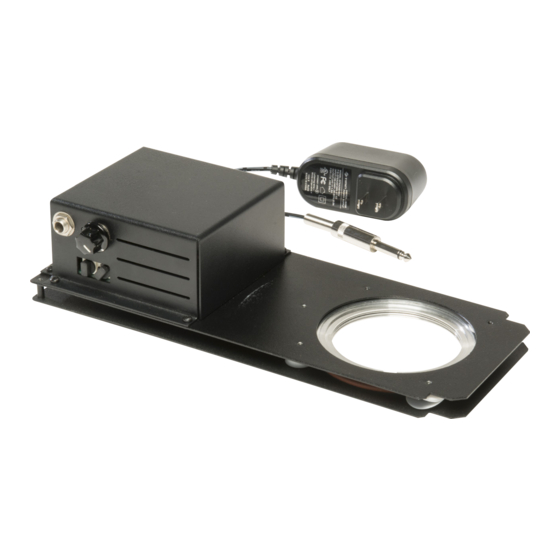

- Page 1 SMART MOVE ® Gobo Rotators Smart Move ® Smart Move ® Smart Move ® Smart Move Jr. DMX ® Simple Single ™...
-
Page 3: Table Of Contents
Table 0f Contents Introduction ��������������������������������������������������������������������������������������������������������������������������������������������������������������������2 Product Description ������������������������������������������������������������������������������������������������������������������������������������������������2 Safety Information ����������������������������������������������������������������������������������������������������������������������������������������������������3 Gobo Installation ��������������������������������������������������������������������������������������������������������������������������������������������������������4 Operating the Smart Move DMX and Smart Move DMX Jr. �������������������������������������������5 ® ® Programming Effects: Smart Move and Smart Move Jr. �������������������������������������������������5 ® ® Programming Effects: Smart Move DMX and Smart Move Jr. -
Page 4: Introduction
Introduction Since 1992, Apollo Design Technology, Inc. has been one of the world’s leading innovators, manufacturers and distributors of gobos, color filters, lights and related equipment and accessories for the lighting industry. We are continually engineering new products to help you create and execute the designs of your dreams for theaters, bands, advertising, touring companies, television, motion pictures, museums, retail and architecture. -
Page 5: Safety Information
• The Smart Move gobo rotator is designed for indoor applications and should not ® be exposed to moisture. • There is a risk of fire, shock or injury if the Smart Move gobo rotator is not used ® as specified. -
Page 6: Gobo Installation
When replacing the ring, simply place the ring in position and gently press into place with your fingertips. Replacement retainer rings and other items are available from your Apollo dealer in the event one becomes misplaced or damaged. -
Page 7: Effects: Smart Move
Jr. DMX ® ® • Use only Apollo cable or other approved cable. Approved cable should have two conductors of 14 AWG wire for power and two shielded and twisted conductors of 22 AWG wire for data. • Insert the rotator in the iris slot of the lighting fixture with the control-housing box facing the front of the fixture. -
Page 8: Smart Move
Effects Smart Move , Smart Move Jr. and Simple Single ® ® ™ Effect 01 Effect 02 Effect 03 Effect 04 Effect 05 CW Continuous CCW Continuous Cradle 45˚ Rock 90˚ Swing 180˚ Rotation Rotation Effect 06 Effect 07 Effect 08... -
Page 9: Jr. Dmx
• Action: DMX channel 1 sets a position to index to • Action: DMX channel 2 sets the speed of movement 3. Smart Move Mode: Use 19 pre-programmed effects. • DMX channel 3 above 0 • Action: DMX channel 1 select a pre-programmed effect •... -
Page 10: Jr. Dmx
Effects Smart Move DMX and Smart Move Jr. DMX ® ® DMX VALUE EFFECT 0, Home Wheel 1, Clockwise Rotation 2, Counterclockwise Rotation 3, Pendulum 45 degrees 4, Pendulum 90 degrees 5, Pendulum 180 degrees 6, Stutter (3 second increments) -
Page 11: Troubleshooting
Check for loose set screw in drive pulley. Tangled gobos For double rotators, check that the two steel gobos have not become tangled together. Maintenance Kits Smart Move Smart Move Jr., Smart Move Jr. DMX ® ® ® Smart Move DMX kits contain:... -
Page 12: Specifications
Specifications: Smart Move and Smart Move ® ® SMART MOVE SMART MOVE DMX ® ® Compatible ETC S4 Strand SL ETC S4 Strand SL Fixtures Altman Shakespeare Selecon Pacific Altman Shakespeare Selecon Pacific Times Square Q435 (when Iris slot Times Square Q435... - Page 13 Specifications: Smart Move Jr., Smart Move Jr. DMX & Simple Single ® ® ™ SMART MOVE SMART MOVE Jr. DMX SIMPLE SINGLE ® ® ™ Compatible ETC S4 Jr. ETC S4 Jr. Strand SL ETC S4 Fixtures Selecon Acclaim (with...
- Page 14 • Products being returned for warranty repair must display the original serial number. Removal of the serial number voids the product’s limited warranty. • Despite the care taken for the compilation of this manual, Apollo Design Technology, Inc. cannot be held responsible for any damages resulting from errors that may appear in this manual.
- Page 16 SMART MOVE ® Gobo Rotators Apollo Design Technology, Inc. 260.497.9191 ApolloDesign.net © Copyright 2015 Apollo Design Technology, Inc. 4/16...
