Summary of Contents for Apollo GoboPro+ LED

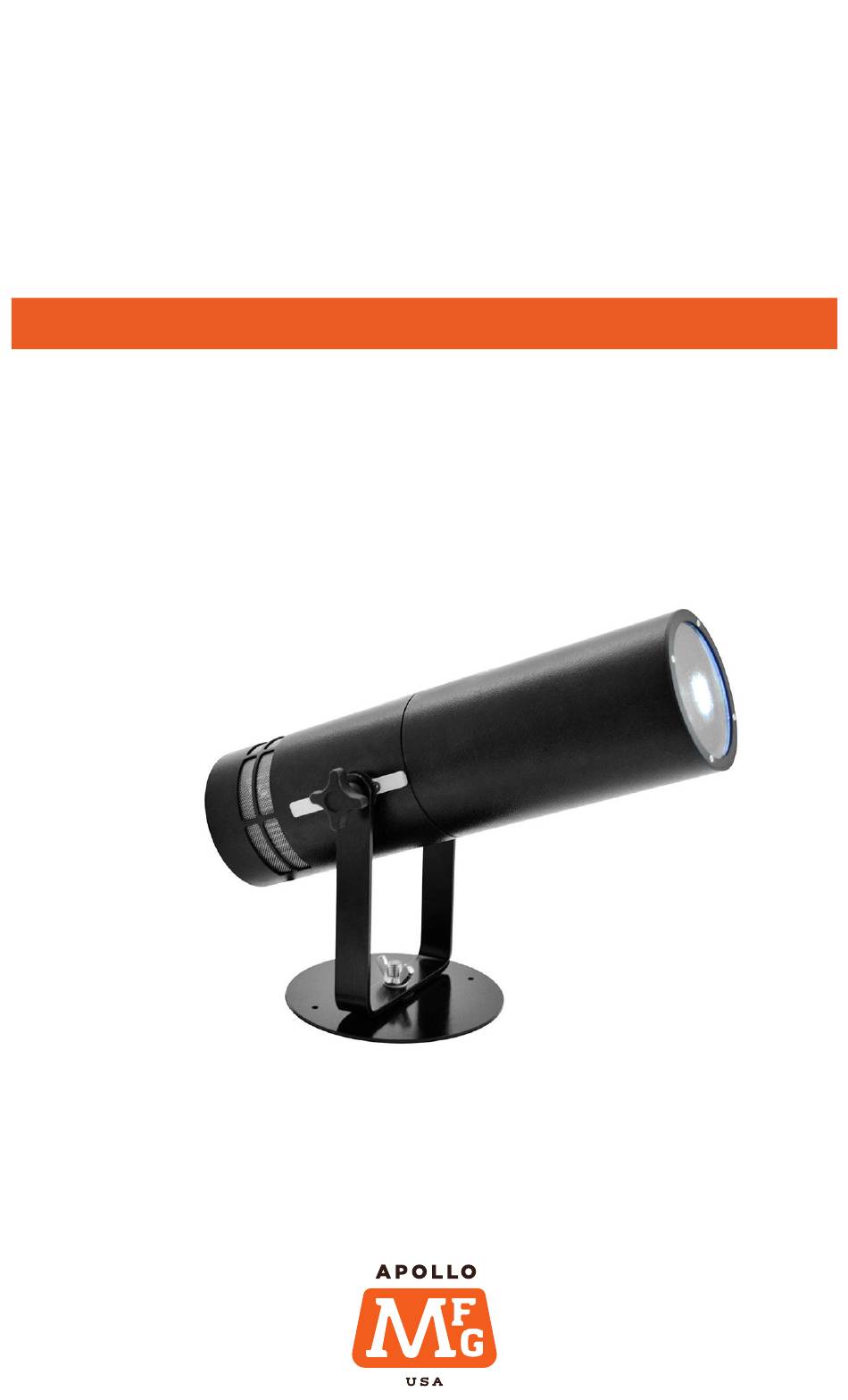

- Page 1 Apollo GoboPro+ LED Outdoor Profile...
- Page 2 Introduction Since 1992, Apollo MFG has been one of the world’s leading innovators, manufactur- ers and distributors of gobos, color filters, lights and related equipment and accesso- ries for the lighting industry. We are continually engineering new products to help you create and execute the designs of your dreams for theaters, bands, advertising, touring companies, television, motion pictures, museums, retail and architecture.
-
Page 3: Table Of Contents
Removing the gobo from the gobo holder 6 Controlling the image 7 Specifications 8 Warranty 9 BOX CONTENTS 1 - Apollo GoboPro+ LED Outdoor Profile fixture 1 - User Manual 1 - Allen Wrench 1 - PSU Power Supply 1 - Gobo Cassette... -
Page 4: Safety Instructions2
16. Flammable surfaces should be 2 feet away from the front of the fixture. Apollo MFG 260.497.9191 • ApolloMFG.com... -
Page 5: Mounting 3
Mounting Apollo GoboPro+ LED Outdoor Profile is supplied with one u-shaped bracket that can be mounted to any immovable surface. The mounting bracket opening is 0.43"(11mm). The angle of the u-shaped bracket can be adjusted using the pivot handles on the side of the fixture. It is recommended that the power cable is installed at the top of the fixture in wet conditions to reduce the risk of water ingress into the body. -
Page 6: Lens Fitting & Focusing 4
To adjust the focusing lens, loosen the screw on the side of the lens housing and slide the housing along the rails until the image is focused. Secure the lens housing to the rails by tightening the screw on the side. Apollo MFG 260.497.9191 • ApolloMFG.com... -
Page 7: Distance Calculation Formula 5
50mm (+0 -0.1mm) rotatable gobo, and a 44mm OD (+0 -0.1mm) static gobo which can be purchased from Apollo directly. A 50mm gobo holder is supplied with every GoboPro+ into which all gobos need to be inserted for projection. -
Page 8: Inserting A Gobo Into The Gobo Holder
Insert a fingernail or flat blade screwdriver into the gap between the gobo holder and the fixture and gently lift out the gobo holder. Additional gobo holders are available from Apollo. Inserting a gobo into the gobo holder Line up the gobo with one of the tabs on the gobo holder and gently press the gobo using your thumbs level with the two other tabs. -
Page 9: Controlling The Image 7
Controlling the image The Apollo GoboPro+ LED Outdoor Profile has an internal variable speed rotator. The 50mm gobos can project static and/or rotating images. To rotate the image clockwise engage the toggle switch upwards. To rotate the image counter clockwise, engage the toggle switch downwards. For a static image, make sure the toggle switch is in the central position. -
Page 10: Specifications
Specifications TECHNICAL SPECIFICATIONS Name Apollo GoboPro+ LED Outdoor Profile Gobo Projection Static and/or rotating image. Integral rotator for gobo movement Lens Options 39°(60mm), 26°(85mm), 18°(120mm) *Lens sold separate Foot Candles Focus Manual 78.1 Light Source 120W LED Lumens 3,520 Brightness... -
Page 11: Warranty
• Products being returned for warranty repair must display the original serial number. Removal of the serial number voids the product’s limited warranty. • Despite the care taken for the compilation of this manual, Apollo MFG cannot be held responsible for any damages resulting from errors that may appear in this manual. - Page 12 Apollo GoboPro+ LED Outdoor Profile Apollo MFG 260.497.9191 Apollomfg.com © Copyright 2023 Apollo MFG 10/2023...
