Summary of Contents for Apollo MultiSpot HP LS1012
-

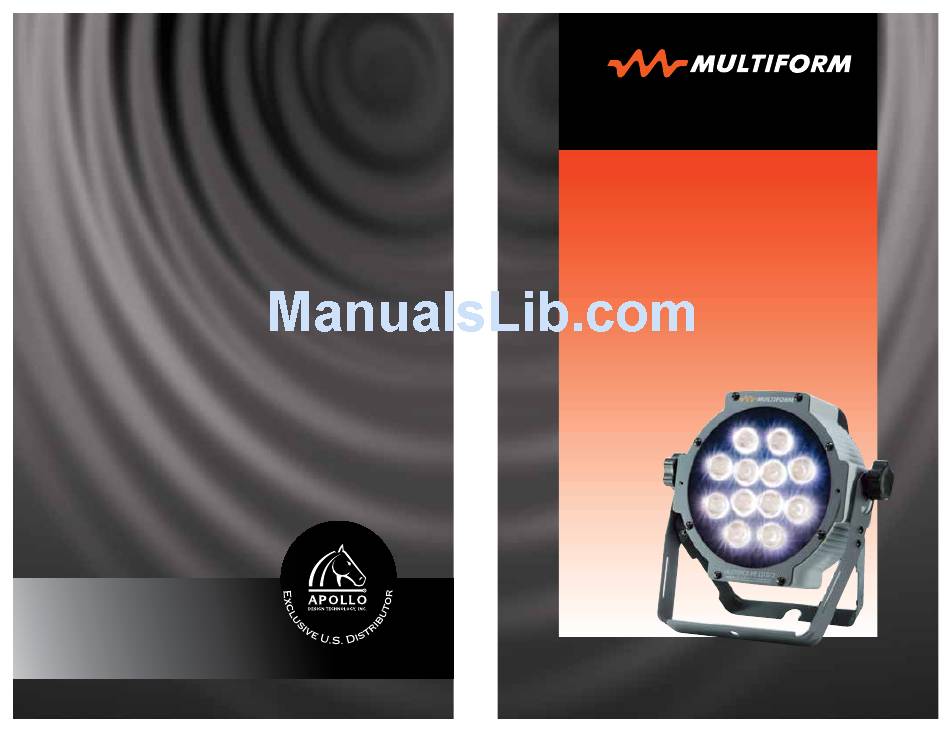

Page 1: User Manual
Passive RGB LED panels USER MANUAL MultiSpot HP LS1012 4130 Fourier Dr., Fort Wayne, IN 46818 USA +1.260.497.9191 Voice: +1.260.497.9192 Fax: (00)+1.260.497.9191 International: www.apollodesign.net RevB 10/2008 Order code: 12-010-0013-80401-1-01 02-08-13... -
Page 2: Table Of Contents
• Right Arm® Dear Customer, Congratulations on the purchase of the Multispot 1012 LED fixture from Apollo. Apollo is the US exclusive distributor for Multiform, • Smart Color® PRO Scrollers a leading global manufacturer of professional lighting equipment with decades of experience in design, production and quality •... -
Page 3: Security Advice Before Use
1. Do not look into the beam from a distance of less than 16 inches (40 cm). from date of Apollo invoice. The warranty covers freight for 30 days after initial purchase. Apollo does not cover any other loss 2. Do not stare into the beam for extended periods at a short distance. -
Page 4: Health Advice
Protection from injury and damage: Addressing has to be done as follows: 1. Never use accessories or modifications not authorized by the manufacturer of this unit. 001 first device (CH 1-4) *factory default* 2. Choose a location for operation where the unit is protected from vibration and where a fixed 005 ... -
Page 5: Getting Started: Choosing A Location
• In fixed installations, attach the unit with self-locking screws/nuts to the mounting point. • When mounting the unit to truss be sure to secure an appropriately rated clamp, available from Apollo, to the hanging yoke through the center hole of the hanging yoke. -
Page 6: Technical Data
Technical data: Operation The 1012 has several operating modes for internal and external operation. Multispot 1012 LED’s, total 12 RGB “A” Auto Mode LED’s red Press the MODE button (5) until the first digit on the display shows “A”, indicating operation in “auto” mode. Choose a pattern by LED’s green using the UP/DOWN buttons (6 or 7), see list below.
