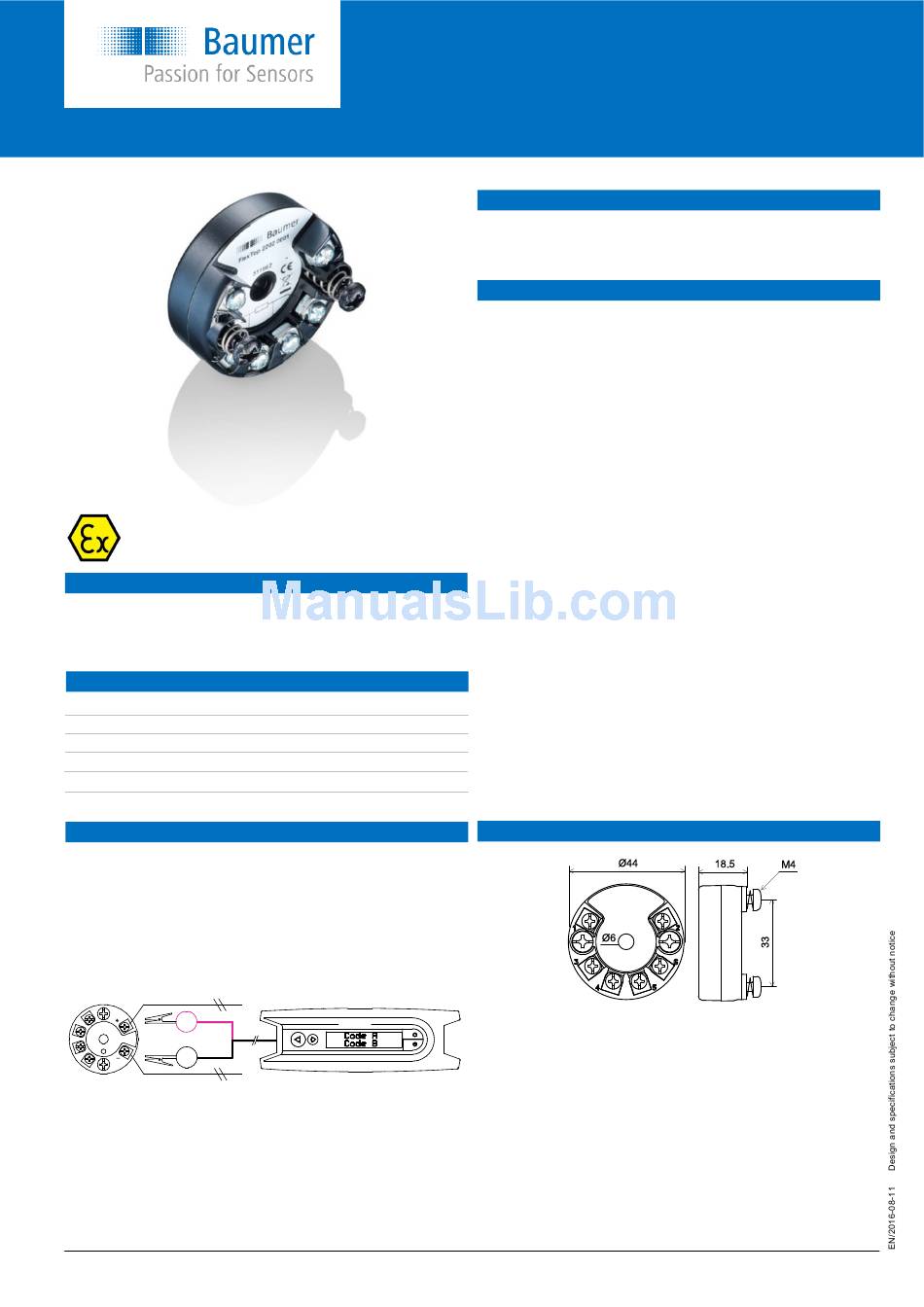

Baumer FlexTop 2202 Operating Instructions

Description

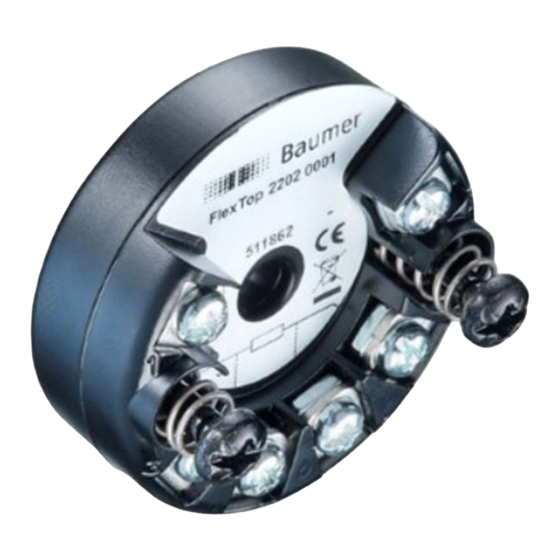

The FlexTop temperature transmitter type 2202 is suitable for input
from Pt100 RTD sensors.
The FlexTop 2202 features a 4 ... 20 mA output signal.
Environment
Humidity
Ambient temperature
Storage temperature
Protection class
Vibrations
Configuring with FlexProgrammer 9701
The FlexTop 2202 can be configured using the 4...20 mA cable. The
maximum distance depends on the cable type, resistance and capacity.
We recommend to use shielded cables.
To be able to configure the FlexTop 2202 with the FlexProgrammer
9701 the dedicated software, FlexProgram, must be loaded on the PC.
During the configuration the new data is, by means of the FlexProgram-
mer 9701, transferred from the PC to the FlexTop 2202, where it is
stored in the internal memory.
Note: During the first power-up after a configuration the power-on time
increases to approx. 10 sec.
www.baumer.com
<98 % RH, condensing
-40 ... 85°C
-55 ... 90 °C
IP00
GL, test 2
Operating Instructions: 11109129 02 EN
Temperature transmitter
FlexTop 2202
Operating instructions
Field of application
FlexTop temperature transmitter type 2202 is a compact temperature
transmitter, designed to be built into the housing of a temperature sen-
sor, like the Baumer CombiTemp.
Safety instruction
This instrument is built and tested according to the current EU-directives
and packed in technically safe condition. In order to maintain this condi-
tion and to ensure safe operation, the user must follow the hints and
warnings given in this instruction.
During the installation the valid national rules have to be observed.
Ignoring the warnings may lead to severe personal injury or substantial
damage to property.
The product must be operated by trained staff. Correct and safe opera-
tion of this equipment is dependent on proper transport, storage, instal-
lation and operation.
All electrical wiring must conform to local standards. In order to prevent
stray electrical radiation, we recommend twisted and shielded input
cables, as also to keep power supply cables separated from the input
cables. The connection must be made according to the connecting
diagrams.
Before switching on the power supply take care that other equipment is
not affected. Ensure that the supply voltage and the conditions in the
environment comply with the specification of the device.
Before switching off the supply voltage check the possible effects on
other equipment and the processing system.
WARNING
For electrical installation and commissioning of explosion protected
devices, the data given in the conformity certificate as also the local
regulations for installation of electrical apparatus within explosion pro-
tected areas must be considered. The intrinsically safe versions can be
mounted in the explosion hazarded area according to its specification
only connected to a certified intrinsically safe supply loop with the corre-
sponding electrical values.
Dimensions
WARNING
This product contains no replaceable parts.
In case of malfunction the product must be shipped to Baumer
for repair
Page 1 / 4
