Ip.Access nano3G AP Installation Manual

Hide thumbs Also See for nano3G AP:
Table of Contents

Advertisement

Quick Links

nano3G AP Installation Manual
N3G_INST_300
14.0
ip.access Ltd
Building 2020
Cambourne Business Park
Cambourne
Cambridgeshire CB23 6DW
United Kingdom
www.ipaccess.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the nano3G AP and is the answer not in the manual?

Questions and answers

Related Manuals for Ip.Access nano3G AP

Summary of Contents for Ip.Access nano3G AP

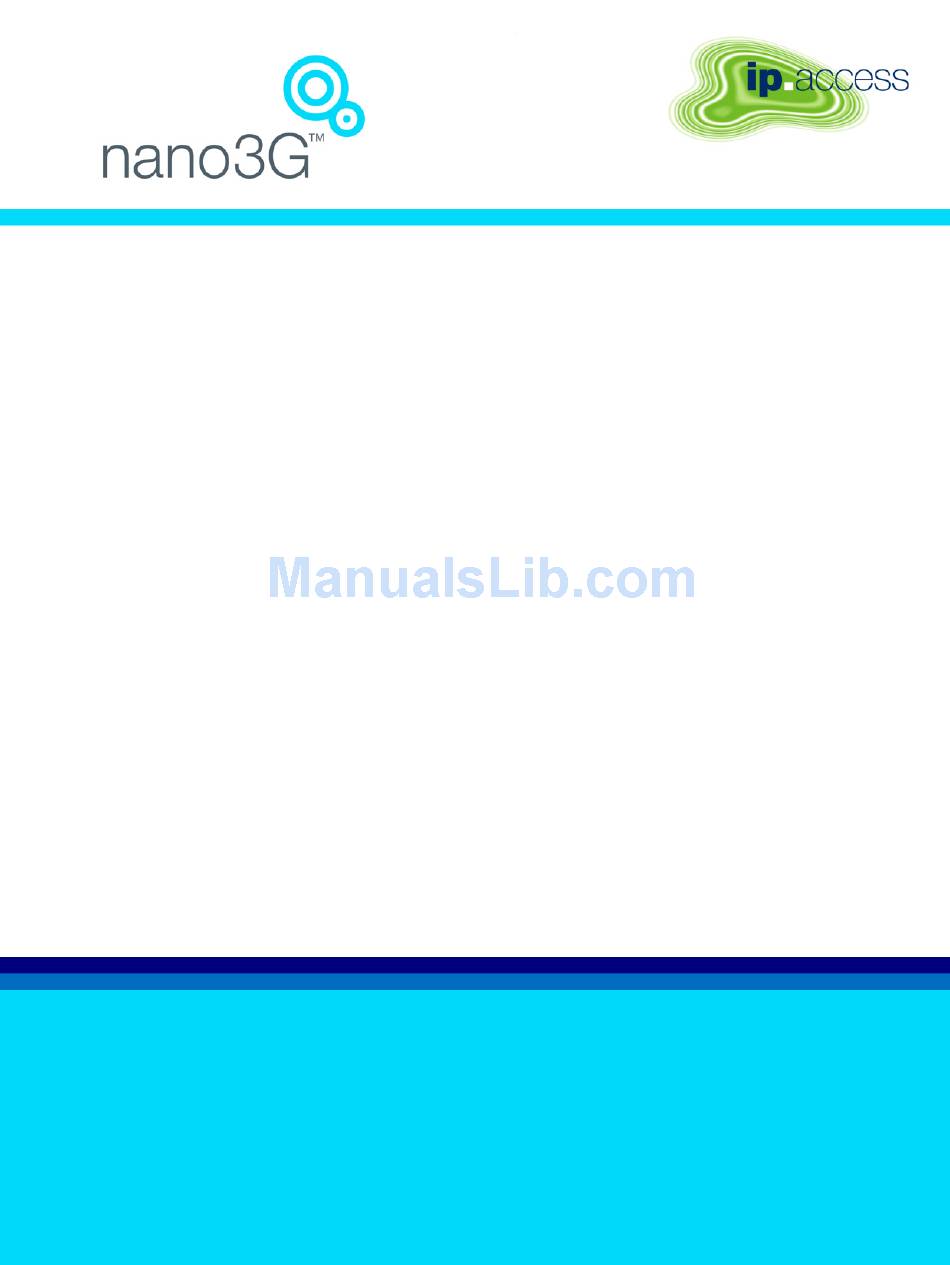

  • Page 1 AP Installation Manual N3G_INST_300 14.0 ip.access Ltd Building 2020 Cambourne Business Park Cambourne Cambridgeshire CB23 6DW United Kingdom www.ipaccess.com...
  • Page 2 (a) the quality of third-party products or services; or (b) fulfilling any of the terms of the agreement with the third party, including delivery of products or services and warranty obligations related to purchased products or services.

  • Page 3: Revision History

    Revision History Version Change Summary Date Author Released for N3G_1.1 29 Jul 2009 Released for N3G_1.1_UPGRADE 28 Aug 2009 Released for N3G_1.1_UPGRADE MR1 11 Sep 2009 Released for N3G_1.1_UPGRADE MR10 05 Mar 2010 Released for N3G_1.1_UPGRADE MR10.1, with approval comments 01 Apr 2010 Re-released for N3G_1.1_UPGRADE MR10.1 with minor correction 12 Apr 2010...

  • Page 4: Table Of Contents

    Apply an Attribute Configuration to the AP ............30 3.2.1 Load a Configuration File for the AP ..............30 3.2.2 Apply an AP Template to the AP................ 31 nano3G AP Installation Manual Contents N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page i...
  • Page 5 Configuration File Preparation ............33 Overview of Configuration Files ............... 33 Create a Configuration File for a nano3G AP ..........34 Commission a nano3G AP..............36 Configure a Commissioning Terminal to Connect to the AP......36 Start Up the AP ....................37 5.2.1...
  • Page 6 S8 AP Factory Reset ................70 8.5.2 nano3G E8 AP and nano3G E16 AP Factory Reset .......... 71 nano3G AP and PSU Regulatory Information ........72 Warnings and Cautions..................72 Regulatory Statements for nano3G S8 AP ............74 9.2.1 US FCC Compliance ..................

  • Page 7: Introduction

    Introduction The ip.access nano3G AP is an indoor Access Point for enterprise applications. This manual provides all the necessary information required to install an ip.access nano3G AP. The manual provides step-by-step instructions for hardware installation and configuration steps required to bring a nano3G AP into service.

  • Page 8: Related Information

    Portions of the AP are constructed from third-party software and open source code and ip.access ltd gratefully acknowledges the contributions that these libraries, technologies and components have made to the product. Each of these is supplied under the terms of a license agreement and these are either reproduced or referenced in [REF_300], in line with the stipulations of their authors.

  • Page 9: Installation Overview And Requirements

    Installation Overview and Requirements Installation Tasks There are three tasks that must be completed to install a nano3G AP and make it ready to provide service: • Pre-Provisioning • Commissioning • Site installation These tasks can be completed in any order. In most cases, however, the most practical approach is to provision and commission an AP before final site installation.

  • Page 10: On Site Installation

    NOS Server and AC. If a nano3G AP has been enabled for service prior to the site visit, the installation engineer can make test calls immediately. Note: For some deployment scenarios, APs may be setup by end users.

  • Page 11: Nano3G Ap Cooling

    DHCP - not needed for static IP configuration 2.2.2 nano3G AP Cooling Special attention must be given to ensure a nano3G AP will meet its air cooling requirements in its installed location. Take the following points into consideration for the physical location of an AP: •...

  • Page 12: Information Required For Pre-Provisioning

    AP hardware. Lat, Long and LCS uncertainty Latitude and longitude of the APs installation site, for RANAP location reporting nano3G AP Installation Manual Installation Overview and Requirements N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 6...
  • Page 13 This is disabled (false) by default. Oscillator Synchronisation The number of days an AP can go without resynchronisation Timeout before it raises the relevant alarm. nano3G AP Installation Manual Installation Overview and Requirements N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 7...
  • Page 14 Network Listen Scan Interval Set the interval for frequency corrections. Default is 28 days. 1 day for VCTCXO. Any time for OCXO. nano3G AP Installation Manual Installation Overview and Requirements N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 8...

  • Page 15: Pre-Prepared Configurations - Optional

    AP object after it has been created by the Create Site Wizard. For information on working with templates, see [OPM_415]. nano3G AP Installation Manual Installation Overview and Requirements N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 9...

  • Page 16: Information Required For Commissioning

    2.2.5 Information Required for Commissioning All nano3G AP models require the configuration details listed in this section. Use this information to commission an AP from the commissioning terminal, so that the AP can subsequently connect to its serving NOS Server.

  • Page 17: Other Items For Commissioning

    The items in this section can only be used if the commissioning terminal is running a web server that provides a path to any ip.access AP software download packages. That is, the required .sdp files must be present on the commissioning terminal.

  • Page 18: Nano3G S8 Ap Site Requirements

    • Power over Ethernet from a POE switch, via the POE splitter A POE cable must not be inserted directly into the AP. The power adapter, as well as the POE inserter and splitter supplied by ip.access comply with LPS requirements in accordance with IEC/EN 60950-1.

  • Page 19: Power Over Ethernet

    Power Adapter A suitable mains power supply point into which the power adapter for the AP can be plugged. Only use the power adapter available from ip.access to power the AP: ip.access part number PSA15R-090PV-R Input 100-240V ~ 50/60Hz 0.5A Output +9VDC 1.67A...

  • Page 20: Nano3G S8 Ap Physical Requirements

    Only use the POE splitter available from ip.access: ip.access part number 222A Input 48VDC 0.35A Output 9VDC 1.33A 2.3.2 nano3G S8 AP Physical Requirements A nano3G S8 AP may be installed in one of the following ways (see section 6.2.4): •...

  • Page 21: Nano3G S8 Ap Ip Bandwidth Requirements

    • Suitable drills and screwdriver Note: If the available bandwidth on site does not meet the requirements see the Troubleshooting section N User Configuration8. nano3G AP Installation Manual Installation Overview and Requirements N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 15...

  • Page 22: Nano3G E8 Ap And Nano3G E16 Ap Site Requirements

    The Ethernet cable carrying POE+ must be plugged into the LAN 1 port. The LAN 2 port, next to LAN 1, is not used and does not support POE. nano3G AP Installation Manual Installation Overview and Requirements N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 16...

  • Page 23: Nano3G E8 Ap And E16 Ap Physical Requirements

    AP. Therefore, the maximum cable run from the network switch to the AP is 100m, regardless of the placement of the POE+ injector. The POE+ injector supplied by ip.access complies with LPS requirements in accordance with IEC/EN 60950-1.

  • Page 24: Nano3G E16 Ap Ip Bandwidth Requirements

    • Suitable drills and screwdriver. Note: If the available bandwidth on site does not meet the requirements see the Troubleshooting section 8. nano3G AP Installation Manual Installation Overview and Requirements N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 18...

  • Page 25: Pre-Provisioning A Nano3G Ap

    Pre-Provisioning a nano3G AP The nano3G AP must be pre-provisioned on the NOS Server before it can be brought into service. It is recommended to do this in advance of physical site installation. An AP is pre-provisioned using the Create Site Wizard in the NOS Client.

  • Page 26: Optional - Use An Existing Ap Configuration

    Click Next and the AP Selection page of the wizard will appear: Optionally use this page to copy the configuration of an existing AP. nano3G AP Installation Manual Pre-Provisioning a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 20...

  • Page 27: Optional - File Selection

    • Do not load a file - no configuration file will be loaded - if preferred, it is possible to load a configuration file later using the Load Attributes Wizard nano3G AP Installation Manual Pre-Provisioning a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 21...
  • Page 28 Click the radio button for From server file, then click the browse button on the right. A list of configuration files saved on the NOS server will appear. For example: nano3G AP Installation Manual Pre-Provisioning a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 22...

  • Page 29: Optional - Select An Ap Template

    BSMIS object selected for invoking the wizard. The 3G AC Name and Management Server Address may not be changed. nano3G AP Installation Manual Pre-Provisioning a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 23...

  • Page 30: Select Ntp Servers

    Any changes on this page of the wizard will override settings from an existing AP, template or file. nano3G AP Installation Manual Pre-Provisioning a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 24...

  • Page 31: Modify Nas And Network Listen Settings

    In all cases, any changes on this page of the wizard will override any automatically selected settings. If required, change the NAS entries. This is only necessary if the correct values have not been selected automatically. nano3G AP Installation Manual Pre-Provisioning a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 25...
  • Page 32 If the LAC/RAC entries are invalid, as in the example, drill down into the LAC - RAC Candidate List to find the invalid entry: nano3G AP Installation Manual Pre-Provisioning a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 26...
  • Page 33 Multiple RACs can be configured for each LAC. At least one LAC/RAC combination must be provided. Select the RF Parameters Candidate List. nano3G AP Installation Manual Pre-Provisioning a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 27...
  • Page 34 Drill down into the list entry. For a new list item, all the values will be zero, as in this example: Enter or modify the uarfcn, scramblingCode and dummyCellId values for this Click Finish. nano3G AP Installation Manual Pre-Provisioning a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 28...
  • Page 35 The site and the AP object will be added under the BSMIS APs Per AC object and can now be selected for further actions. nano3G AP Installation Manual Pre-Provisioning a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 29...

  • Page 36: Apply An Attribute Configuration To The Ap

    To start the NOS Load Attributes Wizard, right-click on the AP object in the NOS Client and then select Load Attributes From File. nano3G AP Installation Manual Pre-Provisioning a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 30...

  • Page 37: Apply An Ap Template To The Ap

    The object type must match. That is, use an apNano8_020 template for E8 APs, E16 APs and S8 APs. Choosing a template with a different object type will have no effect on the target AP. nano3G AP Installation Manual Pre-Provisioning a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 31...
  • Page 38 Click the Edit button for the Target Objects. Browse to the correct AP object under APs > AC > Site > AP. nano3G AP Installation Manual Pre-Provisioning a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 32...
  • Page 39 Click OK. The attribute settings in the template will be applied to the AP object. Repeat as needed, if there are multiple templates to apply. nano3G AP Installation Manual Pre-Provisioning a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 33...

  • Page 40: Configuration File Preparation

    Configuration File Preparation The attribute values for configuring a nano3G AP can be stored in an XML file, and then loaded via the NOS Client to provision the AP. This configuration file of attributes can be loaded when creating the site for the AP or at any time after that once the AP object exists.

  • Page 41: Create A Configuration File For A Nano3G Ap

    Select To local file and use the browse button to choose a suitable directory on the client computer for saving the AP configuration file (the browser dialogue can also create new directories). nano3G AP Installation Manual Configuration File Preparation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 35...
  • Page 42 BSMIS APs Per AC object) then locate the APwithin its Site. Hence, drill down to the AP like this: Root > APs > BSMIS APs Per AC nano3G AP Installation Manual Configuration File Preparation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 36...
  • Page 43 Click Finish. A confirmation message stating file copied successfully will appear, click OK. One configuration file will be saved in the directory for each AP object. nano3G AP Installation Manual Configuration File Preparation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 37...

  • Page 44: Commission A Nano3G Ap

    Commission a nano3G AP This procedure configures the nano3G AP with the settings it needs to establish a connection with its serving NOS Server. Once commissioning is complete, use the NOS Client for any remaining configuration and to bring the AP into service.

  • Page 45: Start Up The Ap

    LAN input on the POE+ injector unit • If not using POE+, connect the Ethernet cable from the commissioning terminal directly to the LAN1 port on the AP nano3G AP Installation Manual Commission a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 39...

  • Page 46: Access The Commissioning Web Page For The Ap

    Enter the commissioning user name and the password (supplied separately for security reasons). nano3G AP Installation Manual Commission a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 40...
  • Page 47 After entering the correct user name and password, the Connection Config page appears: nano3G AP Installation Manual Commission a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 41...

  • Page 48: Download Activities

    See section 2.2.6 for extra information about software and ATAS packages. This can only be done if the commissioning terminal is running a web server that provides a path to any ip.access AP software download packages. That is, the required .sdp files must be present on the commissioning terminal.

  • Page 49: Atas Check And Download

    (SecGW) that will terminate the IPsec connection for the AP. If the ATAS package is incorrect, the AP will not connect to the SecGW and hence will be unable to enter service. nano3G AP Installation Manual Commission a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 43...
  • Page 50 Inspect the ATAS version information on the ATAS Download page to verify it is now correct. nano3G AP Installation Manual Commission a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 44...

  • Page 51: Static Ip Configuration

    5.5.1 Static IP Configuration Obtaining an IP address with DHCP is recommended for the nano3G AP, and this is selected by default. Only execute this section if static IP configuration is needed. This must be done before completing the Connection Config page.

  • Page 52: Complete The Ap Commissioning

    Acknowledge the warning about changes in the IP configuration and click OK. When the initial configuration is complete, power off the AP and disconnect it from the commissioning terminal. nano3G AP Installation Manual Commission a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 46...
  • Page 53 AP connecting to its serving NOS Server, the commissioning procedure must be started again after resetting the AP with a factory reset. See section 8.3 for factory reset instructions. nano3G AP Installation Manual Commission a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 47...

  • Page 54: Commissioning Finished

    The Site for the AP and the AP object should have a green tick symbol against its icon. After verifying this, re-pack the AP so that it is ready for delivery to its intended site. nano3G AP Installation Manual Commission a nano3G AP N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 48...

  • Page 55: Nano3G Ap Hardware Installation

    AP Hardware Installation This section documents the procedures for installing the nano3G AP hardware and physical connections. The following hardware variants are described: • 6.2 nano3G S8 AP Hardware Installation • 6.3 nano3G E8 AP and E16 AP Hardware Installation...

  • Page 56: Nano3G S8 Ap Hardware Installation

    Check that the items have not been damaged in transit. For any damaged units, contact the supplier immediately for returns advice. nano3G AP Installation Manual nano3G AP Hardware Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 50...

  • Page 57: Commission The Nano3G S8 Ap

    In this case, the PSU for the AP is not used. The injector takes a direct mains input using the supplied mains cable. nano3G AP Installation Manual nano3G AP Hardware Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 51...

  • Page 58: Mount The Nano3G S8 Ap

    • Onto the splitter unit on the wall at or above head height The nano3G S8 AP has two holes at the back for direct wall mounting or mounting on the POE splitter: nano3G AP Installation Manual nano3G AP Hardware Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 52...
  • Page 59 Place the AP on its stand on a stable flat surface. Mount the nano3G S8 AP directly onto the wall Drill two holes 70mm (2.76in) apart vertically for the two screws. nano3G AP Installation Manual nano3G AP Hardware Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 53...
  • Page 60 POE splitter below the AP where the 100mm cables will reach the AP. Slide the AP onto the 2 screws. nano3G AP Installation Manual nano3G AP Hardware Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 54...
  • Page 61 Plug the captive Ethernet cable and the power cable from the splitter unit into the Mount the AP onto the 2 screws that are already fixed onto the splitter unit. nano3G AP Installation Manual nano3G AP Hardware Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 55...

  • Page 62: Nano3G E8 Ap And E16 Ap Hardware Installation

    Check that the serial number on the AP unit matches the label on the box. Check that the items have not been damaged in transit. For any damaged units, contact the supplier immediately for returns advice. nano3G AP Installation Manual nano3G AP Hardware Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 56...

  • Page 63: Removable Cable And Antenna Covers

    To refit the cover, simply slide it back onto the tabs on the main cover until it snaps into place. 6.3.3 Antennas nano3G AP Installation Manual nano3G AP Hardware Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 57...

  • Page 64: Commission The Ap

    Two power supply modules are available from ip.access, designed for use with the ip.access nano3G E8 AP and E16 AP, that are compliant with the IEEE 802.3at standard: • The POE+ injector, as supplied, is commonly used for single site installations •...
  • Page 65 PSU. This is typically less than 2m. The PSU for the E8 AP or E16 AP is an optional extra. nano3G AP Installation Manual nano3G AP Hardware Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 59...

  • Page 66: Mount The Nano3G E8 Ap Or E16 Ap On A Wall

    AP. The removal tool may be inserted from the top or bottom of the AP. nano3G AP Installation Manual nano3G AP Hardware Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 60...
  • Page 67 E8 AP or E16 AP unit to be mounted with the connections either at the top or at the bottom of the unit. nano3G AP Installation Manual nano3G AP Hardware Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 61...
  • Page 68 Remove the lower cover to reveal the cable ports and LEDs. nano3G AP Installation Manual nano3G AP Hardware Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 62...
  • Page 69 Do not connect an Ethernet cable to LAN2. This will have no effect. To refit the lower cover, slide it onto the tabs on the main cover until it snaps into place. nano3G AP Installation Manual nano3G AP Hardware Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 63...

  • Page 70: Finalize Installation

    Finalize Installation All the activities in this section are managed from the NOS Client. Check and Upgrade the nano3G AP Software Image This is a useful check to ensure that the AP has the required software version, even if the AP software was recently updated during commissioning.
  • Page 71 Select the 3G AP Admin Package for the AP object and verify that the Filesys version reported by the Active Software Version matches the SDP file that was downloaded. nano3G AP Installation Manual Finalize Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 65...

  • Page 72: Finalize Configuration

    When the scan is complete, view the results and verify there is some radio activity detected, and ideally some neighbour cells. This will confirm the radio is working. nano3G AP Installation Manual Finalize Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 66...

  • Page 73: Bring The Ap Into Service

    If the installation engineer is still on site, the engineer should make CS and PS test calls to verify the AP is providing service. nano3G AP Installation Manual Finalize Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 67...
  • Page 74 If the Apply button is not available, use the TAB key to exit field entry first. Right-click the AP object and select Reinitialise. This restarts the AP so that it uses the configuration change. nano3G AP Installation Manual Finalize Installation N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 68...

  • Page 75: Troubleshooting

    Factory reset is in progress in the AP (the reset button was pressed green blinks on for more than 5 seconds). On, with short Software download is in progress to the AP. green blinks off nano3G AP Installation Manual Troubleshooting N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 69...

  • Page 76: Nano3G S8 Ap Leds

    Indicates activity on the network at 10Mbps speed (that is, the nano3G AP is sending and/or receiving data across the LAN). The nano3G AP is not provisioned, it has no IP address. This may be a temporary condition when the AP is switched on for the first time, or after factory reset.

  • Page 77: Nano3G E8 Ap Or E16 Ap Does Not Start Up

    If the AP has been disabled as in section 7.4. It will not be possible to recommission the AP. The AP will reconnect to the servers currently specified on the commissioning web page. nano3G AP Installation Manual Troubleshooting N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 71...

  • Page 78: Nano3G S8 Ap Factory Reset

    See section 5 for the commissioning procedure. nano3G AP Installation Manual Troubleshooting N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 72...

  • Page 79: Nano3G E8 Ap And Nano3G E16 Ap Factory Reset

    See section 5 for the commissioning procedure. nano3G AP Installation Manual Troubleshooting N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 73...
  • Page 80 N-User Configuration allows for a reduction in the maximum number of active UEs on a nano3G AP by controlling how many CELL_DCH users are allowed on an AP.The maxNumCellDchEues attribute reports the hardware capability of an Each reduction in max users will reduce the max requirement for CS by 60Kbps in DL and 18Kbps in UL.
  • Page 81 Select the attribute max Downlink Backhaul Bit Rate (Kbps) and set to the relevant value. Select the attribute max Uplink Backhaul Bit Rate (Kbps) and set to the relevant value. Click Apply to save changes. nano3G AP Installation Manual Troubleshooting N3G_INST_300 v14.0 for N3G_2.85 © ip.access Limited 2012 Page 75...

  • Page 82: Nano3G Ap And Psu Regulatory Information

    WARNING Do not immerse any part of the nano3G AP or its power supply in water or any other liquid. Do not install or use the nano3G AP or its power supply near open water. Do not spill liquids of any type on the nano3G AP or its power supply.
  • Page 83 (such as unshielded speakers). Other Warnings and Cautions WARNING Do not install the nano3G AP in a position where the power supply cable or network cable may cause a tripping or choking hazard. WARNING Do not install the nano3G AP or the power supply on an unstable surface. All caution must be observed to prevent the device from falling and causing injury to a person and/or damage to the device.

  • Page 84: Regulatory Statements For Nano3G S8 Ap

    This product is intended for use in all Member States of the European Union. "Hereby, ip.access Ltd, declares that this nano3G S8 AP is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC." nano3G AP Installation Manual nano3G AP and PSU Regulatory Information N3G_INST_300 v14.0 for N3G_2.85 ©...

  • Page 85: Safety Standards

    9.2.3 Safety Standards • IEC 60950-1:2005 (2nd Edition), EN 60950-1:2006 and UL60950-1:2007 The power adapter, as well as the POE inserter and splitter supplied by ip.access comply with LPS requirements in accordance with IEC/EN 60950-1. nano3G AP Installation Manual nano3G AP and PSU Regulatory Information N3G_INST_300 v14.0 for N3G_2.85 ©...

  • Page 86: Regulatory Statements For Nano3G E8 Ap

    This product is intended for use in all Member States of the European Union. "Hereby, ip.access Ltd, declares that this nano3G E8 AP is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC." A copy of regulatory compliance documentation may be obtained in writing from "IP Access Ltd, Building 2020, Cambourne Business Park, Cambourne, Cambridge, CB23 6DW, UK".

  • Page 87: Safety Standards

    9.3.3 Safety Standards • IEC 60950-1:2005 (2nd Edition) and EN 60950-1:2006 The POE+ inserter supplied by ip.access complies with LPS requirements in accordance with IEC/EN 60950-1. 9.3.4 Environmental Standards • ETSI 300 019-2-3 • ETSI 300 019-2-2 nano3G AP Installation Manual nano3G AP and PSU Regulatory Information N3G_INST_300 v14.0 for N3G_2.85 ©...

  • Page 88: Regulatory Statements For Nano3G E16 Ap

    This product is intended for use in all Member States of the European Union. "Hereby, ip.access Ltd, declares that this nano3G E16 AP is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC." A copy of regulatory compliance documentation may be obtained in writing from "IP Access Ltd, Building 2020, Cambourne Business Park, Cambourne, Cambridge, CB23 6DW, UK".

  • Page 89: Safety Standards

    9.4.3 Safety Standards • IEC 60950-1:2005 (2nd Edition) and EN 60950-1:2006 The POE+ inserter supplied by ip.access complies with LPS requirements in accordance with IEC/EN 60950-1. 9.4.4 Environmental Standards • ETSI 300 019-2-3 • ETSI 300 019-2-2 nano3G AP Installation Manual nano3G AP and PSU Regulatory Information N3G_INST_300 v14.0 for N3G_2.85 ©...
