Mechanical and Dismantling Instructions
Dismantling Instruction
The following guidelines show how to dismantle the player.

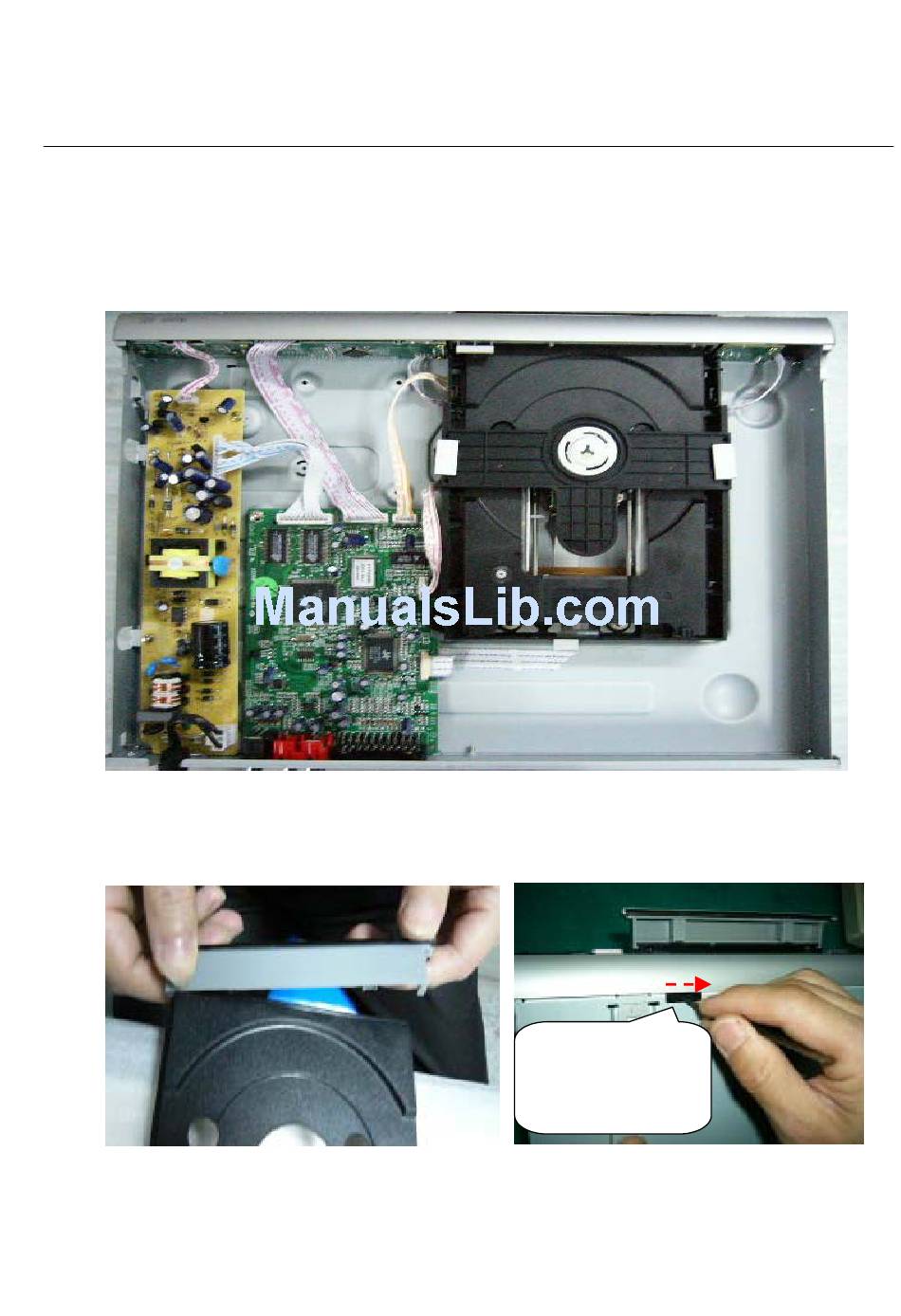

Step1: Remove 5 screws around the Top Cover. And remove
it (Figure 1)
Step2: If it is necessary to dismantle Loader or Front Panel,
It should be remove the front door assembly first. (Figure 2)
If the trace can't open in normal way, you can make it by push
Figure 2
2-1
the gear wheel manually using the slot below the bottom
chassis with a tool.. (Figure 3)
Note: Make sure to operate gently otherwise the gear wheel
would be damaged.
Figure 1
Push the gear gently
until
the
Make sure operate
gently to avoid the gear
wheel damaged.
trace
out.
Figure 3
