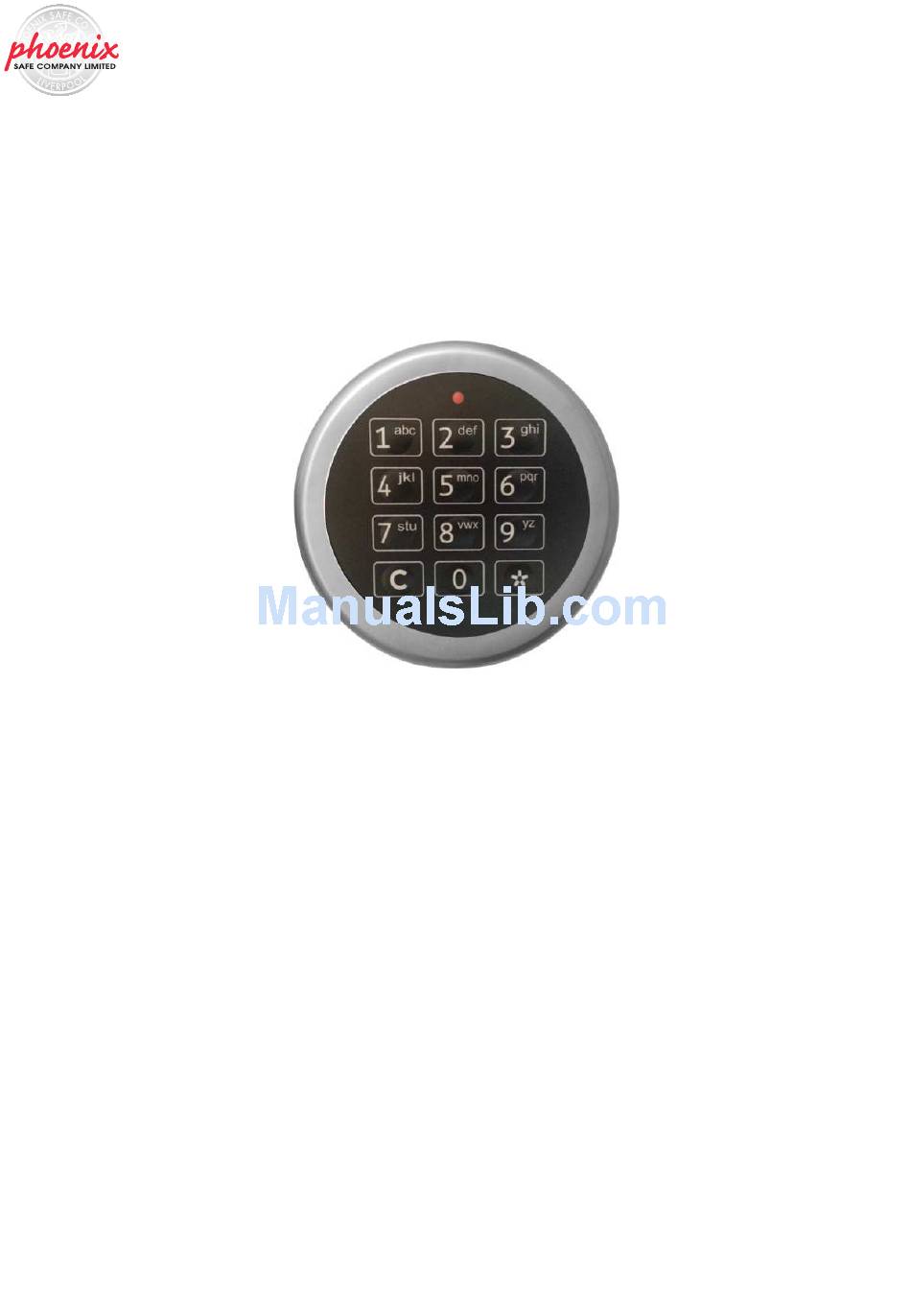

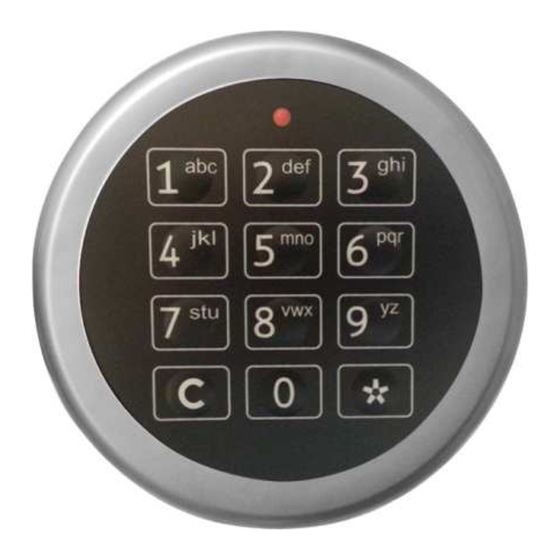

- Page 1 DS4650 Millenium Duplex Instructions SOLAR Basic Operating instructions for electronic high-security locks ©Phoenix Safe Company Ltd. V1 / AUG 2017...
-
Page 2: Table Of Contents
1. Opening / Closing ..........................5 2. Changing the code ...........................6 3. Retrieve opening protocol .......................7 4. Super code functions ........................8 5. Power supply ..........................10 6. Restart ............................11 7. Signal table .............................11 8. Technical data and certification .....................12 9. Quick guide SOLAR Basic ........................13 2/13... -
Page 3: General Notes
DS4650 Millenium Duplex Instructions General notes Please read these instructions carefully before making any adjustments to the lock. The lock acknowledges every press of a button with an acoustic signal. Concluded or cancelled procedures are displayed by the illumination of the LED, together with acoustic signals. -
Page 4: Functional Overview And Description
DS4650 Millenium Duplex Instructions Functional overview and description Opening code The lock uses an individual user code, which makes opening, changing the code, and reading out the protocol possible. Super code The super code is an emergency code and can reset the lock to the factory settings. Manipulation block If four invalid opening codes are entered, three long tones sound with simultaneous illumination of the red LED. -
Page 5: Opening / Closing
DS4650 Millenium Duplex Instructions 1. Opening / Closing 1.1 Opening Example with factory code. Button Signal Description Code input 3sec Correct Incorrect After correct entries, the handle of the locking mechanism can be moved and the safe opened. Only pull the handle once the lock has been completely opened (LED blinks 1x). After an incorrect entry, the procedure can be repeated three times. -
Page 6: Changing The Code
DS4650 Millenium Duplex Instructions 2. Changing the code Example with factory code with an opened lock. In opened lock condition Button Signal Description Start programming 3sec Code Enter new code Repeat new code Confirm and close Changed Error In case of a long, acoustic signal, the code has not been changed due to an incorrect entry. The old code is still active. -
Page 7: Retrieve Opening Protocol
DS4650 Millenium Duplex Instructions 3. Retrieve opening protocol The lock saves the last 32 openings and events. This protocol can be retrieved by the user. Output is made by means of a different number of acoustic and optical signals in accordance with the table below. -
Page 8: Super Code Functions
DS4650 Millenium Duplex Instructions 4. Super code functions 1 1 1 1 1 1 1 The super code is preset from the factory at (7x1). It can open the lock and reset the opening code. 4.1 Change super code The super code can be changed with the opening code. In opened lock condition Button Signal... - Page 9 DS4650 Millenium Duplex Instructions 4.2 Opening with the super code If the opening code is lost or the blocking period is active, the lock can be opened with the super code. Button Signal Description Start super code opening 6sec 1 1 1 1 1 1 1 Super code 3sec Open...
-
Page 10: Power Supply
DS4650 Millenium Duplex Instructions 5. Power supply 5.1 Changing the battery Power is supplied by a 9V-block battery (Caution: only use alkaline or lithium batteries). The battery compartment is accessible when the door is open and is visibly installed in the door frame or directly on the interior of the door, depending upon the type of safe (when changing the battery, pay attention to correct battery polarity). -
Page 11: Restart
DS4650 Millenium Duplex Instructions 6. Restart If the lock is inoperable in spite of sufficient battery power, the lock can be restarted. Button Signal Description Initiate restart 30sec Restart concluded 30 sec Restarting the lock does not change any codes or delete other settings. 7. -
Page 12: Technical Data And Certification
DS4650 Millenium Duplex Instructions 8. Technical data and certification The lock is designed for indoor use. Temperature: 10°C – 40°C Relative humidity: 30% - 85% No-load current: < 0.1mA Battery supply: 9V nominal (min. 3V with a load of 0.5A / max. 12 V at all load levels) Batteries: 9V alkaline or lithium block battery Useful life of the battery in normal operation: approximately 2 years Maximum locking force: 25 N... -
Page 13: Quick Guide Solar Basic
DS4650 Millenium Duplex Instructions 9. Quick guide SOLAR Basic 3sec … … 3sec 3sec 3sec 13/13...
