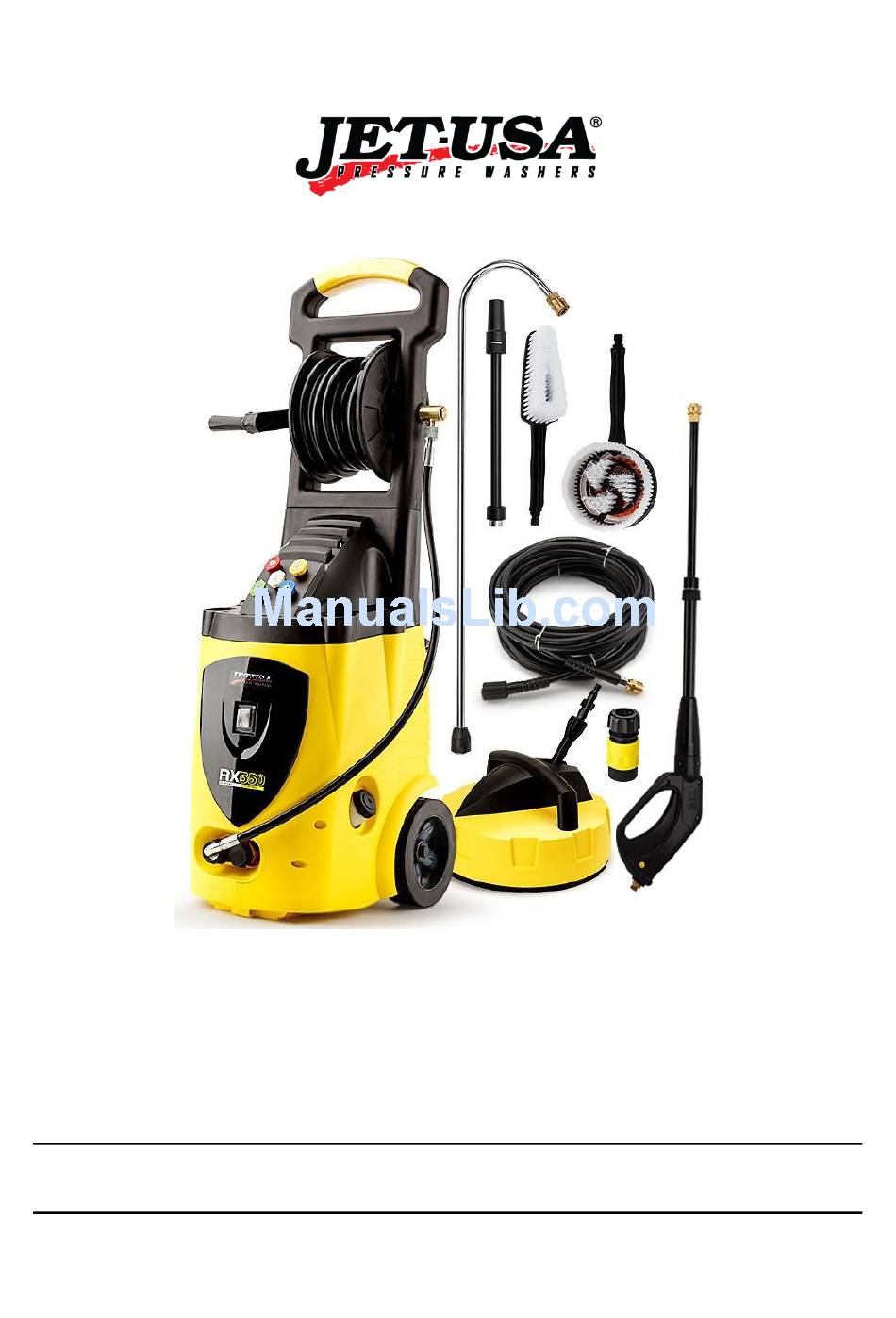

RX550 Electric Pressure Washer
User Manual
[Revision 2.0 February 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
©2018 Jet USA
Advertisement
Table of Contents
Related Manuals for JET USA rx550
Summary of Contents for JET USA rx550
- Page 1 RX550 Electric Pressure Washer User Manual [Revision 2.0 February 2018] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 2: Table Of Contents
RX550 Electric Pressure Washer Table of Contents SAFETY ............................3 GETTING STARTED ........................5 Automatic On/Off ........................5 Bleeding the Gun ........................5 OPERATING INSTRUCTIONS ....................... 6 Shut Down ..........................6 MAINTENANCE ..........................7 Connections ..........................7 Nozzle ............................7 STORAGE ............................ -
Page 3: Safety
RX550 Electric Pressure Washer Safety We ask you to please read this manual carefully beforehand in order to familiarise yourself with this product and after reading, please store this instructional manual for future reference. Failure to follow the proper protocols listed in the manual may cause personal injury to the operator or damage to equipment. - Page 4 RX550 Electric Pressure Washer • The trigger gun must not be jammed in position during operation. • Never tie knots or kink the high-pressure hose. Do not use damaged high-pressure hoses. • All hose connections must be properly sealed. Thermal Relief Valve A thermal relief valve is provided to protect the pump from overheating if the spray gun is closed for an extended length of time or the nozzle becomes obstructed.
-
Page 5: Getting Started
RX550 Electric Pressure Washer Getting Started Automatic On/Off The motor on this pressure washer does not run continuously. It only runs when the trigger of the spray gun is squeezed. After following the start-up procedures in this manual, turn the pressure washer on and squeeze the trigger for activation. -
Page 6: Operating Instructions
RX550 Electric Pressure Washer Operating Instructions This unit is to be connected to a cold water source only. The motor runs only when the trigger is squeezed. 1. Connect the outlet hose to the washer and connect the spray gun to the outlet hose. -
Page 7: Maintenance
RX550 Electric Pressure Washer Maintenance Connections The connections on the pressure washer hoses, gun and spray wand should be cleaned regularly and lubricated with the manufacturer’s recommended grease to prevent leakage and damage to the O- rings. Nozzle Obstructions to the nozzle will cause the pump pressure to be too high. If the nozzle is obstructed, clean it immediately. -
Page 8: Troubleshooting
RX550 Electric Pressure Washer Troubleshooting Fault Probable Cause Repair Plug is not connected or electric socket is Check plug and socket faulty Pressure washer isn’t Main voltage is insufficient and lower Check that the main voltage is working than the minimum requirement... -
Page 9: Specifications
RX550 Electric Pressure Washer Specifications Electrical Requirements 240V / 50HZ Motor 3000W (Peak) Induction Maximum Pressure 3800PSI (262Bar) Continuous Pressure 2250PSI (155Bar) Rated Flow Rate 6.8L/min Max. Flow Rate 8.5L/min Hose Length 10m reel + 20m coiled Detergent Bottle 1.0L Maximum Water Temperature 50°C... -
Page 10: Pressure Washer Parts
RX550 Electric Pressure Washer Pressure Washer Parts Part Pressure Cleaner Water Supply Hose (Not Included) Water Connection Water Inlet High Pressure Tube Water Outlet Spray Gun Power Supply E&OE ©2018 Jet USA... - Page 11 ©2018 Jet USA. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
