BASIC OPERATION
Configuration Dashboard — Outputs
1

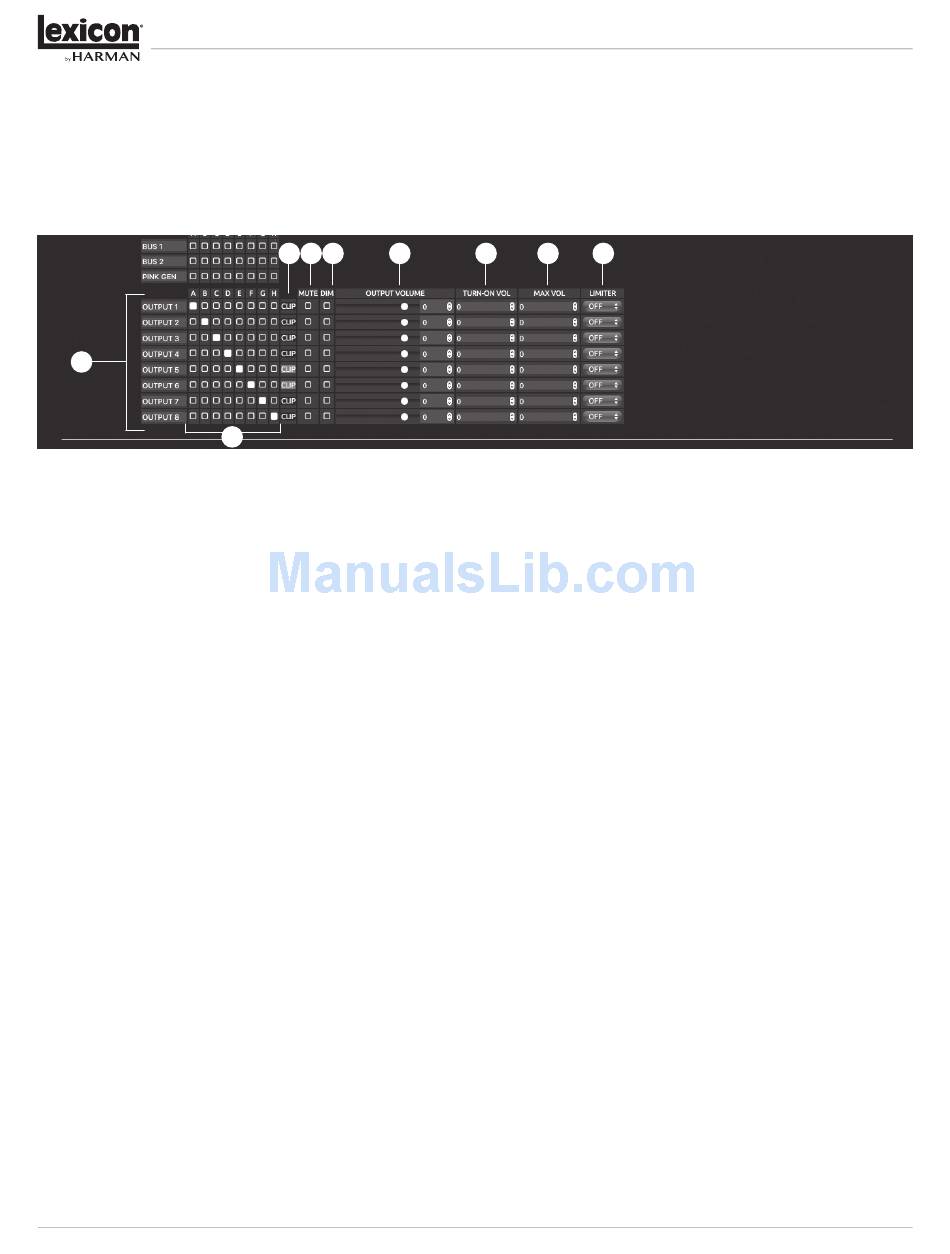

Figure 7. Outputs Dashboard
1. Output Labels
Each output channel may be relabeled simply by typing in the output label field. Best practice is to assign the
room or zone names in place of the default output labels of 1 - 8 etc.
2. Matrix Switcher Outputs
Assigns processor channels A – H to specific outputs. See Advanced Operation - Matrix Switcher instructions on
page 20.
3. SIG Indicator
When lit green, indicates that signal is being routed to the output channel. If any given channel is not green, use
the Matrix Switcher to select the desired input and processor channel.
4. Clip
Indicates when an amplifier output is exceeding its undistorted power limit. Use the MAX VOL control to reduce
the maximum allowable volume.
5. Mute
Mutes to 0dB the selected output channel. Default is OFF (unchecked).
6. Dim
When selected lowers output volume by -20dB. Default is ON.
Sets the volume level of the loudspeakers connected to outputs 1 – 8.
18
4 5 6 7
2
NOTE: Because this -20dB mute function is engaged by default, it is the first place to look if you can't get
enough gain out of a given channel or pair.
7. Output Volume
8 9 10
