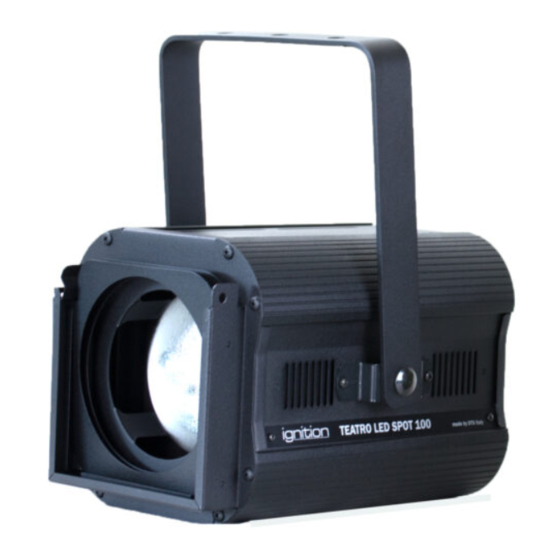

Summary of Contents for Ignition TEATRO LED SPOT 100 PC
- Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto di Thomann. Thomann si riserva il diritto di apportare senza preavviso cambiamenti e modifiche estetiche , funzionali o di design a ciascun proprio prodotto.
-
Page 3: Table Of Contents
INDEX: 1- SYMBOLS ......................... 4 2- GENERAL WARNING ....................4 3- GENERAL WARRANTY CONDITIONS ..............4 4- TECHNICAL FEATURES ..................5 5- ACCESSORIES ......................6 6- IMPORTANT SAFETY INFORMATION ..............7 6.1 Fire prevention...................... 7 6.2 Prevention of electric shock .................. 7 6.3 Safety ........................ -
Page 4: 1- Symbols
1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL INDICATES THE MAXIMUM OPERATING AMBIENT TEMPERATURE THIS SYMBOL MEANS “DO NOT STARE AT THE OPERATING LIGHT SOURCE” THIS SYMBOL INDICATES PHOTOBIOLOGICAL SAFETY THIS SYMBOL INDICATES THE EUROPEAN... -
Page 5: 4- Technical Features
4- TECHNICAL FEATURES Product codes: 426923 TEATRO LED SPOT 100 PC Black finishing 426924 TEATRO LED SPOT 100 FR Black finishing LED Technology Single high-power White 3000K LED CRI > 90 LED lifespan: 50.000 hours (70% lumen output) Optical group PC model: Ø... -
Page 6: 5- Accessories
DIMENSIONS 5- ACCESSORIES As standard ● Filterframe black finishing - already installed on the projector (code 02M00416.46) Optional (on request) ● Barndoor black finishing (code 03.TBD01) -
Page 7: 6- Important Safety Information
6- IMPORTANT SAFETY INFORMATION 6.1 Fire prevention: Replace any blown or damaged fuses only with those of identical value: T 2A 250V. 6.2 Prevention from electric shock: High voltage is present inside the unit. Unplug the unit prior to performing any operation which involves touching the inside of the unit. -
Page 8: 7- Installation
7- INSTALLATION The unit is suitable for dry locations only. TEATRO LED SPOT 100 can be installed on a truss or on the ceiling. It is recommend the use of appropriate clamps to fix the unit to the mounting surface. ATTENTION: A safety cable must be securely fixed to the unit’s mounting bracket and to the support structure of the projector as shown in the picture below. -
Page 9: 9- Dmx Signal Connection
9- DMX SIGNAL CONNECTION: The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm. Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX connector chassis. -
Page 10: Dmx Addresses
9.1 DMX addresses TEATRO LED SPOT 100 can be controlled with 6 DMX channels (Default) or 2 DMX channels. In order to use the unit in 6 DMX channels mode (Default), set the following addresses on the mixer: Projector 1 A001 If you want to select the next projector, just add “6”... -
Page 11: 10- Firmware Updating
10- FIRMWARE UPDATING To update the firmware release of the TEATRO LED SPOT 100 you need: - Dongle Firmware Uploader. - “Firmware Upgrade Utility v.1.00” program installed on PC. - Latest firmware release available for TEATRO LED SPOT 100 unit. Updating the firmware release. - Page 12 FIRMWARE RELEASE 1.00 MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Display normal orientation for floor mounting position (Default) Display inverted orientation for suspended mounting position Display always ON (Default) ...
- Page 13 MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION No DMX action. Keep last valid DMX signal (Default) LED ON @ 60% (ZOOM @ 50%) LED ON @ 100% (ZOOM @ 50%) ...
-
Page 14: 12- Manual Mode
12- MANUAL MODE Manual mode can be activated by pressing at the same time ‘UP’ and ‘DOWN’ keys on unit display for 3 seconds (A001). In Manual mode it is possible to select: Dimmer level selectable by user as on DMX channel 2 (DIMMER). Default = 255 ... -
Page 15: 14- Dmx Protocol
14- DMX PROTOCOL 6 CHANNELS MODE (Default) SHUTTER DIMMER DIMMER FINE FUNCTIONS ZOOM RESET Name DMX levels SHUTTER 0..9 Black-out 10..19 Open 20..29 Black-out 30..119 Strobe (from 3,27 s to 30 ms) 120..149 Pulse up (from 42,6 s to 120 ms) 150..179 Pulse down (from 42,6 s to 120 ms) 180..229... - Page 16 Name DMX levels FUNCTIONS 85..104 OUTPUT FREQUENCY 610 Hz (DEFAULT) (staying on desired OUTPUT FREQUENCY 800 Hz option for 5 seconds) OUTPUT FREQUENCY 1000 Hz OUTPUT FREQUENCY 1500 Hz OUTPUT FREQUENCY 2000 Hz OUTPUT FREQUENCY 2500 Hz OUTPUT FREQUENCY 3000 Hz OUTPUT FREQUENCY 3500 Hz OUTPUT FREQUENCY 4000 Hz OUTPUT FREQUENCY 4500 Hz...
- Page 17 Name DMX levels ZOOM 0..255 Linear zoom from narrow to wide RESET 0..15 No function 16..255 Zoom reset (after 3 sec.) 2 CHANNELS MODE DIMMER ZOOM Name DMX levels DIMMER 0..255 Proportional dimmer from min to max ZOOM 0..255 Linear zoom from narrow to wide...
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 Thomann GmbH *0517I324* Hans-Thomann-Straße 1 96138 Burgebrach info@thomann.de www.thomann.de...
