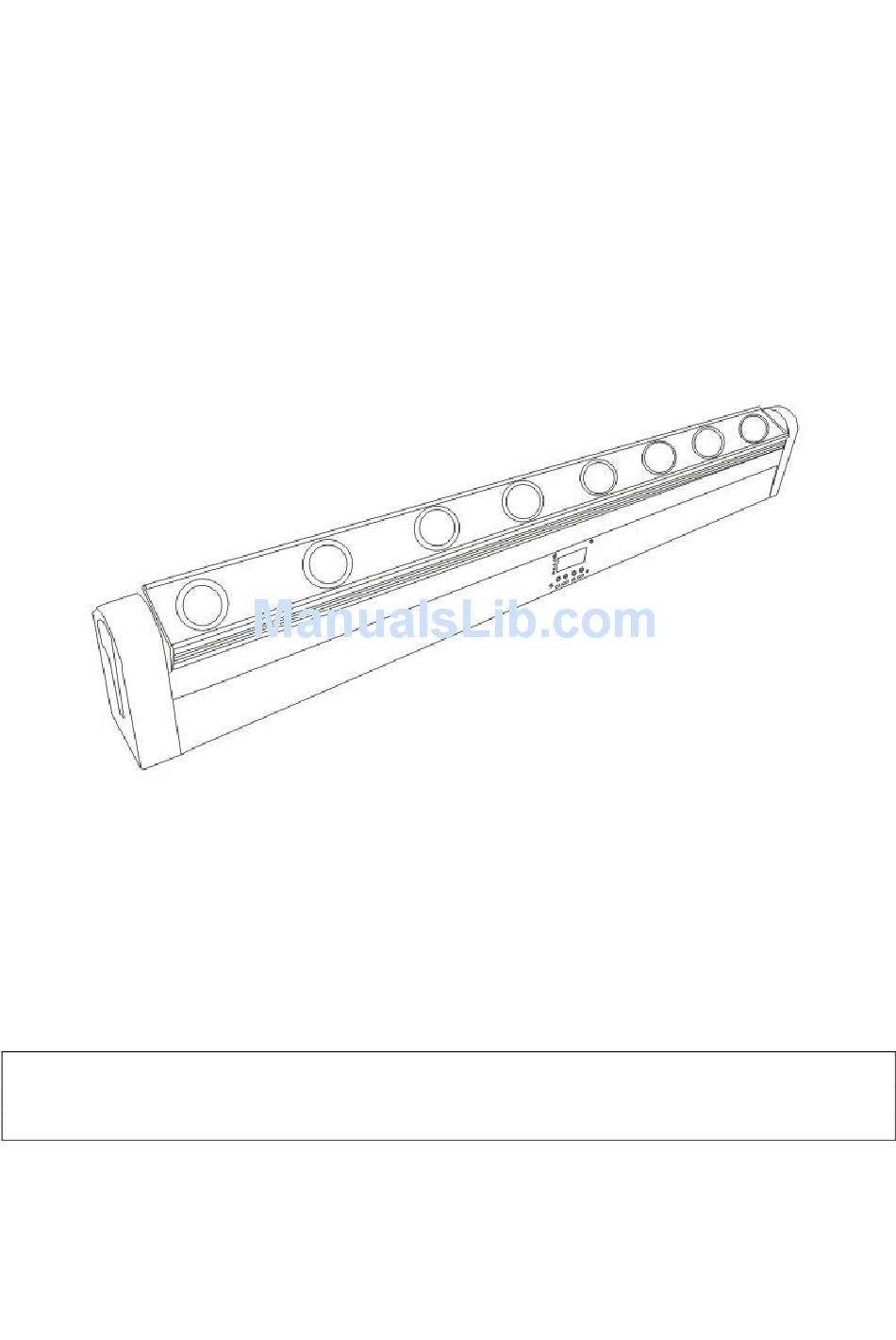

- Page 1 LED ROTATION BEAM LIGHT MJ-1018(White) INSTRUCTION MANUAL Thank you for choosing our LED rotation beam light. For the sake of your safety, Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
LED Beam 8 White MJ-1018 User Manual ver1.0 Catalogue Chapter Page Safe Usage Of The Product -----------------------------------------------------------------------------------------3 Install The Equipment ------------------------------------------------------------------------------------------------4 Power Code Connection ---------------------------------------------------------------------------------------------4 DMX Connection ------------------------------------------------------------------------------------------------------5 DMX Terminator -------------------------------------------------------------------------------------------------------6 Function Set --------------------------------------------------------------------------------------------------------------6 Menu Function Description ----------------------------------------------------------------------------------------------6 Control panel of LED display information------------------------------------------------------------------------------7... -
Page 3: Safe Usage Of The Product
LED Beam 8 White MJ-1018 User Manual ver1.0 SAFE USAGE OF THE PRODUCT When unpacking and before disposing of the carton, check there is no transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. -
Page 4: Install The Equipment
LED Beam 8 White MJ-1018 User Manual ver1.0 Install The Equipment: Use 2pcs clamp (need to purchase).Use clamp fix with light hook which in the packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure and fasten the screws attached to each clamp. -
Page 5: Dmx Connection
LED Beam 8 White MJ-1018 User Manual ver1.0 DMX Connection: Connection between the controller and a projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and sockets. -
Page 6: Dmx Terminator
LED Beam 8 White MJ-1018 User Manual ver1.0 DMX Terminator: In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. -
Page 7: Control Panel Of Led Display Information
LED Beam 8 White MJ-1018 User Manual ver1.0 8：AUTO1,,,,,,,AUT20 MSPE motor speed(MS01-MS08 ) 9：LED (display on/off) 10：DISP ( display forward / reverse) 11：TEST(motor in the middle，W1,,,,,,W8 single bright ) 12：HOUR (The use time of light) 13：RSET (Reset self-test) Note：1、Boot appears as：******LED-WHIT LIGHT BEAM****** 2、sound control motor speed adjusting：... -
Page 8: Trouble Shooting
LED Beam 8 White MJ-1018 User Manual ver1.0 Trouble Shooting: Problem Answer The LED moving head light doesn’t switch on. Check the fuse the power socket Although shines, but the LED moving head Check the digital start address and lamp doesn’t accept the instruction of the also check the connection situation of controller. - Page 9 LED Beam 8 White MJ-1018 User Manual ver1.0 7CH MODE Channel 1 control dimmer。 CH1：0 shut；1-255 dimmer from dark to bright； Channel 2 control strobe。 CH2：0 shut。1-255 strobe speed from slowly to quickly； Channel 3 is auto running effect CH3：0 shut，1， ， ， ， ， ，20 effects；...
-
Page 10: Technical Parameters
LED Beam 8 White MJ-1018 User Manual ver1.0 Technical Parameters: Voltage: AC90V-240V; 50/60Hz Power Consumption: 100W (220V) LED Bulbs: 10W*8LEDs Lumen White LED LED Current: 1800mA LED Lifetime: 50000Hours Adjusts the light: 0-100 electron adjusts the light Strobe: 1-25/second high speed strobe Head Movement: Tilt 180°...
