ICOP Technology VDX3-6724-1G User Manual

Dm&p vortex86dx3 1ghz processor half-size cpu module with 4s/4usb/vga/lcd/lvds/audio/2lan/gpio/1/2gb ddr3 onboard
Hide thumbs Also See for VDX3-6724-1G:
Table of Contents

Advertisement

Quick Links

Download this manual

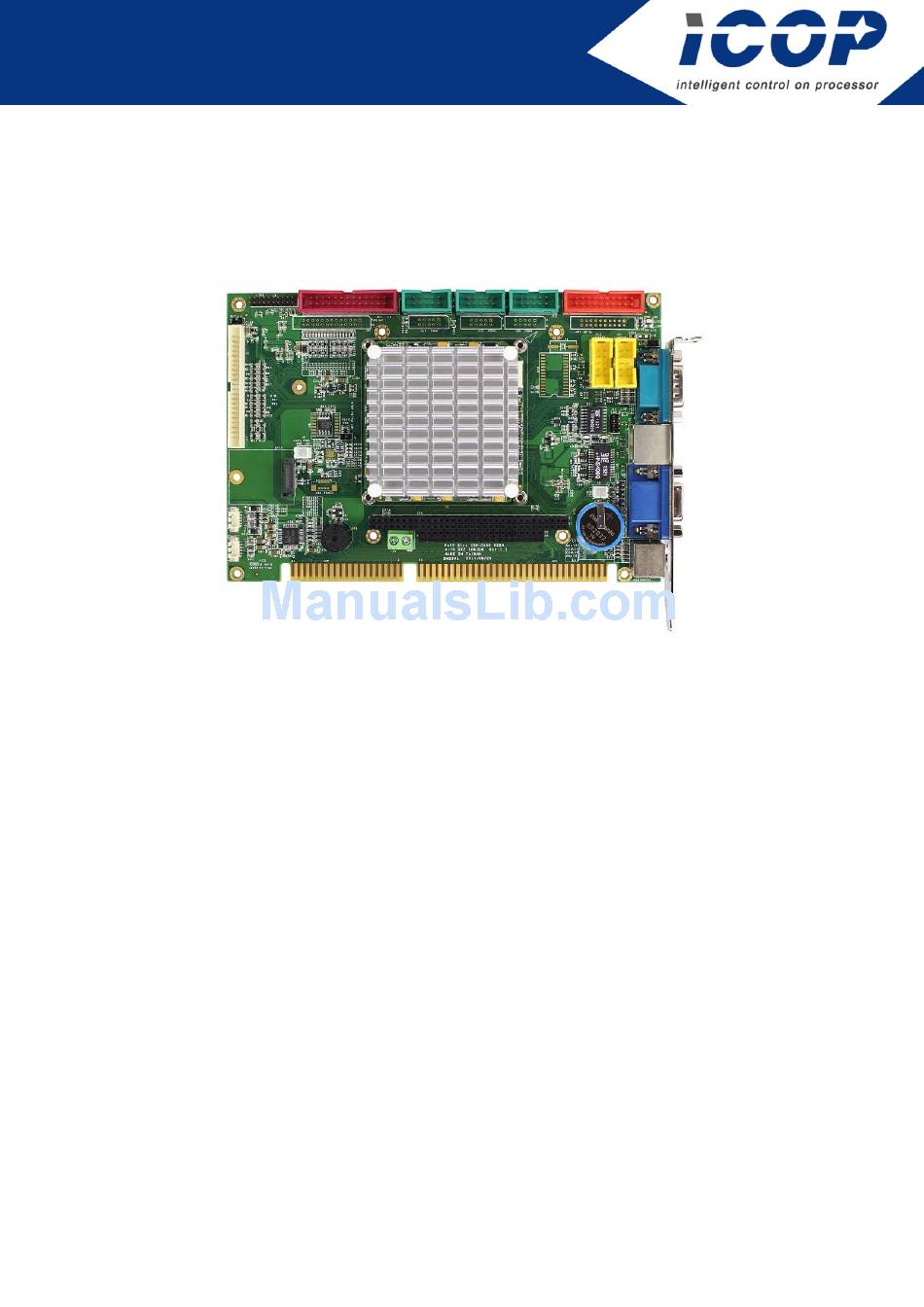

User Manual
VDX3-6724
with
DM&P Vortex86DX3 1GHz processor
Half-Size CPU Module with
4S/4USB/VGA/LCD/LVDS/
AUDIO/2LAN/GPIO/
1/2GB DDR3 Onboard
Version 2.0
ICOP Technology Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDX3-6724-1G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICOP Technology VDX3-6724-1G

Summary of Contents for ICOP Technology VDX3-6724-1G

  • Page 1 User Manual VDX3-6724 with DM&P Vortex86DX3 1GHz processor Half-Size CPU Module with 4S/4USB/VGA/LCD/LVDS/ AUDIO/2LAN/GPIO/ 1/2GB DDR3 Onboard Version 2.0 ICOP Technology Inc.
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior to written permission of ICOP Technology Inc. ⓒCopyright 2016 ICOP Technology Inc Trademarks Acknowledgement Vortex86DX3 is the registered trademark of DM&P Electronics Inc.

  • Page 3: Revision History

    VDX3-6724 User Manual Revision History Revision Date Remark June 13, 2016 First release New Add: (1) Working temperature for Dual Core version June 8, 2016 (2) Cable set for VDX3-6724 with Compact Flash ICOP Technology Inc.

  • Page 4: Table Of Contents

    J6: SATA DOM POWER ....................16 J8: PS/2 KEYBOARD/MOUSE ..................16 J9: LAN1 (RJ45) ........................ 16 J10: LAN2 ......................... 16 J11: USB0&1 ........................17 J12: USB2&3 ........................17 J13: GPIO (Port 6/7) ......................17 J15: RESET ........................18 ICOP Technology Inc.
  • Page 5 Basic LCD Panel Setting ....................28 Introduction ........................ 28 Pin Assignment of LVDS .................... 28 Basic BIOS Setting for LCD ..................29 Technical Support Directly from ICOP ....................31 User Manual Feedback ..........................31 Appendix TFT Panel Data Output ......................32 ICOP Technology Inc.

  • Page 6: General Information

    USB, HD Audio and even with 16-bit ISA bus support. The VDX3-6724 is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering. 1.2 Block diagram Board Block Diagram ICOP Technology Inc.

  • Page 7: Specifications

    Interface USB hot SWAP x1 SATA 7P Connector x1 RS232 port x2 RS232/485 port x2 Parallel port x1 I/O Interface USB port (Ver. 2.0) x4 16-bit GPIO port x1 10/100Mbps Ethernet port x1 10/100/10000Mbps Ethernet port x1 ICOP Technology Inc.
  • Page 8 Free DOS, DOS 6.22, PCDOS 7.1, DR-DOS, x-DOS, OS/2, Windows 7, Windows Embedded Standard 7, Windows Embedded Compact 7, Operating Windows Embedded Compact 6, Windows XP Professional, Windows System Support Embedded Standard(XPE), POS Ready(WePOS), Embedded Linux, QNX, Vxworks and FreeBSD. ICOP Technology Inc.

  • Page 9: Ordering Information

    NET 4x2 (2.0) x1 YKB x1 ICOP-0096 Vortex86 LVDS 18-bit Converter Kit for LCD Panel Display CABLE-LVDS-30 18-Bit LVDS Cable *Default setting for processor on VDX3-6724 is Single-core. If Dual-core processor is required, please contact ICOP (info@icop.com.tw). ICOP Technology Inc.
  • Page 10 VDX3-6724 User Manual Storages: Product Name 0℃ ~ +70℃ -40℃ ~ +85℃ SDM-SST-2G-H-M SDM-SST-4G-H-M ISATA-8G-H-M ISATA-16G-H-M ISATA-32G-H-M ISATA-4G-H-M-X ISATA-8G-H-M-X ISATA-16G-H-M-X ISATA-32G-H-M-X ISATA-1G-H-S ISATA-2G-H-S ISATA-4G-H-S ISATA-8G-H-S ISATA-16G-H-S SDM-SST-2G-H-S-X SDM-SST-4G-H-S-X SDM-SST-8G-H-S-X ISATA-16G-H-S-X ICOP Technology Inc.

  • Page 11: Hardware Information

    VDX3-6724 User Manual 2 Hardware Information 2.1 Board Dimension ICOP Technology Inc.

  • Page 12: Board Outline

    3. GPIO will be occupied when eMMC is selected on VDX3-6754. 4. LPT, eMMC, and GPIO are not available on VDX3-6754-CF. 5. CF card slot is only available on VDX3-6754-CF. (See the image below) ICOP Technology Inc.

  • Page 13: Connector And Jumper Location And Summary

    VDX3-6724 User Manual 2.3 Connector and Jumper Location and Summary Jumper Location: ICOP Technology Inc.
  • Page 14 PC104 Connector – 40 pins Box Header, 2.54mm, 20x2 Line-Out Wafer, 1.25mm, 4x1 MIC-In Wafer, 1.25mm, 4x1 Touch screen Controller Wafer, 1.25mm, 4x1 (Optional) Print Box Header, 2.0mm, 13x2 Master/Slave for CF Card Slide switch CF card slot Buzzer ICOP Technology Inc.

  • Page 15: Pin Assignments & Jumper Settings

    VDX3-6724 User Manual 2.4 Pin Assignments & Jumper Settings J1: LCD Pin# Single Name Pin # Single Name +3.3V +3.3V LCLK LHSYNC LVSYNC LBACKL LVDDEN (Please refer to Appendix for TFT Flat Panel Data Output) ICOP Technology Inc.

  • Page 16: J2: Vga

    DDCCLK J3: LVDS (24-bit Support Only) Pin# Single Name Pin # Single Name VCC3 (+3.3V) VCC3 (+3.3V) RxIN0+ RxIN0- RxIN1- RxIN1+ RxIN2+ RxIN2- CKIN- CKIN+ RxIN3- GxIN3+ J4: SATA DOM Pin# Single Name Pin # Single Name ICOP Technology Inc.

  • Page 17: J5: Power Connector (Terminal Block 5.0Mm)

    GGND GGND J9: LAN1 (RJ45) Pin# Single Name Pin # Single Name ATX+ ATX- ARX+ LED0 LED0+ ARX- LED1+ LED1 J10: LAN2 Pin# Single Name Pin # Single Name ATX+ ATX- ARX+ LED0 LED0+ ARX- LED1+ LED1 ICOP Technology Inc.

  • Page 18: J11: Usb0&1

    J13: GPIO (Port 6/7) Pin# Single Name Pin # Single Name GP60/SDA_D2 GP70 GP61/SDA_D3 GP71 GP62/SDA_CMD GP72 GP63/SDA_CLK GP73 GP64/SDA_D0 GP74 GP65/SDA_D1 GP75 GP66/SDA_CD GP76 GP67/SDA_WP GP77 *When onboard eMMC is enabled, GPIO will be disabled. **Not available on VDX3-6724-CF ICOP Technology Inc.

  • Page 19: J15: Reset

    J18: COM2 RS232/485 (Optional: TTL/ GPIO-P5) Pin# Single Name Pin # Single Name DCD2/2RS485- RXD2/2RS485+ TXD2 DTR2 DSR2 RTS2 CTS2 J20: COM5 RS232 (Optional: TTL/ GPIO-P0) Pin# Single Name Pin # Single Name DCD5 RXD5 TXD5 DTR5 DSR5 RTS5 CTS5 ICOP Technology Inc.

  • Page 20: J22: Com6 Rs232 (Optional: Ttl/ Gpio-P1)

    VDX3-6724 User Manual J22: COM6 RS232 (Optional: TTL/ GPIO-P1) Pin# Single Name Pin # Single Name DCD6 RXD6 TXD6 DTR6 DSR6 RTS6 CTS6 ICOP Technology Inc.

  • Page 21: J24A: Pc/104 Connector - 64 Pin

    SMEMR* DRQ5 SA18 IOW* DACK6* SA17 IOR* DRQ6 SD10 SA16 DACK3* DACK7 SD11 SA15 DRQ3 DRQ7 SD12 SA14 DACK1* SD13 SA13 DRQ1* MASTER* SD14 SA12 REFRESH* SD15 SA11 SYSCLK SA10 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2* BALE ICOP Technology Inc.

  • Page 22: J28: Line-Out

    VDX3-6724 User Manual J28: Line-Out J29: MIN-In Pin# Single Name Pin# Single Name LOUTR MICVREF LOUTL MIC-IN J30: Touch screen (Optional) Pin# Single Name **If touchscreen function is enabled, SPI ROM will be disabled. ICOP Technology Inc.

  • Page 23: J31: Print

    In the following website, you will find our latest user manuals, including OS support resources systems such as evaluation images for Windows Embedded Compact 7, Windows Embedded CE6.0, and Windows XP Embedded (Win XPe), etc. For details, please visit the link below: http://tech.icop.com.tw/ ICOP Technology Inc.

  • Page 24: Basic Bios Setting

    VDX3-6724 without VGA display or monitor. The default access port is COM1 and disabled. If you would like to use this function, please go to the path below to enable Console Redirection. Path: Advanced >Remote Access Configuration >Remote Access [Enabled] ICOP Technology Inc.

  • Page 25: Serial Ports Switching

    Serial ports on VDX3-6724 are set RS232 as default. If you need RS485 be your default serial ports. Please contact your contact window directly or mail info@icop.com.tw. And you can refer to the below instruction to select the IRQ mode according to your demands. Path: Advanced >Serial/Parallel Port Configuration ICOP Technology Inc.

  • Page 26: Ide Configuration

    If you would like to use Linux on VDX3-6724, please follow below instructions: Onboard IDE Operate Mode: [Native Mode] IDE Compatibility: [Enabled]. Path of Onboard IDE Operate Mode: Advanced >IDE Configuration >Onboard IDE Operate Mode [Native Mode] ICOP Technology Inc.

  • Page 27: Advanced Pci-Pnp Setting

    VDX3-6724 User Manual 4.6 Advanced PCI-PnP Setting Two statuses for IRQ setting: [Reserved]: IRQ will free to be allocated by PnP BIOS. [Available]: IRQ will not free to be allocated by PnP BIOS. Path: PCIPnP >IRQ ICOP Technology Inc.

  • Page 28: Acpi Enable

    VDX3-6724 User Manual 4.7 ACPI Enable To install Windows 7 on ICOP computer boards, please enable ACPI as the following instruction. Path: Advanced >Power Management Configuration > ACPI Configuration >ACPI Aware O/S ICOP Technology Inc.

  • Page 29: Basic Lcd Panel Setting

    **Boot Display Device [VBIOS]: LCD and VGA display supported with display setting based on your required LCD specification. [CRT]: VGA display supported 5.2 Pin Assignment of LVDS Please refer Page 20 for LVDS pin assignment. ICOP Technology Inc.

  • Page 30: Basic Bios Setting For Lcd

    Resolution of the LCD Panel VBIOS the Required LCD Specification 640 x 480 800 x 480 800 x 600 1024 x 600 1024 x 768 Path of Boot Display Device setting: Boot >Boot Settings Configuration >Boot Display Device [VBIOS] ICOP Technology Inc.
  • Page 31 Path of LCD Panel Index setting: Boot >Boot Settings Configuration >LCD Panel Index [ ***The [VBIOS] difference between Boot Display Device and LCD Panel Index: Boot Display Device [VBIOS]: Display Output Setting LCD Panel Index [VBIOS]: Display Resolution Setting ICOP Technology Inc.

  • Page 32: Technical Support Directly From Icop

    —Any complement or technical situations you want ICOP more focusing on User Manual Feedback To make this user manual more complete, if you have any comments or feedbacks to this manual, please feel free to write to info@icop.com.tw contact your ICOP sales representative. ICOP Technology Inc.

  • Page 33: Appendix Tft Panel Data Output

    LCD Pin# Single Name Digital 18 Bits RGB 24 Bits LCDVCC (+3.3) LCDVCC (+3.3) FPD12 FPD13 FPD14 FPD15 FPD16 FPD17 FPD18 FPD19 FPD20 FPD21 FPD22 FPD23 FPD0 FPD1 FPD2 FPD3 FPD4 FPD5 FPD6 FPD7 FPD8 FPD9 FPD10 FPD11 ICOP Technology Inc.
  • Page 34 VDX3-6724 User Manual LCD# Single Name Digital 18 Bits RGB 24 Bits FP1CLK XCLK XCLK FP1DE FP1HS HSYNC HSYNC FP1VS VSYNC VSYNC FPENBLT FPENVDD VDDEN VDDEN ICOP Technology Inc.
  • Page 35 Returned goods should always be accompanied by a clear problem description. Should you have questions about warranty and RMA service, please contact us directly. ICOP Technology Inc. Address: No. 15 Wugong 5th Road, Xinzhuang Dist. New Taipei City, Taiwan (R.O.C.) 24890...
