Pneumercator LC2000 Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

PNEUMERCATOR
Liquid Level Control Systems
Peter Sinkiwskij
Date: 2017.07.08 20:10:55 -04'00'
ou=Headquarters, email=peter@pneumercator.com, c=US
DN: cn=Peter Sinkiwskij, o=Pneumercator Co., Inc.,
Digitally signed by Peter Sinkiwskij
© COPYRIGHT 2017 PNEUMERCATOR CO., INC.
LC2000 Operation Manual - 2017-07-08.docx

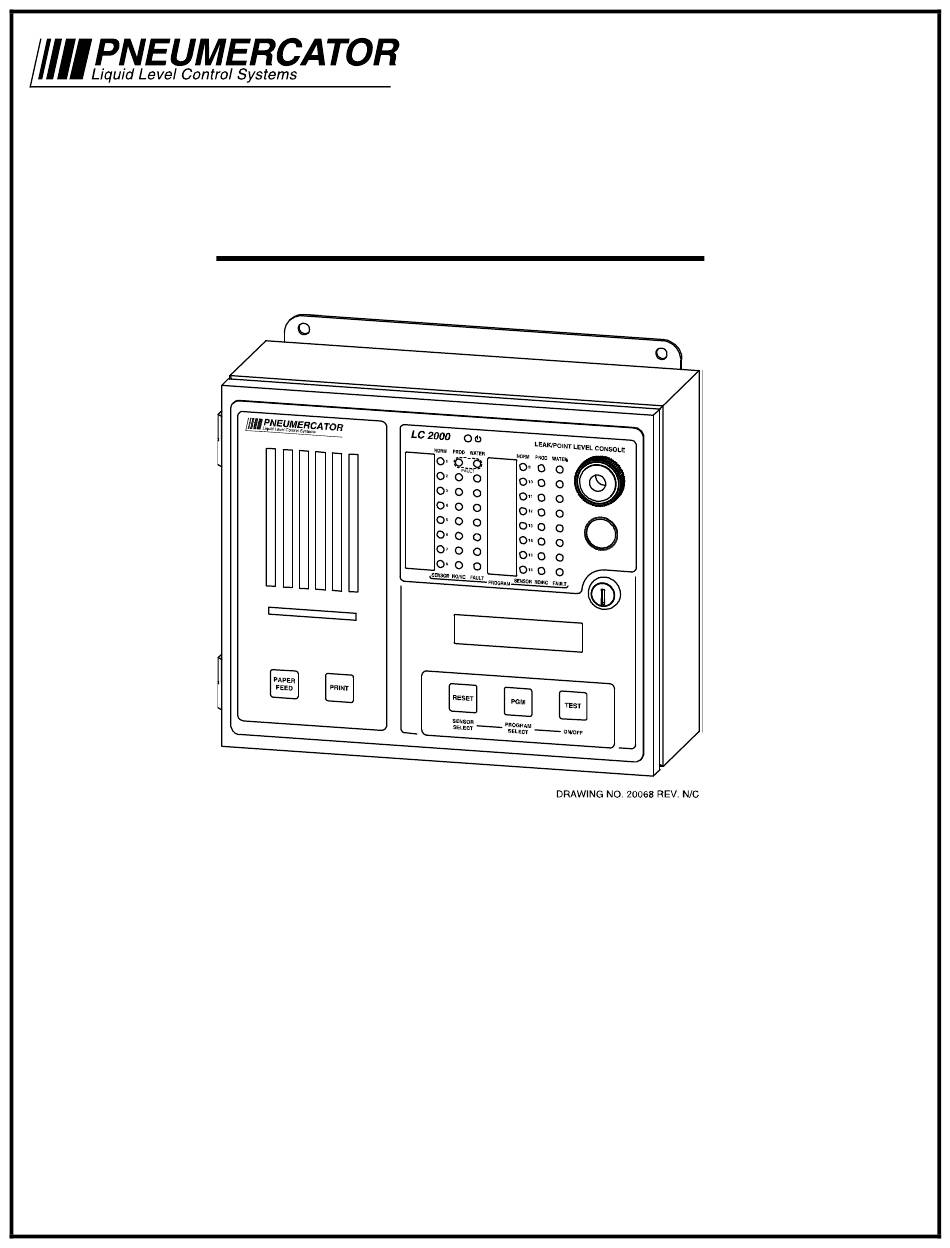

OPERATION MANUAL
MODEL LC2000
1785 EXPRESSWAY DRIVE NORTH
HAUPPAUGE, NY 11788
TEL: (631) 293-8450
FAX: (631) 293-8533
http://www.pneumercator.com
DRAWING NO. 20068 REV. N/C
LEAK/POINT
LEVEL ALARM
CONSOLE
July 8, 2017
