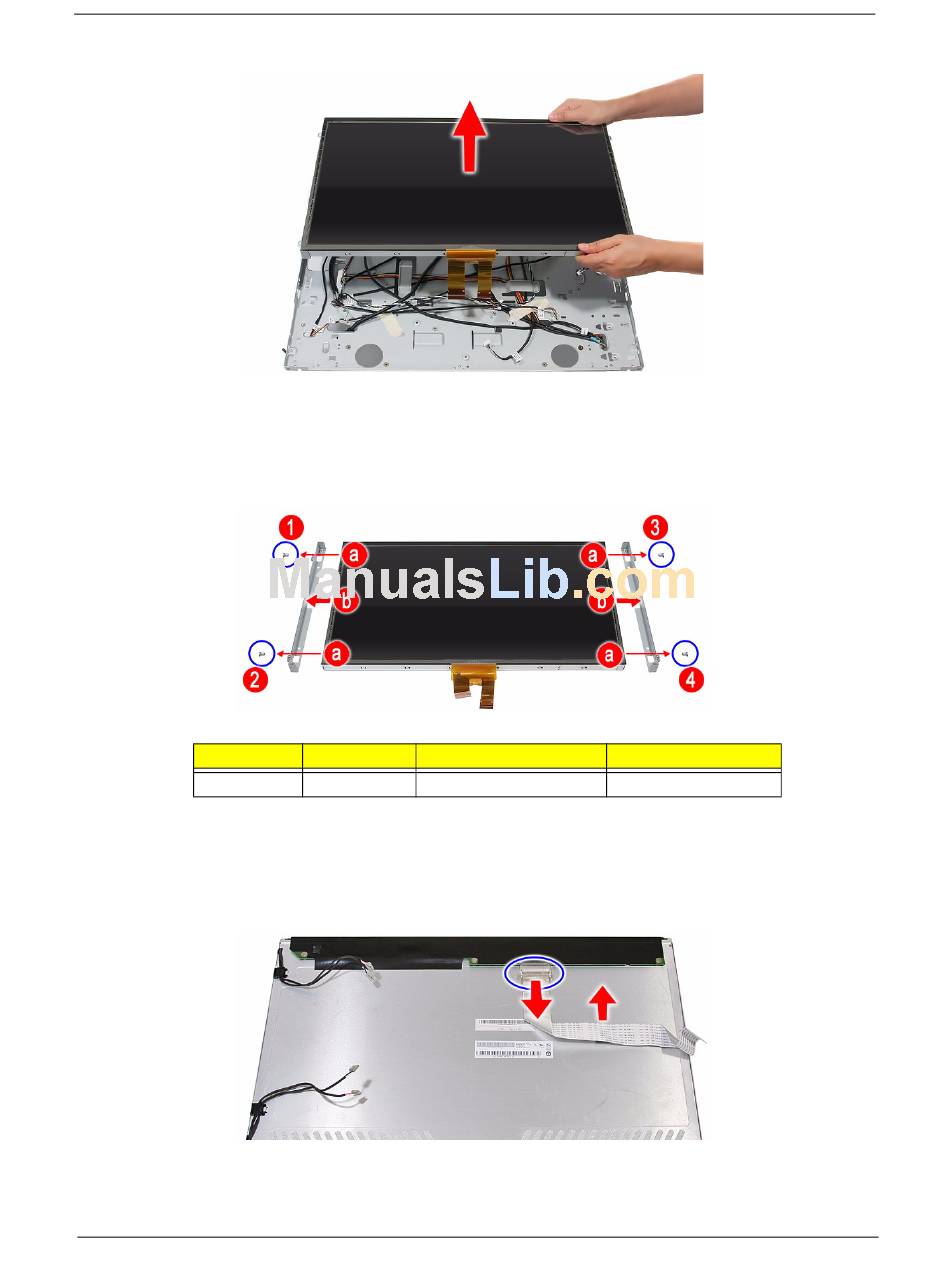

6. Remove the LCD panel from the chassis.

Removing the LCD Panel Brackets

1. Remove the LCD panel by following the procedure described on the previous page.
2. Remove the screws securing the LCD panel bracket (a), then detach the brackets (b).
Quantity
4

Removing the LCD LVDS Cable

1. Remove the LCD panel by following the procedure described on the previous page.
2. Disconnect the LCD LVDS cable, then pull the cable from the panel.
Aspire Z3750 / Z3751 / Z5750 / Z5751 AIO Computer Service Guide
Color Torque
Chrome 4.5 +/- 0.3 kgf-cm
Part Number
86.1A524.5R0
65
