Acer ASPIRE Z3750 Service Manual page 101

Category
Graphics card
(continuation)
Riser board
Webcam module
Bluetooth module
Wireless LAN module
Wireless antennas
Processor

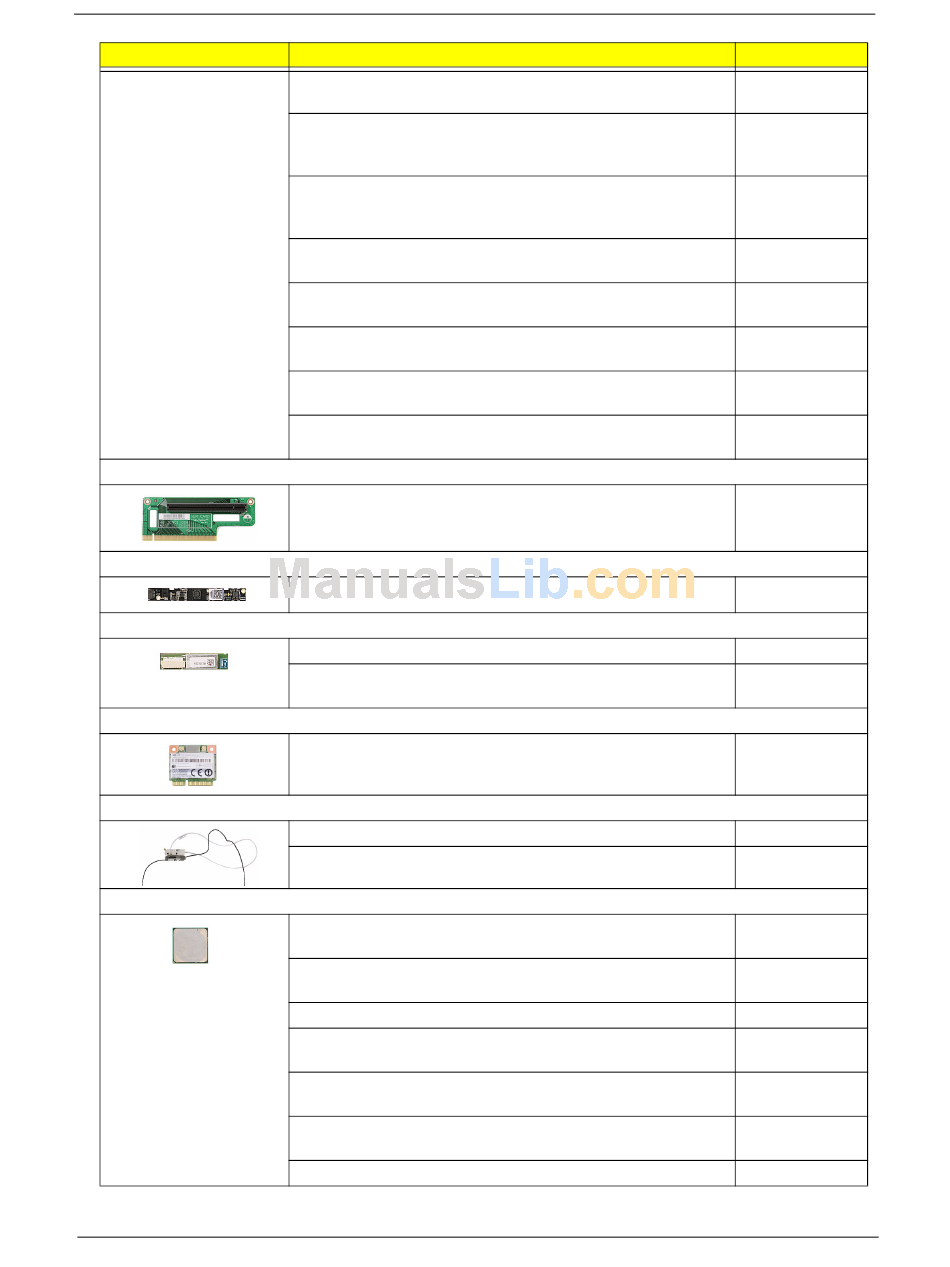

Aspire Z3750 / Z3751 / Z5750 / Z5751 AIO Computer Service Guide
Part Name
VGA CARD 5450 512MB SDDR3 HYNIX-1.2 DVI/HDMI/VGA
W/ATX
VGA CARD 288-1E153-200AC AMD HD5450 512MB 64BITS
SDDR3 DVI+HDMI+VGA ATX 4 LAYER COST DOWN (NEW
HYNIX -1.2)
VGA CARD 288-1E153-000AC HD5450 512MB SDDR 3
(64BITS) SAMSUNG DVI HDMI VGA W/ATX BKT ROHS 4
LAYER COST DOWN
288-5N118-210AC NV GT320 1GB DDR3 DVI+HDMI+VGA
ATX (HYNIX 1.2NS)
288-5N118-010AC NV GT320 1GB SDDR3 DVI+HDMI+VGA
ATX (SAMSUNG)
VGA CARD 288-2E142-201AC AMD HD5570 1GB 128BITS
SDDR3 DVI+HDMI+VGA ATX (NEW HYNIX -1.2)
VGA CARD 288-1E145-001AC HD5450 512MB SDDR 3
(64BITS) SAMSUNG DVI HDMI VGA W/ATX BKT ROHS
VGA CARD HD5570 1GB DDR 3 (128BITS) SAMSUNG DVI
HDMI VGA W/ATX BA
RISER BOARD
CAMERA 2M PRIMAX 50-704A4WNT8
BLUETOOTH MODULE V2.1+EDR CSR BC04-ROM CSP A08
BLUETOOTH BOARD MODULE V2.1+EDR CSR BLUECOR
XAVI BC10B-04C1
WIRELEEE LAN BOARD 802.11BGN REALTEK LITEON
RTL8191SU 1TX2R H
WIRELESS ANTENNA AUX WLAN GALLAGHER ACON
WIRELESS ANTENNA MAIN WLAN GALLAGHER ACON
CPU INTEL CORE I3-530 LGA 2.93G 4M 1333FSB 1156 73W
CLARKDALE C-2 DUAL CORE
CPU INTEL CORE I3-540 LGA 3.06G 4M 1333FSB 1156 73W
CLARKDALE C-2 DUAL CORE
CPU INTEL CLARKDALE CORE I3-550 3.20G 4M 1333 73W
CPU INTEL CORE I5-650 LGA 3.2G 4M 1333FSB 1156 C-2
73W CLARKDALE DUAL CORE
CPU INTEL CORE I5-660 LGA 3.33G 4M 1333FSB 1156 C-2
73W CLARKDALE DUAL CORE
CPU INTEL CORE I5-670 LGA 3.46G 4M 1333FSB 1156 C-2
73W CLARKDALE DUAL CORE
CPU PENTIUM G6950 73W 2.8GHZ 3M PGA
Part Number
VG.APC54.522
VG.APC54.524
VG.APC54.503
VG.PCPT3.203
VG.PCPT3.201
VG.APC55.722
VG.APC54.501
VG.APC55.701
55.SEW01.005
57.U5R01.003
54.U5R01.002
54.U5R01.001
NI.10200.041
50.U5R01.030
50.U5R01.031
KC.53001.CI3
KC.54001.CI3
KC.55001.CI3
KC.65001.CI5
KC.66001.CI5
KC.67001.CI5
KC.69501.DEG
93
