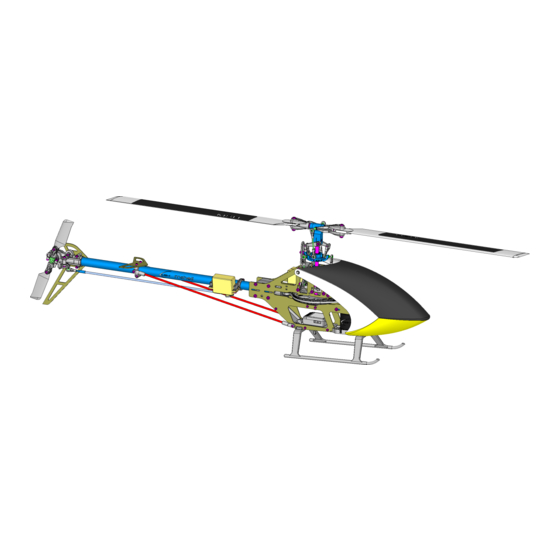

MSH Protos Instruction Manual

Rc helicopter
Hide thumbs Also See for Protos:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
RC Helicopter
Instructions Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Protos and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MSH Protos

Summary of Contents for MSH Protos

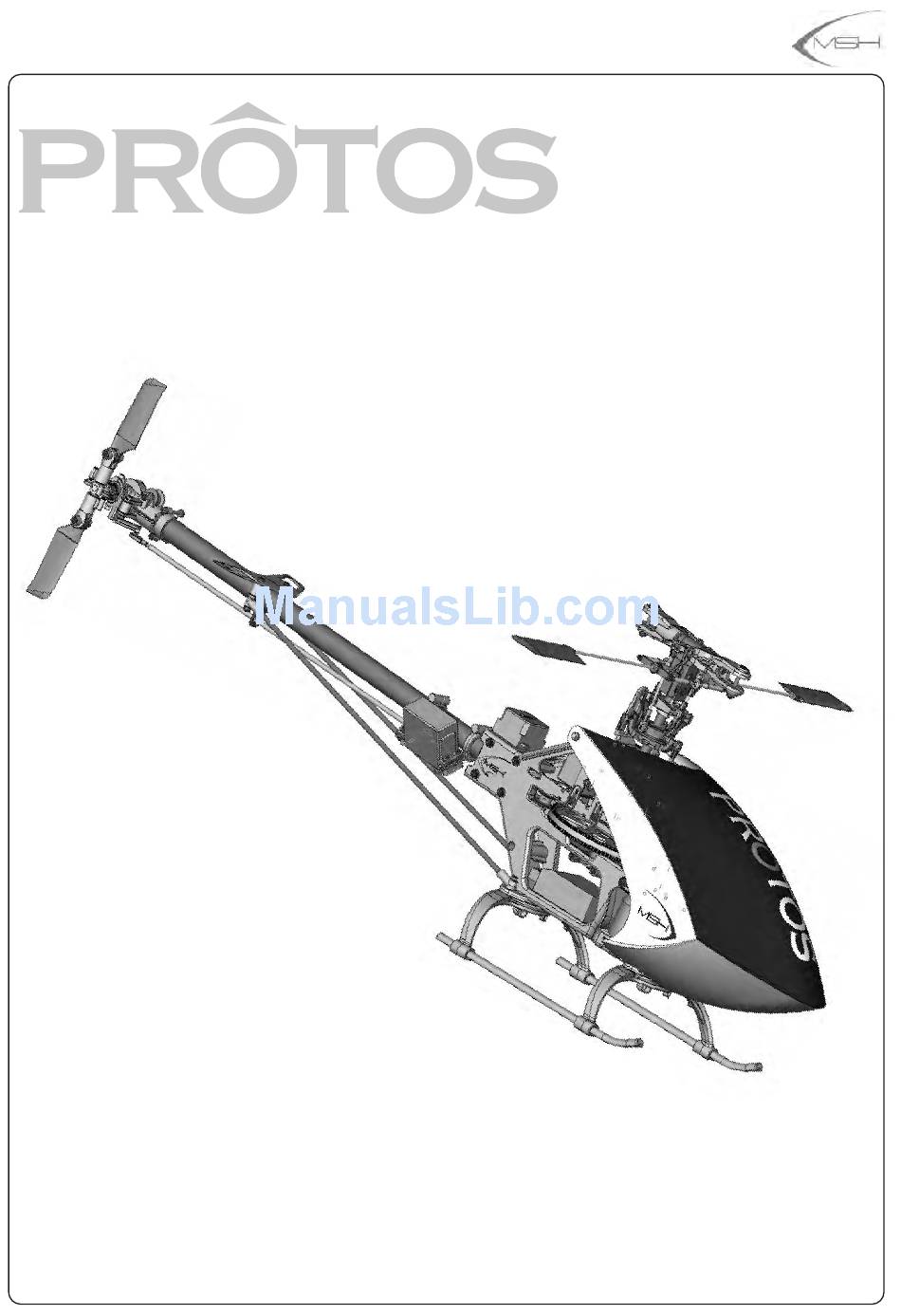

  • Page 1 RC Helicopter Instructions Manual...
  • Page 2 RC Helicopter Instructions Manual Index Page Content Main Frame Assembly 8-17 Head Assembly 18-26 Tail Assembly Motor Installation 27-29 Battery, ESC and Canopy Installation Belt Tensioning Diagram Parts Description 32-39...

  • Page 3: Hex Screw

    MSH 50099 Hex Screw M2x10 MSH 50099 Hex Screw M2.5x5 MSH 50101 Ball Screw M2x4.8 MSH 50007 BB 8x16x5 MSH 50034 M2 MSH 50123 MSH 50081 Servo Adapter MSH 50086 Ball Screw 4.5x10.5 M2 1.4x4 MSH 50007 MSH 50123 BB 8x16x5...
  • Page 4 BAG-B Guide Pulley Spacer 3x5x0.6 Guide Pulley Spacer MSH 50018 3x5x0.6 MSH 50018 BB 3x8x3 MSH 50033 Pin 3x14 MSH 50059 Guide Pulley MSH 50091 Pin 3x14 MSH 50059...

  • Page 5: Hex Screw

    Attention BAG-B Hex Screw M2.5x6 MSH 50102 Hex Screw M2.5x8 MSH 50103 Washer 2.6x6.5x0.6 MSH 50106 Hex Screw M2.5x6 MSH 50102 Motor Mount MSH 50028 Washer 2.6x6.5x0.6 MSH 50106 Hex Screw M2.5x8 MSH 50103 CAUTION Use Thread lock on every screw metal/metal such as screws that keep the servo frame in place.
  • Page 6 BAG-B M2.5 Nylon Nut MSH 50124 Hex Screw M2.5x16 MSH 50106 Main Frame L MSH 50070 Main Frame R Self Tapping MSH 50066 Screw Hex Screw M2.5x6 MSH 50118 Hex Screw 2.5x16 MSH 50102 Hex Screw M2.5x6 MSH 50106 MSH 50102 Washer 2.6x6.5x0.6...

  • Page 7: Hex Screw M2.5X16 Msh

    BAG-B Tips/Instructions Slide skid in both struts until "clicks" in position. Both struts should "click". Hex Screw M2.5x10 MSH 50104 Hex Screw M2.5x16 MSH 50106 Nylon Nut M2.5 MSH 50124 Hex Screw M2.5x16 Hex Screw MSH 50106 M2.5x10 MSH 50104...

  • Page 8: Hex Screw

    Tips/Instructions Use thread lock on grub screw M2.5x12 on the side that goes in the servo frame. Grub screw can be screwed in by hand and tightened with MSH 50063 (Canopy post) Grub Screw using the two flat surfaces. M2.5x12...

  • Page 9: Hex Screw

    Main shaft should not have any vertical play. Hex Screw Hole nearer to side goes on top. M2x6 MSH 50098 Hex Screw M3x20 MSH 50112 Nylon Nut MSH 50004...

  • Page 10: Hex Screw

    Tips/Instructions Use Thread lock on balls and screw M2x10. Ball M2x2.8 Hex Screw MSH 50009 M2x10 MSH 50099 BB 2x5x2.5 MSH 50039 Spacer 2x3x2.5 MSH 50021 BAG-C Hex Screw M2x10 MSH 50099 MSH 50024 Ball Screw M2x2.8 MSH 50009...
  • Page 11 MSH 50046 Uniball Hand L MSH 50092 Rod D 42.5mm 3150 MSH 50046 9650 NOTE: User to have 3 sets of: Fut 3150,9650 and 3no's MSH 50046 CAUTION Use provided ball sizer on plastic links in case joint is too stiff.
  • Page 12 BAG-D CAUTION Do not over tight screws and balls on plastic.Just 1/8 turn after completely BB 2x5x2.5 seated. Flanged Ball Screw M2x4.8 MSH 50041 MSH 50007 MSH 50084 Hex Screw M2x10 MSH 50099 Washout Pin Ball Screw 2x12 M2x4.8 MSH 50058...
  • Page 14 Tips/Instructions BAG-D MSH 50027 Apply Thread lock on hex screw M2.5x5 and outside BB 2.5x6x2.5. Hex Screw M2.5x5 MSH 50101 Hex Screw M2.5x5 MSH 50101 MSH 50085 BB 2.5x6x2.5 Flanged MSH 50093 BB 2x5x2.5 Flanged MSH 50091 CAUTION While tightening screw M2.5x5 to flybar...
  • Page 15 MSH 50048 Rod A 16.4mm NOTE: MSH 50048 User to have 2 sets of: MSH 50008 MSH 50036 and 2no's MSH 50048 Flybar Rod Tips/Instructions MSH 50010 (contained in Bag L) Use thread lock on screws M2x6 and grub screws M3x3.
  • Page 16 BAG-D MSH 50088 Hex Screw M2x6 MSH 50098 Grub Screw Grub Screw M3x3 M3x3 MSH 50117 MSH 50117 Paddle weight MSH 50062 Brass 2.4x 5mm Hex Screw M2x6 MSH 50098...
  • Page 17 BAG-D Ball Screw M2x4.8 MSH 50007 Hex Screw M2x10 MSH 50099 BB 2x5x2.5 Flanged MSH 50041 Hex Screw M2x10 Ball Screw MSH 50099 M2x4.8 MSH 50007 MSH 50082 MSH 50083...
  • Page 18 Tips/Instructions Use thread lock on screws M3x8 thrust bearings flange with bigger hole inward, flange with smaller hole outward. Hex Screw M3x8 MSH 50110 Thrust BB 5x10x4 MSH 50042 BB 5x10x4 MSH 50034 Oring 5.23x2.62 Washer MSH 50059 3.1x8x1 MSH 50122...
  • Page 19 Tips/Instructions Use threadlock on M3x14 screw. Uniball Hand S 1 mm NOTE: MSH 50036 Rod B User to have 2 sets of: MSH 50032 Hex Screw M3x14 MSH 50113 NOTE: Rod B User to have 2 sets of: MSH 50036...

  • Page 20: Guide Pulley

    Guide Pulley Spacer BAG-E 3x5x0.6 MSH 50018 BB 3x8x3 Guide Pulley Spacer MSH 50033 3x5x0.6 MSH 50018 Guide Pulley MSH 50091 Pin 3x14 MSH 50059 Pin 3x14 MSH 50059 Guide Pulley Assembly BAG-E Self Tapping Screw 2.2x9.5 MSH 50118 MSH 50064 Self Tapping Screw 2.2x9.5...

  • Page 21: Nylon Nut M2.5 Msh

    Tips/Instructions Hex Screw Do not fully tighten screws M2.5x12 yet. M2.5x12 MSH 50105 MSH 50074 BAG-E Hex Screw M2.5x12 MSH 50105 Important !! When sliding boom assembly is in position make sure that the hole on the rear is facing left when looking from behind.

  • Page 22: Guide Pulley

    BAG-F Tips/Instructions Do not over tight guide pulley screw, check that it turns freely after tightening the screw. Hex Screw M2.5x20 MSH 50107 Hex Screw M2.5x16 MSH 50106 1.5x8 Washer MSH 50057 5x7.5x0.1 MSH 50135 Nylon Nut M2.5 MSH 50124 Washer 5x7.5x0.1...
  • Page 23 CAUTION MSH 50061 Tail pitch plate MSH 50099, must screw in to slide shaft MSH 50061 perfectly squared. MSH 50095 MSH 50093 MSH 50094 BB 7x11x3 MSH 50036 BAG-F 1.5x8 MSH 50057 1.5x8 MSH 50057...
  • Page 24 BAG-F Tips/Instructions Do not full tight tail pitch lever screw, just screw it until fully seated. Tail Pitch MSH 50077 Lever Screw M2.5x5 MSH 50100 BB 3x6x2.5 MSH 50037 Ball Screw M2x4.8 MSH 50007 Pitch Tail Pitch Lever Bush Lever Screw 2.5x3x8.6...

  • Page 25: M2X4.8 Msh

    Tips/Instructions Make sure BB 3x8x4 is completely seated in tail blade holder. Ball Screw M2x4.8 MSH 50007 MSH 50076 BAG-F BB 3x8x4 MSH 50035 Hex Screw M3x12 MSH 50111 Hex Screw M3x12 Ball Screw MSH 50111 M2x4.8 MSH 50007 BAG-F...
  • Page 26 BAG-F Hex Screw M3x12 MSH 50111 Hex Screw M3x12 MSH 50111 Tips/Instructions Apply thread lock to M3x12 screws. BAG-F Nylon Nut M2.5 MSH 50124 Hex Screw M2.5x16 MSH 50106 Nylon Nut M2.5 MSH 50124 Hex Screw M2.5x16 MSH 50106 Tail Blades...
  • Page 27 BAG-G Tips/Instructions Glue part MSH 50065 with slow MSH 50065 curing epoxy glue. Tail Boom braces 343 mm MSH 50050 (Containded in bag L) MSH 50065 BAG-G Hex Screw M2.5x25 MSH 50108 MSH 50068 MSH 50063 MSH 50067 Nylon Nut M2.5 3x5...
  • Page 28 Rod E 35mm BAG-G Tips/Instructions MSH 50045 Glue rod E with slow curing epoxy make sure 1mm not threaded part of rod E is protruding. Control Rod 320 mm MSH 50051 (Contained in Bag L) MSH 50092 Rod E 35mm...
  • Page 29 Tips/Instructions Apply thread lock to M3x8 hex screw. Hex Screw M3x8 MSH 50110 Washer 3.1x8x1 MSH 50122 Hex Screw M3x8 MSH 50110 Washer 3.1x8x1 MSH 50122 MSH 50126...
  • Page 30 Apply thread lock to M3x5 grub screw. M3x3 MSH 50117 MSH 50006 Hex Grub Screw M3x3 MSH 50117 CAUTION Make sure there is about 1mm gap between bottom of motor adapter (MSH 50006) and motor mount (MSH 50028) when tightened in position.
  • Page 31 Washer 3.1x10x1 MSH 50121 MSH 50052 Washer 3.1x10x1 MSH 50121 Free spin Motor Pulley 18T MSH 50121 While inserting make sure that the pinion spins freely clockwise looking from above.
  • Page 32 Tips/Instructions Use O ring MSH 50053 to secure battery (not provided in the kit) in place. Use O ring MSH 50060 to secure ESC (not provided in the kit) in place.
  • Page 33 Belt Tension Adjustment Pressing the belt moderately, it should move 2-3 mm. Test tension as indicated in the picture.
  • Page 34 Spare Code Spare Description Part Code Part Description Part Qty MSH51001 Metal flybar control arm MSH50008 Cross ball MSH50026 Flybar arm MSH50098 Hex screw M2x6 MSH50117 Hex grub screw M3x3 MSH51002 Spindle MSH50005 Spindle MSH50110 Hex screw M3x8 MSH50122 Spindle washer 3.1x8x1 MSH51003 Head dampeners MSH50011...
  • Page 35 Spare Code Spare Description Part Code Part Description Part Qty MSH51013 Pinion 15T MSH50017 Motor pulley 15T MSH50030 Oneway BB 6x10x12 MSH50031 BB 6x10x2.5 MSH50052 E ring 5 MSH50119 Washer 6x8x0.3 MSH51014 Pinion 16T MSH50016 Motor pulley 16T MSH50030 Oneway BB 6x10x12 MSH50031 BB 6x10x2.5 MSH50052...

  • Page 36: Guide Pulley

    Spare Code Spare Description Part Code Part Description Part Qty MSH51021 Washout hub MSH50044 Washout hub MSH50099 Hex screw M2x10 MSH51022 Head rods set MSH50047 Rod C 53mm MSH50048 Rod A 16.4mm MSH50049 Rod B 12mm MSH51023 Servo rods set MSH50046 Rod D 42.5mm MSH51024...

  • Page 37: Guide Pulley

    Spare Code Spare Description Part Code Part Description Part Qty MSH51034 Guide pulleys MSH50018 Guide pulley frame spacer 3x5x0.6 6 MSH50033 BB 3x8x3 6 MSH50054 Pin 3x14 3 MSH50091 Guide pulley 3 MSH51035 Belt MSH50055 Belt MSH51036 Paddles MSH50062 paddle weight MSH50088 paddle MSH51037...
  • Page 38 Spare Code Spare Description Part Code Part Description Part Qty MSH51044 Tail box MSH50034 BB 5x10x4 MSH50078 Tail box R MSH50079 Tail box L MSH50106 Hex screw M2.5x16 MSH50107 Hex screw M2.5x20 MSH50124 M2.5 nylon nut MSH51045 Tail pitch lever MSH50007 Ball M2x4.8 MSH50020...

  • Page 39: Guide Pulley

    Spare Code Spare Description Part Code Part Description Part Qty MSH51052 Main Pulley MSH50072 Main gear MSH50113 Hex screw M3x20 MSH50125 M3 nylon nut MSH51053 Main frame assembly MSH50066 Main frame R MSH50070 Main frame L MSH50071 Guide pulley holder MSH50080 Anti swashplate spin MSH50103...
  • Page 40 Spare Code Spare Description Part Code Part Description Part Qty MSH51064 Spare screw set MSH50098 Hex screw M2x6 MSH50099 Hex screw M2x10 MSH50100 M2.5x5 Special tail pitch lever screw MSH50101 Hex screw M2.5x5 MSH50102 Hex screw M2.5x6 MSH50103 Hex screw M2.5x8 MSH50104 Hex screw M2.5x10 MSH50105...
  • Page 41 Spare Code Spare Description Part Code Part Description Part Qty MSH51072 BB 3x8x3 MSH50033 BB 3x8x3 MSH51073 BB 6x10x2.5 MSH50031 BB 6x10x2.5 MSH51074 BB 2x5x2.5 MSH50039 BB 2x5x2.5 MSH51075 BB 2.5x6x2.5 Flanged MSH50043 BB 2.5x6x2.5 Flanged...
