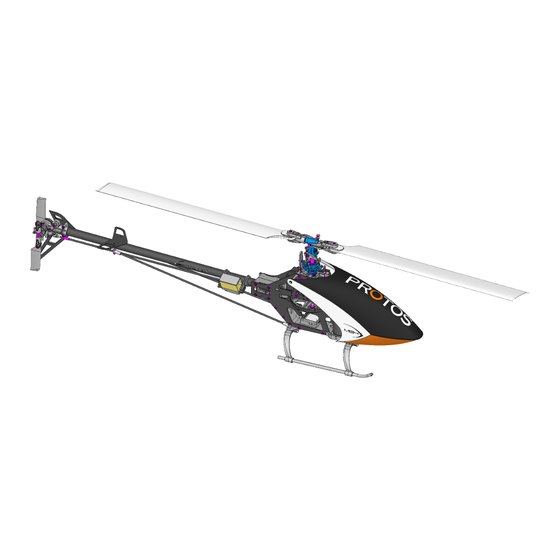

Instructions Manual
Main rotor diameter : 965mm
Tail rotor diameter : 192mm
Lenght without main blades : 955mm
Lenght with main blades : 1185mm
Main blades lenght : 425mm to 470mm
Overall height : 270mm
Pinion : 14T
Main pulley : 93T
Weight ready to y with 6sLipo : 1550g
(may vary with di erent electronics)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the protos carbon and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MSH protos carbon

Summary of Contents for MSH protos carbon

  • Page 1 Instructions Manual Main rotor diameter : 965mm Tail rotor diameter : 192mm Lenght without main blades : 955mm Lenght with main blades : 1185mm Main blades lenght : 425mm to 470mm Overall height : 270mm Pinion : 14T Main pulley : 93T Weight ready to y with 6sLipo : 1550g (may vary with di erent electronics)

  • Page 2: Table Of Contents

    RC Helicopter Index Page Content Instructions Manual Always follow these rules for safety Tools required for assembly R/C equipment required for assembly Motor pinion teeth choice Main Frame Assembly 7-13 14-19 Head Assembly 20-28 Tail Assembly Motor Installation 29-31 Battery, ESC and Canopy Installation Belt Tensioning Diagram Main blades...

  • Page 3: Always Follow These Rules For Safety

    Always follow these rules for safety Operate the helicopter in open areas with no people nearby. Do NOT operate the helicopter in the following places and situations (or else you risk severe accidents): -in places where children gather or people pass through -in residential areas and parks -indoors and in limited space -in windy weather or when there is rain, snow, fog or other precipitation...

  • Page 4: Tools Required For Assembly

    Tools required for assembly Philips 1.5 / 2 / 2.5 mm Screw driver Hexagon screw drivers Glue widht 2mm aprox. Thread lock Medium (blue) Needle nose pliers Soldering iron Slow curing epoxy...

  • Page 5: R/C Equipment Required For Assembly

    R/C equipment required for assembly Swashplate servos supported: Mini servos Tail servo supported: Mini and Regular size servos Trasmitter / Receiver: Satellites: Spektrum : DSM 2 - DSM X Futaba : S-Bus - S-Bus 2 HOTT SumD MPX Srxl Standard receiver: all Battery pack: LiPo 4s 3700mAh LiPo 5s 3300/3700mAh...

  • Page 6: Motor Pinion Teeth Choice

    Motor pinion teeth choice Battery LiPo 5s LiPo 6s LiPo 4s type 3700mAh 2500mAh 3700mAh Style 15T (2500RPM) 18T (2400RPM) (Motor Adapter (Motor Adapter Beginner MSH51007) MSH51007) 16T (2650RPM) 13T (2550RPM) 19T (2550RPM) (Motor Adapter (Motor Adapter Sport (Motor Adapter MSH51007) MSH51098 or MSH51338) MSH51007)
  • Page 7 Tips/Instructions BAG-A Hex screw M2.5x5 only on lower servo frame. Hex Screw M2x10 MSH51114 Hex Screw M2.5x5 Ball MSH51148 M2x4.8 Hex Screw MSH51009 BB 8x16x5 M2x10 MSH51114 MSH51067 MSH51041 Ball M2x4.8 MSH51009 M2 Nut MSH51136 Servo Frame MSH51082 Servo Adapter MSH51041 MSH51037 M2 Nut...
  • Page 8 BAG-B BB 3x8x3 MSH51072 MSH51033 Pin 3x14 MSH51033 Guide Pulley MSH51033 Pin 3x14 MSH51033 Front Pulley MSH51042...
  • Page 9 BAG-B Caution Hex Screw BB 8x16x5 M2.5x6 MSH51067 MSH51153 Third BB support MSH51094 Hex Screw M2.5x8 MSH51154 Washer 2.6x6.5x1.5 MSH41217 Under plate Carbon frame L MSH51091 MSH51092 Motor Mount MSH51057 Battery plate MSH51091 Hex Screw M2x6 MSH51142 Hex Screw Hex Screw Washer M2.5x6 M2.5x8...
  • Page 10 BAG-B Hex Screw M2.5x8 MSH51154 Hex Screw M2.5x6 MSH51153 Washer 2.6x6.5x1.5 MSH41217 Hex Screw M2.5x8 MSH51154 Washer Carbon frame R Hex Screw Hex Screw 2.6x6.5x1.5 MSH51092 M2.5x6 M2x6 MSH41217 MSH51153 MSH51142...
  • Page 11 MSH51145 Nylon Nut M2.5 MSH51137 Hex Screw M2.5x10 MSH51143 Landing gear struts MSH51011 Nylon Nut M2.5x10 Skids MSH51143 MSH 51012 CAUTION Do not fully tighten hex screws 2.5x16 yet as they are used later to keep boom braces in position.
  • Page 12 Tips/Instructions Use thread lock on grub screw M2.5x12 on the side that goes in the servo frame. Grub screw can be screwed in by hand and tightened with MSH 50063 (Canopy post) Grub Screw using the two flat surfaces. M2.5x12...
  • Page 13 BAG-C Tips/Instructions Belt from box Make sure hex screw M3x8 is fully tightened on bottom of main shaft than pulling main shaft gently lock collar in position. Main shaft should not have any vertical play. Hex Screw M2x6 MSH51142 Very Important !! After this step main shaft must not have any axial play ! Hex Screw...
  • Page 14 Tips/Instructions Important Use Thread lock on balls and screw M2x10. Please pay attention to ball lenght : Longer on the outer part of swashplate and Shorter on the inside. Hex Screw Ball M2x2.8 M2x10 MSH51010 MSH51141 BB 2x5x2.5 MSH51074 Spacer MSH51020 BAG-C Hex Screw...
  • Page 15 BAG-C Uniball Link L MSH51030 Servo Rods Set MSH51023 Servo Rods Set MSH51023 9650 Tips/Instructions Length of rods connecting servos to swashplate is correct if using 9650 fut servo other servos might need adjustment.
  • Page 16 BAG-D Hex Screw M2x10 MSH51141 Washout Pin 2x12 MSH51336 BB spacer 2.1x3.2x0.5 MSH51336 Flybarless hub MSH51165 BB 2x5x2,5 MSH51074 BB spacer MSH51336 Wash out uniball arm MSH51336 Hex Screw M2x10 MSH51141 Pin 2x12 MSH51336...
  • Page 17 Very Important !! BAG-D Do not over tight balls on plastic. Ball Long Just 1/8 turn after completely seated. stand grips washer 5x3.9x0.8 MSH51118 Washer Ball Long 5x7.5x0.2 stand grips MSH51118 BB 5x10x4 MSH51071 Thrust BB 5x10x4 MSH51065 Ball Long stand grips MSH51118 Inside (I)
  • Page 18 Tips/Instructions Use thread lock on screws M3x8. Thrust bearings flange with bigger hole inward, flange with smaller hole outward. Hex Screw M3x8 button head MSH 51139 Dumper main head 500 FBL Spindle MSH51162 MSH51119 Washer 3.1x8x1 Spindle Spacer MSH51119 BAG-D...
  • Page 19 BAG-D Hex Screw M3x16 MSH51157 Hex Screw M3x16 MSH 70083 Nylon Nut MSH 50125 Head Link 42,5 mm MSH51164 Nylon Nut Uniball Link L MSH51138 MSH51030 27.1mm...
  • Page 20 BB 3x8x3 BAG-E MSH51072 Guide Pulley Pin 3x14 MSH51034 MSH51034 Pin 3x14 MSH51034 BAG-E Self Tapping Screw 2.2x9.5 MSH51121 Self Tapping Screw 2.2x9.5 Tail boom stretch MSH51121 MSH51322 Tail boom case MSH51056...
  • Page 21 Tips/Instructions Hex Screw Do not fully tighten screws M2.5x12 yet. M2.5x12 MSH51144 Tail servo holder MSH51051 BAG-E Hex Screw M2.5x12 MSH51144 Important !! Nylon Nut When sliding boom assembly in position M2.5 make sure that the hole on the rear is MSH51137 facing left when looking from behind.
  • Page 22 BAG-F Tips/Instructions Do not over tight guide pulley screw, check that it turns freely after tightening the screw. Hex Screw M2.5x20 MSH51146 Hex Screw M2.5x16 MSH51145 1.5x12 MSH51006-01 Nylon Nut M2.5 MSH51137 Washer BB 3x8x3 5x7.5x0.2 MSH51072 Guide Pulley Bushing 2.5x3x7.8 Washer MSH51033...
  • Page 23 Tail Pitch assembly MSH51032 Number facing up Pre assembled Number facing down 1.5x8 BAG-F 1.5x8...
  • Page 24 BAG-F Tips/Instructions Do not full tighten tail pitch lever screw, Tail Pitch Lever just screw it until fully seated. Tail Pitch MSH51161 Lever Screw M2.5x5 MSH51161 BB 3x6x2.5 MSH51068 Ball M2x4.8 MSH51009 Tail Pitch Lever Screw M2.5x5 MSH51161 Tail Pitch Ball Lever Bush M2x4.8...
  • Page 25 Tips/Instructions Ball Make sure BB 3x8x4 is completely seated M2x4.8 in tail blade holder. MSH51009 Tail Blade Holder MSH51047 BAG-F BB 3x8x4 MSH51070 Ball M2x4.8 M2x4.8 MSH51009 BAG-F Grub Screw M3x3 MSH51159 Tail spindle MSH51048 Grub Screw M3x3 MSH51159 Tips/Instructions Apply thread lock to grub screw M3x3.
  • Page 26 BAG-F Hex Screw M3x12 MSH51149 Hex Screw Tips/Instructions M3x12 MSH51149 Apply thread lock to M3x12 screws. BAG-F Caution : Do not over tighten M2.5x16 tail blade screws. Nylon Nut Hex Screw M2.5 MSH51137 Nylon Nut M2.5 Hex Screw MSH51137 M2.5x16 MSH51145 Tail Blades MSH51038...
  • Page 27 BAG-G Tips/Instructions Glue part with slow curing epoxy. Brace rod end MSH51324 Tail Boom braces stretch MSH51324 Hex Screw M2.5x25 MSH51147 Horizontal fin MSH51094 Horizontal fin clamp U MSH51049 M2.5 Nylon Nut MSH51137 Horizontal fin clamp L MSH51049 BAG-G Hex Screw M2.5x25 MSH51147 Tips/Instructions...
  • Page 28 Tips/Instructions Glue Tail control rod fitting with slow curing epoxy . Control Rod Stretch MSH51325 Take clearcoat off on the last 10mm with sandpaper Uniball hand L MSH51030 Uniball hand L MSH51030...
  • Page 29 Tips/Instructions Apply thread lock to M3x8 hex screw. Hex Screw M3x8 MSH51152 Washer3. 1x8x1 Hex Screw M3x8 MSH51152 Washer 3.1x8x1...
  • Page 30 Tips/Instructions Grub Screw Apply thread lock to M3x5 grub screw. M3x3 MSH51159 Tips/Instructions Make sure that one of the two adapter grub screws lays on motor shaft flat spot. Motor Adapter MSH51098 Hex Grub Screw M3x3 MSH51159...
  • Page 31 BB 6x10x2.5 Washer 3.1x10x1 MSH51013 Pinion 14T MSH51013 BB 6x10x2.5 Washer 3.1x10x1 MSH51013 Seeger RS 5 MSH51013 Free spin While inserting make sure that the pinion spins freely clockwise looking from above.
  • Page 32 Oring 73x3,53 MSH51000 MSH Brain Optional Tips/Instructions Use O-ring secure battery and ESC in place Oring 27x2,6 MSH51000 Optional Painted canopy FG Classic Scheme MSH51081...
  • Page 33 Belt Tension Adjustment Please make sure that belt tension is set properly on boths sides. Front and Rear tension is set independently !! Belt tension check point Belt tension check point Rear tension adjustment Front tension adjustment (set with boom case position) (set with motor position) Pressing the belt moderately, it should move 2-3 mm.
  • Page 34 BAG-D Blades from box Hex Screw Hex Screw M3x23 M3x23 MSH51151 MSH51151 Nylon Nut MSH51138 M3 Nylon Nut MSH51138...
  • Page 35 specifcation and design are subject to change without notice LOCTITE, Spektrum, Futaba, HOTT and Multiplex are a registered trademarks MSHeli s.r.l. Uboldo (VA) Italy...
  • Page 36 Spare code : MSH51012 Spare description: Landing gear set Part description Part Qty Landing gear struts Skids Spare code : MSH51013 Spare description: Pinion 15T Part description Part Qty Motor pulley 15T Oneway BB 6x10x12 BB 6x10x2,5 Seeger RS 5 Washer 6x8x0,3 Spare code : MSH51014 Spare description: Pinion 16T...
  • Page 37 Spare code : MSH51018 Spare description: Pinion 20T Part description Part Qty Motor pulley 20T Oneway BB 6x10x12 BB 6x10x2,5 Seeger RS 5 Washer 6x8x0,3 Spare code : MSH51020 Spare description: Swashplate Part description Part Qty Ball M2x2,8 Swashplate bushing Piatto 500 BB 2x5x2,5 Hex screw M2x10...
  • Page 38 Spare code : MSH51037 Spare description: Servo adapter set Part description Part Qty Servo adapter Spare code : MSH51038 Spare description: Tail blades Part description Part Qty Tail blade Spare code : MSH51039 Spare description: 10mm Main blade holders Part description Part Qty BB 5x10x4 Thrust BB 5x10x4...
  • Page 39 Spare code : MSH51045 Spare description: Tail pitch lever Part description Part Qty Ball M2x4,8 Tail pitch lever bushing BB 3x6x2,5 Tail pitch lever M2,5x5 Special tail pitch lever screw Hex screw M2,5x16 M2,5 nylon nut Spare code : MSH51046 Spare description: Tail rotor Part description Part Qty...

  • Page 40: Main Frame Assembly

    Spare code : MSH51051 Spare description: Tail servo holder Part Qty Part description Tail servo holder Servo adapter Hex screw M2x10 Hex screw M2,5x12 Spare code : MSH51052 Spare description: Main Pulley Part Qty Part description Main gear Hex screw M3x20 M3 nylon nut Spare code : MSH51053 Spare description: Main frame assembly...

  • Page 41: Main Blades

    Spare description: Blade sponge holder Part description Part Qty Main Blade Sponge Holder PROTOS (orange) Spare code : MSH51062 Spare description: MSH main blades CF (430mm) Part description Part Qty Main blade MSH lenght=430mm root=10mm Spare code : MSH51063 Spare description: Motor...
  • Page 42 Spare code : MSH51073 Spare description: 6x10x2,5 Part description Part Qty BB 6x10x2,5 Spare code : MSH51074 Spare description: 2x5x2,5 Part description Part Qty BB 2x5x2,5 Spare code : MSH51075 Spare description: 2,5x6x2,5 F Part description Part Qty BB 2,5x6x2,5 Flanged Spare code : MSH51078 Spare description: Painted canopy FG New Scheme Part description...
  • Page 43 Part description Part Qty MSH50151 Carbon frame L MSH50152 Carbon frame R Spare code : MSH51093 Spare description: ESC MSH by YGE 60 A Part code Part description Part Qty MSH40088 ESC YGE by MSH 60 A Spare code : MSH51094...
  • Page 44 Spare code : MSH51140 Spare description: M2,5x42 Socket head cap screw Part code Part description Part Qty MSH50109 Hex screw M2,5x42 Spare code : MSH51141 Spare description: M2x10 Socket head cap screw Part code Part description Part Qty MSH50099 Hex screw M2x10 Spare code : MSH51142 Spare description: M2x6 Socket head cap screw Part code...
  • Page 45 Spare code : MSH51152 Spare description: M3x8 Socket head cap screw Part code Part description Part Qty MSH50110 Hex screw M3x8 Spare code : MSH51153 Spare description: M2,5x6 Socket head cap screw Part code Part description Part Qty MSH50102 Hex screw M2,5x6 Spare code : MSH51154 Spare description: M2,5x8 Socket head cap screw Part code...
  • Page 46 Spare description: Bearing set motor 880 KV Part code Part description Part Qty MSH50345 Motor bearing set 880KV Spare code : MSH51320 Spare description: MSH/YGE ProgCard II Part code Part description Part Qty MSH50348 MSH/YGE ProgCard Spare code : MSH51322...
