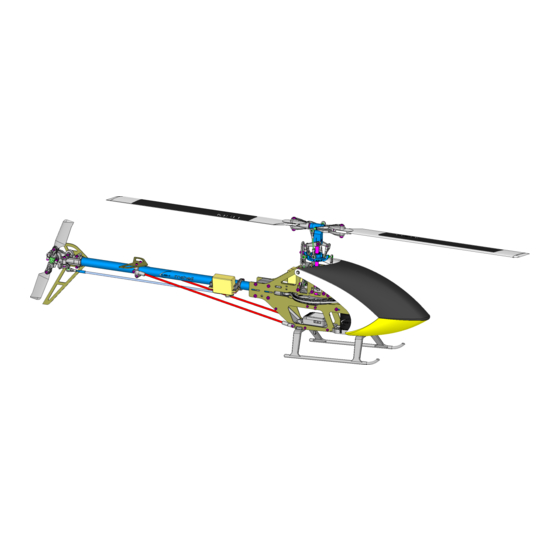

MSH Protos Instruction Manual

Hide thumbs Also See for Protos:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
instructions manual
Main rotor diameter:
Tail rotor diameter:
Length without main blades:
Length with main blades:
Main blades length:
Overall height:
Tail rotor-Main rotor ratio:
Main pulley:
Weight AUW without battery:
1
RC helicopter
Flybarless
736mm (3s) - 786mm (6s)
157mm
739mm
904mm (3s) - 929mm (6s)
325mm (3s) - 350mm (6s)
223mm
4,29
120T
645gr

Advertisement

loading
Need help?

Need help?

Do you have a question about the Protos and is the answer not in the manual?

Questions and answers

Related Manuals for MSH Protos

Summary of Contents for MSH Protos

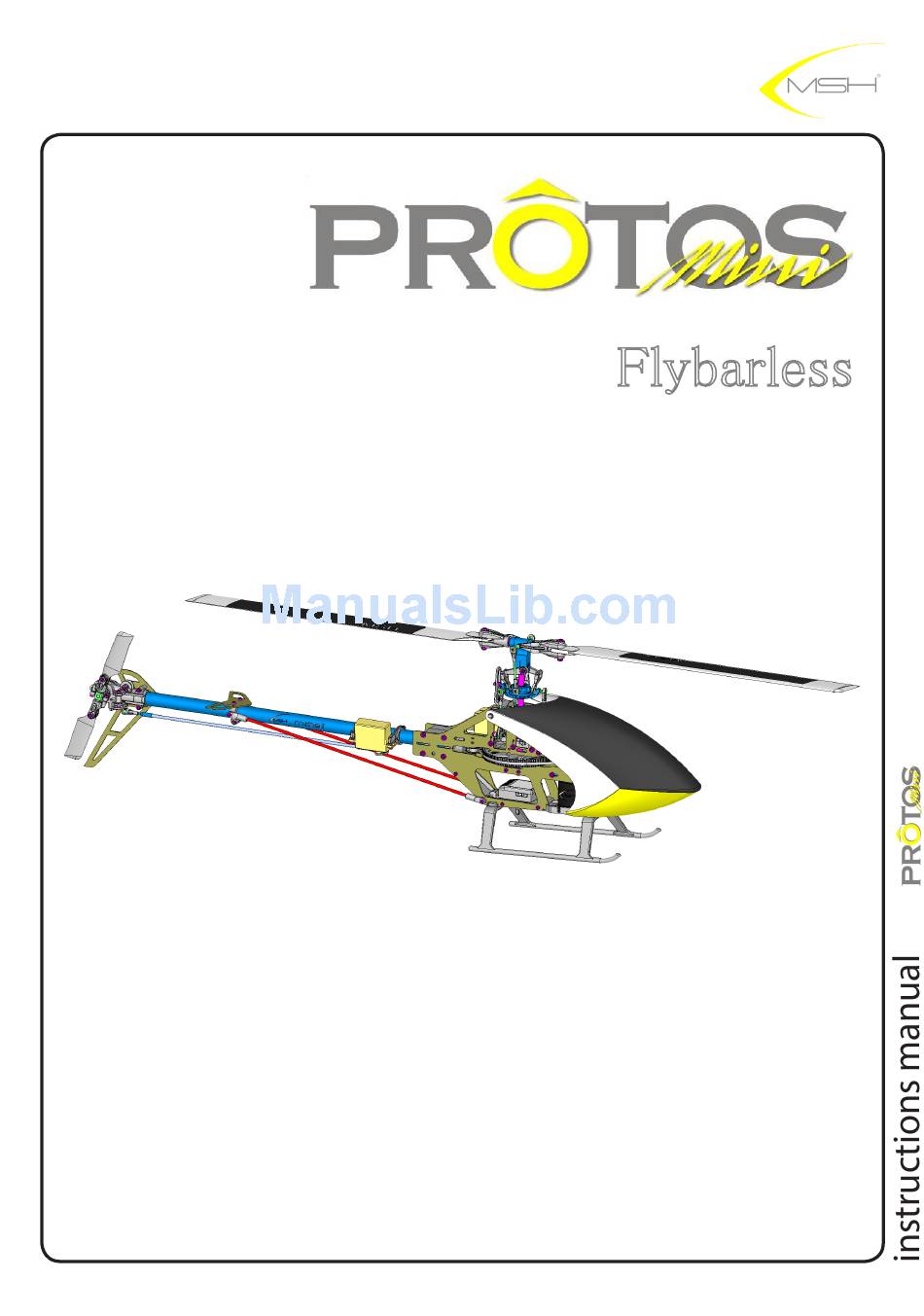

  • Page 1 RC helicopter instructions manual Flybarless Main rotor diameter: 736mm (3s) - 786mm (6s) Tail rotor diameter: 157mm Length without main blades: 739mm Length with main blades: 904mm (3s) - 929mm (6s) Main blades length: 325mm (3s) - 350mm (6s) Overall height: 223mm Tail rotor-Main rotor ratio: 4,29...

  • Page 2: Instruction Manual

    RC helicopter Instruction Manual Index safety rules assembly tools required R/C equipement required for assembly motor pinion teeth choice 7-13 main frame assembly 14-19 head assembly 20-30 tail assembly 31-33 motor installation battery, ESC and canopy 34-35 installation belt tensioning diagram...

  • Page 3: Always Follow These Rules For Safety

    Always follow these rules for safety Operate the helicopter in open areas with no people nearby. Do NOT operate the helicopter in the following places and situations (or else you risk severe accidents): -in places where children gather or people pass through -in residential areas and parks -indoors and in limited space -in windy weather or when there is rain, snow, fog or other precipitation...

  • Page 4: Tools Required For Assembly

    Tools required for assembly Hex screw driver 1,5-2-2,5 Philips screw driver Needle nose pliers Slow curing EPOXY where indicated use Thread lock MEDIUM (blue)
  • Page 5 R/C equipement required for assembly Swashplate servos supported: 3 micro servos Tail servo supported: Mini and Regular size servos Trasmitter / Receiver: Satellites: Spektrum : DSM 2 - DSM X Futaba : S-Bus - S-Bus 2 HOTT SumD MPX Srxl Standard receiver: all Battery pack: LiPo 3s 2000-2500mAh...

  • Page 6: Motor Pinion Teeth Choice

    Motor pinion teeth choice Battery type Battery type Fly style Beginner 14-15 13-14 Sport 15-16 14-15 Soft 3D Hard 3D...
  • Page 7 BAG A hex screw M2x8 ART. MSH41128 BB 6x12x4 ART. MSH41074 servo frame comolded ART. MSH41041 hex screw ART. MSH41082 M2x8 hex screw M2,5x5 ball M2x4,8 ART. MSH41009 M2 nylon nut ART. MSH41119 ball M2x4,8 hex screw M2x8 ART. MSH41128 M2 nylon nut hex screw M2,5x5...
  • Page 8 BAG B 2,5x12 BB 2,5x7x2,5 BB 2,5x7x2,5 guide pulley ART. MSH41034 ART. MSH41034 2,5x12 ART. MSH41034 CLICK IN POSITION guide pulley support ART. MSH41042...
  • Page 9 BAG B hex screw M2x6 hex screw M2x8 BB 6x12x4 ART. MSH41074 washer 2,1x5,5x1 BB 6x12x4 guide pulley support ART. MSH41042 washer 2,1x5,5x1 ART. MSH41088 LOCTITE battery plate lower plate motor mount 3° BB support ART. MSH41091 ART. MSH41091 ART. MSH41057 ART.
  • Page 10 BAG B hex screw M2x6 hex screw M2x8 washer 2,1x5,5x1 washer LOCTITE LOCTITE LOCTITE 2,1x5,5x1 hex screw hex screw ART. MSH41088 M2x8 M2x6 ART. MSH41128 ART. MSH41122...
  • Page 11 BAG B hex screw M2x10 hex screw M2x8 brace rod end ART. MSH41026 hex screw M2x8 ART. MSH41128 LOCTITE hex screw M2x10 ART. MSH41121 landing gear do not tighten ART. MSH41011 brace rod ends screws yet...
  • Page 12 BAG B hex grub screw M3x12 anti swashplate ART. MSH41042 canopy stand ART. MSH41055 hex grub screw M3x12 ART. MSH41132 tighten antiswashplate spin with hex grubscrew M3x12 BEFORE mounting canopy stands...
  • Page 13 BAG C hex screw M2x14 hex screw M2x6 ART. MSH41122 nylon nut M2 hex screw M2x6 hex head screw M2,5x8 main shaft hollow ART. MSH41004 washer 2,6x6,5x1,5 Long Belt (6s version) ART.MSH41109 Short Belt (3s version) ART. MSH41035 main shaft lock ART.
  • Page 14 BAG C LOCTITE hex screw M2x10 ART. MSH41121 BB 2x5x2,5 ART. MSH41066 LOCTITE ball M2x2.8 ART. MSH41010 hex screw M2x10 nylon nut M2 swashplate bushing ART. MSH41020 ball FBL M2x2,8 BB 2x5x2,5 swashplate LOCTITE bushing ball FBL M2x2.8 ART. MSH41095...
  • Page 15 BAG C rod D 35mm ART. MSH41023 uniball hand L uniball hand L ART. MSH41030...
  • Page 16 BAG D hex screw M2x10 hex screw M2x10 ART. MSH41121 BB 2x5x2,5 ART. MSH41066 bb spacer BB spacer ART. MSH41098 BB 2x5x2,5 wash out arm FBL ART. MSH41098 BB 2x5x2,5 ART. MSH41099 ART. MSH41066 pin 2x12 M6 Low flybarless hub FBL wash out uniball arm ART.
  • Page 17 BAG D ball long stand grips ball long stand grips ball long stand grips spacer spacer ART. MSH41094 main blade ball long stand grips holder ART. MSH41094 ART. MSH41039 washer thrust BB 4.1x6x0.2 4x8x2,5 ART. MSH41039 SMALLER washer ø inside 4.1x6x0.2 LARGER ø...
  • Page 18 BAG D hex screw M2,5x8 LOCTITE stepped face outside hex screw washer M2.5x8 6x8x0.1 ART. MSH41096 washer 2.6x5.6x.0.5 spindle spacer ART. MSH41096 dumper main head ART. MSH41097 washer 2,6x6,5x1,5 long spindle FBL spindle spacer ART. MSH41096 LARGE FBL ART. MSH41003 hub side blade side apply a thin layer of grase on...
  • Page 19 BAG D M2 nylon nut ART. MSH41119 hex screw M2x14 ART. MSH41124 M2 nylon nut rod E 35mm ART. MSH41022 hex screw M2x14 uniball hand L ART. MSH41030...
  • Page 20 BAG E BB 2.5x7x2.5 BB 2.5x7x2.5 ART. MSH41067 guide pulley ART. MSH41034 pin 2,5x12 ART. MSH41034 2,5x12 self tapping screw Long Boom (6s version) ART.MSH41107 Short Boom (3s version) ART. MSH41025 self tapping screw tail boom clamp ART. MSH41056 ART. MSH41056 CLICK IN POSITION...
  • Page 21 BAG E hex screw M2x10 ART. MSH41121 7,5mm tail servo holder ART. MSH41051 hex screw M2x10 hex screw M2x36 ART. MSH41127 M2 nylon nut washer washer ART. MSH41119 2,1x5,5x1 2,1x5,5x1 servo adapter M2 nylon nut hex screw ART. MSH41037 M2x36 hex screw M2x8 M2 nylon nut...
  • Page 22 BAG G hex screw hex screw M2x6 M2x6 ART. MSH41122 M2 nylon nut horizontal fin ART. MSH41050 ART. MSH41049 hex screw M2x10 M2 nylon nut ART. MSH41119 hex screw brace rod end M2x10 ART. MSH41026 ART. MSH41121 horizontal fin clamp ART.
  • Page 23 BAG F hex screw M2 nylon nut M2x20 pin 1,5x12 make sure that tail shaft hex screw tail shaft M2x14 bushing bushing is halfway inserted in tail pulley over the pin as in picture BB 4x9x4 BB 4x7x2,5 tail box ART.
  • Page 24 BAG F ART. MSH41032 tail plastic rod ART. MSH41032 preassembled pin 1,5x8 ART. MSH41032 pin 1,5x8 special screw tail pitch lever ART. MSH41135 ART. MSH41045 special screw ball M2x4,8 ball M2x4,8 ART. MSH41009...
  • Page 25 BAG F follow steps in pics carefully to insert lever in position BAG F LOCTITE hex screw M2x6 ART. MSH41122 hex screw M2x6 BB 2x5x2 ART. MSH41068 BB 2x5x2...
  • Page 26 BAG F spacer A Insert spacer A on tail shaft and slide it to the left aganist the tail box. Turn the tail pitch lever untill tail pitch lever special screws touch the spacer A. Check that both screws touch the spacer at the same time.
  • Page 27 BAG F BB 3x6x2,5 tail blade holder ART. MSH41046 ART. MSH41047 make sure BB are fully seated inside tail blade grip BB 3x6x2,5 ART. MSH41075 hex screw grub M3x3 tail spindle ART. MSH41048 LOCTITE hex grub screw M3x3 ART. MSH41133...
  • Page 28 BAG F hex screw M2x10 ART. MSH41121 LOCTITE hex screw M2x6 ART. MSH41122 tail pitch bushing ART. MSH41046 hex screw M2x10 hex screw M2x6 tail pitch bushing hex screw M2x16 M2 nylon nut tail blade black ART. MSH41038 hex screw M2x16 ART.
  • Page 29 BAG L slow curing epoxy Long control rod ART.MSH41108 tail control rod fitting ART. MSH41108 Short control rod (3s version) ART. MSH41024 ART. MSH41024 slow curing epoxy uniball hand L ART. MSH41030 gently remove coating with sandpaper on 10mm a the end of control rod and boom brace.
  • Page 30 BAG H check for links smoothness if tight use provided reamer...
  • Page 31 BAG H hex screw M3x6 hex screw M3x6 ART. MSH41130 (3s version) (6s version) MSH-Scorpion 2580KV MSH-Scorpion 1300kv ART. MSH41063 ART.MSH41113...
  • Page 32 BAG H BB 3x6,5x2,5 washer 3,1x4,5x0,2 washer 3,1x4,5x0,2 BB 3x6,5x2,5 ART. MSH41069 (3s version) (6s version) motor pulley 16T motor pulley 15T ART. MSH41016 ART. MSH41015 BB 3x6,5x2,5 ART. MSH41069...
  • Page 33 BAG F Y support ART. MSH41088 hex screw M2x8 LOCTITE washer hex screw 3,1x4,5x0,2 M2x8 ART. MSH41128 washer 2,1x5,5x1 ART. MSH41088...
  • Page 34 BAG M battery Oring MSH Brain ART. MSH41000 ART.MSH51600 ESC YGE by MSH 60A ART. MSH41093 Oring 27x2,6 ART. MSH41000 hex screw (3s version) (6s version) M3x20 MSH blade MSH blade ART. MSH41129 325mm 350mm ART. MSH41062 ART. MSH41110 M3 nylon nut ART.

  • Page 35: Belt Tension Adjustment

    PROTOS MINI ART. MSH41081 belt tension adjustment Pressing the belt moderately, it should move 2-3 mm. Test tension as indicated in the picture. belt tension check point belt tension belt tension check point check point REAR TENSION ADJUSTMENT FRONT TENSION ADJUSTMENT Please make sure that belt tension is set properly on both sides.
  • Page 36 MSHeli s.r.l. Uboldo ITALY specification and design are subject to change without notice LOCTITE are a registred mark...
