Smart iCAM
Remote HD Wi-Fi Camera
User's Manual
Please read carefully before using this equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart iCAM VMI120 and is the answer not in the manual?

Questions and answers

Related Manuals for TRANWO Technology Smart iCAM VMI120

Summary of Contents for TRANWO Technology Smart iCAM VMI120

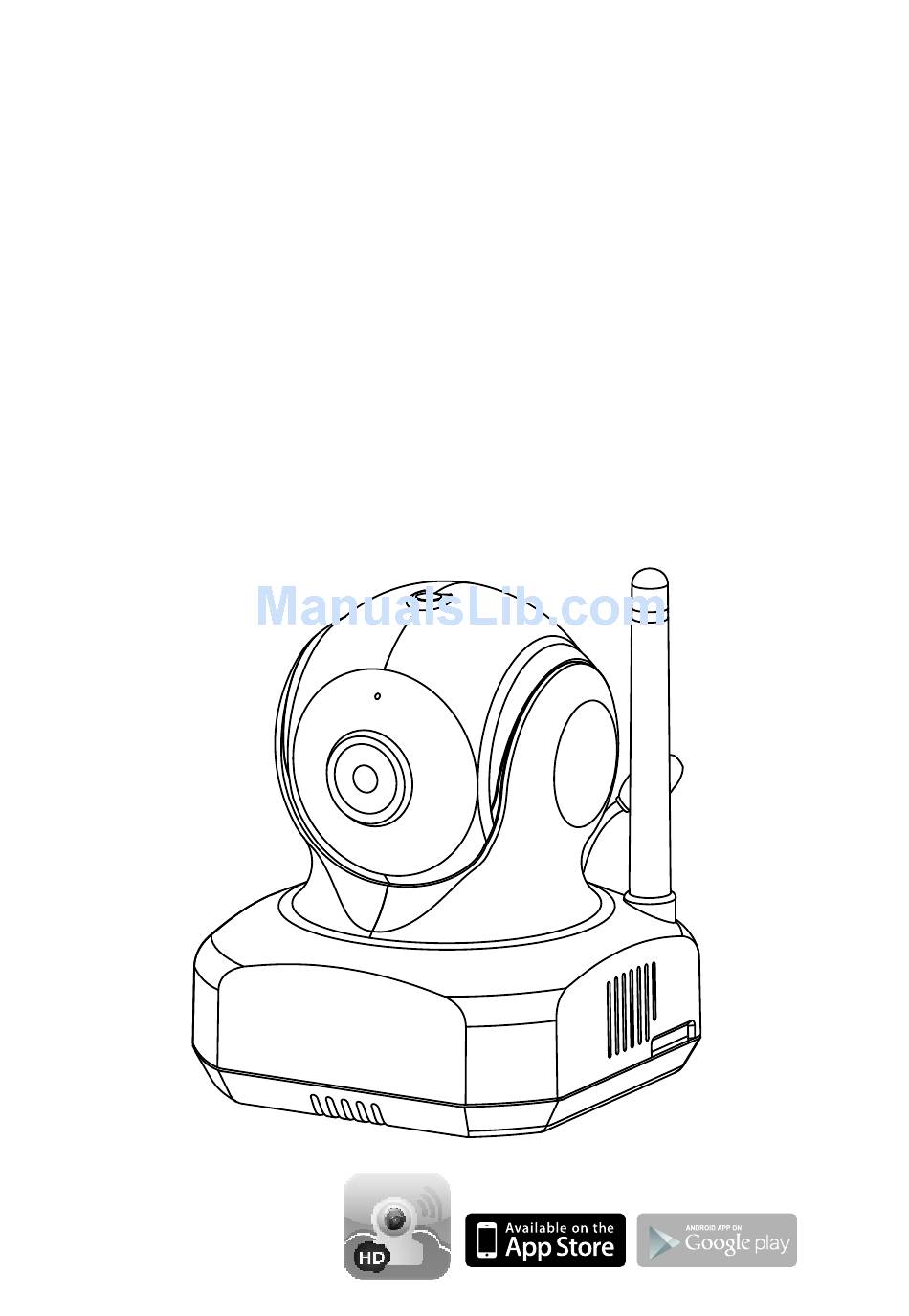

  • Page 1 Smart iCAM Remote HD Wi-Fi Camera User's Manual Please read carefully before using this equipment.
  • Page 2 Watch the things that matter to you anytime and anywhere Internet Smart iCam Wi-Fi Router Smartphone,Tablet Smart iCAM is a wireless network camera. It can connect with your smartphone or tablet wireless technology, and monitor everything that matters to you on your smartphone or tablet anywhere and anytime.

  • Page 3: Package Contents

    Package Contents One Camera Two Cable Clips One Adapter This User's Manual One Screw and One Wall Anchor Product Layout Camera 7. Micro SD Card slot 1.Light sensor 2.Microphone 8. Power adapter socket 3.Camera lens 9. Temperature sensor 4.Infrared LEDs 10.Reset button 11.Power/Status LED 5.Speaker...

  • Page 4: Getting Started

    Getting Started Download Smart iCAM app Key in the keyword “Smart iCAM” or scan QR code and download the app from Apple App Store (iPhone/iPad) or Google Play Store (Android). Power on the camera Plug one end of the provided power adapter into a wall outlet and the other end into the back of the camera to turn on the camera.
  • Page 5 Connect your smartphone or tablet to the camera 1. Turn on the Wi-Fi of your smartphone or tablet. 2. Select “Smart-iCAM _XX : XX : XX…” under Wi-Fi Networks. Enter the password for “Smart-iCAM_XXXXXX”. The default password is “12345678”. Note : If you cannot find “Smart-iCAM_XXXXXX” under Wi-Fi Networks, please follow step 3.6 of this user manual to reset the camera.
  • Page 6 4. Set up an Internet connection The camera will scan for available Wi-Fi networks (SSID). Tap the name of the Wi-Fi network (SSID) that you wish to connect with the camera, and enter the password of your Wi-Fi router if necessary. First-time setup is now complete.
  • Page 7 Viewing live video 1. Tap the camera icon in Camera List to view the video of the camera. 2. Touch the image display area of the screen and slide on the screen for pan-tilt function. (For pan & tilt model only) 3.
  • Page 8 Add camera to other smartphones or tablets Add camera in LAN (Your mobile and camera are in the same network, SSID.) 1. Download the Smart iCAM app. Turn on the Wi-Fi of your smartphone or tablet, and then tap the screen to select which Wi-Fi router your camera has been connected to.
  • Page 9 Add camera through remote setup (Your mobile and camera are NOT in the same network, SSID.) 1. Download the Smart iCAM app. 2. Please make sure your smartphone or tablet can link to the Internet via a Wi-Fi router or 3G/4G mobile network. 3.

  • Page 10: Reset The Camera To Factory Default

    Reset the camera to factory default While the camera is powered on for at least 1 minute, press the reset button (using a small object or a pin) for at least 5 to 10 seconds. The camera will beep 3 times and will take around 1 minute to reset the camera.

  • Page 11: Camera Setting

    1. Information Tap the icon to get information about the camera. 2. Camera name 3. Temperature display 4. Photo folder Tap the icon to see all of the photos you have taken. 5. Snapshot Tap the icon to save a snapshot of the camera on your smartphone or tablet.
  • Page 12 1. Reconnect If the camera status shows “offline”, you need to tap “Reconnect” to re-confirm the Internet connection. Note : When you complete the camera setting, please tap the “Reconnect” icon to make sure Internet connection is successful. 2. Delete Delete camera from Camera List.
  • Page 13 6. Record Tap the icon to enable HD 720p recording, tap it again to disable recording. Note 1: Recording is only possible when a micro SD card is inserted into camera. 2: The system supports SD cards with a maximum capacity of 32GB.
  • Page 14 Note 1: When using an iPhone or iPad: If you turn on the VOX function and press the home button on your iPhone or iPad to exit the App, the VOX function can still work and remind you of audio events from the camera. If you want to exit the App completely, please double-click the home button on your iPhone/iPad when it is in home screen status.
  • Page 15 c. Video Resolution: the number of distinct pixels in each dimension that can be displayed, i.e. HD (1280X720) /VGA(640X480) /QVGA(360X240). d. Bit rate: the number of bits that are conveyed per second in telecommunications. The higher the rate, the greater the bandwidth consumption.

  • Page 16: Troubleshooting

    Troubleshooting Cannot connect the camera to your smartphone/tablet through Wi-Fi router or 3G/4G mobile network Make sure the power plug is pushed all the way in. Make sure the camera is turned on and power/status LED glows green. Make sure the camera and the Wi-Fi router are within range of each other. Make sure your smartphone/tablet is connected to the Internet through Wi-Fi or 3G/4G mobile network.

  • Page 17: Fcc Statement

    FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 18: Specifications

    Following the safety tips To prevent deaths and injuries associated with camera cords, make sure the camera and AC adapter cords are always out of reach of the baby by least 3 feet (1 meter). Note : This is important even if your baby is not yet standing or mobile.
