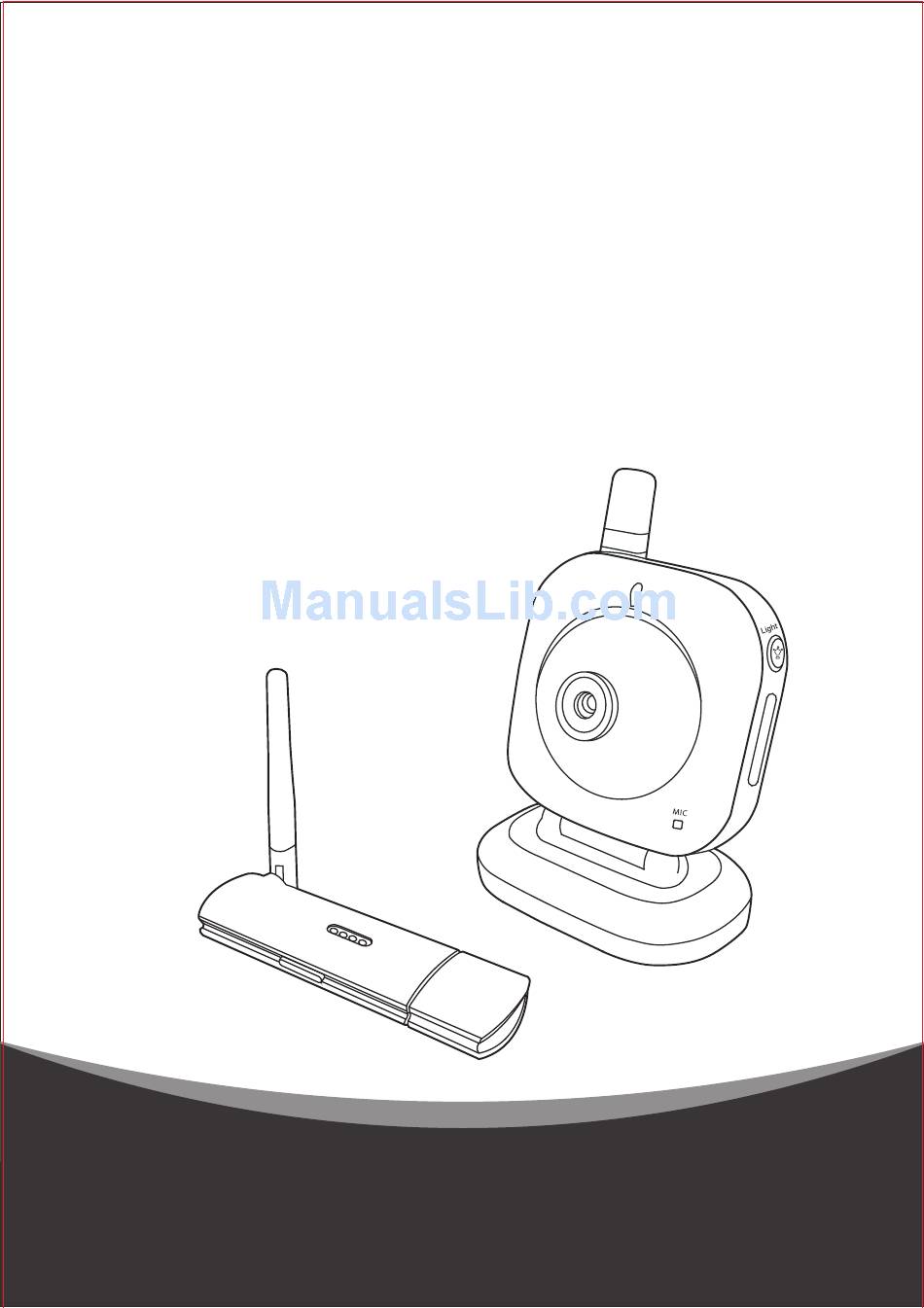

- Page 1 2.4 GHz Digital Wireless USB Camera User's Manual Preliminary Version 2.3...
-
Page 2: Table Of Contents
2.4 GHz Digital Wireless USB Camera Contents Package Content Product Layout USB Receiver Camera PC System Requirements Camera Setup 4.1 Power Supply 4.2 Fine Tuning 4.3 Night Light / Night Vision Receiver Setup 5.1 Windows Detect & Install New Device 5.2 Driver Installation 5.3 Skype Resident Program Installation 5.4 Monitoring Software... -
Page 3: Package Content
ENGLISH 1. Package Content One Camera One USB Receiver One Power Adapter CD-ROM This User's Manual 2. Product Layout USB Receiver Antenna Camera indicator LEDs Camera switch / Pairing button* USB plug Note: For Pairing, see section 5.5 Camera Antenna Power indicator LED Infrared LEDs Lens... -
Page 4: Camera Setup
ENGLISH Pentium-IV 1.6GHz or higher (recommended) 256 MB RAM of system memory or higher (recommended) One available USB port (preferably USB2.0) Graphics Card (Must support DirectX 9.0c) Sound Card (AC97 compatible sound card) 1GB Free HD Space CD-ROM Drive (For software installation) 4. -
Page 5: Fine Tuning
ENGLISH Using AC Power 1. Plug one end of the provided power adapter into a wall outlet and the other end into the bottom of the camera. Note: Use the adapter labeled OUTPUT: 6V DC with the camera. 2. Slide the ON/OFF switch to the ON position. -
Page 6: Windows Detect & Install New Device
ENGLISH 5.1 Windows detect & install new device Make sure the OS of PC is Windows XP and the version is above (or equal) SP2. (Windows Vista is allowable). 1. Insert the USB Receiver into one USB port of PC and the "Found New Hardware wizard"... -
Page 7: Skype Resident Program Installation
ENGLISH 5.3 Skype resident program installation (Disk 1) You can watch senior citizen or disabled people through Skype from remote location. 1. Please download and setup Skype software from www.skype.com (free software). 2. Insert the provided CD-ROM into your CD-ROM drive of PC and access to D:\RemoteMonitor-Skype\ (Where D is the letter of your CD-ROM drive). -
Page 8: Details On The Skype Resident Program Installation
ENGLISH 6. Details on the Skype Resident Program Installation 6.1 Permit remote monitoring program to access Skype At the first launch of Remote Monitoring program, Skype displays a pop-up message asking allow Remote Monitoring program to access Skype. Please click Allow access button to permit Remote Monitoring program to connect to Skype. - Page 9 ENGLISH 3. In the Manage API Access Control dialog box, find program name "SWatch.exe". If the program's state is "Not allowed to use Skype", click Change button. 4. In the dialog box, select the option "Allow this program to use Skype ", and then click OK button to close the dialog box.
- Page 10 ENGLISH 1. Enable automatic-answering Skype incoming calls and start Skype video sending Check the option to enable the function of Remote Monitoring. Remote Monitoring program will auto-answer Skype calls and ask for a password to start sending Skype video. 2. Incoming call ringing period before asking password Specify the time length to wait to answer an incoming call.
- Page 11 ENGLISH 2. Run Skype program and the Remote Monitoring program. 3. Enable the remote monitoring function of Remote Monitoring program. Watch camera video remotely 1. Make a Skype call to the name that hosts the Skype on the computer with camera monitoring the security area.
-
Page 12: Troubleshooting
ENGLISH The following table lists the available commands and their descriptions. Command Description Display the video of camera 1 CAM1 Display the video of camera 2 CAM2 Display the video of camera 3 CAM3 Display the video of camera 4 CAM4 The following table lists the available commands are for indoor camera only. -
Page 13: Care And Maintenance
ENGLISH 8. Care and Maintenance Keep all parts and accessories out of children's reach. Fingerprints or dirt on the lens surface can adversely affect camera performances. Avoid touching the lens surface with your fingers. Should the lens become dirty, use a blower to blow off dirt and dust, or a soft, dry cloth to wipe off the lens.
