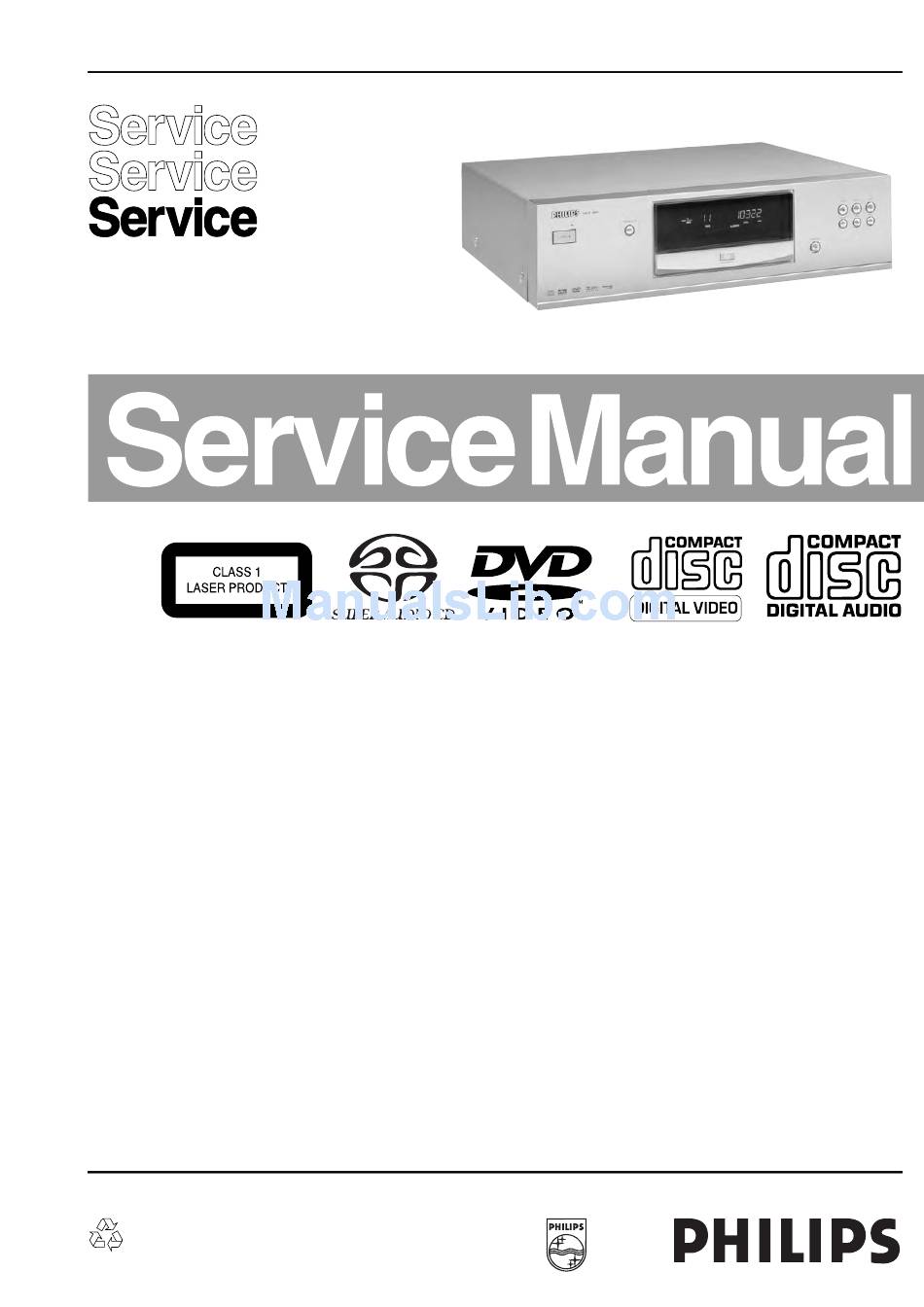

Philips SACD 1000/001 Service Manual

Dvd-video player.
Hide thumbs

Advertisement

DVD-Video Player
Contents
1
Technical specifications and connection facilities2
2
3
4
5
6
Wiring and block diagrams
Wiring diagram
Block diagram (general)
Block diagram (DAC PCB)
7
Electrical diagrams and print-layouts
Display & on/off panel
Switched mode power supply
LPSU-L2-2N
AV Board (europe): Video control & SCART
switch
AV Board (europe): Video out
AV Board (europe): Audio
AV Board (US & AP): Video
AV Board (US & AP): Audio
DAC Board: L2N
DAC Board: Audio1-L2N
DAC Board: Audio2-L2N
Mono Board: DVD ALAS
Mono Board: Micro controller
Mono Board: CD-DVD decoder
Mono Board: Program memories (Diagram 4) 82
©
Copyright 2001 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic, mechanical,
photocopying, or otherwise without the prior permission of Philips.
Published by MT 0101 Service PaCE
Page
4
7
20
24
59
60
61
Diagram PWB
62
63/64
65
67
66
67
(Diagram 1A) 68
71/72
(Diagram 1B) 69
71/72
(Diagram 2) 70
71/72
(Diagram F1) 73
75/76
(Diagram F2) 74
75/76
77
80/81
78
80/81
79
80/81
(Diagram 1) 82
92-102
(Diagram 2) 82
92-102
(Diagram 3) 82
92-102
92-102
Printed in the Netherlands
Contents
Mono Board: CPU & MPEG decoder(Diagram 5)82
Mono Board: Pwr supply & outp. int.(Diagram 6) 82
Mono Board: SDRAM's
Mono Board: SACD decoder
Mono Board: System clocks
Mono Board: DAC interface
8
9
Subject to modification
SACD 1000
/001 /171 /691
CL 06532152_000.eps
151200
Page
92-102
92-102
(Diagram 7) 82
92-102
(Diagram 8) 82
92-102
(Diagram 9) 82
92-102
(Diagram 10) 82
92-102
103
103
152
155
5 3122 785 11020

Advertisement

   Related Manuals for Philips SACD 1000/001

   Summary of Contents for Philips SACD 1000/001

  • Page 1: Table Of Contents

    Mono Board: Program memories (Diagram 4) 82 92-102 © Copyright 2001 Philips Consumer Electronics B.V. Eindhoven, The Netherlands. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.
  • Page 2 GB 2 SACD 1000 Technical specifications & connection facilities 1. Technical specifications & connection facilities General: Dynamic range -60dB : 114dB (Typical) : >108 dB Intermodulation distorsion CCIF : 108dB (Typical) Mains voltage : 120V (98 - 132V : >102dB AC) for USA Low level linearity (-60 to -90 dB) : <0.5dB...
  • Page 3 0.7Vpp ± 0.1V into 75 Ohm (*) Chroma out ± 3dB 0.3Vpp Chroma (burst) Place and height of feet : acc. to Philips 16- fast switch Harmonisation line RGB/ CVBS or Y <0.4V into 75 Ohm = CVBS Apparatus tray closed : WxDxH :435 x 330 x >1V / <3V into 75 Ohm = RGB...
  • Page 4: Warnings, Laser Safety And Service Hints

    GB 4 SACD 1000 Warnings, laser safety and service hints 2. Warnings, laser safety and service hints Warning and laser safety WARNING WAARSCHUWING All ICs and many other semi-conductors are Alle IC’s en vele andere halfgeleiders zijn susceptible to electrostatic discharges (ESD). gevoelig voor elektrostatische ontladingen Careless handling during repair can reduce (ESD).
  • Page 5 Warnings, laser safety and service hints SACD 1000 GB 5 LASER SAFETY This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury. LASER DEVICE UNIT Type: Semiconductor laser GaAlAs Wave length:...
  • Page 6: Figure

    GB 6 SACD 1000 Warnings, laser safety and service hints Service hints DAC PCB 2.2.1 Switched Mode Power Supply 1004 This power supply unit is not repairable and must be exchanged completely in case of failure. A new power supply can be ordered with codenumber 3104 129 22150.
  • Page 7: Directions For Use

    Directions for use SACD 1000 GB 7 3. Directions for use English...
  • Page 8 GB 8 SACD 1000 Directions for use English...
  • Page 9 Directions for use SACD 1000 GB 9 English...
  • Page 10 GB 10 SACD 1000 Directions for use English...
  • Page 11 Directions for use SACD 1000 GB 11 English...
  • Page 12 GB 12 SACD 1000 Directions for use English...
  • Page 13 Directions for use SACD 1000 GB 13 English...
  • Page 14 GB 14 SACD 1000 Directions for use English...
  • Page 15 Directions for use SACD 1000 GB 15 English...
  • Page 16 GB 16 SACD 1000 Directions for use English...
  • Page 17 Directions for use SACD 1000 GB 17 English...
  • Page 18 GB 18 SACD 1000 Directions for use English...
  • Page 19 Directions for use SACD 1000 GB 19 English...
  • Page 20: Mechanical- And Dismantling Instructions

    GB 20 SACD 1000 Mechanical- and dismantling instructions 4. Mechanical- and dismantling instructions...
  • Page 21 Mechanical- and dismantling instructions SACD 1000 GB 21...
  • Page 22 GB 22 SACD 1000 Mechanical- and dismantling instructions 9305 023 61101 VAL6011/01 LOADER COMPLETE (for /001/691) 9305 023 61102 VAL6011/02 LOADER COMPLETE (for /171) 3139 197 60090 GENEVA LP LOADER ASSY 9305 022 60101 VAM6001/01 3139 194 00710 SUSPENSION (YELLOW) 3139 194 00620 SUSPENSION (BLUE) 3139 197 60060...
  • Page 23 Mechanical- and dismantling instructions SACD 1000 GB 23 4822 358 10266 BELT 3139 198 80010 SWITCH 4822 532 13097 TULE 3139194 00270 TRAY 3139 197 50060 TRAY MOTOR ASSY CL06532065-001.eps 180500...
  • Page 24: Diagnostic Software, Trouble Shooting And Test Instructions

    GB 24 SACD 1000 Diagnostic software, trouble shooting and test instructions 5. Diagnostic software, trouble shooting and test instructions Due to the complexity of the SACD player, the time to find a PLAYER SCRIPT INTERFACE defect in the player can become long. To reduce this time, the player has been equipped with Diagnostic and Service 5.2.1 Description...
  • Page 25 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 25 Step Description Executing nucleus Press OPEN/CLOSE and STOP, and turn on the player. Display shows "FP SEGMENT". Press PLAY to execute this nucleus. Otherwise press NEXT and go to step 7. 502 Starbursts are visible.
  • Page 26 GB 26 SACD 1000 Diagnostic software, trouble shooting and test instructions RC KEY CODE RC KEY NAME ONLY FOR TV TV POWER SACD POWER STOP SOUND MODE PLAY REVERSE PAUSE SLOW FORWARD PREVIOUS RESUME NEXT MENU DISC MENU SYSTEM LEFT RIGHT DOWN RETURN...
  • Page 27 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 27 Figure 5-3...
  • Page 28 GB 28 SACD 1000 Diagnostic software, trouble shooting and test instructions 5.2.3 Errorlog Error Error name Explanation Number Explanation: 0109 S2B_SBC_NO Requested subcode item could The application errors will be logged in the NVRAM. The T_FOUND not be found. maximum number of error bytes that will be visible is 16. The 010A S2B_TRAY Tray could not be opened or...
  • Page 29: Stop

    Diagnostic software, trouble shooting and test instructions SACD 1000 GB 29 SMA error codes Error Error name Explanation Number 0000 SMA_TIMEO Data coming from disc not in UTERROR time. Reason: damaged disc or engine problem. 5.2.4 Reprogramming of region code Caution This information is confidential and may not be distributed.
  • Page 30 GB 30 SACD 1000 Diagnostic software, trouble shooting and test instructions 5.3.2 ERROR HANDLING Host Decoder Tests [01] [xx yy] Nuclei Each nucleus returns an error code. This code contains six Number numerals, which means: Checksum Flash Checks the FLASH checksum. Flash Write Access 1 Checks whether the first [ XX YY ZZ ] FLASH can be written.
  • Page 31 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 31 [xx yy] Nuclei [xx yy] Nuclei Number Number Pink Noise On Generates internally on the Line1 Lifetime Log Ends the lifetime log. The in- Sti5505 a pink noise audio signal that will be formation is displayed on the local display and is passed to all the DACs were it is converted to an send to the serial port.
  • Page 32 GB 32 SACD 1000 Diagnostic software, trouble shooting and test instructions PLAY for confirming that the test is correct. PREV when the [xx yy] Nuclei test is not ok. NEXT is pressed in order to abort to the Number nucleus at any time; the nucleus is not tested successfully. 1202 Write Read Fast SDRam Low The following two The confirmation can also be send through the serial port for...
  • Page 33 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 33 Grooves Menu [xx yy] Nuclei 1. Inside of the Disc [612] Number 2. Middle of the Disc [613] 1410 Scart Low Steers pin 16 on the scart connector 3. Outside of the Disc [614] with the value low (0 to 2 V).
  • Page 34 GB 34 SACD 1000 Diagnostic software, trouble shooting and test instructions → 5. Pink Noise Nuclei Error Codes → 6. Sine Generate 7. Digital Board Version [108] In the following tables the error description of the error codes 8. Flash Checksum [100] will be described.
  • Page 35 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 35 5.4.2 NVRAM Nuclei Error code Error description 11500 Test succeeded. 11501 Set-up of I2C failed. Error code Error description 11502 The selection of the clock source failed. 40000 Test succeeded. 11504 The demute of the audio failed.
  • Page 36 GB 36 SACD 1000 Diagnostic software, trouble shooting and test instructions Error code Error description Error code Error description 50502 Test failed. 50504 Not all keys were pressed. 60900 Test succeeded. 60901 Basic Engine returned error number 0xXX. 50600 Test succeeded. 60902 Parity error from Basic Engine to Serial.
  • Page 37 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 37 Error code Error description Error code Error description 63703 Communication time-out error. 130034 I2C DAC_LSRS device read failed. 63704 Unexpected response from Basic Engine. 130035 I2C DAC_LSRS device write access time- out.
  • Page 38 GB 38 SACD 1000 Diagnostic software, trouble shooting and test instructions Test instructions SACD mono board Error code Error description 131300 Test succeeded. 5.5.1 General 131301 I2C bus busy before start. 131302 I2C access failed. • Impedance of measuring-equipment should be > 1M(. •...
  • Page 39 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 39 5.5.3 Reset circuitry PM3394B Reset of Sti5505: ch1: freq= 16.9MHz In power down mode STB_CONT is high; the clock is disabled in order to reduce the power consumption. When STB_CONT goes low, STB_CONTD goes high and enables the 27 MHz clock.
  • Page 40 GB 40 SACD 1000 Diagnostic software, trouble shooting and test instructions PM3394B PM3394B ch1: freq= 8.50MHz ch1: freq= 50.0MHz CH1 1.00 V~ MTB50.0ns ch1+ CH1 1.00 V~ MTB20.0ns ch1+ ST_CLK CL 06532152_020.eps CL 06532152_021.eps MACE CLK 051200 051200 5.5.5 Tests with diagnostic software program Memories The SACD diagnostic program is included in the SACD Flashes...
  • Page 41 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 41 S2B bus The S2B is the interface between the digital part and the front PM3394B end. This bus links the STi5505 and the MACE2. The S2B ch1: freq= 24.6MHz echo command permits to check the communication between those devices.
  • Page 42 GB 42 SACD 1000 Diagnostic software, trouble shooting and test instructions Signal Test type Level Frequency Signal Test type Level Frequency point point PCM_Ce_Lf_Fu F659 No signal LVTTL N/A PCM_LsRs_Fur F504 LVTTL N/A signal PCM_LsRs_Fur F504 No signal LVTTL N/A SPDIF F644 Data...
  • Page 43 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 43 Ref.# Command Remark PM3394B Name Pink Noise ON Play the pink noise at the audio outputs Then measure the following signals Signal Test type Level Frequency point SCLK_AV F637 Clock LVTTL 3.072MHz <...
  • Page 44 GB 44 SACD 1000 Diagnostic software, trouble shooting and test instructions Chrominance C_VID Blue B_VID Measured at F665 Measured at F653 PM3394B PM3394B CH1 200mV~ MTB20.0us ch1+ CH1 200mV~ MTB20.0us ch1+ C_VID B_VID CL 06532152_033.eps CL 06532152_036.eps 051200 051200 Red R_VID Switch off the colour bar with the following command: Measured at F646 Ref.#...
  • Page 45 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 45 5.5.7 SERVO TESTS Signal Test type Level Frequency point General start-up measurements: DSD_PCM(1) F006 Signal : High LVTTL N/A DSD_PCM(4) F007 Data stream LVTTL N/A Reset the Basic Engine part DSD_PCM(5) F008 Signal : High LVTTL N/A DSD_PCM(2) F009...
  • Page 46 GB 46 SACD 1000 Diagnostic software, trouble shooting and test instructions Disc Motor: Before switching on the disc motor, check the following test PM3394B points: Name Testpoint Value Stby F357 high Stby-out F355 Moto1 F361 3V±0.3 Switch the Discmotor on/off with next commands: Ref.
  • Page 47 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 47 Ref. # Command Remark PM3394B Name BeTrayIn Tray in BeTrayOut Tray out Measure the driver outputs of the BA5938FM for the tray closed. Name Testpoint Value Vo2 - F116 4.3V±2.0V Vo2 + F111...
  • Page 48 2.5V ± 0.2V, eyepattern 1Vptp General F155 25mV±10mV • Oscilloscope measurements have been carried out using F158 25mV±10mV a Philips PM3392A. F168 25mV±10mV • Impedance of measuring-equipment should be > 1MΩ. F165 25mV±10mV • To do correct measurements we recommend to use F174 25mV±10mV...
  • Page 49 Check next timing and level for all grid-lines (G1 r G14). I.R. receiver Check at pin 23 of the (P if this line switches from low (< 0.3V) to high (> 4.5V), while pressing a key on a Philips RC5 or PM3392A RC6 remote control.
  • Page 50 GB 50 SACD 1000 Diagnostic software, trouble shooting and test instructions Trouble shooting AV Board Testing of A/V board can be done using diagnostic software “Player script”. Mono board is used to generate a sound with the sound tests PINKNOISE ON and SINE ON. A VIDEO signal is generated with COLOUR-B ON.
  • Page 51 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 51 PM3392A PM3392A 2 V~ MTB 500ns ch1+ CH1!2.00 V~ MTB 500ns ch1+ PM3392A PM3392A 2 V~ MTB10.0us ch1+ CH1!2.00 V~ MTB 500ns ch1+ PM3392A PM3392A PM3392A CH1!2.00 V~ MTB 500ns ch1+ 2 V~ MTB 100ns...
  • Page 52 GB 52 SACD 1000 Diagnostic software, trouble shooting and test instructions NO SOUND ON AUDIO CINCH 1402 TV- & AUX SCART • To put set in “Player script”, press keys Diagnostic Software STOP+OPEN/CLOSE simultaneously and switch on. Proceed until display shows “ ”.
  • Page 53 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 53 VIDEO PART NO PICTURE CVBS & Y/C OUT • To put set in “Player script”, press keys Diagnostic Software STOP+OPEN/CLOSE simultaneously and switch mains on. Proceed until display shows “ ".
  • Page 54 GB 54 SACD 1000 Diagnostic software, trouble shooting and test instructions PM3392A PM3392A 200mV~ MTB20.0us ch1+ TP 6 : Y_ENC PM3392A 200mV~ MTB20.0us ch1+ TP 1 : video B PM3392A 500mV~ MTB20.0us ch1+ TP 19 : CVBS_OUT PM3392A 200mV~ MTB20.0us ch1+ TP 2 : video G PM3392A...
  • Page 55 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 55 NO PICTURE SCART SCART SWITCHING • To put set in “Player script”, press keys STOP+OPEN/CLOSE simultaneously and switch mains on. Diagnostic Software Proceed until display shows “ ". COLOUR-B ON Press PLAY to execute.
  • Page 56 GB 56 SACD 1000 Diagnostic software, trouble shooting and test instructions Trouble shooting DAC Board TROUBLESHOOTING DAC BOARD Testing of DAC board can be done using diagnostic software “Player script”. Mono board is used to generate a sound with the sound test SINE ON. DAC''s &...
  • Page 57 Diagnostic software, trouble shooting and test instructions SACD 1000 GB 57 Testing of I2C communication to DAC board can be done using diagnostic software. DAC BOARD I2C COMMUNICATION • See MENU MODE INTERFACE to put set in DSW mode Diagnostic Software •...
  • Page 58 GB 58 SACD 1000 Diagnostic software, trouble shooting and test instructions Personal notes:...
  • Page 59: Alignments (not Available)

    Alignments SACD 1000 GB 103 8. Alignments No alignments available 9. Circuit-, IC descriptions and list of abbreviations SAA7399 (MACE2) General. • Sledge stepper motor support. Mace2 is a name used for the successor of the ACE1 IC. The The Digital Servo block. term MACE (mini-ACE) is used because MACE2 does not have a decoder on board.
  • Page 60 GB 104 SACD 1000 Circuit-, IC descriptions and list of abbreviations – Defect detector: Holds the focus and/or radial control correct the loop gain. Since this decreases the optimal signal on disc dropouts. performance, the gain control should only activated shortly –...
  • Page 61 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 105 In the sledge jump mode maximum power (user measured before the injection point. The injected signal is programmable) is applied to the sledge in the correct shaped by H/1+H . This measured signal is multiplied by a direction, while the actuator becomes idle.
  • Page 62 GB 106 SACD 1000 Circuit-, IC descriptions and list of abbreviations 9.14 Laser Low Power (LLP). The LLP output can be used by write-able systems to switch the laser back to read power when the light spot goes off- track while writing discs. To prevent that the neighbour tracks are damaged when the spot goes off-track the laser has to be switched very fast to the safe read power.
  • Page 63 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 107 in which the pattern recorded in the previous stage is read the input LPF's, the OPC pre-processor and the EFM back. detector. During this read phase the OPC block stores A1, A2 and The sequencer controls the timing of all the hardware actions CALF samples from exact the same location where during in the OPC hardware.
  • Page 64 • Support for Dual Light pen DVD systems (DVD/CDRW) programmable interface between dual, voltage output • DVD-RAM (C) playback capability CD/DVD mechanisms to Philips' digital signal processor family for CD and DVD (Gecko, HDR65, Iguano, etc..) • DVD-RAM Land-Groove servo polarity switching •...
  • Page 65 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 109 DVDALAS2plus Advanced Analogue DVD TZA1033 Signal Processor and Laser Supply DEVICE BLOCK DIAGRAM Diode Ampli?ers Balanced Processing Data & header Interface Header Land Servo Signals Push Pull Land/Groove D1-D6 Swap Offset Mute...
  • Page 66 GB 110 SACD 1000 Circuit-, IC descriptions and list of abbreviations DVDALAS2plus Advanced Analogue DVD TZA1033 Signal Processor and Laser Supply PINNING Name Description CD-A CD pick up input A CD-B CD pick up input B CD-C CD pick up input C CD-D CD pick up input D CD-REF...
  • Page 67 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 111 DVDALAS2plus Advanced Analogue DVD TZA1033 Signal Processor and Laser Supply Name Description SIDA Serial host interface data input SICL Serial host interface clock input SILD Serial host interface load VDDA1 Analog Supply voltage 1 (RF input) VDDA2...
  • Page 68 GB 112 SACD 1000 Circuit-, IC descriptions and list of abbreviations DVDALAS2plus Advanced Analogue DVD TZA1033 Signal Processor and Laser Supply PINNING handbook, full pagewidth CD-A CD-B CD-C CD-D CD-REF VDDA4 CD-E VSSA4 CD-F VDDA1 VSSA1 O-CENTRAL DVD-MI LPF-DPD2 LPF-DPD1 DVD-A DVD-B FTC-REF...
  • Page 69 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 113 BA6856FP: 3 PHASE MOTOR DRIVER FOR DVD PLAYERS Features • /3-phase, full-wave pseudo linear driving system • built-in power save • built-in therma shut down circuit • built-in current limit circuit •...
  • Page 70 GB 114 SACD 1000 Circuit-, IC descriptions and list of abbreviations pin description PIN No PIN NAME DESCRIPTION N.C. Not connected N.C. Not connected Output 3 for motor N.C. Not connected Output 2 for motor N.C. Not connected Output 1 for motor Ground Hall input Amp1.
  • Page 71 • Programmable HF equalizer The SAA7335 has two independent microcontroller • In DVD mode it is still compatible with Philips block interfaces. The first is a serial I C-bus and the second is a decoders standard 8-bit multiplexed parallel interface.
  • Page 72 GB 116 SACD 1000 Circuit-, IC descriptions and list of abbreviations DSP for CD and DVD-ROM systems SAA7335 ORDERING INFORMATION PACKAGE TYPE NUMBER NAME DESCRIPTION VERSION plastic low pro?le quad ?at package; 100 leads; body 14 × 14 × 1.4 mm SAA7335GP LQFP100 SOT407-1...
  • Page 73 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 117 DSP for CD and DVD-ROM systems SAA7335 PINNING SYMBOL TYPE DESCRIPTION supply analog ground 1 SSA1 analog current reference input for ADC REFLo analog low reference input for ADC REFHi analog high reference input for ADC VREF...
  • Page 74 GB 118 SACD 1000 Circuit-, IC descriptions and list of abbreviations DSP for CD and DVD-ROM systems SAA7335 SYMBOL TYPE DESCRIPTION sub-CPU data bus bit 1 input/output (parallel) − n.c. not connected, reserved sub-CPU data bus bit 0 input/output (parallel) supply digital supply voltage 4 DDD4...
  • Page 75 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 119 DSP for CD and DVD-ROM systems SAA7335 SYMBOL TYPE DESCRIPTION supply digital ground 7 SSD7 RAMAD7 RAM address bit 7 output RAMAD8 RAM address bit 8 output RAMAD9 RAM address bit 9 output −...
  • Page 76 GB 120 SACD 1000 Circuit-, IC descriptions and list of abbreviations DSP for CD and DVD-ROM systems SAA7335 handbook, full pagewidth V SSA1 RAMAD1 I ref RAMAD0 REFLo V SSD6 V DDD6 REFHi VREF RAMDA0 HFIN RAMDA1 V SSA2 n.c. AGCOUT RAMDA2 V DDA2...
  • Page 77 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 121 DSP for CD and DVD-ROM systems SAA7335 1. The coincidence counter: this is used to detect the FUNCTIONAL DESCRIPTION coincidence of successive syncs. It generates a sync Analog front-end coincidence signal if 2 syncs are 588 ±1 EFM clocks apart.
  • Page 78 GB 122 SACD 1000 Circuit-, IC descriptions and list of abbreviations DSP for CD and DVD-ROM systems SAA7335 The sequence for a write data command (1 data byte) is as Microcontroller interface follows: The SAA7335 has two microcontroller interfaces, one •...
  • Page 79 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 123 Am29LV160BT/Am29LV160BB 16 Megabit (2 M x 8-Bit/1 M x 16-Bit) CMOS 3.0 Volt-only Sector Erase Flash Memory DISTINCTIVE CHARACTERISTICS I Single power supply operation I Top or bottom boot block configurations available —...
  • Page 80 GB 124 SACD 1000 Circuit-, IC descriptions and list of abbreviations GENERAL DESCRIPTION The Am29LV160B is a 16 Mbit, 3.0 Volt-only Flash The host system can detect whether a program or memory organized as 2,097,152 bytes or 1,048,576 erase operation is complete by observing the RY/BY# words.
  • Page 81 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 125 PRODUCT SELECTOR GUIDE Family Part Number Am29LV160B Ordering Part Number: =3.0–3.6 V = 2.7–3.6 V Max access time, ns (t Max CE# access time, ns (t Max OE# access time, ns (t Note: See “AC Characteristics”...
  • Page 82 GB 126 SACD 1000 Circuit-, IC descriptions and list of abbreviations CONNECTION DIAGRAMS BYTE# DQ15/A-1 DQ14 DQ13 DQ12 Standard TSOP RESET# DQ11 RY/BY# DQ10 BYTE# DQ15/A-1 DQ14 DQ13 DQ12 RESET# Reverse TSOP DQ11 RY/BY# DQ10 21358C-2...
  • Page 83: General Description

    Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 127 MT48LC1M16A1 S - 512K x 16 x 2 banks SYNCHRONOUS DRAM FEATURES PIN ASSIGNMENT (Top View) • PC100 functionality • Fully synchronous; all signals registered on positive 50-Pin TSOP edge of system clock •...
  • Page 84 GB 128 SACD 1000 Circuit-, IC descriptions and list of abbreviations 16Mb: x16 SDRAM GENERAL DESCRIPTION (continued) sequence. Accesses begin with the registration of an AC- but it also allows the column address to be changed on every TIVE command, which is then followed by a READ or clock cycle to achieve a high-speed, fully random access.
  • Page 85: Functional Block Diagram

    Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 129 16Mb: x16 SDRAM FUNCTIONAL BLOCK DIAGRAM 1 Meg x 16 SDRAM BANK0 ROW- MEMORY ADDRESS 2,048 ARRAY LATCH (2,048 x 256 x 16) DQML, DQMH 256 (x16) CONTROL LOGIC CAS# SENSE AMPLIFIERS RAS#...
  • Page 86 GB 130 SACD 1000 Circuit-, IC descriptions and list of abbreviations 16Mb: x16 SDRAM PIN DESCRIPTIONS PIN NUMBERS SYMBOL TYPE DESCRIPTION Input Clock: CLK is driven by the system clock. All SDRAM input signals are sampled on the positive edge of CLK. CLK also increments the internal burst counter and controls the output registers.
  • Page 87 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 131 STi5505 (Rev. Ax) DVD BACKEND DECODER WITH INTEGRATED HOST PROCESSOR PRODUCT PREVIEW INTEGRATED 32-BIT RISC HOST CPU DESCRIPTION - 2KBYTES INSTRUCTION CACHE, 2KBYTES The STi5505 provides a very highly integrated back- end solution for DVD and combo DVD-DVB (Set DATA CACHE/SRAM Top Box) applications.
  • Page 88 GB 132 SACD 1000 Circuit-, IC descriptions and list of abbreviations STi5505 (Rev. Ax) I - GENERAL DESCRIPTION The performance offered by the ST20 CPU and its width/memory size compromise. associated hardware (decoders, encoder, periphe- The algorithm is lossless and uses "on-the-fly" rals...) allows an integrated and unified DVD or decoding to reduce the memory requirements to DVD-DVB software solution.
  • Page 89 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 133 STi5505 (Rev. Ax) I - GENERAL DESCRIPTION (continued) The main features of the decoder core are : The encoder handles interlaced and non-interlaced mode. - Decodes 5.1 Dolby AC-3 Digital surround, It can perform Closed Captions, CGMS or Teletext - Output to 6 channels.
  • Page 90 GB 134 SACD 1000 Circuit-, IC descriptions and list of abbreviations STi5505 (Rev. Ax) I - GENERAL DESCRIPTION (continued) The main features of the DVD interface are : allows to transfer packets between the Set Top Box and external units, either for recording or playback - DVD, VCD and CD-DA compatible, purposes.
  • Page 91: Top View

    Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 135 STi5505 (Rev. Ax) II - PIN DESCRIPTION II.1 - Pin Connections DATA[13] PIO3[7] DATA[12] PIO2[0] DATA[11] DATA[10] PIO2[3] DATA[9] PIO2[4] DATA[8] PIO2[5] PIO2[7] PIO1[0] DATA[7] PIO1[2] DATA[6] PIO1[5] DATA[5] PIO1[6] DATA[4] PIO1[7]...
  • Page 92 GB 136 SACD 1000 Circuit-, IC descriptions and list of abbreviations STi5505 (Rev. Ax) II - PIN DESCRIPTION (continued) II.2 - Pin List Name Type Function SUPPLIES 1, 18, 34, 67, 75, 86, 95, Power Supply 102, 110, 119, 130, 139, 149, 159, 171, 184, 208 4, 19, 35, 68, 77, 87, 96, Ground...
  • Page 93 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 137 STi5505 (Rev. Ax) II - PIN DESCRIPTION (continued) II.2 - Pin List (continued) Name Type Function EXTERNAL INTERRUPTS 23, 25 IRQ[0:1] External Interrupts PROGRAMMABLE I/O AND ALTERNATE FUNCTION (see Device Configuration Chapter) PIO0 [0] General Purpose I/O or PARA_SYNC (DVD//Front End) or Sc1Data (Smart Card 1 Data I/O)
  • Page 94 GB 138 SACD 1000 Circuit-, IC descriptions and list of abbreviations STi5505 (Rev. Ax) II - PIN DESCRIPTION (continued) II.2 - Pin List (continued) Name Type Function SDRAM INTERFACE 78-81, 69, 70-74, 82, 83 AD[0:11] SDRAM Address Bus 92-94, 97-101, 106-109, DQ[0:15] SDRAM Data (Lower Byte) 112-115...
  • Page 95 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 139 STi5505 (Rev. Ax) III - FUNCTIONAL DESCRIPTION III.1 - Functional Modules High memory bandwidths up to 200 Mbytes/s can be supported by the SDRAM EMI. Figure 1 shows the subsystem modules that make up the STi5505.
  • Page 96 GB 140 SACD 1000 Circuit-, IC descriptions and list of abbreviations STi5505 (Rev. Ax) III - FUNCTIONAL DESCRIPTION (continued) The block also handles overspeed processing for and allows Macrovision 7.01/6.1 copy protection. all systems. The capturing of CD-DA sectors is based on a flywheel tiner to improve robusters by III.11 - MPEG-2 Audio / Dolby AC-3 Decoder concealing erros in the subcode stream.
  • Page 97 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 141 ST24E32 ST25E32 32K SERIAL I C EEPROM with EXTENDED ADDRESSING NOT FOR NEW DESIGN COMPATIBLE with I C EXTENDED ADDRESSING TWO WIRE SERIAL INTERFACE, SUPPORTS 400kHz PROTOCOL 1 MILLION ERASE/WRITE CYCLES, OVER the FULL SUPPLY VOLTAGE RANGE 40 YEARS DATA RETENTION SINGLE SUPPLY VOLTAGE...
  • Page 98 GB 142 SACD 1000 Circuit-, IC descriptions and list of abbreviations ST24E32, ST25E32 Figure 2A. DIP Pin Connections Figure 2B. SO Pin Connections ST24E32 ST24E32 ST25E32 ST25E32 V CC V CC V SS V SS AI01202B AI01203C Table 2. Absolute Maximum Ratings Symbol Parameter Value...
  • Page 99 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 143 9.24 Description of Furore IC 9.24.1 General Description FURORE-IC is a one-chip design containing all the hardware required for SACD processing. It is intended to interface to the Sti family (Sti5505/Sti5508) DVD video decoders. The FURORE-IC contains a memory interface to support one 4M*16 SDRAM or one 1M*16 SDRAM device.
  • Page 100 GB 144 SACD 1000 Circuit-, IC descriptions and list of abbreviations RESETn is an asynchronous reset and should be low for at 9.24.6 Pin description least 1 period of DSD_CLK. General-purpose in/outputs. Four general purpose input and output signals are available. IC-Pin_no Name Type...
  • Page 101 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 145 IC-Pin_no Name Type Function adcrefl APIO ADC decoupling low. (via 100nF to VSS) vssrefadc VSSCO VSS of Reference Ladder of ADC ( not to the substrate) PCM_LeRi_in PCM data Left/Right PCM_CeLf_in PCM data Centre/LFE PCM_LsRs_in...
  • Page 102 GB 146 SACD 1000 Circuit-, IC descriptions and list of abbreviations IC-Pin_no Name Type Function DSD_PCM_0 DSD data output signal. On 64 * Fs Stereo : Left channel (channel 0) MCA5/6 : front left ( channel 0) OR From PCM switch matrix DSD_PCM_1 Stereo : right channel (channel 1)
  • Page 103 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 147 IC-Pin_no Name Type Function GND_CORE Ground(core) PCM_dclk_Out PCM data clock Tst(1) internal pull up for both test pins Tst(0) IC testpins tst(1:0) 11 : Functional behaviour 10 : RAM test 01 : scan shift 00 : scan normal Boundary scan Data Input.
  • Page 104 GB 148 SACD 1000 Circuit-, IC descriptions and list of abbreviations DISCS Filter switch position Position 1 position 2 position 3 SACD (DSD) All channels: Normal* L and R: Custom* Other channels: Normal All channels: Custom CD (PCM) All channels : Custom * Normal: output via 1 filter stage (3rd order filter) •...
  • Page 105 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 149 Pin Function Pin Name Description Reset input (Low active) M4(AD0/CS) Chip address bit0 for I2C M3(AD1/CDIN) Chip address bit1 for I2C M2(SCL/CCLK)) Serial clock for I2C M0(SDA/CDOUT) Serial data for I2C DGND Digital ground Digital power supply +3.3V...
  • Page 106 GB 150 SACD 1000 Circuit-, IC descriptions and list of abbreviations 9.25.4 Description of I2C controller PC8574 PC8574 Block Diagram Pin Configuration V DD INTERRUPT LP FILTER LOGIC PCF8574 PCF8574 INPUT I C BUS SHIFT FILTER CONTROL 8 BIT REGISTER PORT V SS WRITE pulse...
  • Page 107 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 151 9.26 IC description of Linear power supply PQ15RW11 Pin Configuration PQ15RW11 1 DC input(Vin) 2 DC output(Vo) 3 GND 4 Output voltage adjustment terminal(Vadj) Block Diagram Input Output Specific IC Output voltage adjustment terminal TA7317P...
  • Page 108: List Of Abbreviations

    GB 152 SACD 1000 Circuit-, IC descriptions and list of abbreviations 9.27 List of abbreviations CALF_MACE Central aperture low frequency control signal to MACE CAS[1:0]ND DRAM column address strobe +12VSTBY +12V power supply present during CASN SDRAM column address strobe standby CE_ROM1N Chip enable flash eprom IC7401...
  • Page 109 Circuit-, IC descriptions and list of abbreviations SACD 1000 GB 153 HPSW Control signal to swith HF signal RASN SDRAM row address strobe path Read enable input of HD61 HSYNC Horizontal synchronization output REFCOS Position Control Sledge external I2C_DAC Control signal to enable/disable the cosine offset compensation/stepper I2C bus to the DAC PCB motor cosine output...
  • Page 110 GB 154 SACD 1000 Circuit-, IC descriptions and list of abbreviations TRAY2 Tray motor control signal 2 from servo processor to power driver TRAYSW Tray switch control signal to servo processor TRST Boundary scan test port reset TXD_BE Transmitted data basic engine serial interface (S2B) TXD_SER Transmitted data service serial...
  • Page 111: Spareparts List

    Spare parts list SACD 1000 GB 155 10. Spare parts list Mechanical C418 5322 126 10511 1nF 5% 50V 4822 124 22039 1220 µF 16V C421 Loader 4822 124 22039 1220 µF 16V C422 Various C451 9965 000 06697 560pF J 100V APSV Various C452 9965 000 03406 150pF J 100V APSV...
  • Page 112 GB 156 SACD 1000 Spare parts list CD01 4822 124 41539 47µF 16V D701 4822 130 32362 MA165 Q252 4822 130 61425 2SC2873 CD02 4822 126 11687 D702 4822 130 81324 1SS302-X Q253 4822 130 63928 2SA1312(B) CD03 4822 122 33761 22pF 5% 50V D703 4822 130 81324 1SS302-X Q254...
  • Page 113 Spare parts list SACD 1000 GB 157 9965 000 06695 1k Ω +-1% 1/4W R301 R560 4822 051 20102 1k 5% 0,1W 9965 000 06690 2.61k Ω +-1% 1/4W R561 4822 051 20102 1k 5% 0,1W 9965 000 06675 CS4397 24BIT 192KHZ R302 9965 000 06691 6.65k Ω...
  • Page 114 GB 158 SACD 1000 Spare parts list 9965 000 06688 3.24k Ω +-1% 1/10W RD54 2374 4822 126 14076 220nF 25V. P8020 3313 4822 051 20391 390Ω 5% 0.1W 9965 000 06689 2.21k Ω +-1% 1/10W RD55 2375 4822 122 33575 220pF 5% 63V CASE 3314 4822 051 10102 1k 2% 0.25W RD56...
  • Page 115 Spare parts list SACD 1000 GB 159 3448 4822 051 20332 3k3 5% 0.1W 6303 4822 130 83757 BAS216 2106 4822 124 81286 47µF 20% 16V 3451 4822 117 13085 5k6 1% RC12H 0.1W 0805 6306 9322 154 46685 DIO REC SM RB501V-40 2107 4822 126 12105 50V 33nF PM5 3452...
  • Page 116 GB 160 SACD 1000 Spare parts list 7112 4822 209 31257 MC79L24ACP 2301 4822 126 14305 100nF 10% 16V 0603 2621 4822 122 33777 47pF 5% 63V 2622 4822 122 33777 47pF 5% 63V 2302 4822 126 14305 100nF 10% 16V 0603 2303 4822 124 80349 47µF 20% 6.3V 2623...
  • Page 117 Spare parts list SACD 1000 GB 161 3020 4822 051 30339 33Ω 5% 0.062W 3178 4822 117 11151 1Ω 5% 3323 5322 117 13026 4k7 1% 0.063W 0603 RC22H 3021 4822 051 30472 4k7 5% 0.062W 3179 4822 051 30221 220Ω 5% 0.062W 3022 4822 051 30472 4k7 5% 0.062W 3180...
  • Page 118 GB 162 SACD 1000 Spare parts list 3625 4822 051 30339 33Ω 5% 0.062W 5503 4822 157 71206 BLM21A601SPT 7612 5322 130 60159 BC846B 3626 4822 051 30102 1k 5% 0.062W 5504 4822 157 71206 BLM21A601SPT 7613 5322 130 60159 BC846B 3627 4822 051 30471 470Ω...
  • Page 119 Spare parts list SACD 1000 GB 163 0006 3104 127 12150 HOLDER RIGHT COMPLETE 0007 3104 127 12270 POWER ON/OFF KNOB ASSY 0010 3104 124 05450 LIGHT CONDUCTOR 0012 3104 127 12160 HOLDER LEFT ASSY 0050 3104 120 00260 SA-CD BADGE 0065 3104 127 11520 TRAY FRONT COMPLETE SA-CD1000 0075...
  • Page 120 Wiring and block diagram SACD 1000 GB 59 6. Wiring and block diagram Wiring diagram WIRING DIAGRAM MAINS 8001 8002 +3V3 AGND JH05 JH04 +3V3 AGND +12VA +5Vstby -12VA POWER SUPPLY +6Vstby DAGND INPUT +5VA +5VAD 8002 JD02 -8Vstby STB_CONT RELAY +12Vstby AMUTE...
  • Page 121 Wiring and block diagram SACD 1000 GB 60 General block diagram GENERAL BLOCK DIAGRAM POWER SUPPLY LINEAR MAINS SMPS POWER INPUT SUPPLY LOADER SACD MAINBOARD 1600 MEMORY 7310 CD-LASER +5Vstby 7102 +6Vstby 7800 S-RAM DVDALAS2+ -8Vstby 7700 132K +12Vstby TZA1033 PWR_FAIL STB_CONT CY7C199-15C...
  • Page 122 Wiring and block diagram SACD 1000 GB 61 Block diagram DAC PCB BLOCKDIAGRAM DAC PCB AUDIO BLOCK QD41 CS4397 BCK/BCK LRCK/SEL_DSD SDT_LR/DSDL BCK/BCK FILTER FILTER SEL_PCM/DSDR LRCK/SEL_DSD SDT_LsRs/DSDLs SDT_LR/DSDL SEL_PCM/DSDRs SEL_PCM/DSDR SDT_CL/DSDC SEL_PCM/DSDLFE D/A Converter FILT1 RELAY IIC BUS 17 MUTE 1 RST FILTER FILTER...
  • Page 123: Pause

    Electrical diagrams and PWB’s SACD 1000 GB 62 7. Electrical diagrams and PWB’s Display & on / off panel 0001 I1 F102 B5 0002 I1 F103 B8 1100 D12 F104 A13 1101 D14 F105 A13 1102 D12 F106 A13 +5Vstb 1106 D14 F107 A13 ON/OFF PCB...
  • Page 124 Electrical diagrams and PWB’s SACD 1000 GB 63 Layout Display & on / off panel (top view) DISPLAY & ON/OFF PANEL TOP VIEW CL 06532152_056.eps 121200...
  • Page 125 Electrical diagrams and PWB’s SACD 1000 GB 64 Layout Display & on / off panel (bottom view) DISPLAY & ON/OFF PANEL BOTTOM VIEW CL 06532152_057.eps 121200...
  • Page 126 Electrical diagrams and PWB’s SACD 1000 GB 65 Switched mode power supply SWITCHED MODE POWER SUPPLY FOR ORIENTATION ONLY CL 06532152_058.eps 121200...
  • Page 127 Electrical diagrams and PWB’s SACD 1000 GB 66 LPSU-L2-2N LPSU-L2-2N CH01 E2 CN21 C8 C803 D7 C815 D8 C822 A7 C827 B8 C842 E7 C851 E10 DN01 F7 DN06 F8 D802 D7 D823 B7 D828 B8 FH01 E2 GH05 E2 JH05 D4 J821 B6 J842 E6...
  • Page 128 Electrical diagrams and PWB’s SACD 1000 GB 67 Layout LPSU-L2-2N CN01 F2 RN01 F2 CN02 F3 RN02 F3 CN03 F2 RN03 F3 CN21 F5 RN04 F3 CN22 F4 RN05 F3 CN23 F4 RN06 F3 CH01 H4 RN07 F3 CH02 H3 RN08 F3 C801 D2 RN09 F3...
  • Page 129 Electrical diagrams and PWB’s SACD 1000 GB 68 AV Board (Europe): Video control & SCART switch 1300-1 A1 1301-14 G1 2360 D10 2373 G14 2389 C3 2401 E9 2419 B3 3350 C7 3414 E4 3612 H7 3621 F2 4304 F13 7316 C4 7999 H10 F118 C12...
  • Page 130: Video Out

    Electrical diagrams and PWB’s SACD 1000 GB 69 AV Board (Europe): Video out 1303 D6 3602 F3 1304-1 A13 3603 F4 1304-2 F13 3604 F2 VIDEO OUT 2353 OPTION F114 3314 1304-3 E13 3605 F1 1350 1350 A13 3606 F4 EH-B 1402-A B6 3607 F4...
  • Page 131: Previous

    Electrical diagrams and PWB’s SACD 1000 GB 70 AV Board (Europe): Audio 1300-10 E1 3494 G13 F459 F4 AUDIO 1300-11 E1 3495 H4 F460 F5 1300-12 E1 3496 H7 F461 F6 +8VAud 7400 1300-13 E1 3497 H7 F462 F7 LD1117 F409 +8VAud 1300-14 F1...
  • Page 132: Play

    Electrical diagrams and PWB’s SACD 1000 GB 71 Layout AV Board (Europe) (top view) CL 06532152_064.eps 121200...
  • Page 133 Electrical diagrams and PWB’s SACD 1000 GB 72 Layout AV Board (Europe) (bottom view) CL 06532152_065.eps 121200...
  • Page 134 Electrical diagrams and PWB’s SACD 1000 GB 73 AV Board (US + AP): Video 1002-A B13 7007 C5 1003 D13 7008 C5 1006-A F13 7009 C6 3013 1006-B G13 7010 D6 4108 +5VVID 1006-C H13 7011 D7 (Reserved) 1007 B1 7012 F5 F1 : AV PCB 7117...
  • Page 135 Electrical diagrams and PWB’s SACD 1000 GB 74 AV Board (US + AP): Audio 1002-B G13 F210 D1 1002-C E13 F211 E1 1004 C1 F212 E1 F2 : AV PCB 1005 B12 F213 E1 1405 1405 A12 F214 E1 YKC21-3337 2000 B7 F215 F1 2001 B11...
  • Page 136 Electrical diagrams and PWB’s SACD 1000 GB 75 Layout AV Board (US + AP) (top view) CL 06532152_105.eps 151200...
  • Page 137 Electrical diagrams and PWB’s SACD 1000 GB 76 Layout AV Board (US + AP) (bottom view) CL 06532152_104.eps 181200...
  • Page 138: Stop

    Electrical diagrams and PWB’s SACD 1000 GB 77 DAC-L2N DAC-L2N CD01 RD33 CD02 RD34 CD03 RD41 +3.3VD CD04 RD42 CD05 RD43 +5VA PP16 CD42 CD45 CD06 RD44 5.5V LD41 +12VA +5VA +12VR CD07 RD45 -12V A +3.3VD CD41 CD44 CD43 CD40 CD08 RD46...
  • Page 139 Electrical diagrams and PWB’s SACD 1000 GB 78 Audio1-L2N AUDIO1-L2N C101 B5 C161 D8 C367 E1 D102 B7 J601 C10 Q107 B8 Q305 B4 R103 B5 R151 D5 R163 D8 R311 C4 R356 E2 R601 C8 C102 B5 C162 E8 C368 E2 D103 C7 J611 D10...
  • Page 140 Electrical diagrams and PWB’s SACD 1000 GB 79 Audio2-L2N AUDIO2-L2N C201 A5 Q255 D6 R513 E4 C202 A5 Q256 C7 R514 E4 C203 A5 Q257 D7 R515 E4 PP16 031G +12VA 032G +12VA C204 B6 Q401 A2 R516 E1 C205 A5 Q402 B2 R517 E1 C211 A7...
  • Page 141 Electrical diagrams and PWB’s SACD 1000 GB 80 Layout DAC board (top view) CD01 J9 C601 D2 Q103 D4 RD65 I8 R413 F5 CD02 J8 C602 C2 Q104 D4 RD66 H8 R414 F5 CD03 J8 C603 C2 Q105 D3 RD71 A4 R415 G7 CD04 J9 C611 B2...
  • Page 142 Electrical diagrams and PWB’s SACD 1000 GB 81 Layout DAC board (Bottom view) CD01 J9 C601 D2 Q103 D4 RD65 I8 R413 F5 CD02 J8 C602 C2 Q104 D4 RD66 H8 R414 F5 CD03 J8 C603 C2 Q105 D3 RD71 A4 R415 G7 CD04 J9 C611 B2...
  • Page 143 Electrical diagrams and PWB’s SACD 1000 GB 82 Mono board: DVD ALAS 1100-1 A1 3162 F4 F138 C3 1100-2 A1 3163 G2 F139 C7 1100-3 A1 3164 F3 F140 C2 1100-4 A1 3165 I10 F141 D2 DVD ALAS 1104 B1 3166 G8 F142 D12 7109...
  • Page 144 Electrical diagrams and PWB’s SACD 1000 GB 83 Mono board: MACE controller 1201 H13 F222 C11 1205 A4 F223 C11 2200 A7 F224 C2 +3V3S +3V3S +3V3S 2201 A8 F225 C11 CSTCC +3V3S 2202 A9 F226 C1 3259 3260 MACE CONTROLLER 2203 A10 F227 C2 2204 B2...
  • Page 145 Electrical diagrams and PWB’s SACD 1000 GB 84 Mono board: CD - DVD decoder 1300 A7 F348 F8 1301 G14 F349 G10 F301 2300 A12 F350 G12 +5VB 2301 A9 F351 G10 3300 F300 2300 5300 2302 A6 F352 G13 2301 +5VA CD - DVD DECODER...
  • Page 146 Electrical diagrams and PWB’s SACD 1000 GB 85 Mono board: Program memories 2405 B3 2414 I4 2418 I6 PROGRAM MEMORIES 2450 B11 2451 B11 2452 B7 2453 B11 2454 G13 SYSTEM DATA Bus 2455 G13 2456 H6 2457 I10 2458 I13 SYSTEM ADDRESS Bus 2459 H7 {RAS1ND,RWN,BE0n_Fur,BE1n_Fur,CAS0ND,CAS1ND,CSL_Fur,CSH_Fur,CE_ROMN,RAS0ND,OEND}...
  • Page 147 Electrical diagrams and PWB’s SACD 1000 GB 86 Mono board: CPU & MPEG decoder 1501-1 A1 F520 C8 1501-2 B1 F521 C10 1501-3 B1 F522 C11 CPU & MPEG DECODER 1501-4 B1 F524 C10 1501-5 B1 F525 C11 2500 A3 F526 C7 VDD_STI 2504 C11...
  • Page 148 Electrical diagrams and PWB’s SACD 1000 GB 87 Mono board: Power supply & output interfaces 1600 C1 3658 I10 F665 I12 1602-1 A13 3659 I10 F669 C11 5600 PWR SUPPLY + OUTPUT INTERFACES SERVICE 1602-7 1602-2 A13 3660 H10 F670 E2 1602-3 A13 3661 G9 F671 I1...
  • Page 149 Electrical diagrams and PWB’s SACD 1000 GB 88 Mono board: SD RAM’s 2401 C2 2402 C3 2403 C5 SDRAMs 2404 C6 2406 C2 2407 C3 2408 C5 2409 C6 2410 C2 2411 C3 2412 C5 2413 C6 ST SDRAM FURORE SDRAM 2419 I2 2420 I3 2700 C11...
  • Page 150 Electrical diagrams and PWB’s SACD 1000 GB 89 Mono board: SACD decoder 2800 A2 2801 A2 2802 A2 SACD DECODER 2803 A3 2804 A3 2805 A3 2806 A3 2807 A3 2808 A3 5800 VCC3V3 F829 2809 A3 VCC_Fur 2810 A4 100MHZ 2811 A4 2812 A4...
  • Page 151 Electrical diagrams and PWB’s SACD 1000 GB 90 Mono board: System clocks 2901 B11 2902 C9 2903 C5 2904 E8 SYSTEM CLOCKS 2905 E4 2906 C12 2907 D12 2908 B12 3900 C10 3901 C10 3902 C10 3903 D6 3904 F2 3906 F5 3907 C12 3908 C12...
  • Page 152 Electrical diagrams and PWB’s SACD 1000 GB 91 Mono board: DAC interface 1000-1 B8 F032 H8 1000-10 D8 F033 H8 1000-11 D8 F034 B5 DAC INTERFACE 1000-12 D8 F035 B5 1000-2 B8 F036 B4 VDD_STI 1000-3 B8 F037 F6 +5Vstby 1000-4 B8 F099 A6 1000-5 C8...
  • Page 153 Electrical diagrams and PWB’s SACD 1000 GB 92 Layout Mono board: (overview top side) PART 1 CL 06532152_85a.eps PART 2 CL 06532152_85b.eps PART 3 CL 06532152_85c.eps CL 06532152_085.eps 141200...
  • Page 154 Electrical diagrams and PWB’s SACD 1000 GB 93 Layout Mono board: (Part 1 top side) CL 06532152_85a.eps 121200...
  • Page 155 Electrical diagrams and PWB’s SACD 1000 GB 94 Layout Mono board: (Part 2 top side) Cl 06532152_85b.eps 121200...
  • Page 156 Electrical diagrams and PWB’s SACD 1000 GB 95 Layout Mono board: (Part 3 top side) CL 06532152_85c.eps 121200...
  • Page 157 Electrical diagrams and PWB’s SACD 1000 GB 96 Layout Mono board: (overview bottom side) PART 1 CL 06532152_86a.eps PART2 CL 06532152_86b.eps PART3 CL 06532152_86c.eps CL 06532152_086.eps 141200...
  • Page 158 Electrical diagrams and PWB’s SACD 1000 GB 97 Layout Mono board: (Part 1 bottom side) CL 06532152_86a.eps 121200...
  • Page 159 Electrical diagrams and PWB’s SACD 1000 GB 98 Layout Mono board: (Part 2 bottom side) CL 06532152_86b.eps 121200...
  • Page 160 Electrical diagrams and PWB’s SACD 1000 GB 99 Layout Mono board: (Part 3 bottom side) CL 06532152_86c.eps 121200...
  • Page 161 Electrical diagrams and PWB’s SACD 1000 GB 100 Layout Mono board: (overview testpoints) PART 1 CL 06532152_87a.eps PART 2 CL 06532152_87b.eps CL 06532152_087.eps 141200...
  • Page 162 Electrical diagrams and PWB’s SACD 1000 GB 101 Layout Mono board: (Part 1 Test points) PART 1 +12VSTBY -8VSTBY +5VSTBY +6VSTBY STB_CONT MOTO 1 STB-OUT SINPH COSPH G_VID STBY R_VID CVBS FOC- MACE CLK STOPCLK RAD+ RAD- B_WCLK FOC+ B_V4 B_BCLK CENTER_ON B_SYNC...
  • Page 163 Electrical diagrams and PWB’s SACD 1000 GB 102 Layout Mono board: (Part 2 Test points) PART 2 27M_CLK ST_CLK DSD_PCM8 PWR_FAIL DSD_PCM6 DSD_PCM7 DSD_PCM0 DSD_PCM1 DSD_PCM4 DSD_PCM5 DSD_PCM2 DSD_PCM3 SACD_CLK 384Fs_IN I2C_DAC +3V3 CL 06532152_087b.eps 141200...

This manual is also suitable for:

Sacd 1000/171Sacd 1000/691

Comments to this Manuals

Symbols: 0
Latest comments:
