1. Introduction

The DSP-100 is a dual channel RS-232 asynchronous serial adapter for systems

equipped with PCMCIA Type II and/or Type III expansion sockets. The DSP-100 is a

PCMCIA Type II (5 mm) card and is PCMCIA PC Card Standard Specification 2.1

compliant.

The DSP-100's serial port is implemented using two 16C750 Universal Asynchronous

Receiver/Transmitters (UARTs), which are the recommended communications interface for

multitasking environments and with applications involving high data transfer rates.

PCMCIA Card

Cable Assembly

Standard D-9 Male (2)

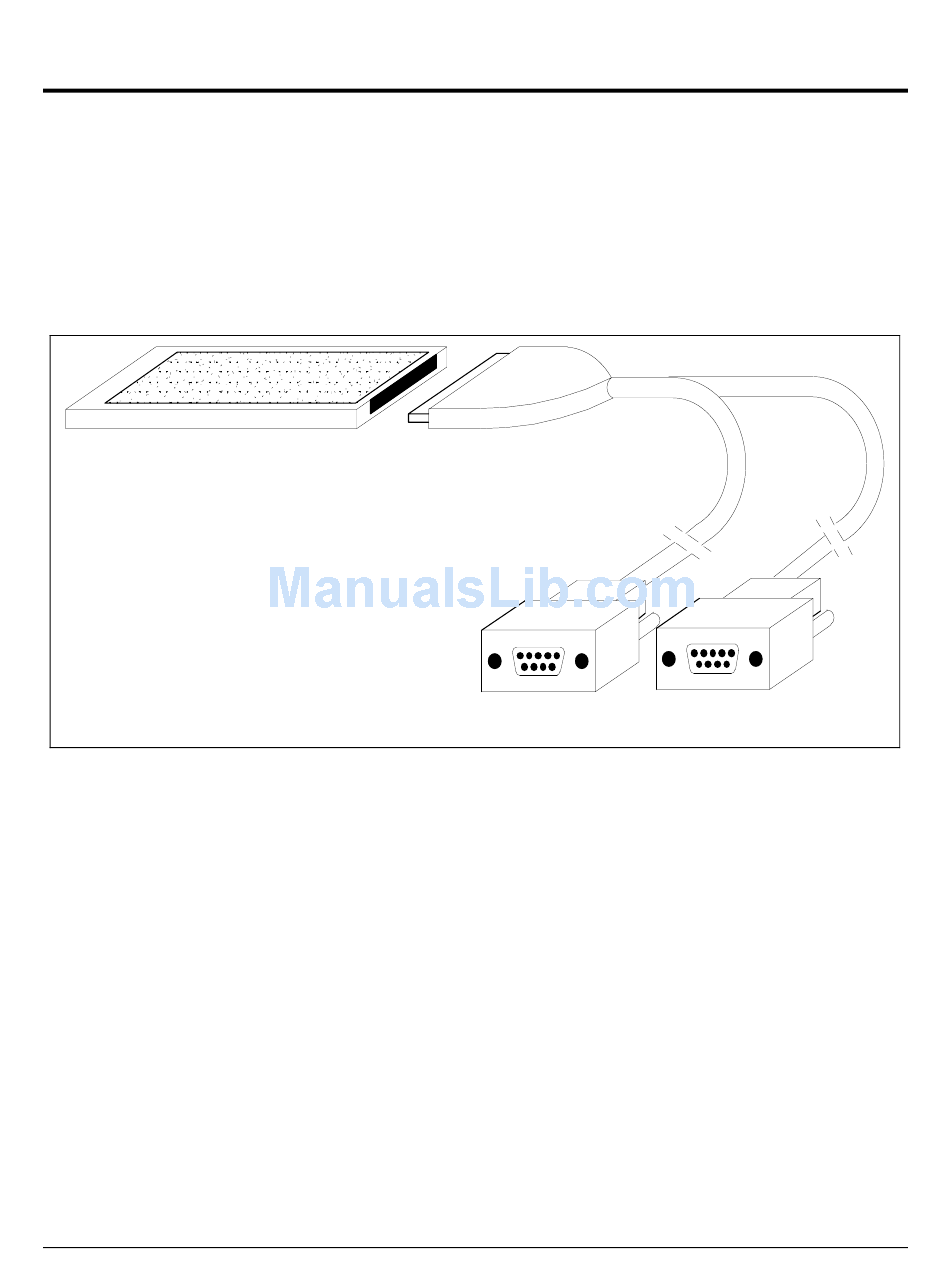

Figure 1. DSP-100 Card and Cable Assembly
