Initializing the generator

802R-PCI Video Test Generator User Guide (Rev A)
Initializing the generator restores it to factory settings, and erases all user-created objects.
To initialize generator:
1. Start VGM.
Connecting VGM with the generator is not necessary.
2. Select Generator > Special > Forced Init.

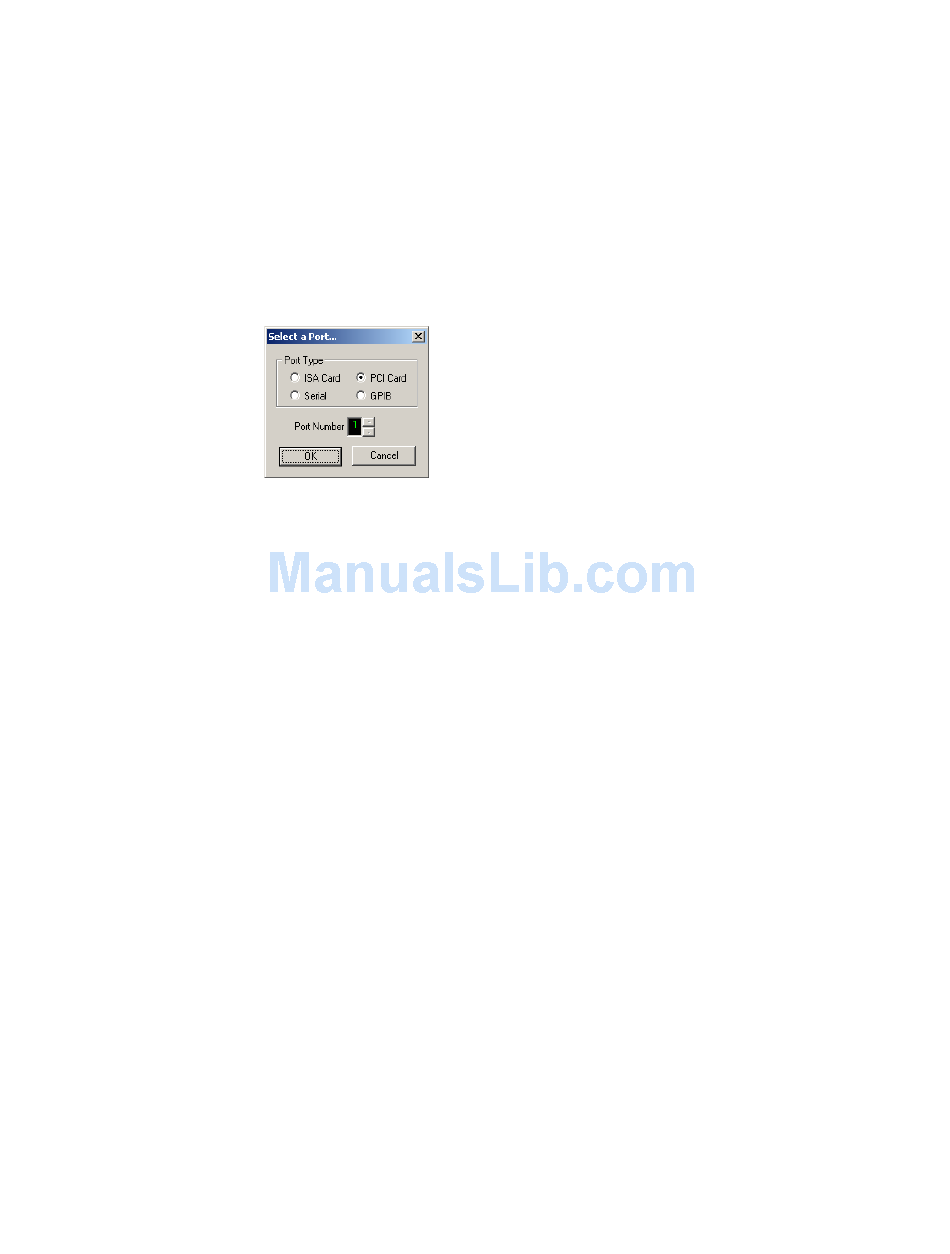

3. Choose the PCI Card option, specify the port used by the generator you want to
initialize, and then click OK.
4. Confirm that you want to initialize the generator, and delete any user-defined objects
from the generator.
5. Wait for one minute while the generator initializes and calibrates itself before
connecting the generator with VGM.
11
