AXIS Q7406 Installation Guide

Install the Hardware

The AXIS Q7406 is designed to be installed into the following video encoder racks.
• AXIS 291 1U Video Server Rack
• AXIS Q7900 Rack

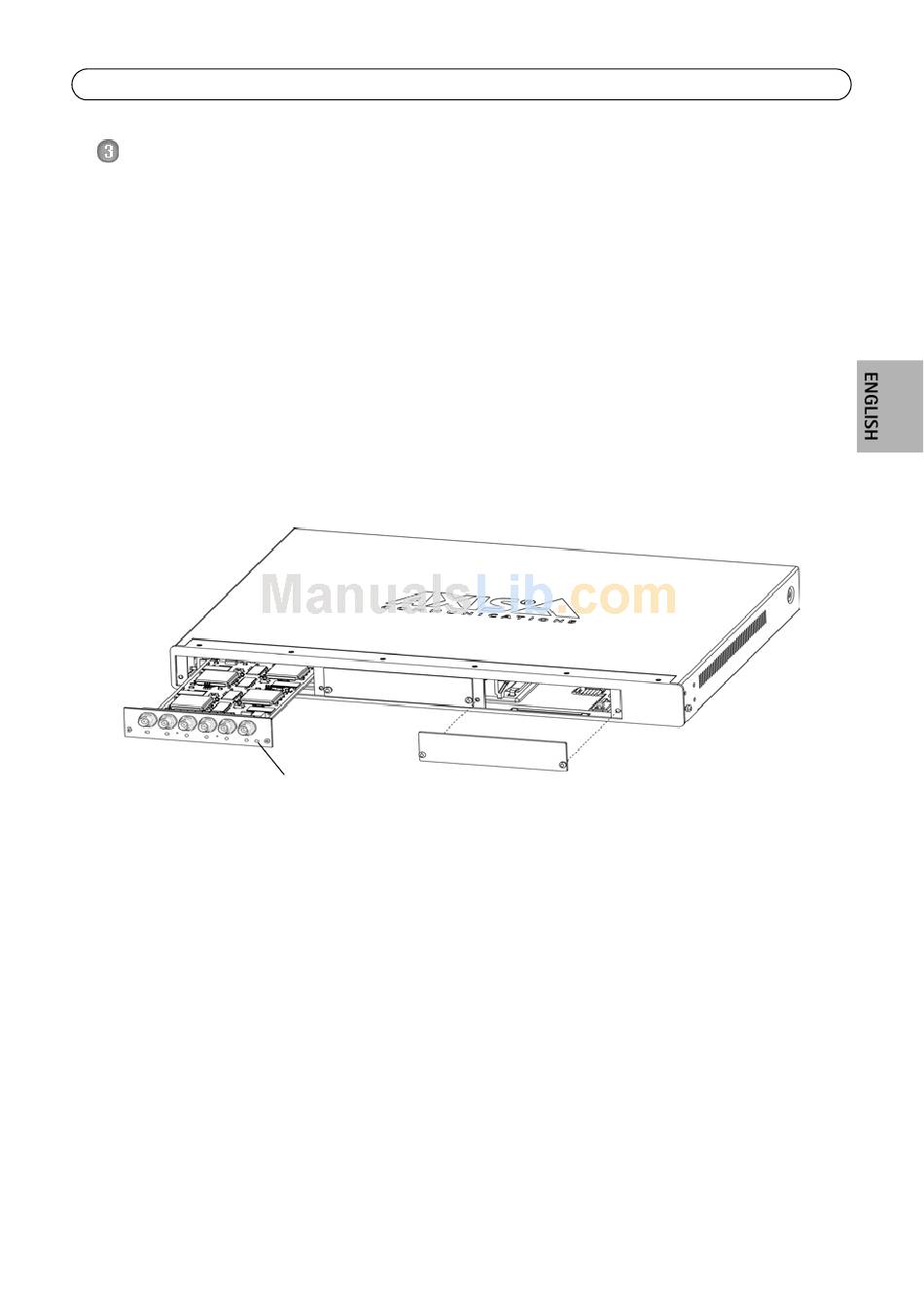

Mounting the AXIS Q7406 into the AXIS 291 1U Video Server Rack
The AXIS 291 1U can accommodate 3 Axis blade video encoders. The slots for these are numbered
1-3 from left to right, as seen from the front. The I/O connectors for each slot on the rear panel are
also numbered.
1. Remove a front panel cover from the slot in which the video encoder will be mounted. This is
done by unfastening the screw on each side of the cover.
2. Slide the video encoder into place, using the guides as an aid. The dip switch for setting the line
termination is visible on the bottom edge.
3. Fix the video encoder in place, using the screws from the front panel cover.
Power LED
Notes:
• Do not leave empty slots on the AXIS 291 1U open, front panel covers must be used on all empty slots.
See the table Pin assignments for the I/O Connector of the AXIS 291 1U Video Server Rack, on page
14. For more information about the AXIS 291 1U see the installation guide for the AXIS 291 1U
Video Server Rack.
Page 5
