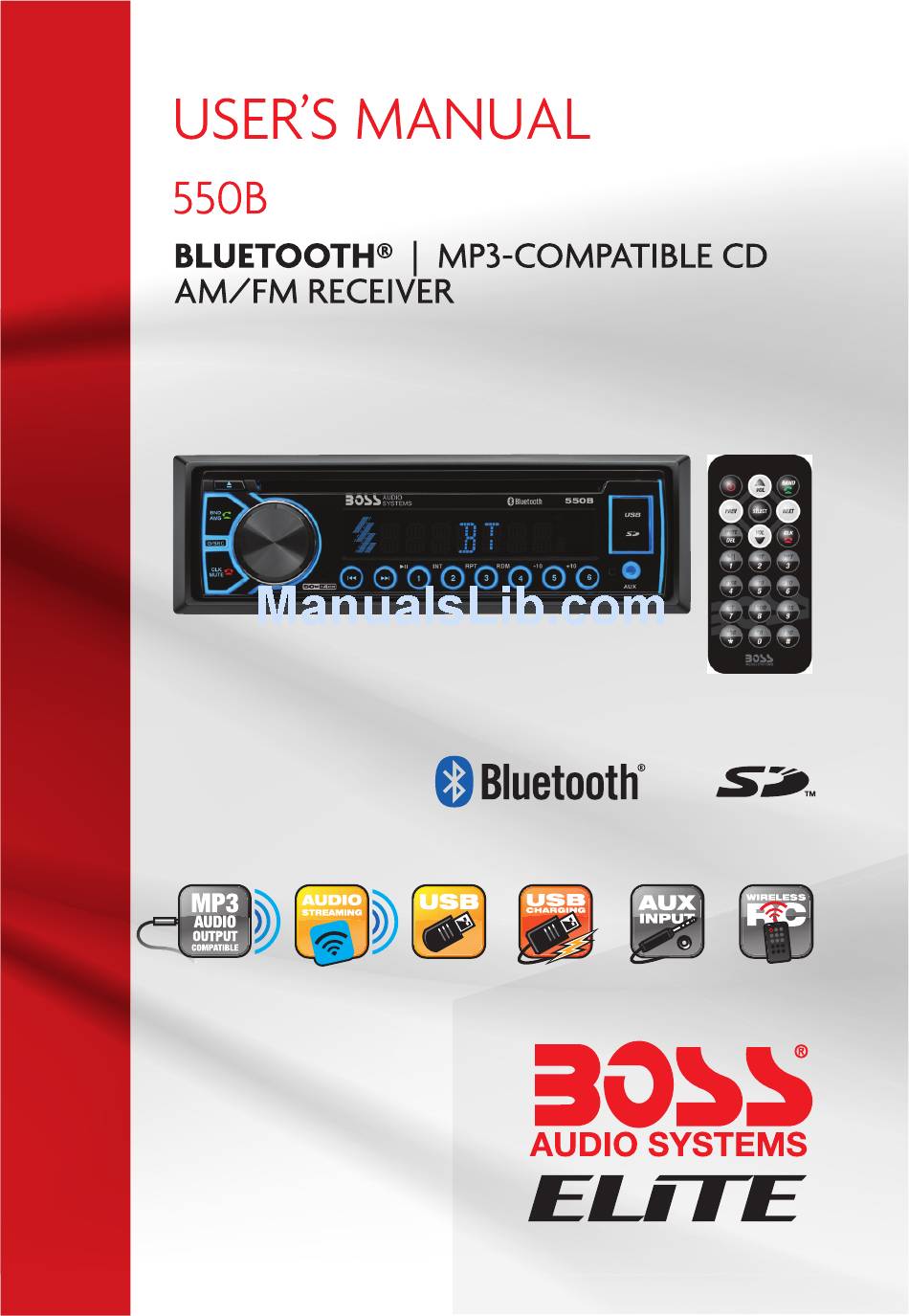

Boss Audio Systems 550B User Manual

Mp3-compatible cd am/fm receiver
Hide thumbs Also See for 550B:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Boss Audio Systems 550B

Summary of Contents for Boss Audio Systems 550B

  • Page 2: Table Of Contents

    CONTENTS Precautions..............................1 How to Handle Discs..........................1 Lithium Battery Cell Warnings........................ 1 Installation ..............................2 Prepare Radio............................2 Mount Radio............................2-3 Wiring Connections..........................3 Removal of the Main Unit ........................3 Control Panel Button Locations ........................4 General Operation ............................5 Turn Unit On/Off.............................

  • Page 3: Precautions

    PRECAUTIONS How to Handle Discs Handle a disc by its edges. Do not touch the playing side. Before inserting a disc, wipe the disc outward from the disc center with a clean, soft, dry and lint-free cloth. Do not use solvents or thinners such a petrol/benzene or cleaners.

  • Page 4: Installation

    INSTALLATION Prepare Radio Before you begin, disconnect the battery negative terminal. Remove the transport screws. Remove chassis from the mounting sleeve. BRACKET KEY PLASTIC TRIM OUT BRACKET KEY If you want to remove the chassis from the mounting sleeve, remove the plastic trim out from both sides.

  • Page 5: Wiring Connections

    INSTALLATION (CONT.) INSTALLATION DIAGRAM DASH BOARD HEX NUT METAL MOUNTING STRAP SPRING WASHER CONSOLE PLAIN WASHER TAPPING SCREW MOUNTING SLEEVE HEX BOLT - Only use speakers with 4 ohm impedance. - The maximum current of the Amp Remote trigger is 200mA. Wiring Connections WIRING DIAGRAM White:Front Left PRE-AMP Output...

  • Page 6: Control Panel Button Locations

    CONTROL PANEL BUTTON LOCATIONS (power) / SRC (source) button SEL (select/menu) button and VOL (volume) knob BAND/AMS(automatic store station, automatic music search) (answer call) button (pause/play), Preset station 1 button INT (intro), Preset station 2 button RPT (repeat), Preset station 3 button RDM (random), Preset station 4 button -10(previous 10 tracks), previous folder, Preset station 5 button 9.

  • Page 7: General Operation

    GENERAL OPERATION Turn Unit On/Off Press the power ( ) /SRC button to turn on the unit. Press and hold it to turn off the unit. Press the power ( ) button on the remote control to turn the unit on or off. Adjust Volume (VOL) Rotate the VOL knob on the front panel or press the VOL+/- button on the remote control to increase or decrease the volume level.

  • Page 8: Radio Operation

    RADIO OPERATION Switch Between US and EU Frequency In radio mode, press and hold the VOL button to select the AREA EU/US, then rotate it to switch between US (USA) and EU (Europe) frequency. The system will change the frequency setting in about 3 seconds.

  • Page 9: Disc/Usb/Card Operation

    DISC/USB/CARD OPERATION Insert Disc/USB/SD Label Surface Up To play on a disc, insert a disc with the label surface up into the disc slot. Playback will begin automatically. To play on a USB/SD device, open the USB port cover and insert the USB/SD storage device into the USB/SD port.

  • Page 10: Track Search

    DISC/USB/CARD OPERATION Track Search During CD, USB or SD playback, press and hold the AMS button to enter the track search modes: a) In playback of CD or files with MP3 format, press and hold the button once to access the track or file number searching mode which allow you to quickly find a specific track or MP3 file by its serial number, and the “TRK SCH”...

  • Page 11: Bluetooth Operation

    To begin pairing, enable BT mode on your mobile phone. 2. When the phone the car audio system, the BOSS 550B name will be displayed. 3. Choose the BOSS 550B from the device list to pair and connect with the car audio system. Upon the BT logo will stop 4.

  • Page 12: Remote Control

    REMOTE CONTROL Remove Insulating Sheet The remote control comes with an insulating sheet attached to the underside of the remote control, as illustrated on the right. The remote control will not work until the insulating sheet is removed. Replace Lithium Battery Cell When the lithium cell battery becomes weak, replace it as illustrated on the right.

  • Page 13: Button Names And Locations

    REMOTE CONTROL (CONT.) Button Names and Locations (Power on/off) button 2. VOL+/VOL-(volume increase/decrease) button 3. Band button, (answer call) button 4. PREV: tune down, seek down; Previous Track, fast reverse 5. SEL(selection) button 6. NEXT: tune up, seek up; Next Track, fast forward 7.

  • Page 14: Troubleshooting

    TROUBLESHOOTING Symptom Cause Solution No Power Car ignition not on Switch ignition key to “ACC” Fuse blown Replace fuse Disc cannot be loaded Another disc is already in the Eject disc and insert new player Disc cannot be read Disc was inserted upside Insert disc with label facing down upward...

  • Page 15: Specifications

    SPECIFICATIONS General Power Supply Requirement................... DC 12V Current Consumption ....................15A MAX Maximum Power Output ...................50W x 4CH Radio USA/Europe............... 87.5 MHz - 107.9 MHz/87.5 - 108.0 MHz Usable Sensitivity ......................30 dBu I.F. Frequency......................10.7 MHz USA/Europe..............530 KHz - 1710 KHz/522 - 1620 KHz Usable Sensitivity ......................20 dBu I.F.
