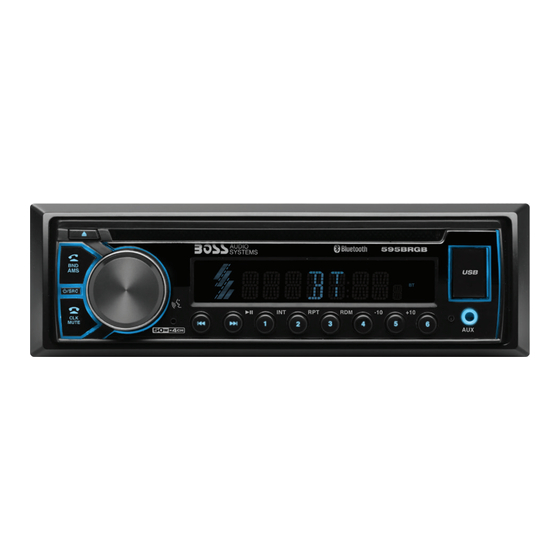

Summary of Contents for Boss Audio Systems ELITE 595BRGB
-
Page 2: Table Of Contents
CONTENTS Precautions........................1 How to Handle Discs....................1 Lithium Battery Cell Warnings..................1 Caution........................1 Warnings........................1 Installation......................... 2-3 Prepare Installation....................2 To Mount the Car Radio....................2 Wiring Connections....................... 3 Removal of the Main Unit....................3 Control Panel Button Locations..................4 General Operation...................... 5-6 Turn Unit On/Off......................5 Adjust Volume (VOL)....................5 Push-To-Talk......................5 Adjust Menu Options (SEL)..................5-6... -
Page 3: Precautions
PRECAUTIONS How to Handle Discs • Handle a disc by its edges. Do not touch the playing side. • Before inserting a disc, wipe the disc outward from the disc center with a clean, soft, dry and lint-free cloth. Do not use solvents or thinners such a petrol/benzene or cleaners. -
Page 4: Installation
INSTALLATION Prepare Installation 1. First complete the electrical connections and then check for correctness of connection. 2. Disconnect the battery negative terminal of vehicle before beginning installation. Installation Opening 2.05 inches This unit can be installed in any dashboard which has an opening size as shown the right figure. -
Page 5: Wiring Connections
INSTALLATION (CONT.) INSTALLATION DIAGRAM DASH BOARD HEX NUT METAL MOUNTING STRAP SPRING WASHER CONSOLE PLAIN WASHER TAPPING SCREW MOUNTING SLEEVE HEX BOLT Wiring Connections 3.5mm SWC Input AUX-L AUX-R 1. AUX-L: AUX Input - Left CH (White) 2. AUX-R: AUX Input - Right CH (Red) ACC + (Red) 3. -
Page 6: Control Panel Button Locations
CONTROL PANEL BUTTON LOCATIONS (power) / SRC (source) button Volume knob, (Push-To-Talk) button, menu selection button BND/AMS (automatic store station, automatic music search) (answer call) button (pause/play), Preset station 1 button INT (intro), Preset station 2 button RPT (repeat), Preset station 3 button RDM (random), Preset station 4 button -10 (previous 10 tracks), previous folder, Preset station 5 button 9. -
Page 7: General Operation
GENERAL OPERATION Turn Unit On/Off • To turn on the unit, press the power button ( ) on the front panel (or on the remote control). • To turn off the unit, press and hold the power button ( ) on the front panel or briefly press the power button ( ) on the remote control. -
Page 8: Set The Clock (Clk)
GENERAL OPERATION Set the Clock (CLK) To display clock time, press and hold the CLK button on the front panel or short press the CLK button on the remote control. 1. To set clock time, press and hold the CLK button and the hour will flash. 2. -
Page 9: Radio Operation
RADIO OPERATION Switch Between USA area and Europe area Frequency In radio mode, press and hold the volume knob to enter setting menu, then press the volume knob repeatedly to access the state of the USA and Europe frequency, then rotate the volume knob to switch between USA and Europe frequency. -
Page 10: Disc/Usb Operation
DISC/USB OPERATION To insert DISC / USB • To play files on a disc, insert a disc with the label surface facing upward into the disc slot. Playback will begin automatically. Label Surface Up • To play files in a USB device, open the USB port cover, then insert a USB device into the USB port. Playback will begin automatically. -
Page 11: Select The Track Or File For Playback In Mp3 Format
DISC/USB OPERATION Select the track or file for playback in MP3 format a) During CD or USB playback, press and hold the BND/AMS button to enter track search mode. b) Rotate the volume knob to select the number of your favorite track with high speed. You can also press the numerical keys on the remote control to select a specific track by its serial number. -
Page 12: Switch Audio Between Car Audio And Moble Phone
BLUETOOTH OPERATION Switch Audio Between Car Audio and mobile Phone During a call, press the VOL knob/button to switch the audio source from the car audio system back to your mobile phone. To Make a Call With This Bluetooth Handsfree System: a) When linking up the Bluetooth-enabled mobile phone to this bluetooth handsfree system, press the button to access the dial telephone number mode, then press the “0~9”, * and # button on remote control to input the telephone number, and the entered number will be shown on the LCD display. -
Page 13: Remote Control
REMOTE CONTROL Remove Insulating Sheet The remote control comes with an insulating sheet attached to the underside of the remote control, as illustrated on the right. The remote control will not work until the insulating sheet is removed. Replace Lithium Battery Cell 1. -
Page 14: Troubleshooting
TROUBLESHOOTING The following chart will help in solving most problems that may occur. If you still have questions after going through the checklist, please consult your local customer service representative. Before going through this check list, refer the wiring and operating procedures. -
Page 15: Specifications
SPECIFICATIONS General Chassis Dimensions............7.0(W) x 6.3(D) x 2.0(H) inches Power Supply Requirement ...................DC 12V Current Consumption ..................10A (max.) Maximum Power Output ...................50W x 4CH Radio USA/ Europe Frequency Range........87.5 - 107.9 MHz (200KHz/Step) 87.5 - 108.0 MHz (50KHz/Step) Usable Sensitivity ....................30 dBu I.F.
