AMERICAN CHANGER & HOFFMAN MINT
AC6007 Flex System Installation Guide (Tran Unit)

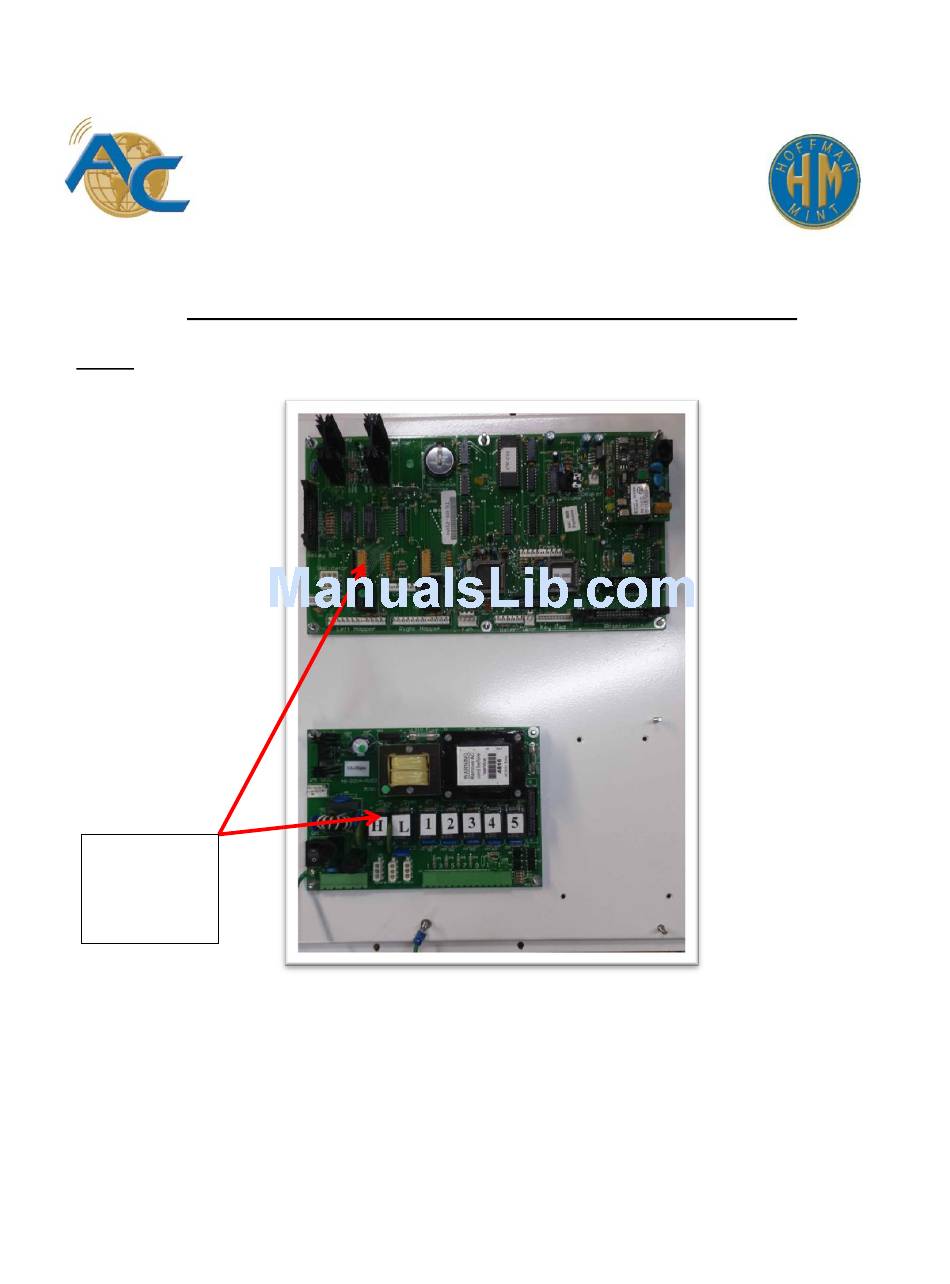

Step 1: Remove main board, relay board, and power supply.
Main Board
and Relay
Board
We Are Changing the Industry℠
th
1400 N. W. 65
Place, Fort Lauderdale, Florida 33309
T: (+1) 954-917-3009 F: (+1) 954-917-3079
www.americanchanger.com www.hoffmanmint.com
Figure 1
1
Advertisement
Related Manuals for American Changer AC6007
Summary of Contents for American Changer AC6007
- Page 1 We Are Changing the Industry℠ 1400 N. W. 65 Place, Fort Lauderdale, Florida 33309 T: (+1) 954-917-3009 F: (+1) 954-917-3079 www.americanchanger.com www.hoffmanmint.com AC6007 Flex System Installation Guide (Tran Unit) Step 1: Remove main board, relay board, and power supply. Main Board and Relay Board...
- Page 2 Step 2: Remove all harnesses inside of the cabinet except for the validator harness, hopper harnesses, and printer harnesses. Step3: Take the new plate with the new board, power supply and Iris Unit on it and mount it in the same location as the old mount that was removed in the first step.
- Page 3 Step 5: Remove the three nuts that are holding the display in place. See Figure 3. Washers and screw on stand-offs were supplied with the kit. Add a washer and a screw on stand-off to the studs that previously had nuts. See Figure 4. View from Display with inside of...
- Page 4 Step 6: Attach the I/O Board to the back of the display by inserting the connector on the I/O Board into the matching connector on the display. Use supplied screws to secure the I/O Board to the stand-offs. See Figures 5 & 6. Figure5 I/O Board I/O Board...
- Page 5 Step 7: Connect your marquee in to “#1” on the power board. Harness to the main board Marquee Figure 7...
- Page 6 Step 8: Place the Tran Unit flat on the floor of the cabinet. Connect the beige color communication cable, Ethernet cable/phone line, and then connect the power adaptor. IP Tran Connections Ethernet cable Communication Power Cable Dial Tran Connections Communication Phone Line Power Cable...
- Page 7 Installing the External Keypad The following steps are used to install the external keypad that came with the kit. This keypad is used to navigate the programming menu as well as input values while in the programming menu. The external keypad can also be used to input a zip code if zip code verification is enabled Step 9: It is recommended to mount the keypad near the display.
- Page 8 Step 10: Before drilling your holes remove the hoppers from the machine. Using titanium bits drill the holes in the door. Step 11: Secure the keypad to the door using the supplied screws and nuts. Step 12: Connect the harness from the I/O Board to the keypad. Connect as shown in the below picture.
- Page 9 Step 13: Use the below picture to help with connecting the components to the main board. Board Printe Iris Figure 11...
- Page 10 Additional steps for connecting optional adaptor boards This section details how to connect adaptor boards to the main board. Adaptor boards are not shipped with all orders. These boards will already have the necessary harnesses attached to them. All that will be needed is to connect the component to the adaptor board.
- Page 11 Step 16: Connect the validator harness to the adaptor board. Then connect the harness that is already attached to the adaptor board to the main board. Connect the validator harness here. Harness to main board connects here. Figure 14...
