AMERICAN CHANGER & HOFFMAN MINT
`
www.americanchanger.com
Toll Free: 800-741-9840

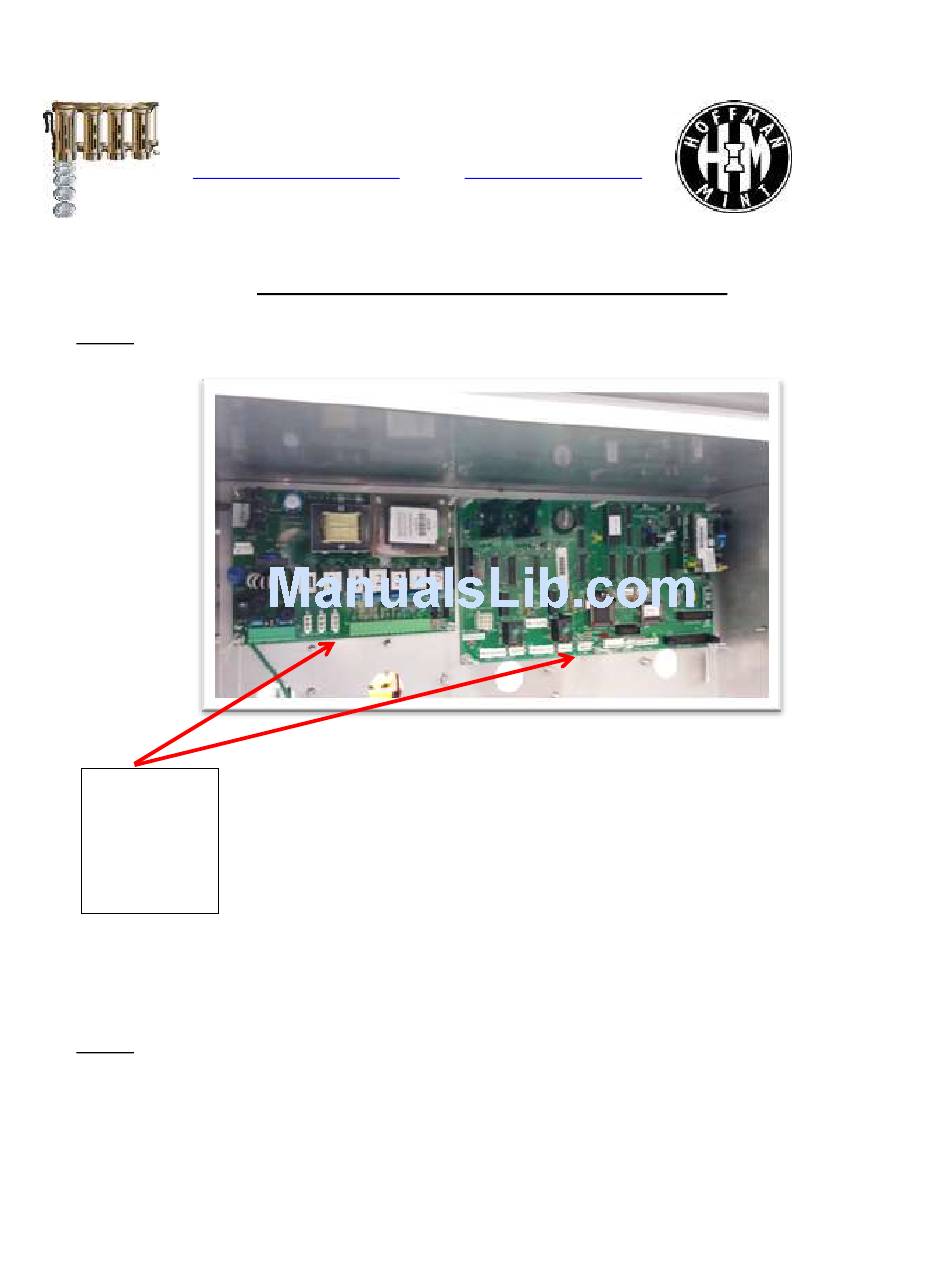

Step 1: Remove main board, relay board, and power supply.
Relay Board
and Main
Board
respectively
Step 2: Remove all harnesses inside of the cabinet except for the validator harness, hopper
harnesses, and printer harnesses.
"We're Changing The Industry"
th
1400 N.W. 65
Place Fort Lauderdale, Florida 33309
Tel: 954-917-3009 Fax: 954-917-3079
AC2007 Flex System Installation Guide
www.hoffmanmint.com
Toll Free: 800-227-5813
Figure 1
1
Advertisement
Related Manuals for American Changer AC2007
Summary of Contents for American Changer AC2007
- Page 1 Place Fort Lauderdale, Florida 33309 Tel: 954-917-3009 Fax: 954-917-3079 www.americanchanger.com www.hoffmanmint.com Toll Free: 800-741-9840 Toll Free: 800-227-5813 AC2007 Flex System Installation Guide Step 1: Remove main board, relay board, and power supply. Figure 1 Relay Board and Main Board...
- Page 2 Step3: Before mounting the plate with the board and power supply four studs need to be removed. They can be removed from the cabinet or broken off. The studs are circled in the picture below. The picture is a view looking at the right wall of the cabinet from the rear of the machine. Figure 2 Step 4: On the wall the studs were removed from mount the plate with the board and power supply.
- Page 3 Step 5: Remove the three nuts that are holding the display in place. See Figure 4. Washers and screw on stand-offs were supplied with the kit. Add a washer and a screw on stand-off to the studs that previously had nuts. See Figure 5 View from Display with inside of...
- Page 4 Step 6: Attach the I/O Board to the back of the display by inserting the connector on the I/O Board into the matching connector on the display. Use supplied screws to secure the I/O Board to the stand-offs. See Figures 6 & 7. Figure 6 I/O Board I/O Board...
- Page 5 Step 7: Connect your heater in to “#2” on the power board. Harness to the main board Heater Figure 8...
- Page 6 Step 8: If you will be connecting your machine to your local network please proceed to the next step. Drill a hole in the top of the cabinet to mount the antenna using a 5/8th inch steel hole saw. Mount the antenna and run the harness through the hole into the machine.
- Page 7 Step 9: Connect the antenna or Ethernet cable to the Iris device. Front of Iris device. Connect Ethernet cable here Rear of Iris device. Connect antenna cable here Figure 10...
- Page 8 Step 10: Use the below picture to help with connecting the components to the main board. Board Printe Tran Unit Figure 10...
- Page 9 Additional steps for connecting optional adaptor boards This section details how to connect adaptor boards to the main board. Adaptor boards are not shipped with all orders. These boards will already have the necessary harnesses attached to them. All that will be needed is to connect the component to the adaptor board.
- Page 10 The external keypad can also be used to input a zip code if zip code verification is enabled. American Changer recommends having a professional drill the holes in the stainless steel face plate.
- Page 11 Step 2: Before drilling your holes remove the hoppers from the machine. Using titanium bits drill the holes in the face plate. You will need to continue through the plate and then through the steel cabinet. Step 3: Secure the keypad to the faceplate using the supplied screws and nuts. Step 4: Connect the harness from the I/O Board to the keypad.
