AGP DP100 Instruction Manual

Drum-type polisher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

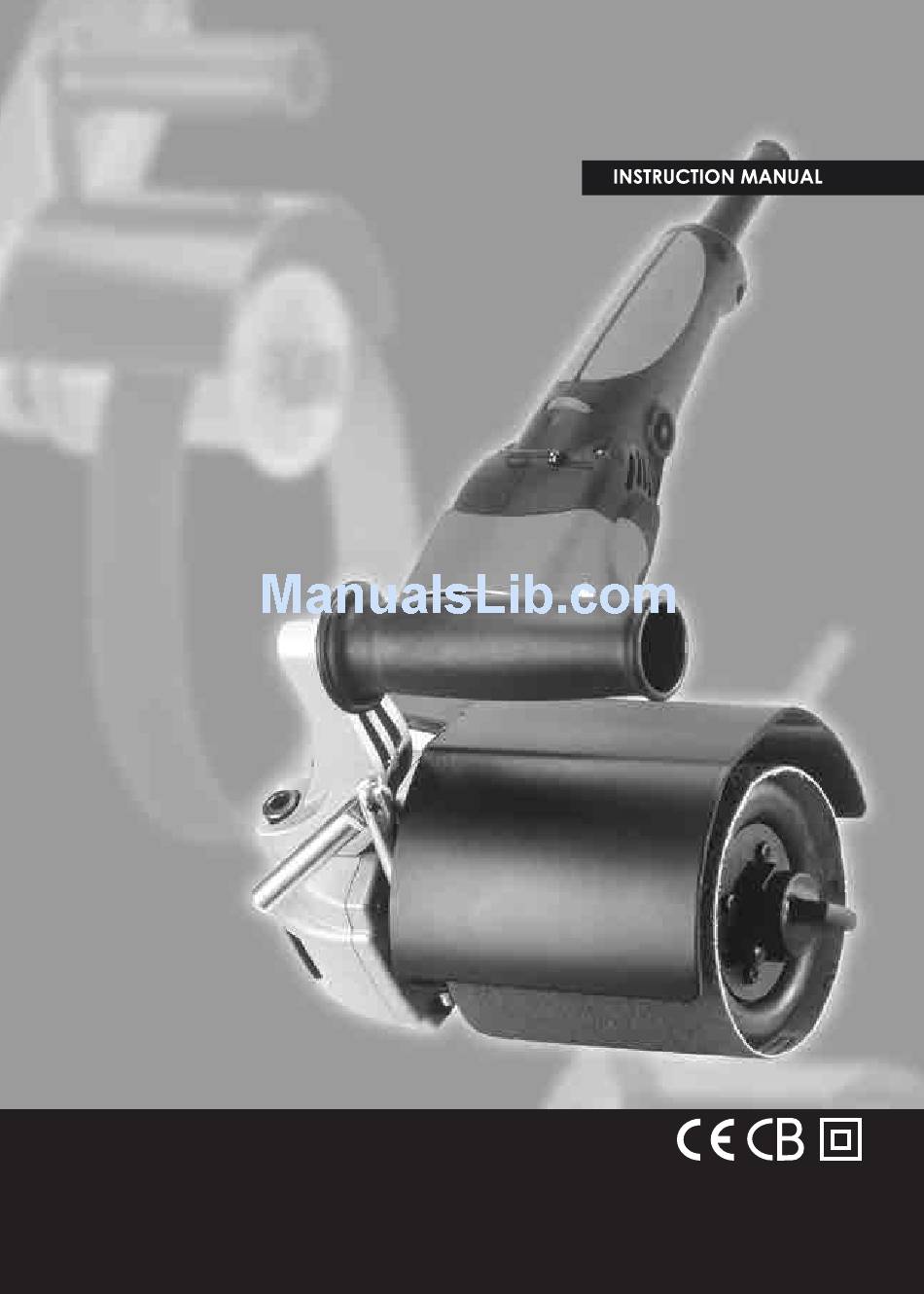

Drum-Type Polisher
Drum-Type Polisher
Original instructions
For your personal safety,
READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
CAUTION:
For tools equipped with overload protection, when the motor shuts
off due to overload, always run the machine with no load for at least 3
minutes to reduce temperature before returning to operation to avoid
burn-out of the motor.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP100 and is the answer not in the manual?

Questions and answers

Related Manuals for AGP DP100

Summary of Contents for AGP DP100

  • Page 1 Drum-Type Polisher Drum-Type Polisher Original instructions For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. CAUTION: For tools equipped with overload protection, when the motor shuts off due to overload, always run the machine with no load for at least 3 minutes to reduce temperature before returning to operation to avoid burn-out of the motor.
  • Page 2 Voltage See machine nameplate Power input 1200 W (with feedback speed stabilization) No load min 1500-2800 Arbor 19mm double keyed x 100mm long Maximum wheel diameter 100mm Net weight 3.5kg(7.71Lbs) INFLATABLE SANDING DRUM (drum optional) Lock Button Main handle Thumbwheel Motor Trigger Switch Guard clamp lever...

  • Page 3: General Safety Instructions

    FINISHING / FLAP WHEELS BELT SANDING DRIVE PULLEY Drive pulley (optional) Hook & loop closing strap (optional) Sanding belt (optional) Flap wheel (optional) GENERAL SAFETY INSTRUCTIONS Never modify the plug in any way. Do not u s e a ny a d a p t e r p l u g s w i t h e a r t h e d WARNING! Read all safety warnings and (grounded) power tools.

  • Page 4: Personal Safety

    3) PERSONAL SAFETY Do not use the power tool if the switch does not turn it on and off. Any power tool that a) Stay alert, watch what you are doing and cannot be controlled with the switch is use common sense when operating a dangerous and must be repaired.

  • Page 5: Specific Safety Rules

    Symbols used in this manual SPECIFIC SAFETY RULES Some dust created by power sanding, sawing, V……..volts grinding, drilling, and other construction activities A……..amperes contains chemicals known to cause cancer, birth Hz……..hertz defec ts or other reproduc tive harm. Some W……..watt examples of these chemicals are: ~………..alternating current •...
  • Page 6 respiratory protection appropriate for the tool, it does not assure safe operation. dust exposure, and wash exposed areas with The rated speed of the accessory must be soap and water. at least equal to the maximum speed marked on the power tool. Accessories TERMINOLOGY running faster than their rated speed can DANGER: indicates an imminently hazardous...

  • Page 7: Kickback And Related Warnings

    workpiece fragments. The eye protection KICKBACK AND RELATED WARNINGS must be capable of stopping flying debris generated by various operations . The dust Kickback is a sudden reaction to a pinched or mask or respirator must be capable of snagged rotating wheel, backing pad, brush or any filtrating par ticles generated by your other accessory.

  • Page 8: Safety Warnings Specific For Sanding Operations

    are of correct size and shape for your direction opposite to the wheel’s movement at the point of snagging. selec ted wheel. Proper wheel flanges Use special care when working corners, s u p p o r t t h e w h e e l t h u s re d u c i n g t h e sharp edges etc.
  • Page 9 MOTOR DRIVE PULLEY FOR BELTS Always check the nameplate to ensure the A.C. Hook and loop belt backing straps current supply is the correct voltage for your Hook and Loop Surface Conditioning belt machine. Hook and Loop 120 grit Sandpaper belt This tool will operate on voltage within plus or Hook and Loop Sanding Sponge Belt-Fine minus 5 percent of that shown on the specification...
  • Page 10 INFLATABLE SANDING DRUM (Optional) Place the drum on the arbor in line with the slot and tighten the hand knob. Ensuring that the drum is uninflated, slide the desired type of sleeve in place on the drum. Using the air pump , inflate the drum to the desired pressure. This will hold the sleeve in place. Air pump Sleeve Inflatable sanding drum...

  • Page 11: Maintenance

    anything and is light enough to be moved by TO START AND STOP THE MACHINE the spinning drum, it should be securely clamped or anchored to prevent it being CAUTION: Make sure switch is OFF and power thrown or flung, resulting in possible injury. circuit voltage is the same as that shown on the specification plate.

  • Page 12: Failure To Start

    FAILURE TO START Should your tool fail to start, check to make sure the prongs on the cord plug are making good contact in the outlet. Also, check for blown fuses or open circuit breakers in the line. THE CARBON BRUSHES The carbon brushes are a normal wearing part and NOTE: When putting the Carbon Brushes back must be replaced when they...
  • Page 13 WIRING...

  • Page 14: Exploded View

    EXPLODED VIEW...

  • Page 15: Parts List

    PARTS LIST Parts Name Q'TY Parts Name Q'TY POWER SUPPLY CABLE SCREW M4 x 16 CORD ARMOR EXTERNAL CIRCLIP S-15 CABLE CLIP BALL BEARING 6002LLU SCREW M4 x 14 PARALLEL KEY 5 x 5 x 10 WIRE LEAD SPINDLE SWITCH INTERNAL CIRCLIP R-32 SCREW M4 x 25 LONG ARBOR...
