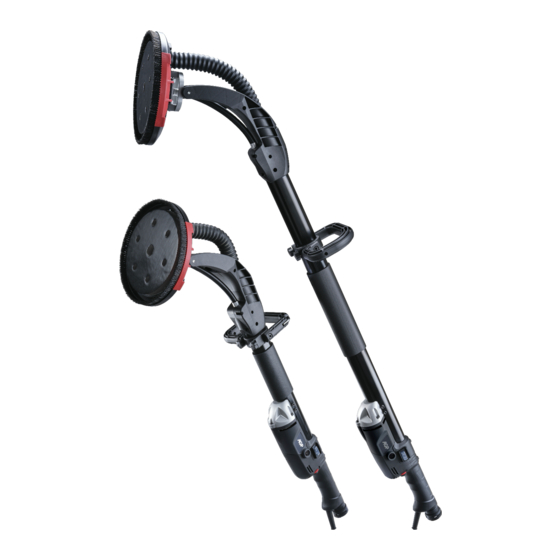

Drywall power sander 1540mm - long-reach type; 1090mm - compact type
Hide thumbs Also See for GS9FSE:

Advertisement

Quick Links

Original instructions
For your personal safety,READ and
UNDERSTAND before using.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
Warning:
Only tools equipped with over load
protection, when motor has been cut
off due to over load, always switch on
machine with no load for at least 3
minutes to reduce temperature before
switch on again to avoid burn out to the
motor.
Version:20150701

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS9FSE and is the answer not in the manual?

Questions and answers

Summary of Contents for AGP GS9FSE

  • Page 1 Original instructions For your personal safety,READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Warning: Only tools equipped with over load protection, when motor has been cut off due to over load, always switch on machine with no load for at least 3 minutes to reduce temperature before switch on again to avoid burn out to the motor.
  • Page 2 Sanding Head Hose D-Handle(Optional) Sponge Brush Cap On/Off Switch Soft Grip Vacuum Swivel Mount Speed Adjustor Thumb Wheel Hose Protection Device (Optional) Model 1540mm (Long-Reach type) 1090mm (Compact type) See machine nameplate Voltage No load min 650 -1600 650 -1600 Full load min 280 - 950 280 - 950...
  • Page 3: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS will increase the risk of electric shock. Do not abuse the cord. Never use the WARNING! Read all safety warnings and cord for carrying, pulling or unplugging all instructions. Failure to follow the the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
  • Page 4 Store idle power tools out of the reach that have the switch on invites accidents. Remove any adjusting key or wrench of children and do not allow persons before turning the power tool on. A unfamiliar with the power tool or these instructions to operate the power tool.
  • Page 5: Symbols Used In This Manual

    Symbols used in this manual toxic and should not be attempted. Only allow professionals with special training and V……..volts equipment perform this task. A……..amperes Maintain proper footing and balance at all Hz……..hertz t i m e s . D o n o t o v e r r e a c h . U s e p r o p e r W……..watt scaffolding ~………..alternating current...
  • Page 6 SAFETY WARNINGS FOR SANDING maximum no-load speed for one minute. OPERATIONS Damaged accessories will normally break apart during this test time. This power tool is intended to function as a Wear personal protec tive equipment. s a n d e r. R e a d a l l s a f e t y w a r n i n g s , Depending on application, use face shield, instructions, illustrations and specifications s a f e t y g o g g l e s o r s a f e t y g l a s s e s .
  • Page 7: Fur Ther Safety Instructions For All Operations

    co r n e r s, s h a r p e d g e s e t c. Avo i d Fur ther safety instructions for all bouncing and snagging the accessory. operations Corners, sharp edges or bouncing have a Kickback and Related Warnings tendency to snag the rotating accessory and cause loss of control or kickback.
  • Page 8: Extension Cable

    Extension cable To replace the Hook and Loop Sponge Pad: If an extension cable is required, it must have a sufficient cross-section so as to prevent an excessive The sponge pad must be perfectly flat to get good drop in voltage or overheating. An excessive drop in sanding results.
  • Page 9: Adjusting The Rotation Speed

    cleaner which is approved and rated for drywall dust. WARNING: Failure to use an approved dust bag in your vacuum will increase the level of airborne dust in the work area. Prolonged exposure to such dust may cause respiratory harm. Finally, carefully work the vacuum hose free then lift sanding plate cover away.
  • Page 10: How To Use The Tool

    thumb, turn in the downward (counterclockwise) The proper hold is to keep one hand on the main direction to increase the speed and in the upward handle and the other hand on the sponge grip on (clockwise) direction to decrease the speed. the column.
  • Page 11: Maintenance

    Never stop too long in any one place or there will be swirl marks. With experience it will be very easy to create excellent results. NOTE: Ensure that the sandpaper you are using is suited to the task. Overly coarse grit paper may remove material too quickly to control.
  • Page 12 WIRING...
  • Page 13: Exploded View

    EXPLODED VIEW OPTIONAL NO.01~85 A1~A4 V1.9...
  • Page 14: Parts List

    PARTS LIST 1540mm (Long-Reach type) Parts Name Q'TY Parts Name Q'TY POWER SUPPLY CABLE SHAFT CONNECTOR CORD ARMOR BALL BEARING 6001-VV VACUUM HOSE ASSEMBLY 4M INTERNAL CIRCLIP S-12 QUICK RELEASE HOSE CONNECTOR SCREW M4 x 20 SCREW M4 x 16 RIGHT FORK ARM RIGHT HANDLE COVER LEFT FORK ARM...
  • Page 15 PARTS LIST 1090mm (Compact type) Parts Name Q'TY Parts Name Q'TY POWER SUPPLY CABLE SHAFT CONNECTOR CORD ARMOR BALL BEARING 6001-VV VACUUM HOSE ASSEMBLY 4M INTERNAL CIRCLIP S-12 QUICK RELEASE HOSE CONNECTOR SCREW M4 x 20 SCREW M4 x 16 RIGHT FORK ARM RIGHT HANDLE COVER LEFT FORK ARM...
