Summary of Contents for AGP HS225

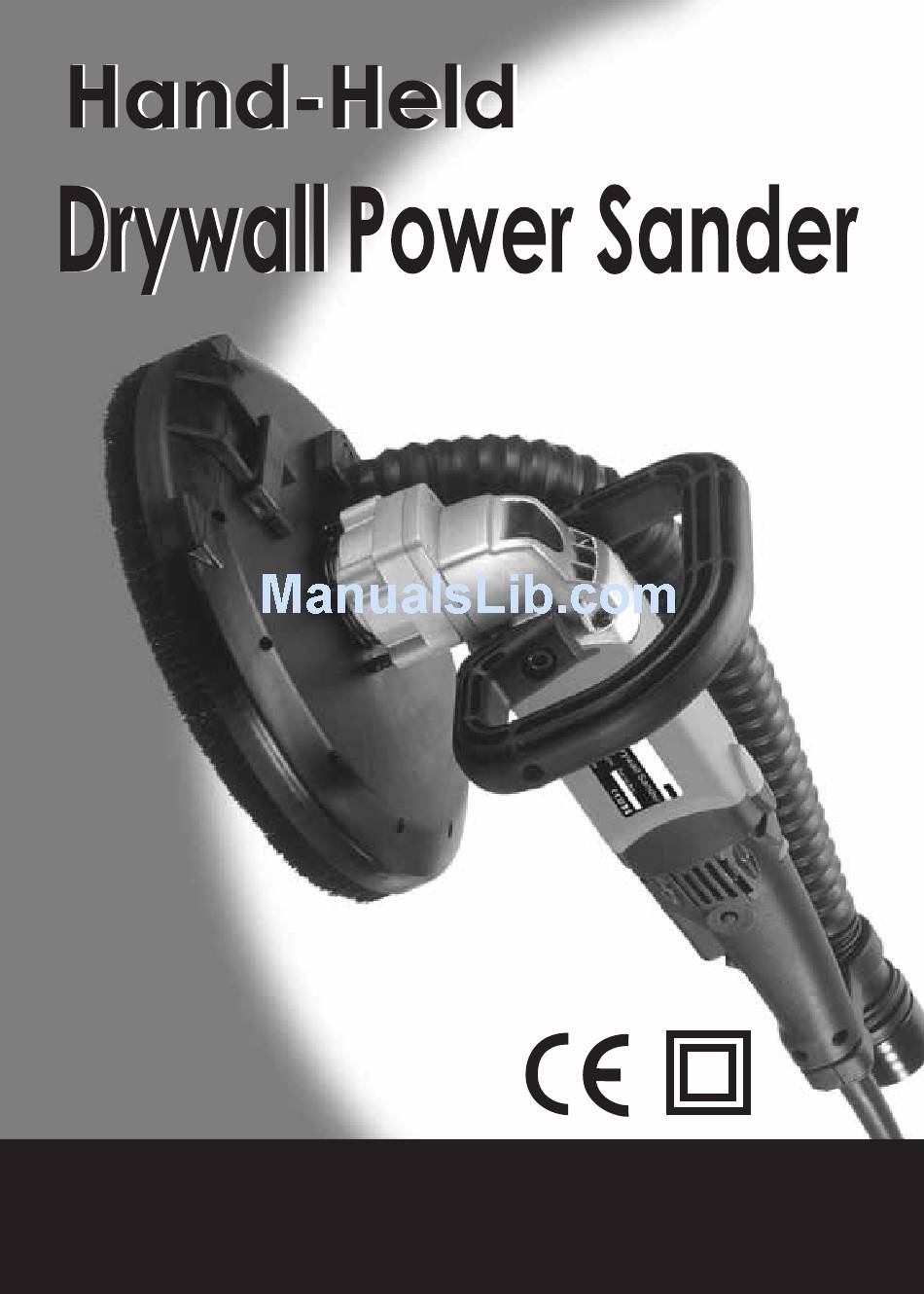

- Page 1 Original instructions For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Version:20121118...
- Page 2 Vacuum Swivel Mount Dust collection hose Bail handle Switch lock Spindle lock Trigger Switch Speed wheel Sanding plate cover Sanding plate & Sponge pad Half-moon door Bayonet Adaptor End (Vacuum cleaner hose not included) Voltage See machine nameplate Power input 1200W No load min 650 ~ 1300...
- Page 3 GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.
- Page 4 conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on.
-
Page 5: Specific Safety Rules
Symbols used in this manual V……..volts A……..amperes Hz……hertz W……..watt ~………alternating current ………no load speed ……..revolutions or reciprocation per minute ………….class II tool SPECIFIC SAFETY RULES Keep hands away from rotating sanding head area at all times! Prolonged breathing of airborne dust from drywall sanding may effect respiratory function: Always use a vacuum cleaner with a bag approved for drywall dust installed. - Page 6 Safety Warnings for Sanding Operations: This power tool is intended to function as a sander. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Operations such as grinding, wire brushing, polishing or cutting-off are not recommended to be performed with this power tool.
- Page 7 16. Do not operate the power tool near flammable materials. Sparks could ignite these materials. 17. Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock. Further safety instructions for all operations Kickback and Related Warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory.
-
Page 8: Functional Description
FUNCTIONAL DESCRIPTION This Electric Drywall Sander is specially designed for the most efficient sanding of drywall or plaster walls and ceilings for both new construction and renovation work. It is designed to work in conjunction with a vacuum cleaner for minimum dust and best sanding results. -
Page 9: Carton Contents
UNPACKING Carefully remove the tool and all loose items from the shipping container. Retain all packing materials until after you have inspected and satisfactorily operated the machine. CARTON CONTENTS 1. Drywall Sanding Machine 2. Bayonet Adaptor End (for vacuum cleaner hose) 3. - Page 10 The Brush Bristles on the edge of the Sanding Plate Cover: The brush bristles on the edge of the Sanding Plate Cover help the efficiency of the dust collection by the vacuum cleaner. These brush bristles will wear with continued use.
- Page 11 To install the vacuum cleaner hose: First remove the standard end from your vacuum cleaner hose (not included) then thread on the Bayonet Adaptor End (provided) to your existing vacuum cleaner hose. Plug the Bayonet Adaptor into the swivel mount in the back of the machine.
-
Page 12: How To Use The Tool
Adjusting the rotation speed: The speed of the machine is variable to suit different Speed Adjustment tasks. It can be adjusted from 650/min up to 1300/ min by using the thumb wheel. Using the right thumb, turn to the right to increase the speed and to the left to decrease the speed. -
Page 13: Sanding Operations
SANDING OPERATIONS Once the machine and vacuum cleaner are set up and all safety measures and equipment are in place, begin by turning on the vacuum cleaner and then the machine. (If you are using a vacuum cleaner with integrated switching, then simply turn the machine on.) Begin sanding and carefully contact the work surface as lightly as possible-just enough to keep the sanding head flat against the surface. - Page 14 The carbon brushes furnished will last approximately 50 hours of running time or 10,000 on/off cycles. Replace both carbon brushes when either has less than 1/4" length of carbon remaining. To inspect or replace brushes, first unplug the machine. Remove the hose clamp, then the right and left handle halves. Remove the 2 screws to remove the electronics unit and carefully hold it off to the side.
- Page 15 WIRING...
-
Page 16: Exploded View
EXPLODED VIEW... -
Page 17: Parts List
PARTS LIST Parts Name Q'TY Parts Name Q'TY POWER SUPPLY CABLE PARALLEL KEY 4 x 4 x 8 CORD ARMOR INPUT GEAR SHAFT 9T CABLE CLIP BALL BEARING 6001 zz SCREW M4 x 14 GEAR PLATE WIRE LEAD 20#9L+5 +110 SCREW M4 x 16 SWITCH BUSHING Ø8 x Ø12 x 6...
