C&T Solution BCO-1000 User Manual

Basic fanless embedded system, bco-1000 series
Hide thumbs Also See for BCO-1000:
Table of Contents

Advertisement

Quick Links

BCO-1000 Series
Basic Fanless Embedded System

Advertisement

Table of Contents
loading

Related Manuals for C&T Solution BCO-1000

Summary of Contents for C&T Solution BCO-1000

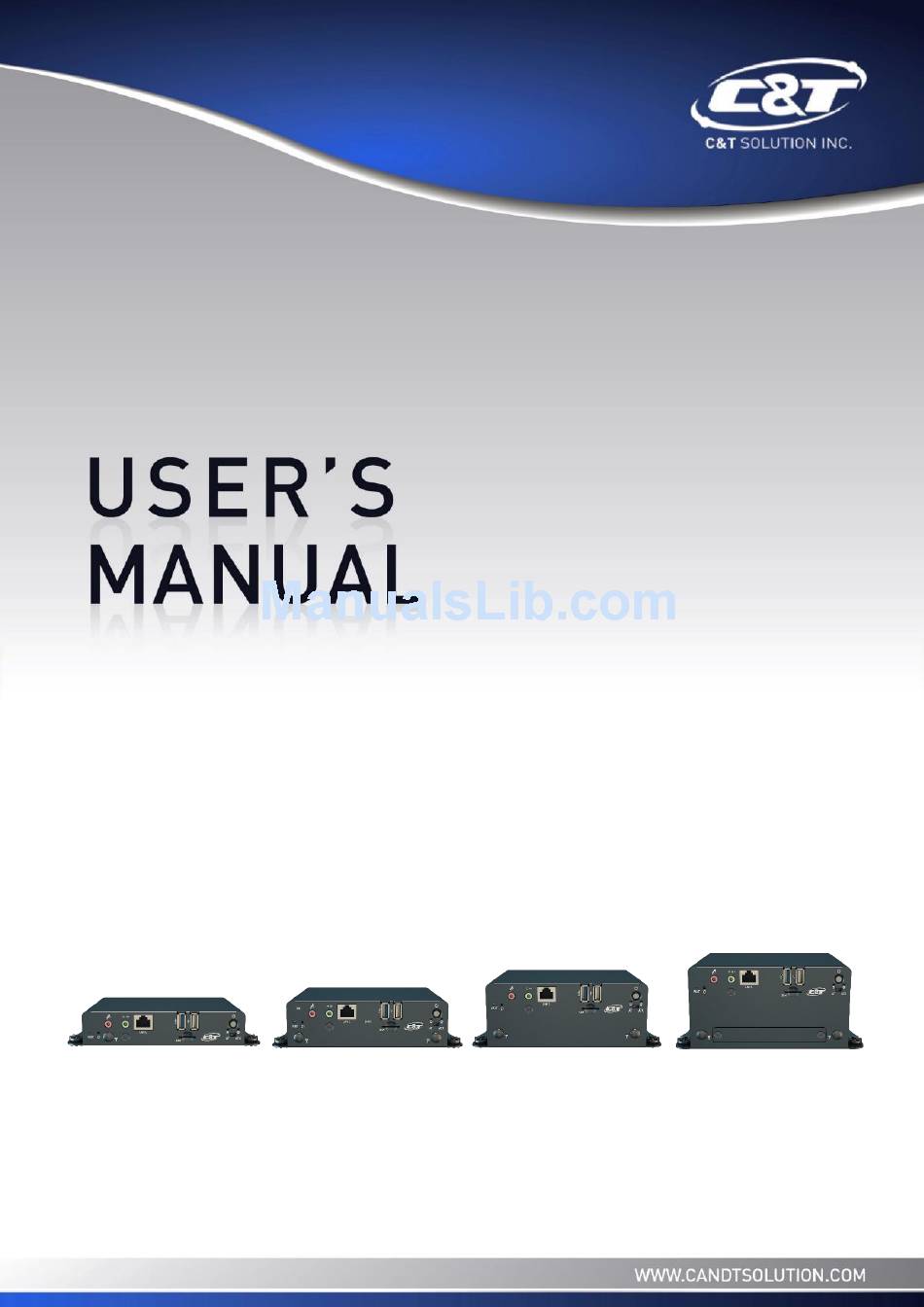

  • Page 1 BCO-1000 Series Basic Fanless Embedded System...

  • Page 2: Table Of Contents

    BCO-1000 l User’s Manual Table of Contents Prefaces …………………………………………………….……………………………………………. 04 Revision …………………………………………………………………………………………..……………….……….. 04 Disclaimer ………………………………………………………..…….…….………………………….……………….. 04 Copyright Notice …………………………………….…………………….…………………………………………… 04 Trademarks Acknowledgment …………..………………………………………………………....04 Environmental Protection Announcement …………………………….………………….……………….. 04 Safety Precautions ………………………………………….……………………………….…………….………….. 05 Technical Support and Assistance …………………………………….…………….…………….…………….06 Conventions Used in this Manual ………………………………………………………………….….………..06 Package Contents …………………………………………………………………………………………….…………...
  • Page 3 BCO-1000 l User’s Manual Chapter 4 BIOS Setup …………………………………………………………………………… 47 BIOS Introduction …….……….……………………………………..….…….…..….…………...48 Main Setup ……..……….………………….…………………………..…….….………………..49 4.2.1 System Date …….……………………………………………..……..……………………..49 4.2.2 System Time ………..…………………………………………..……….…………………... 49 Advanced Setup ………………………………………………………..…………………………….. 50 4.3.1 Trusted Computing (Optional) ……………………………………………………… 50 4.3.2 ACPI Settings ……..…………………………………………………………..……………….51 4.3.3 Super IO Configuration …………………………….………..…………………..……... 52 4.3.4 Hardware Monitor ………………………………………….………………………..…..56...

  • Page 4: Prefaces

    BCO-1000 l User’s Manual Prefaces Revision Revision Description Date Manual Released 2018/01/15 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading.

  • Page 5: Safety Precautions

    Preface BCO-1000 l User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions:  Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage.  The power outlet shall be installed near the equipment and shall be easily accessible.

  • Page 6: Technical Support And Assistance

    Preface BCO-1000 l User’s Manual Technical Support and Assistance 1. Visit the C&T Solution Inc. website at www.candtsolution.com where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance.

  • Page 7: Package Contents

    Preface BCO-1000 l User’s Manual Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty BCO-1000 Series Embedded System Utility DVD Driver Accessory Kit DVI to VGA Adapter Ordering Information Model No.

  • Page 8: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 9: Overview

    DVI-I display interface to provide further VGA/DVI-D connection to deliver Ultra HD smooth visual display. The BCO-1000 series is equipped with one internal 2.5” SATA HDD bays and one mSATA (shared by 1x Mini PCI Express) to provide sufficient storage.

  • Page 10: Hardware Specification

    • 1x USB 2.0 Port • 2 x DB9 for COM1~2, Support RS232/422/485 with Auto Certifications Flow Control (BCO-1000 / BCO-1010 / BCO-1010A only) • 4 x DB9 for COM1~4, Support RS232/422/485 with Auto • CE • FCC Class A...

  • Page 11: System I/O

    BCO-1000 l User’s Manual Chapter 1: Product Introductions 1.3 System I/O 1.3.1 BCO-1000 Front Panel SIM card ATX power on/off switch Used to insert a SIM card Press to power-on or power-off the system LAN port AT/ATX mode select switch...
  • Page 12 BCO-1000 l User’s Manual Chapter 1: Product Introductions Rear Panel COM port DC IN COM1 ~ COM2 support RS232/422/485 serial Used to plug a DC power input with terminal device block Antenna hole DVI-I port Used to connect an antenna for optional Mini-...

  • Page 13: Bco-1010 / Bco-1010A / Bco-1010B

    BCO-1000 l User’s Manual Chapter 1: Product Introductions 1.3.2 BCO-1010 / BCO-1010A / BCO-1010B Front Panel SIM card ATX power on/off switch Used to insert a SIM card Press to power-on or power-off the system LAN port AT/ATX mode select switch...
  • Page 14 BCO-1000 l User’s Manual Chapter 1: Product Introductions Rear Panel Digital I/O Terminal Block The Digital I/O terminal block supports 4 digital DC IN input and 4 digital output (BCO-1010A Only) Used to plug a DC power input with terminal...

  • Page 15: Bco-1020C / Bco-1020D

    BCO-1000 l User’s Manual Chapter 1: Product Introductions 1.3.2 BCO-1020C / BCO-1020D Front Panel SIM card ATX power on/off switch Used to insert a SIM card Press to power-on or power-off the system LAN port AT/ATX mode select switch Used to connect the system to a local area...
  • Page 16 BCO-1000 l User’s Manual Chapter 1: Product Introductions Rear Panel Digital I/O Terminal Block The Digital I/O terminal block supports 4 digital DC IN input and 4 digital output Used to plug a DC power input with terminal block COM port...

  • Page 17: Bco-1030

    BCO-1000 l User’s Manual Chapter 1: Product Introductions 1.3.2 BCO-1030 Front Panel SIM card Used to insert a SIM card ATX power on/off switch Press to power-on or power-off the system LAN port Used to connect the system to a local area...
  • Page 18 BCO-1000 l User’s Manual Chapter 1: Product Introductions Rear Panel Digital I/O Terminal Block DC IN The Digital I/O terminal block supports 4 digital Used to plug a DC power input with terminal input and 4 digital output block COM port...

  • Page 19: Mechanical Dimension

    BCO-1000 l User’s Manual Chapter 1: Product Introductions 1.4 Mechanical Dimensions 1.4.1 BCO-1000 Unit: mm...

  • Page 20: Rco-1010 / Rco-1010A / Rco-1010B

    BCO-1000 l User’s Manual Chapter 1: Product Introductions 1.4.2 BCO-1010 / BCO-1010A / BCO-1020B Unit: mm...

  • Page 21: Rco-1020C / Rco-1020D

    BCO-1000 l User’s Manual Chapter 1: Product Introductions 1.4.3 BCO-1020C / BCO-1020D Unit: mm...

  • Page 22: Rco-1030

    BCO-1000 l User’s Manual Chapter 1: Product Introductions 1.4.4 BCO-1030 Unit: mm...

  • Page 23: Chapter 2 Switches And Connectors

    Chapter 2 Switches and Connectors...

  • Page 24: Switch And Connector Locations

    BCO-1000 l User’s Manual Chapter 2: Switches and Connectors 2.1 Switch and Connector Locations 2.1.1 Top View...

  • Page 25: Bottom View

    BCO-1000 l User’s Manual Chapter 2: Switches and Connectors 2.1.2 Bottom View 2.1.3 Daughter board view...

  • Page 26: Connector / Switch Definition

    BCO-1000 l User’s Manual Chapter 2: Switches and Connectors 2.2 Connector / Switch Definition List of Connector / Switch Connector Location Definition AT_ATX1 AT / ATX Power Mode Switch CLR_CMOS1 Clear BIOS Switch PWR_SW1 Power Switch PWR_LED1 Power LED Status...

  • Page 27: Switch Definitions

    BCO-1000 l User’s Manual Chapter 2: Switches and Connectors 2.3 Switches Definitions AT_ATX1: AT / ATX Power Mode Switch Switch Definition ATX Power Mode（Default） 1-2 (Right) 2-3 (Left) AT Power Mode CLR_CMOS1: Clear BIOS Switch Switch Definition Normal Status (Default) Clear BIOS 2.4 Connectors Definitions...
  • Page 28 BCO-1000 l User’s Manual Chapter 2: Switches and Connectors USB3_1: USB 3.0 Connector, Type A Definition Definition USB3_RX+ USB2_DATA1- USB2_DATA1+ USB3_TX- USB3_TX+ USB3_RX- LAN1: RJ45 with LEDs Port Definition Definition LAN1_MDI0P LAN1_MDI2N LAN1_MDI0N LAN1_MDI1N LAN1_MDI1P LAN1_MDI3P LAN1_MDI2P LAN1_MDI3N Link LED Status...
  • Page 29 BCO-1000 l User’s Manual Chapter 2: Switches and Connectors LINE_OUT1 : Line-out Jack (Green) Connector Type: 5-pin Phone Jack Definition OUT_R OUT_L MIC_IN1: Microphone Jack (Pink) Connector Type: 5-pin Phone Jack Definition MIC_R MIC_L RESET1 : Reset Button Definition RESET DC_IN1: DC Power Input Connector (+9~30V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch...
  • Page 30 BCO-1000 l User’s Manual Chapter 2: Switches and Connectors DVI_I1: DVI-I Connector Definition Definition DVI_TX2- DVI Hot Plug Detect DVI_TX2+ DVI_TX0- DVI_TX0+ DDC_CLOCK DDC_DATA VGA VSYNC DVI_TXCLK+ DVI_TX1- DVI_TXCLK- DVI_TX1+ VGA_RED VGA_GREEN VGA_BLUE VGA_HSYNC COM1_1: RS232 / RS422 / RS485 Connector...
  • Page 31 BCO-1000 l User’s Manual Chapter 2: Switches and Connectors COM2_1: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 Full RS485 Half Duplex RS232 Definition Duplex Definition Definition DCD2 TX2- DATA2- RxD2 TX2+ DATA2+ TxD2 RX2+...
  • Page 32 BCO-1000 l User’s Manual Chapter 2: Switches and Connectors CN2: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS422 / 485 Full RS485 Half Duplex RS232 Definition Duplex Definition Definition DCD4 (DCD6) TX4- (TX6-) DATA4- (DATA6-) RxD4 (RxD6)
  • Page 33 BCO-1000 l User’s Manual Chapter 2: Switches and Connectors...
  • Page 34 BCO-1000 l User’s Manual Chapter 2: Switches and Connectors MINIPCIE1: Mini PCI-Express Socket Definition Definition Definition WAKE# +3.3V +3.3V USB_DP1 +3.3V MINIPCIE RST# MINIPCIE_RXN1 +3.3V +1.5V +3.3V CLKREQ1# MINIPCIE_RXP1 +1.5V MINIPCIE_CLKN1 SMB_CLK +1.5V MINIPCIE_CLKP1 MINIPCIE_TXN1 SMB_DATA MINIPCIE_TXP1 +3.3V USB_DN1 CN3: Mini PCI-Express / mSATA Socket...
  • Page 35 BCO-1000 l User’s Manual Chapter 2: Switches and Connectors SATA1: SATA with Power Connector Definition Definition SATA_TXP1 SATA_TXN1 SATA_RXN1 SATA_RXP1 +3.3V +3.3V +12V +3.3V +12V +12V...

  • Page 36: Chapter 3 System Setup

    Chapter 3 System Setup...

  • Page 37: Set Torque Force To 3.5 Kgf-Cm To Execute All The Screwing And Unscrewing

    BCO-1000 l User’s Manual Chapter 3: System Setup 3.1 Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing. In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source.

  • Page 38: Installing Sodimm

    BCO-1000 l User’s Manual Chapter 3: System Setup 3.3 Installing SODIMM 1. Unscrew three screws on the chassis: one screw on front panel, one screw on system left side, and one screw on system right side. 2. Hold the chassis top cover. Pull the system main body following the below direction so the...
  • Page 39 BCO-1000 l User’s Manual Chapter 3: System Setup 3. System main body and top cover separated. 4. Insert memory module from 45 degree direction. 5. Press the memory module vertically downward until you hear the “click” sound. Make sure the memory module is firmly in place.

  • Page 40: Installing Sata Hdd/Ssd

    BCO-1000 l User’s Manual Chapter 3: System Setup 3.4 Installing SATA HDD/SSD 1. Remove HDD bracket by unscrewing the four screws. 2. Lock the 2.5” HDD with HDD bracket using four screws.
  • Page 41 BCO-1000 l User’s Manual Chapter 3: System Setup 3. Insert the entire bracket following the below direction so the SATA connector is firmly plugged into the HDD. 4. Fasten the four screws to lock the HDD bracket in place.

  • Page 42: Installing Mini Pcie Card / Msata

    BCO-1000 l User’s Manual Chapter 3: System Setup 3.5 Installing Mini PCIe card / mSATA 1. Place the system body upside down so you can see the 2x mini card socket. Mini PCIe 2 (CN3) can support mSATA. Mini PCIe 1 Mini PCIe 2 / mSATA 2.

  • Page 43: Installing Antenna

    BCO-1000 l User’s Manual Chapter 3: System Setup 3.6 Installing antenna 1. Remove antenna hole cover on the system panel. 2. Have antenna jack penetrate through the hole.
  • Page 44 BCO-1000 l User’s Manual Chapter 3: System Setup 3. Put on washer and fasten the nut with antenna jack. 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at the cable-end onto the communication module.

  • Page 45: Ssemble Chassis Bottom Cover

    BCO-1000 l User’s Manual Chapter 3: System Setup 3.7 Assemble chassis bottom cover 1. Place the bottom cover according to the below direction. 2. Lock the bottom cover with the four screws.

  • Page 46: Installing Sim Card

    BCO-1000 l User’s Manual Chapter 3: System Setup 3.8 Installing SIM card 1. SIM card socket is located on the front panel of the system. 2. Now you can insert SIM card into the socket. 3. To uninstall SIM card, simply press the installed SIM card and then the card will be pushed...

  • Page 47: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...

  • Page 48: Bios Introduction

    BCO-1000 l User’s Manual Chapter 4: BIOS Setup 4.1 BIOS Introduction The system BIOS software is stored on EEPROM. The BIOS provides an interface to modify the configuration. When the battery is removed, all the parameters will be reset. BIOS Setup Power on the embedded system and by pressing <Del>...

  • Page 49: Main Setup

    BCO-1000 l User’s Manual Chapter 4: BIOS Setup 4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility. The Main setup screen is showed as following when the setup utility is entered. System Date/Time is set up in the Main Menu.

  • Page 50: Advanced Setup

    BCO-1000 l User’s Manual Chapter 4: BIOS Setup 4.3 Advanced Setup 4.3.1 Trusted Computing (Optional) ■ Security Device Support Enable or disable TPM function...

  • Page 51: Acpi Settings

    BCO-1000 l User’s Manual Chapter 4: BIOS Setup 4.3.2 ACPI Settings ■ Enable ACPI Auto Configuration This item allows you to enable or disable BIOS ACPI Auto Configuration. ■ Enable Hibernation This item allows you to enable or disable system ability to hibernate.

  • Page 52: Super Io Configuration

    BCO-1000 l User’s Manual Chapter 4: BIOS Setup 4.3.3 Super IO Configuration This setting allows you to select options for the Super IO Configuration, and change the value of the selected option. ■ Serial Port 1 Configuration  Serial Port This item allows you to enable or disable serial port.
  • Page 53 BCO-1000 l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 2 Configuration  Serial Port This item allows you to enable or disable serial port.  Change Settings This item allows you to change the address & IRQ settings of the specified serial port.
  • Page 54 BCO-1000 l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 4 Configuration  Serial Port This item allows you to enable or disable serial port.  Change Settings This item allows you to change the address & IRQ settings of the specified serial port.
  • Page 55 BCO-1000 l User’s Manual Chapter 4: BIOS Setup ■ Serial Port 6 Configuration  Serial Port This item allows you to enable or disable serial port.  Change Settings This item allows you to change the address & IRQ settings of the specified serial port.

  • Page 56: Hardware Monitor

    BCO-1000 l User’s Manual Chapter 4: BIOS Setup 4.3.4 Hardware Monitor These items display the current status of all monitored hardware devices/ components such as voltages and temperatures. 4.3.5 Serial Port Console Redirection ■ Console Redirection These items allows you to enable or disable COM1 console redirection.

  • Page 57: Cpu Configuration

    BCO-1000 l User’s Manual Chapter 4: BIOS Setup 4.3.6 CPU Configuration ■ Intel Virtualization Technology Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple Virtual systems.

  • Page 58: Ppm Configuration

    BCO-1000 l User’s Manual Chapter 4: BIOS Setup 4.3.7 PPM Configuration ■ CPU C state Report Enables or disables support for CPU's power-saving functions. ■ Enhanced C state Enables or disables Intel CPU Enhanced Halt (C1E) function, a CPU power-saving function in system halt state.

  • Page 59: Sata Configuration

    BCO-1000 l User’s Manual Chapter 4: BIOS Setup 4.3.8 SATA Configuration ■ SATA Speed Support Change the SATA Speed. Select <Gen1> or <Gen2> speed. ■ SATA Mode This item allows you to select IDE or AHCI Mode. ■ Mini Serial – ATA Port 0 This item allows you to enable or disable Serial-ATA Port 0.

  • Page 60: Csm Configuration

    Chapter 4: BIOS Setup BCO-1000 l User’s Manual 4.3.10 CSM Configuration ■ CSM Support Enables or disables UEFI CSM (Compatibility Support Module) to support a legacy PC boot process. ■ Boot option filter This item allows you to select which type of operating system to boot.

  • Page 61: Usb Configuration

    Chapter 4: BIOS Setup BCO-1000 l User’s Manual 4.3.11 USB Configuration ■ Legacy USB Support Allows USB keyboard/ mouse to be used in MS-DOS. ■ XHCI Hand-off Determines whether to enable XHCI (USB3.0) Hand-off feature for an operating system without XHCI (USB3.0) Hand-off support.

  • Page 62: Chipset

    Chapter 4: BIOS Setup BCO-1000 l User’s Manual 4.4 Chipset 4.4.1 North Bridge This section provides information on the installed memory size and memory/onboard graphics-related configuration options.
  • Page 63 Chapter 4: BIOS Setup BCO-1000 l User’s Manual ■ Intel IGD Configuration This section provides onboard graphics-related configuration options.  IGD Turbo Enable This item allows you to enable or disable IGD Turbo.  GFX Boost This item allows you to enable or disable GFX Boost.

  • Page 64: South Bridge

    Chapter 4: BIOS Setup BCO-1000 l User’s Manual 4.4.2 South Bridge ■ Azalia HD Audio Control detection of the Azaliadevice.  Audio Controller Enabled: Azalia will be unconditionally enabled. Disabled: Azalia will be unconditionally disabled. ■ USB Configuration  XHCI Mode This item allows you to enable or disable the USB XHCI controller.
  • Page 65 Chapter 4: BIOS Setup BCO-1000 l User’s Manual ■ PCI Express Configuration  PCI Express Port 1 (mPCIE1) This item allows you to enable or disable PCI Express Port 1 (mPCIE1) in the Chipset.  Speed  Change the PCIe Port Speed. Select <AUTO> ,<Gen 2> or <Gen 1>...

  • Page 66: Security

    Chapter 4: BIOS Setup BCO-1000 l User’s Manual 4.5 Security Security menu allow you to change administrator password and user password settings. 4.5.1 Administrator Password This item allows you to set Administrator Password. 4.5.2 User Password This item allows you to set User Password.

  • Page 67: Boot

    Chapter 4: BIOS Setup BCO-1000 l User’s Manual 4.6 Boot This menu allows you to setup the system boot options. 4.6.1 Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. 4.6.2 Bootup NumLock State This item selects the keyboard NumLock state.

  • Page 68: Save & Exit

    Chapter 4: BIOS Setup BCO-1000 l User’s Manual 4.7 Save & Exit This setting allows you to configure the boot settings. 4.7.1 Save Changes and Reset This item allows you reset the system after saving the changes. 4.7.2 Discard Changes and Reset Select this option to quit Setup without making any permanent changes to the system configuration.
  • Page 69 Copyright © C&T Solution Inc. All Rights Reserved www.candtsolution.com...

This manual is also suitable for:

Bco-1010aBco-1010bBco-1020cBco-1020dBco-1030Bco-1010 ... Show all
