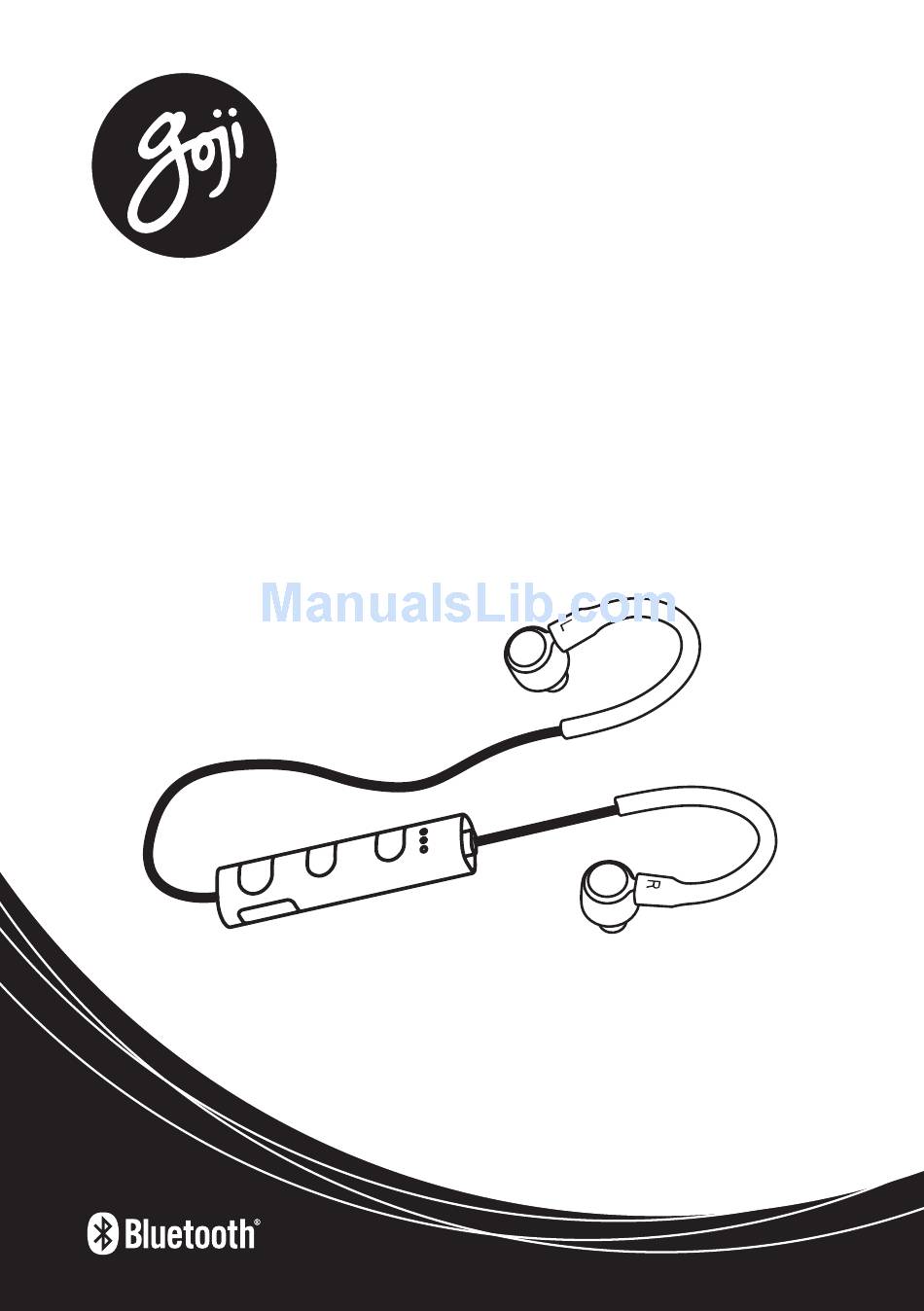

- Page 1 Ear Hook Wireless Sports Headphones Instruction Manual GSPINBT16...
-
Page 3: Table Of Contents
Contents Safety Warnings ...............4 Unpacking ................6 Product Overview ............7 Charging the Battery ............8 Switching On/Off .............9 Bluetooth Pairing ............10 Operation ...............11 Reset the Headphones ..........12 Hints and Tips..............12 Specifications ..............13... -
Page 4: Safety Warnings
Safety Warnings • For traffic safety, do not use earphones while driving or cycling. Damage • Please inspect the unit for damage after unpacking. • Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, unplug from the mains socket and consult your dealer. - Page 5 Earphones • Listening to loud sounds for prolonged periods of time may permanently damage your hearing. • Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.
-
Page 6: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -

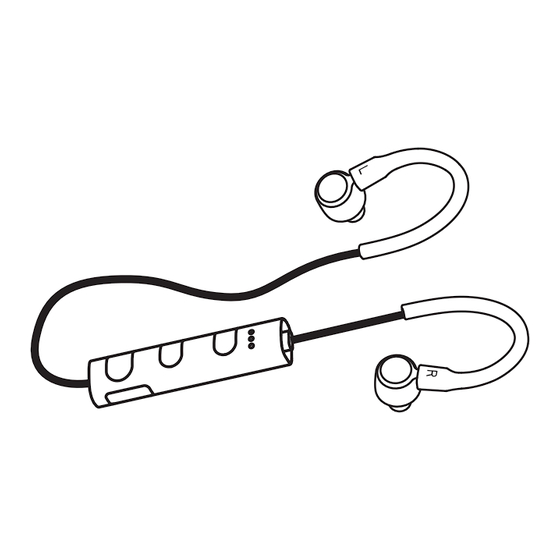

Page 7: Product Overview
Product Overview button button • Decrease volume • Increase volume • Go to previous track • Go to next track button 4. Charger connector • Switch the 5. Status indicator earphones on/off 6. Microphone • Multi-functional... -
Page 8: Charging The Battery
Charging the Battery When using the unit for the first time, charge it fully first. 1. Connect the USB charging cable to the earphones. 2. Connect the other end of the USB charging cable to a powered USB device. Status LED Indicator Low battery The red indicator will flash slowly. -
Page 9: Switching On/Off
Switching On/Off To switch on, press and hold until the blue indicator lights up. • If the earphones are already paired with a Bluetooth device before, it will automatically connect with the last paired device when both are in pairing mode. To switch off, press and hold until the red indicator lights up for 2 seconds. -
Page 10: Bluetooth Pairing
The red and blue indicator starts flashing rapidly and alternately. 3. Activate the Bluetooth feature on your Bluetooth device and start searching. Then select “GSPINBT16”. 4. If necessary, enter the passcode, “0000”, to pair and connect the earphones. Some device also ask to confirm the headset connection after paring. -
Page 11: Operation
Operation If you receive or make a call while listening to music, the music is paused until you end the call. Frequency Increase volume repeatedly as desired Decrease volume repeatedly as desired Call Functions Answer / end a call once Reject a call twice Redial last call... -
Page 12: Reset The Headphones
Reset the Headphones To hardware reset the headphones, connect the USB cable to a charging source. Hints and Tips Product not working: • Recharge the product. • Ensure the product is switched on. • Ensure your Bluetooth-enabled device’s wireless function is active. •... -
Page 13: Specifications
Specifications Model GSPINBT16 Sensitivity 82dB Impedance 32Ω Rated Input DC 5V 100mA Frequency Response 20 Hz - 20 kHz Bluetooth Interface Bluetooth 4.1 Bluetooth Profiles A2DP, AVRCP, HFP, HSP Operating Distance Battery Type Lithium ion 70mAh Battery Life Up to 4.5 hrs Charging time 2.5 hrs... - Page 14 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 561 1234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
- Page 16 DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK IB-GSPINBT16-170209V3...
