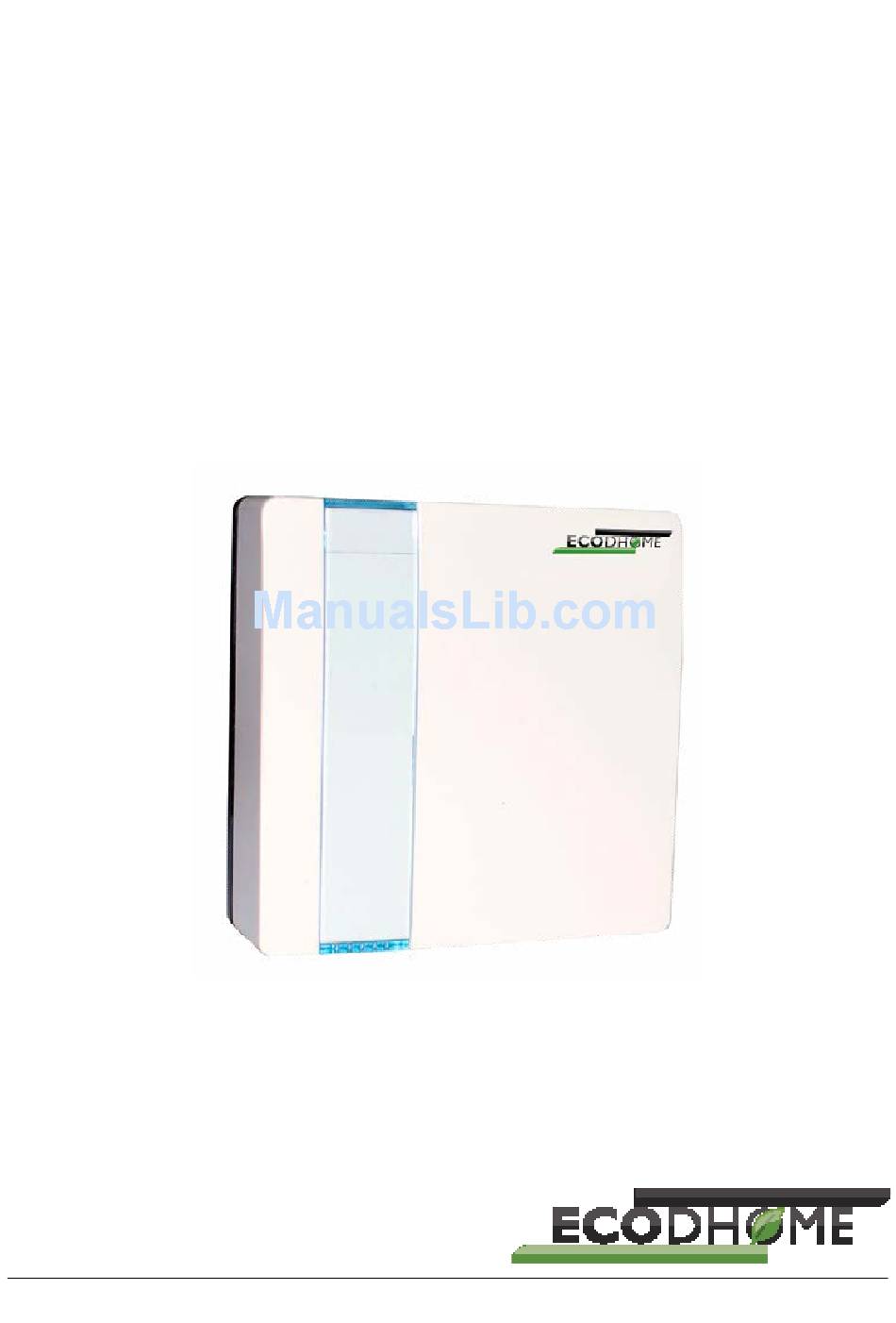

- Page 1 Temperature and humidity sensor with multi sensor input Installation Manual www.ecodhome.com...
-
Page 2: Table Of Contents
Summary 14 – Introduction 15 – Product description and specification 16 – Mounting 18 – Installation 20 – Operation 20 – Warning 20 – Limited warranty... -
Page 3: Introduction
Introduction Thank you for choosing the SmartDhome temperature and humidity sensor. This module is a Z-Wave enabled device and is fully compatible with MyVirtuoso Home network. -
Page 4: Product Description And Specification
Product description and specification The Temperature and humidity sensor (with multi sen- sor input) is a battery operated temperature sensor which is able to measure temperature and humidity and deliver the information to the MyVirtuoso Home gateway (mains powered version is also available Pt No: 01335-7055-00). -
Page 5: Mounting
Battery: AA size x 2 (mains powered version Pt No: 01335-7055-00). Temperature range: 0.5°C ~ 40°C. Temperature range with external NTC sensor (01335-1857-00 not included): 15°C ~ 85°C. Temperature range with Pipe and tank sensor 1m cable (01335-1859-00 - not included): 0°C ~ 65°C. Temperature range with Pipe and tank sensor 4m cable (01335-1861-00 - not included): 0°C ~ 85°C. - Page 6 Choose the position where the unit is to be mounted (refer to the following layout). Avoid locations alongside or behind large metal surfaces that could interfere with the low power radio signals between the unit and MyVirtuoso Home gate-...
-
Page 7: Installation
way. The sensor should be mounted on an internal wall, approximately 1.5 metres (5 feet) above floor level and away from draughts, direct heat sources and sunlight. Make sure that there is sufficient space around the unit to allow easy access to the two retaining spring clips on the base of the wall plate. - Page 8 sign (mains powered version also available Pt No: 01335-7055-00). For Inclusion: Put MyVirtuoso Home gateway into “inclusion” mode and press the inclusion/exclu- sion button of the device once (Press for at least one second). For Exclusion: Put MyVirtuoso Home gateway into “exclusion”...
-
Page 9: Operation
Note: During the inclusion/exclusion phase, the device should be within 1 meter of MyVirtuoso Home gateway. Operation After including into the gateway, the temperature and humidity sensor sends the measured information. Warning Do not dispose of electrical appliances along with gen- eral waste, use separate collection facilities. -
Page 10: Limited Warranty
Limited warranty Visit the website page: http://www.ecodhome.com/acquista/garanzia-e-ri- parazioni.html SmartDHOME Srl www.ecodhome.com info@smartdhome.com For United Kingdom and Ireland only, refer to: www.ecodhome.co.uk info@smartdhome.co.uk P/N 01335-1855-00 Main power version: 01335-7055-00 Rev. 04/2016...
