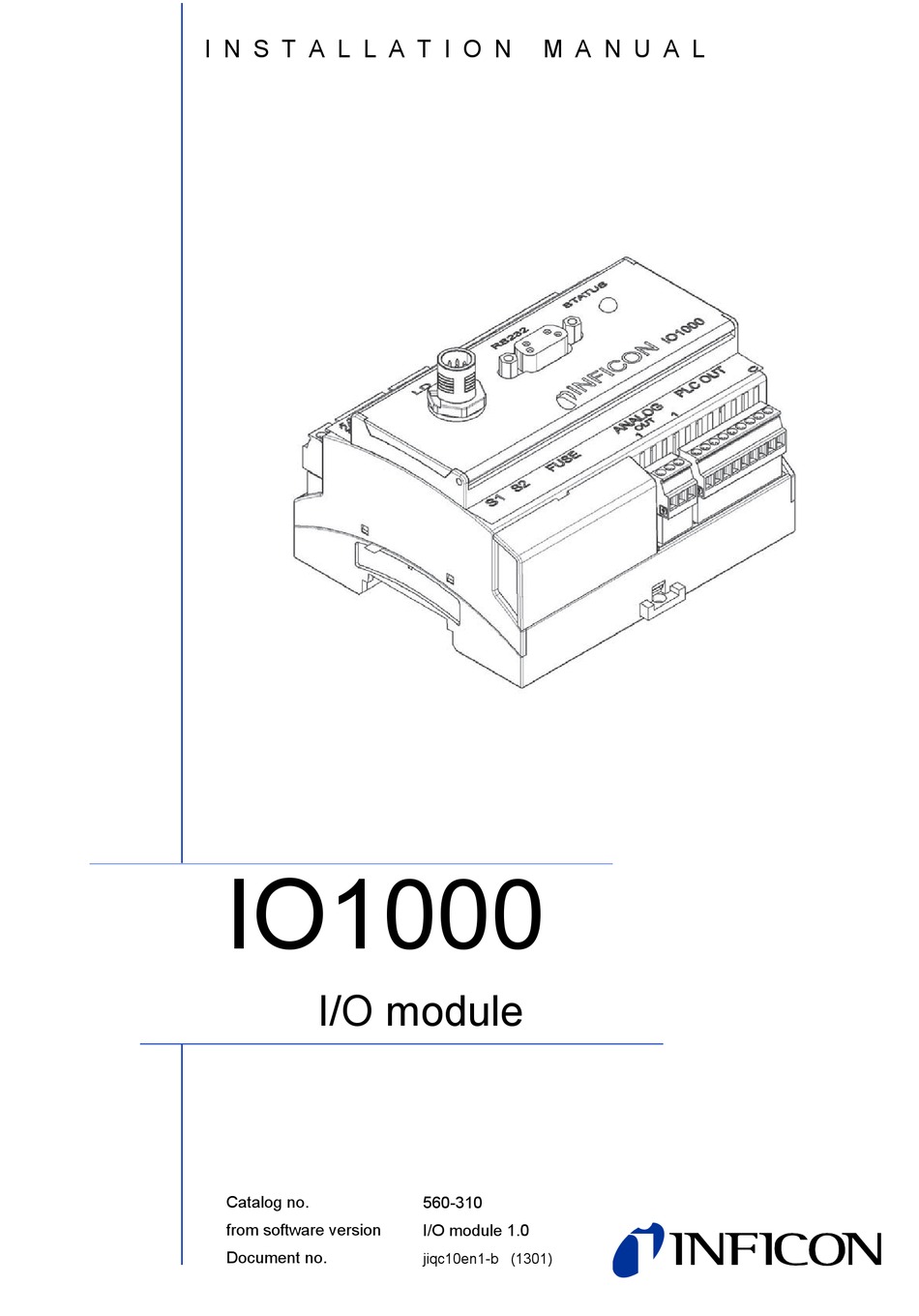

  • Page 1 I N S T A L L A T I O N M A N U A L IO1000 Type designation Product description I/O module Catalog no. 560-310 from software version I/O module 1.0 Document no. jiqc10en1-b (1301)
  • Page 2 This document applies to the software version stated on the cover page. If you need a different version, please contact our sales staff. Reprint, translation and duplication need to be approved in writing by INFICON GmbH.

  • Page 3: Table Of Contents

    Content About this manual ......4 Target groups ..........4 Other applicable documents .

  • Page 4: About This Manual

    About this manual Target groups This installation manual is intended for the operator and for technically qualified personnel with experience in leak detection technology and integration of leak detection devices in leak detection systems. In addition, the installation and use of the unit require knowledge of electronic interfaces.

  • Page 5: Text Markings

    1.3.2 Text markings Marking Meaning Requirement for execution of an action  Tool or aid for an action  Instruction ► 1, 2, 3, ... Several instructions in a fixed order  Result of an action Designation of the unit or command/term from the menu MALL CAPS Useful tips and information Information...

  • Page 6: Safety

    Safety Intended use The I/O module is a device interface between the MSB box of the mass spectrometer module LDS3000 and an external controller, for example. ► Install, operate and service the unit only in compliance with this manual. ► Comply with the limits of application (see Chapter 4.3, page 14).

  • Page 7: Shipment Check, Transport, Storage

    Shipment check, transport, storage Checking shipment Scope of delivery Article Quantity I/O module Installation manual ► Check shipment to make sure it is complete. Transport Damage due to unsuitable packaging material Transport in unsuitable packaging material can damage the unit. ►...

  • Page 8: Description

    Description Construction of the I/O module Fig: 1 Front view 1 - PLC IN Digital inputs PLC-IN PLC-IN PLC/SPS 1 Dyn CAL / Normal Cal PLC/SPS 1 Dyn CAL / Normal Cal 2 SNIFF / VAC 0 - 24V 2 SNIFF / VAC 3 STOP 3 STOP 4 ZERO...
  • Page 9 Connection plug arrangement The digital inputs can be freely configured. Pin Name Factory setting mass spectrometer module PLC-IN 1 Dyn CAL / Normal Cal PLC-IN 2 SNIFF/VAC PLC-IN 3 STOP PLC-IN 4 ZERO PLC-IN 5 EXT.CAL PLC-IN 6 INT.CAL PLC-IN 7 CLEAR PLC-IN 8 PLC-IN 9...
  • Page 10 If the hardware handshake cannot be deactivated, then the RS-232 cable can be used as follows: Fig: 3 Connection with RS-232 cable (in case hardware handshake cannot be deactivated) 3 - STATUS Status LED Color Status Meaning illuminates Unit not functional or defective Not ready for operation, communication to mass flashes spectrometer module is not available...
  • Page 11 5 - PLC OUT Digital outputs PLC_OUT_8 PLC_OUT_7 PLC_OUT_6 PLC_OUT_5 PLC_OUT_4 PLC_OUT_3 PLC_OUT_2 PLC_OUT_1 FOA75 PLC_OUT_COM FOA75 Fig: 4 Digital outputs Electrical insulation (max. 60 V DC, 25 V AC against GND) Max. permissible load per output: U = 30 V, I = 0.75 A Fuses for digital outputs 1 ...
  • Page 12 6 - FUSE and DIP switch S1, S2 Fuses for digital outputs and DIP switches (under the cover) Fuses for digital outputs 1 ... 4 and 5 ... 8: 2 x 0.75 A (Schurter: 7010.9800.xx) DIP switch S1 4321 Factory setting -000 (default value of the interface protocol by MS module/control unit) ASCII protocol...
  • Page 13 9 - RS485 Connection for RS-485 A: aktiv B: ohne C: Passiv I/O-Modul I/O-Modul I/O-Modul +5 V +5 V +5 V 562 Ω 562 Ω 562 Ω DIP S2-4 DIP S2-4 DIP S2-4 RS485 RS485 RS485 120 Ω 120 Ω 120 Ω...

  • Page 14: Function

    Function The I/O module is a device interface between the MSB box of the mass spectrometer module LDS3000 and an external controller, for example. The I/O module is equipped with • one RS-232 connection • one RS-485 connection • one analog input •...

  • Page 15: Installation And Removal

    The I/O module communicates via data cable with the mass spectrometer module and is supplied with voltage by the data cable.  Data cables from INFICON 1 Connect I/O module (connection L ) via data cable with MSB box (connection I/...

  • Page 16: Removing The I/O Module

    Removing the I/O module Fig: 7 Removal of the bus module  Flat-tip screwdriver 1 Use the flat-tip screwdriver to pull out the locking device. 2 Remove the I/O module from the top hat rail. Installation and removal...

  • Page 17: Disposal

    Disposal The unit can be disposed of by the user. Information The unit is made of materials that can be reused. By recycling these materials you reduce waste and environmental impact. ► For disposal, always comply with local and regional environmental and safety regulations.
