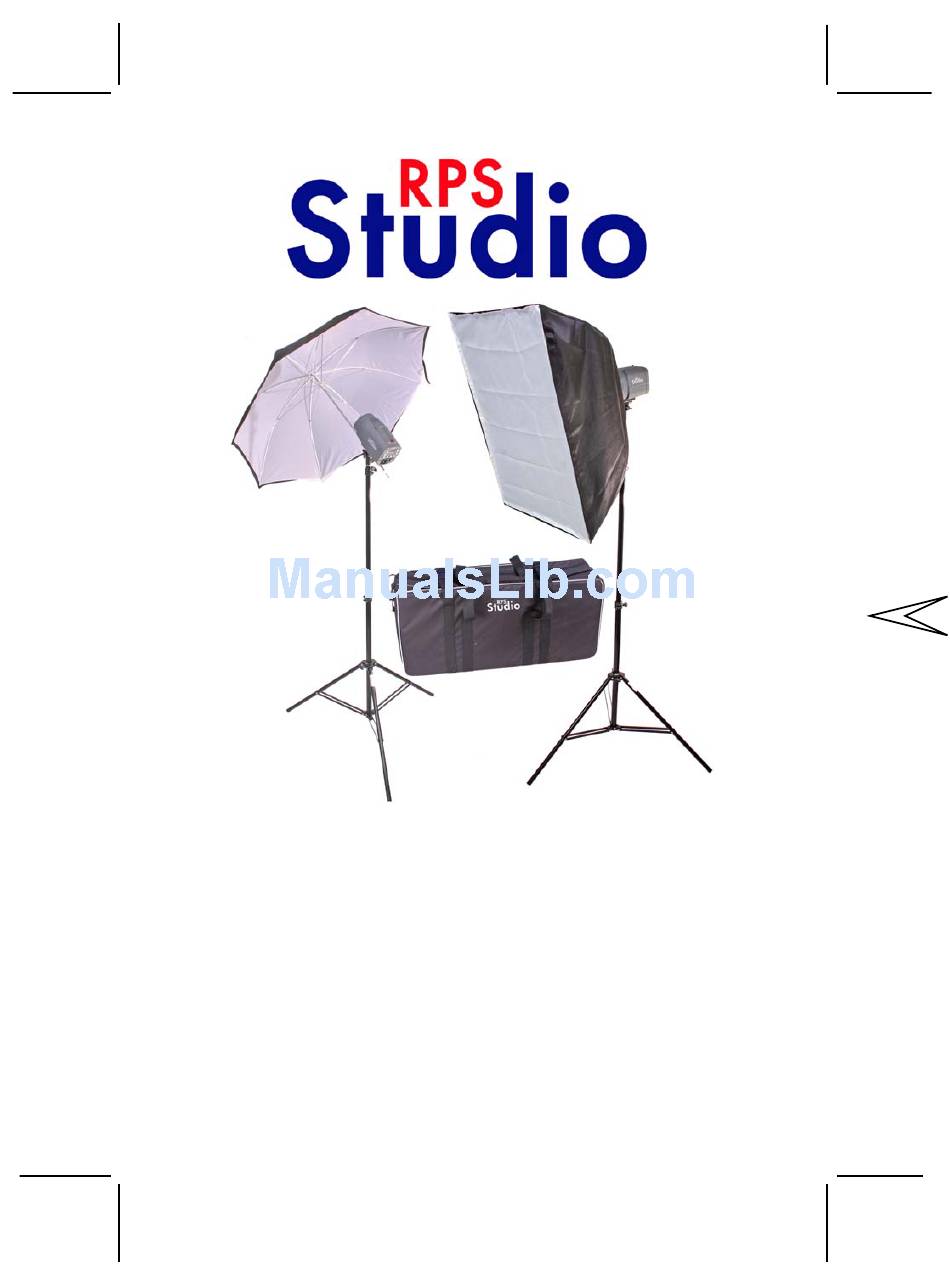

- Page 1 Compact Digital 600 Watt/Second Monolite Kit Instructions Model RS-SB/300SLK Check Our Website for Product Updates, Troubleshooting, and Instructions http://dotlinecorp.com or email: support@dotlinecorp.com...
-
Page 2: Technical Data
Flash Output Power Guide Number f/Stop at 10 ft* Using reflector Full Power Guide Number 220 f/22 Without reflector Full Power Guide Number 160 f/16 *Assuming ISO 100 Sensitivity Technical Data Maximum Output Power 300 Watt/Seconds Maximum Guide Number 220 (ISO 100/ft) 100% Recycling Time 1-3 seconds Power Adjustment... - Page 3 • Caution • • Even unplugged, the unit maintains considerable internal voltage. There are no user serviceable parts inside. Do not disassemble! Refer to authorized service center for any repairs. • Do not exceed 75 Watt modeling lamp. The excess heat can damage the unit.
- Page 4 Photocell Remote Digital Display Display Beeper On/Off Remote Button Modeling Light Ready LED Mode Test Modeling Button Lamp Power Flash Power Sync Cord Power On/Off Power Cord Fuse Cover Tilt Knob Umbrella Mount Mount Knob Setting the Flash Unit’s Controls Photo Cell This cell senses the light of another flash unit.
- Page 5 Setting the Flash Unit’s Controls (continued) 3.5mm Synch Cord Input A synch cord is provided with your flash unit. The input is a 3.5mm mini plug. Power Cord Input 110v AC Power Cord input. Use a grounded outlet. Tilt Knob Loosen this knob to tilt (bounce) the entire flash head.
- Page 6 Using the Kit’s Other Components Light Stands The light stands are easily adjustable. Simply extend the base legs to the maximum spread and tighten. Then adjust the height by pulling the sections to the desired height and locking the knobs in position. Mount the flash unit on the 5/8" post and tighten.
- Page 7 Assembling the softbox (Continued) Insert the rods supplied into the holes on the bracket. These rods will bend to form the shape of the softbox. See picture. Now bend each rod and insert into the silver cups sewn into the front diffusion panel as shown in the picture.
- Page 8 These Instructions are for RS-SB/300 monolites. Pictures may vary. Specifications are subject to change. Printed March 2009. RPS Studio Products are Marketed exclusively by: Dot Line Corp. 9420 Eton Ave. Chatsworth, CA 91311 818-700-9997 • Fax 818-700-9797 www.dotlinecorp.com...
