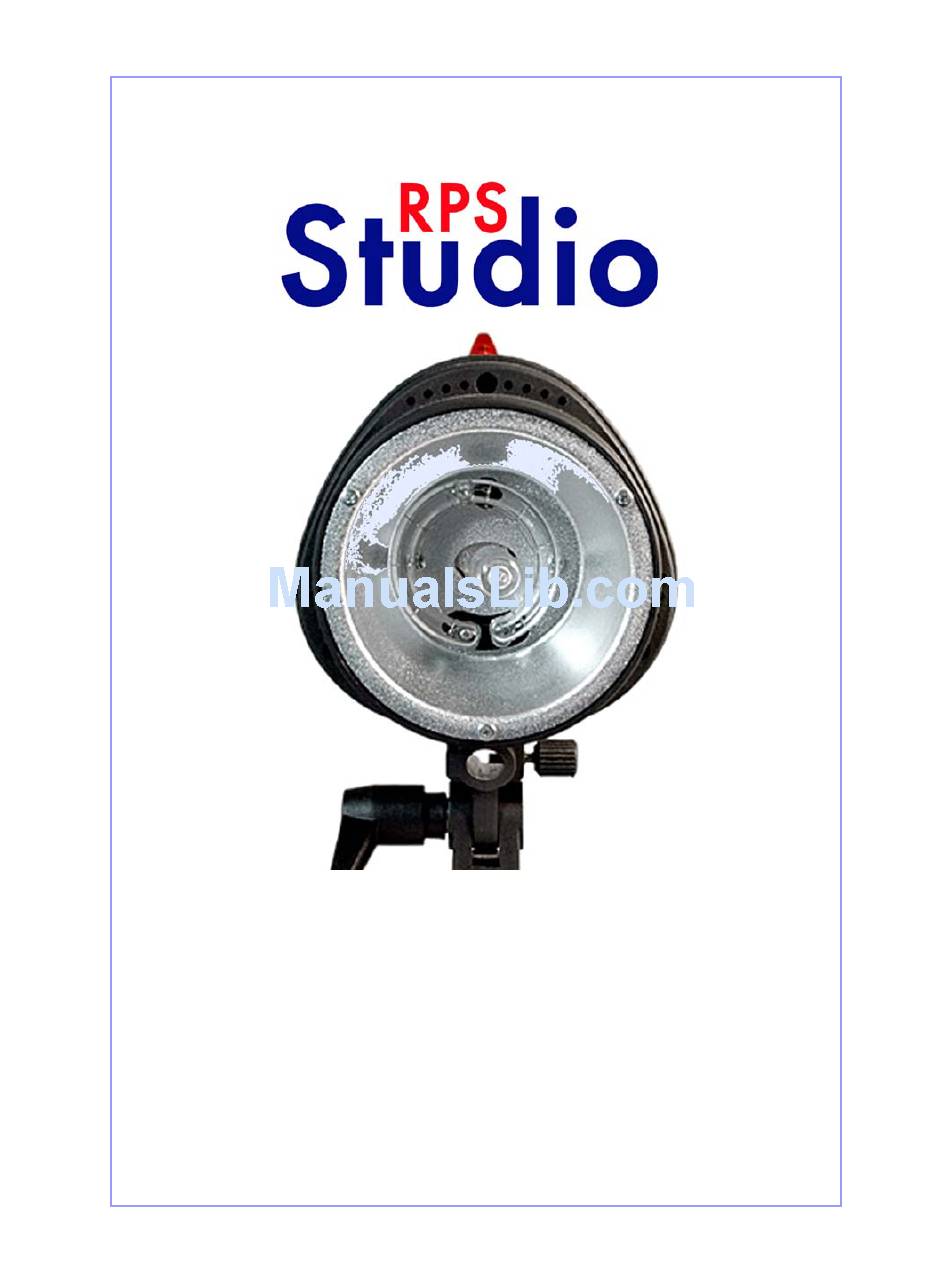

- Page 1 200 Watt/Second Monolite Instructions Model RS-SB200 Check Our Website for Product Updates, Troubleshooting, and Instructions http://dotlinecorp.com or email: support@dotlinecorp.com...
- Page 2 • Caution • • Even unplugged, the unit maintains considerable internal voltage. There are no user serviceable parts inside. Do not disassemble! Refer to authorized service center for any repairs. • Do not exceed 75 Watts modeling lamp. The excess heat can damage the unit.
-
Page 3: Preparing Your Flash For Use
RPS Studio The RPS RS-SB200 Monolite is the latest technological design in high power professional monolites. Built for rugged reliability and great quality. All of the settings are controlled on the back of the unit. Preparing Your Flash for Use 1) Carefully remove the flash unit from the box. - Page 4 Setting the Flash Unit’s Controls Mounting Bracket Allows you to mount the flash unit on a light stand, and also allows you to tilt the flash unit. Umbrella Input Place the umbrella shaft in this socket Test Button To fire the flash without taking a picture, push the test button.
-
Page 5: Modeling Light
Photo Cell Control Middle Position: “ O ” Sound and Photo Cell is Off. Down Position: “ — " Photo Cell On, Sound is On. Up Position: “ = " Sound is Off, Photo Cell On, fires on he second flash and ignores the “preflash” used by some digital cameras. -
Page 6: Technical Data
We recommend testing the monolites in advance to determine the results that produce the effect which you find most appealing. Technical Data Maximum Output Power 200 Watt/Seconds Maximum Guide Number 148 (ISO 100/ft) 100% Recycling Time 3-5 seconds Power Adjustment 1/8th to Full Power adjustable Modeling Lamp... -
Page 7: Optional Accessories
Optional Accessories • Softbox Get softer, more even illumination with one of these soft boxes from RPS Studio. Fits directly onto the front of the strobe. Easy to use and set up. Available in square, rectangular, or octagonal shapes in a wide range of sizes. - Page 8 These Instructions are for RS-SB200 monolites. Pictures may vary. Specifications are subject to change. Printed March 2008. RPS Studio Products are Marketed exclusively by: Dot Line Corp.
