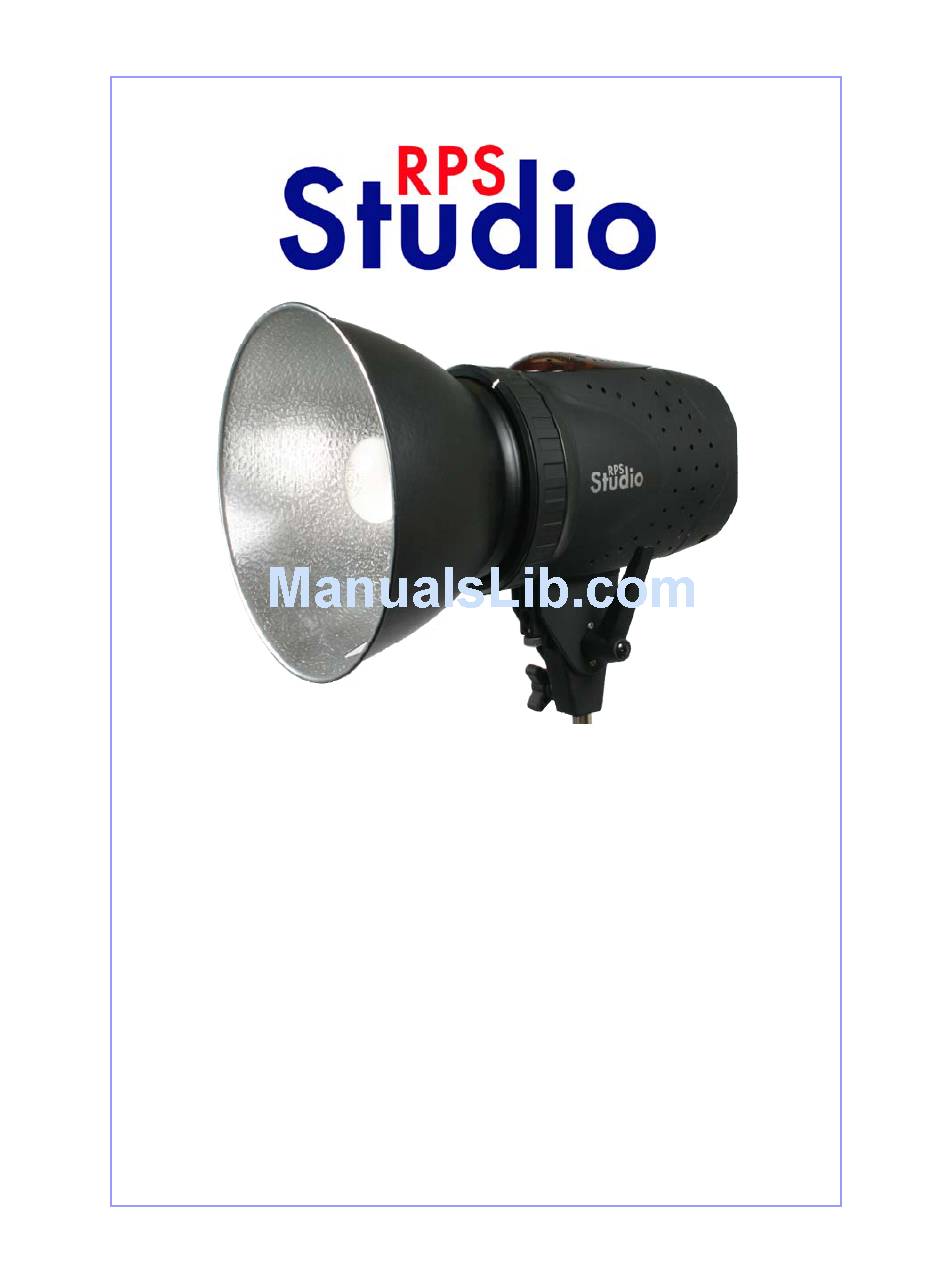

- Page 1 Studio Plus 300 Watt/Second Monolite Instructions Model RS-SP300 Check Our Website for Product Updates, Troubleshooting, and Instructions http://dotlinecorp.com or email: support@dotlinecorp.com...
- Page 2 • Caution • • Even unplugged, the unit maintains considerable internal voltage. There are no user serviceable parts inside. Do not disassemble! Refer to authorized service center for any repairs. • Do not exceed 150 Watts modeling lamp. The excess heat can damage the unit.
- Page 3 RPS Studio Plus The RPS RS-SP300 Monolite is the latest technological design in high power professional monolites. Built for rugged reliability and great quality. All of the settings are controlled on the back of the unit. Preparing Your Flash for Use 1) Carefully remove the flash unit from the box.
- Page 4 Setting the Flash Unit’s Controls Photo Cell Controls the internal Photo Cell. Push in to turn on, push again to turn off the cell. Modeling Light Controls the Modeling light. Push in to turn on, push again to turn off the modeling light. Power Switch Turn the power on and off.
- Page 5 Fuse Holder Pull out the fuse holder to replace the internal fuse. 3.5mm Synch Cord Input A synch cord is provided with your flash unit. The input is a 3.5mm mini plug. Test To fire the flash without taking a picture, push the flash button.
-
Page 6: Technical Data
Flash Output Power Guide Number f/Stop at 10 ft* Full Power Guide Number 160 f/16 1/2 Power Guide Number 110 f/11 1/4 Power Guide Number 80 1/8 Power Guide Number 56 f/5.6 *Assuming ISO 100 Sensitivity Technical Data Maximum Output Power 300 Watt/Seconds Maximum Guide Number 160 (ISO 100/ft) -
Page 7: Optional Accessories
Optional Accessories • Softbox Get softer, more even illumination with one of these soft boxes from RPS Studio. Fits directly onto the front of the strobe. Easy to use and set up. Available in square, rectangular, or octagonal shapes in a wide range of sizes. Perfect for portraits and highly reflective surfaces. - Page 8 These Instructions are for RS-SP300 monolites. Pictures may vary. Specifications are subject to change. Printed March 2008. RPS Studio Products are Marketed exclusively by: Dot Line Corp.
