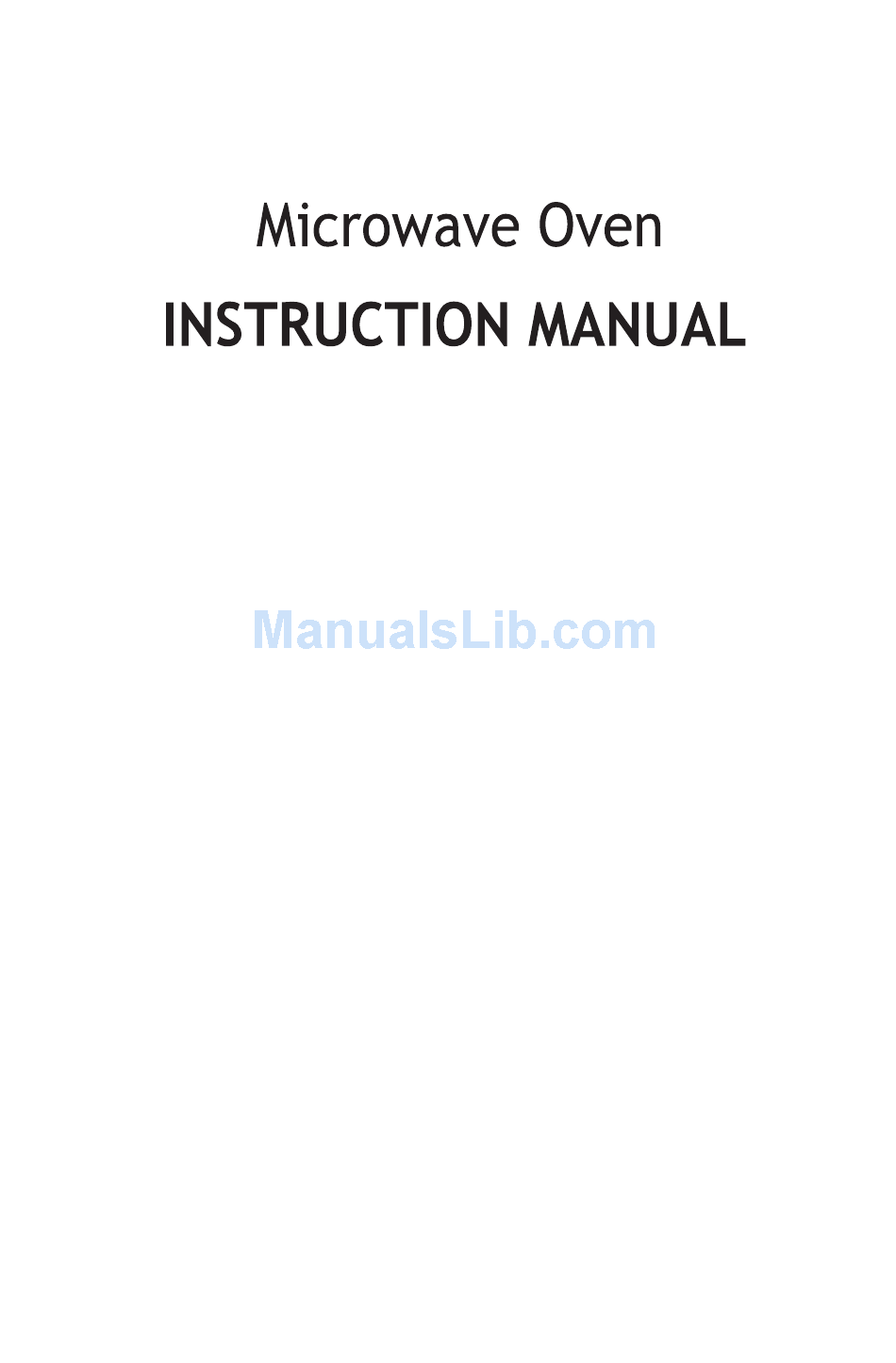

Mode l:EMD34NS1-S
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMD34NS1-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Midea EMD34NS1-S

Summary of Contents for Midea EMD34NS1-S

  • Page 1 Mode l:EMD34NS1-S Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY...

  • Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy

    (2) HINGES AND LATCHES (broken or loosened) (3) DOOR SEALS AND SEALING SURFACE (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. Specifications EMD34NS1-S Model: Rated Voltage: 208V/230V~ 60Hz Rated Input Power(Microwave): 2000 W...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2.

  • Page 4: Grounding Instructions

    THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: 1) Do not overheat the liquid. 2) Stir the liquid both before and halfway through heating it. 3) Do not use straight-sided containers with narrow necks.

  • Page 5: Radio Interference

    WARNING - Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance.

  • Page 6: Materials You Can Use In Microwave Oven

    UTENSILS CAUTION - Personal Injury Hazard Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving.

  • Page 7: Materials To Be Avoided In Microwave Oven

    Materials you can use in microwave oven Utensils Remarks Plastic Microwave-safe only. Follow the manufacturer* instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.

  • Page 8: Names Of Oven Parts And Accessories

    SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Instruction Manual A) Control panel B) Observation window C) Door assembly D) Safety interlock system E) Ceramic board Note: 1) Don't press the ceramic board forcibly.

  • Page 9: Countertop Installation

    Countertop Installation Remove all packing material and accessories. Cabinet: Remove any protective film found Examine the oven for any damage such as on the microwave oven cabinet surface. dents or broken door. Do not install if oven is Do not remove the light brown Mica cover damaged.

  • Page 10: Cleaning Instructions

    Cleaning Instructions Always keep the oven clean 1. Cleaning the glass viewing window, the inner door panel and oven front face. For best performance and to maintain the high degree of safety, the inner door panel and oven front face should be free of food or grease build-up. Wipe these parts with a mild detergent, rinse and wipe dry.

  • Page 11: Control Panel And Features

    OPERATION Control Panel and Features (1) Power Buttons (2) Time cook Button X2 Button Stop/Reset Button Start Button (6) Number Button...

  • Page 12: Operation Instruction

    OPERATION INSTRUCTION Five power levels are available. Level High M. High Defrost Hold Med. Power 100% Display Appendix. User Options Items bolded below are the default values. Option Discription Setting 3 seconds beep O P : 10 OP:11 Continuous beep EOC Tone OP:12 5 quick beeps,Repeating...
  • Page 13 Appendix. B Default Cook T imes The oven shall ship with the following Preset Cook Times unless otherwise noted in the product Specification. Button Cook Factors Display (Time) Power 0:10 100% 0:20 100% 0:30 100% 0:45 100% 1:00 100% 1:30 100% 2:00 100%...

  • Page 14: Ready Mode

    1. Power Up 1) When the oven is electrified for the first time, the screen will display " 230V TOUCH 1 208V TOUCH 2 ". )Choose the voltage by pressing "1" or "2". Then screen will display "230V" or "208V" and "TOUCH START"...

  • Page 15: Pause Mode

    5. Pause Mode 1) While in Manual Cook Mode, or Preset Program Cook Mode, if the door is open and then closed, or if the " " pad is pressed, the oven will enter Pause Mode. 2) While paused, the oven will display the remaining cooking time. 3) Only the fan and lamp work.
  • Page 16 8. End of Cook Cycle Mode 1) After the time has expired in a Manual Cook Mode, or a Preset Program Cook Mode, the oven shall go into The End of Cook Cycle Mode. 2) During this mode, "DONE" displays. 3) If either User Option OP:11 or "OP:12"...
  • Page 17 11. Programming Mode This mode allows the user to assign cook times and power levels to the once touche button. 1) Open the door and press "1" for 5 seconds,the buzzer will sound once and enter to Programming Mode. 2) "PROGRAM" displays. 3) Press any number ,0 to 9,and the LED will display the saved time, then you can input the time you need.
  • Page 18 12. Double Quantity cooking Under ready state, press "X2" button and then press number buttons 0-9 in 5 seconds, the oven will start cooking with the quantity preset cooking time. 2) Press "X2", "DOUBLE" displays. When press number buttons, LED will display the quantity preset time.
  • Page 19 15. Service Mode 1) Open the oven door and press "3" for 5 seconds to enter service mode. 2) LED displays "SERVICE". 3) To check the times of closing or opening the door, just press number button "3", LED will display the times. 4) Press number button "4"...

  • Page 20: Maintenance

    MAINTENANCE Troubleshooting Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY a. Electrical cord for oven is a.
