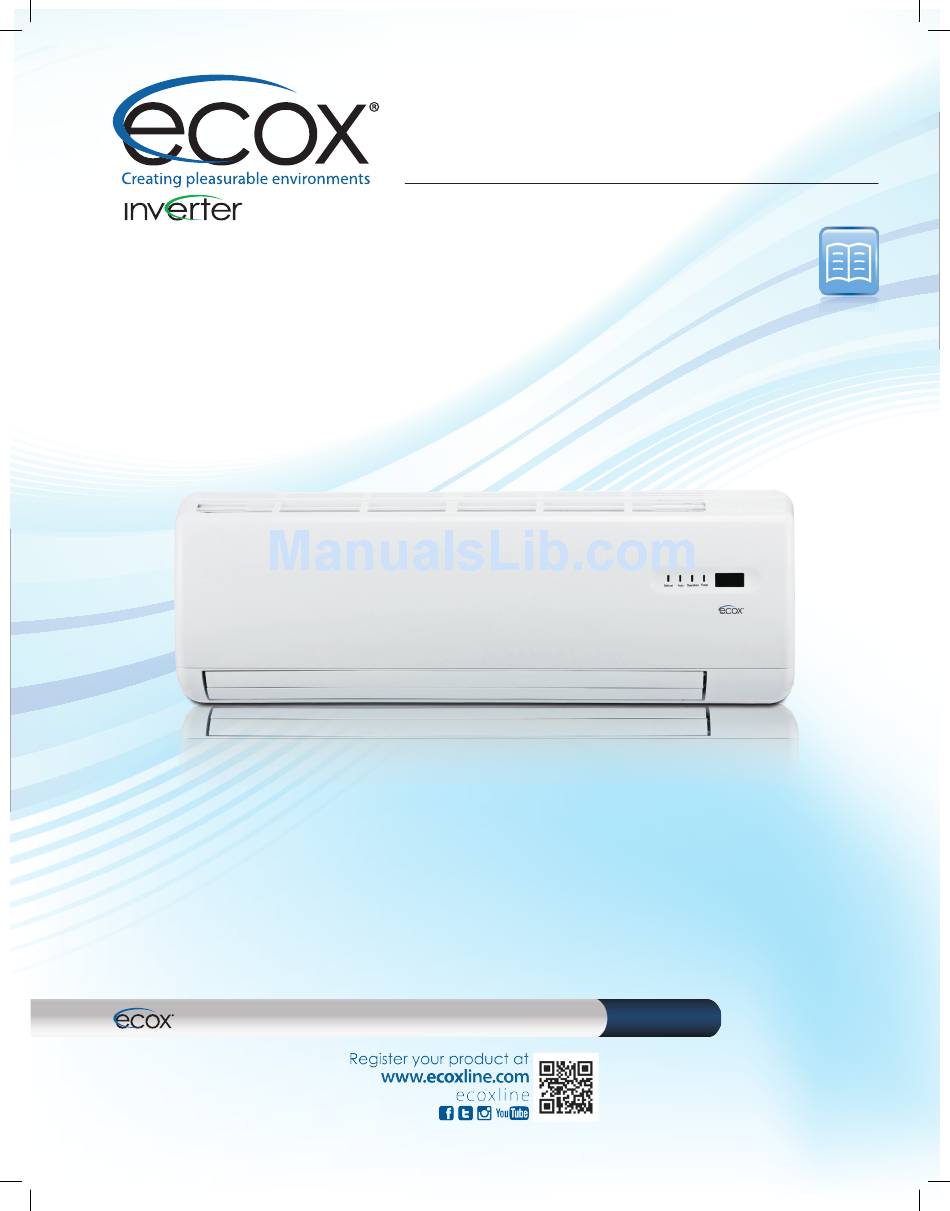

- Page 1 OWNER´S MANUAL Thank you for purchasing this ecox product Before using this machine, please read this manual and retain it for future reference. EDCM EDCM / EACM SPLIT-TYPE ROOM AIR CONDITIONER EDCM...
-
Page 2: Table Of Contents
When using this air conditioner in the European countries, CONTENT please read the following information: SAFETY PRECAUTIONS This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental CAUTION capabilities, or lack of experience and knowledge if they have been NAMES OF PARTS given supervision or instruction concerning use of the appliance INDICATION LAMP... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation Remove all dirt from the power plug and plug it firmly. Soiled due to ignoring of instructions may cause harm or damage. plugs can cause fire or an electric shock. - Page 4 CAUTION Never actuate any switches with a wet hand. It may cause If the air conditioner is to be used in conjunction with other an electric shock. heaters, the air should be refreshed periodically, otherwise there is a risk of lack of oxygen. Never use the device for any other purpose than the intended use.
-
Page 5: Names Of Parts

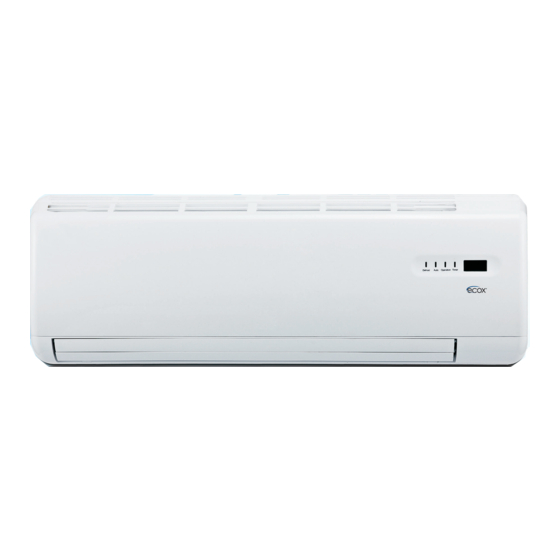

NAMES OF PARTS INDOOR UNIT RUN indication lamp This lamp illuminates when the air conditioner is in operation TIMER indication lamp Front panel Horizontal air flow grille Lights up during timer operation Air inlet Vertical air flow louver(inside) DEFROST indication lamp Display panel Air filter (Enabled on cooling and heating models only):... -
Page 6: Operating Instructions
NOTES NOTE This function is only available under COOL (AUTO COOL, FORCED Optimum performance will be achieved within these operating COOL) and DRY mode. temperatures. If air conditioner is used outside of the above conditions, certain safety protection features Before select the function, it is recommended to run the air might come into operation and cause the unit to function conditioner under Cooling operation for about half an hour. -
Page 7: Airflow Direction Control
AIRFLOW DIRECTION CONTROL CAUTIONS Do not operate the air conditioner for long periods with the air flow direction set downward in cooling or dehumidifying mode. Otherwise, condensation may occur on the surface of the horizontal louver causing moisture to drop on to the floor or on furnishings. -
Page 8: Care And Maintenance
The air conditioner will control room temperature automatically CARE AND MAINTENANCE to the temperature point you set. Before mainatenance If you feel uncomfortable in the AUTO mode, you can set your desired temperature. Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. -
Page 9: Cleaning The Unit
Cleaning the unit Wipe the unit with a soft dry cloth only. If the unit is very dirty, wipe it with a cloth soaked in warm water. Cleaning the air filter and air freshening filter A clogged air filter reduces the cooling efficiency of this unit. Please clean the filter once every 2 weeks. -
Page 10: Normal Function Of The Air Conditioner
CAUTIONS Low noise of the air conditioner You may hear a low hissing sound when the compressor is running or has just stopped running. Do not touch the metal parts of the unit when removing the filter. Injuries can occur when handling sharp metal edges. It is the sound of the refrigerant flowing or coming to a stop. - Page 11 TROUBLESHOOTING GUIDE OPERATION (RUN) indicator or other indicators continue flashing. The unit may stop operation or continue to run in a safety condition(depending on models). Waiting for about 10 If one of the following code appears on the minutes, the fault may be recovered automatically, if not, display area: E0, E1, E1, E2, E3..
- Page 12 EDCM...
